PCA9532_proc.h File Reference

PCA9532 Driver procedures. More...

#include "sarmfsw.h"
#include "PCA9532.h"

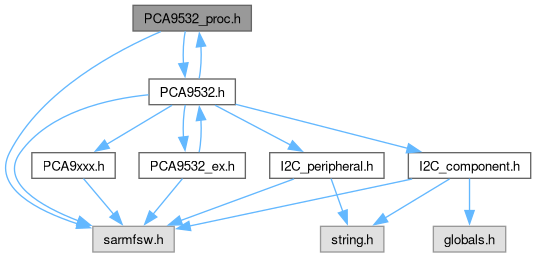

Include dependency graph for PCA9532_proc.h:

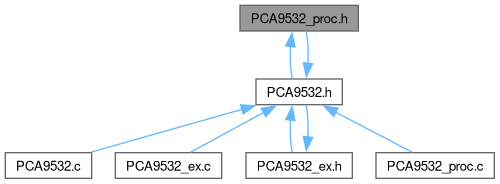

This graph shows which files directly or indirectly include this file:

Data Structures
struct	PCA9532_t
	PCA9532 user interface struct. More...

Macros
#define	PCA9532_NB_CHANNELS   8U
	PCA9532 Number of channels.

Functions
FctERR	PCA9532_Init_Sequence (PCA9532_t *const pCpnt)
	Initialization Sequence for PCA9532 peripheral.

Variables
PCA9532_t	PCA9532 [I2C_PCA9532_NB]
	PCA9532 User structure.

Detailed Description

PCA9532 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCA9532: 16-bit I2C-bus LED dimmer

Macro Definition Documentation

PCA9532_NB_CHANNELS

#define PCA9532_NB_CHANNELS   8U

PCA9532 Number of channels.

Function Documentation

PCA9532_Init_Sequence()

FctERR PCA9532_Init_Sequence

(

PCA9532_t *const

pCpnt

)

Initialization Sequence for PCA9532 peripheral.

Weak Functions

PCA9532 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to PCA9532 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

PCA9532

PCA9532_t PCA9532[I2C_PCA9532_NB]

extern

PCA9532 User structure.
