PCA9532_t Struct Reference

PCA9532 user interface struct. More...

#include <PCA9532_proc.h>

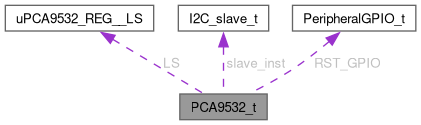

Collaboration diagram for PCA9532_t:

Data Fields
uPCA9532_REG__LS	LS
	LED selector registers.
struct {
I2C_slave_t *   slave_inst
	Slave structure. More...
PeripheralGPIO_t   RST_GPIO
	Reset GPIO struct. More...
PCA95xx_reg_inc   auto_inc
	Auto increment configuration. More...
float   Freq0
	Frequency set in PSC0 (in Hz). More...
float   Duty0
	Duty Cycle set in PWM0 (in Hz). More...
float   Freq1
	Frequency set in PSC1 (in Hz). More...
float   Duty1
	Duty Cycle set in PWM1 (in Hz). More...
}	cfg

Detailed Description

PCA9532 user interface struct.

Field Documentation

auto_inc

PCA95xx_reg_inc PCA9532_t::auto_inc

Auto increment configuration.

[struct]

struct { ... } PCA9532_t::cfg

Duty0

float PCA9532_t::Duty0

Duty Cycle set in PWM0 (in Hz).

Duty1

float PCA9532_t::Duty1

Duty Cycle set in PWM1 (in Hz).

Freq0

float PCA9532_t::Freq0

Frequency set in PSC0 (in Hz).

Freq1

float PCA9532_t::Freq1

Frequency set in PSC1 (in Hz).

LS

uPCA9532_REG__LS PCA9532_t::LS

LED selector registers.

RST_GPIO

PeripheralGPIO_t PCA9532_t::RST_GPIO

Reset GPIO struct.

slave_inst

I2C_slave_t* PCA9532_t::slave_inst

Slave structure.

---

The documentation for this struct was generated from the following file:

• PCA9532_proc.h
