PCA9532.h File Reference

PCA9532 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "PCA9xxx.h"
#include "PCA9532_proc.h"
#include "PCA9532_ex.h"

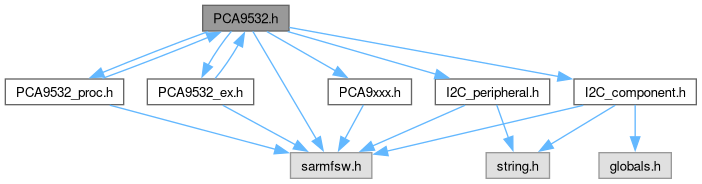

Include dependency graph for PCA9532.h:

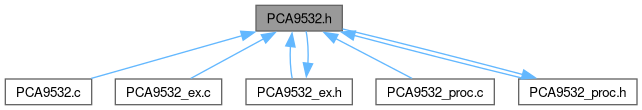

This graph shows which files directly or indirectly include this file:

Data Structures
union	uPCA9532_REG__INPUT0
	Union for INPUT0 register of PCA9532. More...
union	uPCA9532_REG__INPUT1
	Union for INPUT1 register of PCA9532. More...
union	uPCA9532_REG__INPUT
	Union for INPUT registers of PCA9532. More...
union	uPCA9532_REG__LS0
	Union for LS0 register of PCA9532. More...
union	uPCA9532_REG__LS1
	Union for LS1 register of PCA9532. More...
union	uPCA9532_REG__LS2
	Union for LS2 register of PCA9532. More...
union	uPCA9532_REG__LS3
	Union for LS3 register of PCA9532. More...
union	uPCA9532_REG__LS
	Union for LS registers of PCA9532. More...

Macros
#define	I2C_PCA9532_NB   1U
	Number of PCA9532 peripherals.
#define	PCA9532_BASE_ADDR   0x60U
	PCA9532 Base Address.

Enumerations
enum	PCA9532_reg {   PCA9532__INPUT0 = 0U , PCA9532__INPUT1 , PCA9532__PSC0 , PCA9532__PWM0 ,   PCA9532__PSC1 , PCA9532__PWM1 , PCA9532__LS0 , PCA9532__LS1 ,   PCA9532__LS2 , PCA9532__LS3 }
	Register map enum of PCA9532. More...

Functions
FctERR	PCA9532_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for PCA9532 peripheral.
FctERR	PCA9532_Init_Single (void)
	Initialization for PCA9532 peripheral.
FctERR	PCA9532_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for PCA9532.
FctERR	PCA9532_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for PCA9532.

Detailed Description

PCA9532 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCA9532: 16-bit I2C-bus LED dimmer

Macro Definition Documentation

I2C_PCA9532_NB

#define I2C_PCA9532_NB   1U

Number of PCA9532 peripherals.

Note

Define I2C_PCA9532_NB to enable multiple peripherals of this type

PCA9532_BASE_ADDR

#define PCA9532_BASE_ADDR   0x60U

PCA9532 Base Address.

Note

Define PCA9532_BASE_ADDR to change default device base address

Enumeration Type Documentation

PCA9532_reg

enum PCA9532_reg

Register map enum of PCA9532.

Enumerator
PCA9532__INPUT0	register INPUT0
PCA9532__INPUT1	register INPUT1
PCA9532__PSC0	register Frequency Prescaler 0
PCA9532__PWM0	register PWM0
PCA9532__PSC1	register Frequency Prescaler 1
PCA9532__PWM1	register PWM1
PCA9532__LS0	register LED0 to LED3 selector
PCA9532__LS1	register LED4 to LED7 selector
PCA9532__LS2	register LED8 to LED11 selector
PCA9532__LS3	register LED12 to LED15 selector

Function Documentation

PCA9532_Init()

FctERR PCA9532_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for PCA9532 peripheral.

Parameters

[in]	idx	- PCA9532 index
[in]	hi2c	- pointer to PCA9532 I2C instance
[in]	devAddress	- PCA9532 device address

Returns

FctERR - error code

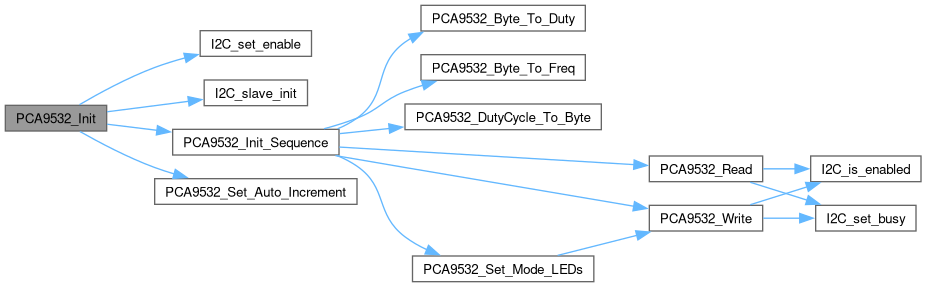

Here is the call graph for this function:

Here is the caller graph for this function:

PCA9532_Init_Single()

FctERR PCA9532_Init_Single

(

void

)

Initialization for PCA9532 peripheral.

Warning

In case multiple devices (defined by I2C_PCA9532_NB > 1), you shall use PCA9532_Init instead

Returns

FctERR - error code

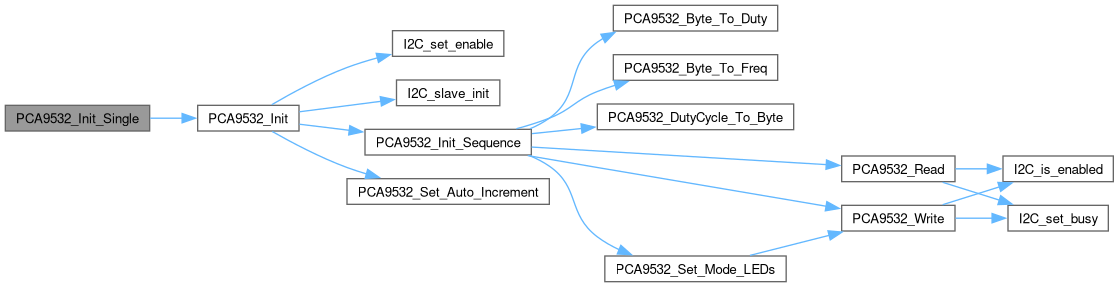

Here is the call graph for this function:

PCA9532_Read()

FctERR PCA9532_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for PCA9532.

Warning

When Auto-Increment flag is set (AI = 1) and a read sequence is initiated, the sequence must start by reading a register different from the INPUT0 register.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

PCA9532_Write()

FctERR PCA9532_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for PCA9532.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

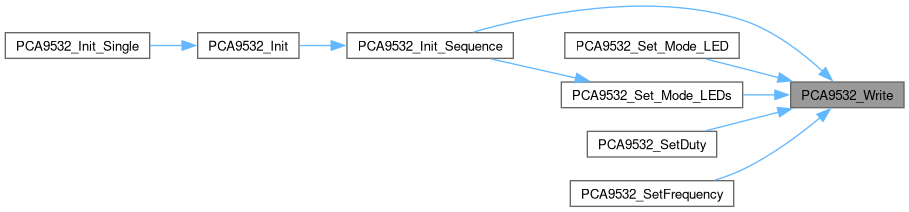

Here is the caller graph for this function:
