MTCH6102 Driver extensions. More...

#include "sarmfsw.h"
#include "MTCH6102.h"

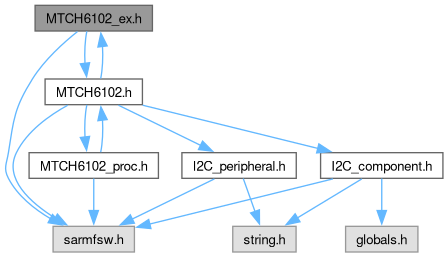

Include dependency graph for MTCH6102_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	MTCH6102_raw_sense

Macros
#define	MTCH_RES_STEP 64U
	MTCH6102 Resolution of a single RX/TX.

#define	perVal2perReg(ms)
	Compute reg value for period ms.

#define	perReg2perVal(rv)
	Get period in ms from register rv.

#define	per10ms 0x0142U
	example period register value for 10ms

#define	per20ms 0x0284U
	example period register value for 20ms

#define	per50ms 0x064CU
	example period register value for 50ms

#define	per100ms 0x0C99U
	example period register value for 100ms

Enumerations
enum	MTCH6102_COMMAND { MTCH_StoreToNV = 0U , MTCH_RestoreDefaults , MTCH_Configure , MTCH_ManufacturingTest , MTCH_ForceBaseline }

Functions
FctERR	MTCH6102_Set_Mode (const MTCH6102_t *const pCpnt, const MTCH6102_MODE mode)
	Set MTCH6102 gesture decoding.

FctERR	MTCH6102_Get_Mode (const MTCH6102_t const pCpnt, MTCH6102_MODE const mode)
	Get MTCH6102 gesture decoding.

FctERR	MTCH6102_Command (const MTCH6102_t *const pCpnt, const MTCH6102_COMMAND cmd)
	Execute MTCH6102 command.

FctERR	MTCH6102_Restore_Defaults (const MTCH6102_t *const pCpnt)
	Restore MTCH6102 controller to default configuration values.

FctERR	MTCH6102_Store_To_Non_Volatile (const MTCH6102_t *const pCpnt)
	Write MTCH6102 parameters to non volatile storage.

FctERR	MTCH6102_Configuration_Request (const MTCH6102_t *const pCpnt)
	Configure MTCH6102controller (after parameters have been changed)

FctERR	MTCH6102_Manufacturing_Test (const MTCH6102_t *const pCpnt)
	Execute MTCH6102 manufacturing test.

FctERR	MTCH6102_Force_Baseline (const MTCH6102_t *const pCpnt)
	Force MTCH6102 baseline (re-calibration) to occur.

FctERR	MTCH6102_Set_Active_Period (const MTCH6102_t *const pCpnt, const uint16_t period)
	Set MTCH6102 active period.

FctERR	MTCH6102_Set_Idle_Period (const MTCH6102_t *const pCpnt, const uint16_t period)
	Set MTCH6102 idle period.

FctERR	MTCH6102_Set_Idle_Timeout (const MTCH6102_t *const pCpnt, const uint8_t timeout)
	Set MTCH6102 idle timeout.

FctERR	MTCH6102_Set_Debounce (const MTCH6102_t *const pCpnt, const uint8_t touch, const uint8_t release)
	Set MTCH6102 debounce period.

FctERR	MTCH6102_Get_Active_Period (const MTCH6102_t const pCpnt, uint16_t const period)
	Get MTCH6102 Active period.

FctERR	MTCH6102_Get_Idle_Period (const MTCH6102_t const pCpnt, uint16_t const period)
	Get MTCH6102 Idle period.

FctERR	MTCH6102_Set_Filter (const MTCH6102_t *const pCpnt, const MTCH6102_FILTER_TYPE type, const uint8_t strength, const bool baseline_filter)
	Set MTCH6102 raw acquisition filter.

FctERR	MTCH6102_Set_Scan_Count (const MTCH6102_t *const pCpnt, const uint8_t count)
	Set MTCH6102 scan count.

FctERR	MTCH6102_Set_Touch_Threshold (const MTCH6102_t *const pCpnt, const uint8_t xthr, const uint8_t ythr)
	Set MTCH6102 touch threshold.

FctERR	MTCH6102_Set_Hysteresis (const MTCH6102_t *const pCpnt, const uint8_t hyst)
	Set MTCH6102 touch to release hysteresis.

FctERR	MTCH6102_Set_Large_Activation_Threshold (const MTCH6102_t *const pCpnt, const uint16_t thr)
	Set MTCH6102 large activation threshold.

FctERR	MTCH6102_Set_Base_Interval (const MTCH6102_t *const pCpnt, const uint16_t interval)
	Set MTCH6102 base interval.

FctERR	MTCH6102_Set_Base_Filter (const MTCH6102_t *const pCpnt, const uint8_t pos, const uint8_t neg)
	Set MTCH6102 baseline filter thresholds.

FctERR	MTCH6102_Get_Raw (const MTCH6102_t const pCpnt, MTCH6102_raw_sense const raw)
	Get MTCH6102 Raw sensor values data.

FctERR	MTCH6102_Get_Gest (const MTCH6102_t const pCpnt, MTCH6102_raw_gest const gest)
	Get MTCH6102 gesture data.

void	MTCH6102_INT_GPIO_Init (MTCH6102_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for MTCH6102.

bool	MTCH6102_INT_GPIO_Get (const MTCH6102_t *const pCpnt)
	Interrupt GPIO pin getter for MTCH6102.

void	MTCH6102_SYNC_GPIO_Init (MTCH6102_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Synchro GPIO pin init for MTCH6102.

bool	MTCH6102_SYNC_GPIO_Get (const MTCH6102_t *const pCpnt)
	Synchro GPIO pin getter for MTCH6102.

Detailed Description

MTCH6102 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

MTCH6102: Low-Power Projected Capacitive Touch Controller

Macro Definition Documentation

◆ MTCH_RES_STEP

#define MTCH_RES_STEP 64U

MTCH6102 Resolution of a single RX/TX.

◆ per100ms

#define per100ms 0x0C99U

example period register value for 100ms

◆ per10ms

#define per10ms 0x0142U

example period register value for 10ms

◆ per20ms

#define per20ms 0x0284U

example period register value for 20ms

◆ per50ms

#define per50ms 0x064CU

example period register value for 50ms

◆ perReg2perVal

#define perReg2perVal ( rv )

Value:

(uint16_t) ((((rv) - 1U) * 31U) / 1000U)

Get period in ms from register rv.

◆ perVal2perReg

#define perVal2perReg ( ms )

Value:

(uint16_t) ((((ms) * 1000U) / 31U) + 1U)

Compute reg value for period ms.

Enumeration Type Documentation

◆ MTCH6102_COMMAND

enum MTCH6102_COMMAND

Enumerator
MTCH_StoreToNV	Write to non volatile storage.
MTCH_RestoreDefaults	Restore controller to default configuration values.
MTCH_Configure	Configure controller (after parameters have been changed)
MTCH_ManufacturingTest	Execute manufacturing test.
MTCH_ForceBaseline	Force baseline (re-calibration) to occur.

Function Documentation

◆ MTCH6102_Command()

FctERR MTCH6102_Command	(	const MTCH6102_t *const	pCpnt,
		const MTCH6102_COMMAND	cmd )

Execute MTCH6102 command.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	cmd	- Command to execute

Returns: FctERR - error code

Here is the call graph for this function:

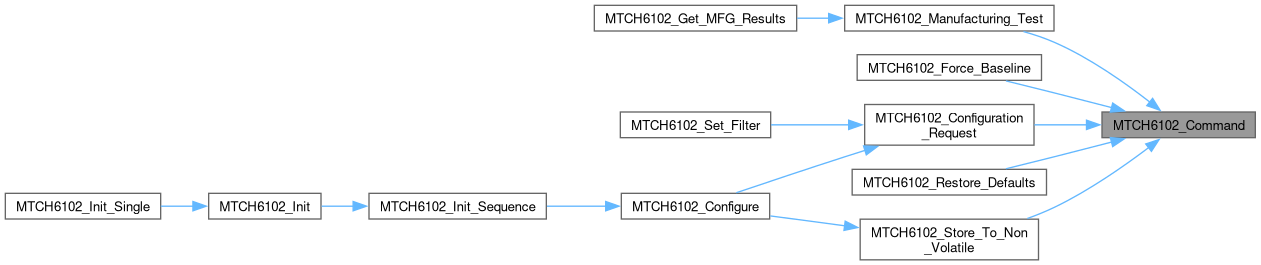

Here is the caller graph for this function:

◆ MTCH6102_Configuration_Request()

FctERR MTCH6102_Configuration_Request ( const MTCH6102_t *const pCpnt )

inline

Configure MTCH6102controller (after parameters have been changed)

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Force_Baseline()

FctERR MTCH6102_Force_Baseline ( const MTCH6102_t *const pCpnt )

inline

Force MTCH6102 baseline (re-calibration) to occur.

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Get_Active_Period()

FctERR MTCH6102_Get_Active_Period	(	const MTCH6102_t *const	pCpnt,
		uint16_t *const	period )

Get MTCH6102 Active period.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	period	- Pointer to active period result

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Get_Gest()

FctERR MTCH6102_Get_Gest	(	const MTCH6102_t *const	pCpnt,
		MTCH6102_raw_gest *const	gest )

inline

Get MTCH6102 gesture data.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	gest	- Pointer to gesture data result

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Get_Idle_Period()

FctERR MTCH6102_Get_Idle_Period	(	const MTCH6102_t *const	pCpnt,
		uint16_t *const	period )

Get MTCH6102 Idle period.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	period	- Pointer to idle period result

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Get_Mode()

FctERR MTCH6102_Get_Mode	(	const MTCH6102_t *const	pCpnt,
		MTCH6102_MODE *const	mode )

inline

Get MTCH6102 gesture decoding.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in,out]	mode	- Gesture decoding mode

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Get_Raw()

FctERR MTCH6102_Get_Raw	(	const MTCH6102_t *const	pCpnt,
		MTCH6102_raw_sense *const	raw )

inline

Get MTCH6102 Raw sensor values data.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	raw	- Pointer to raw data result

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_INT_GPIO_Get()

bool MTCH6102_INT_GPIO_Get ( const MTCH6102_t *const pCpnt )

Interrupt GPIO pin getter for MTCH6102.

Weak Functions: MTCH6102 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_INT_GPIO_Init()

void MTCH6102_INT_GPIO_Init	(	MTCH6102_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for MTCH6102.

Weak Functions: MTCH6102 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

◆ MTCH6102_Manufacturing_Test()

FctERR MTCH6102_Manufacturing_Test ( const MTCH6102_t *const pCpnt )

inline

Execute MTCH6102 manufacturing test.

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Restore_Defaults()

FctERR MTCH6102_Restore_Defaults ( const MTCH6102_t *const pCpnt )

inline

Restore MTCH6102 controller to default configuration values.

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Active_Period()

FctERR MTCH6102_Set_Active_Period	(	const MTCH6102_t *const	pCpnt,
		const uint16_t	period )

Set MTCH6102 active period.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	period	- Active period

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Base_Filter()

FctERR MTCH6102_Set_Base_Filter	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	pos,
		const uint8_t	neg )

inline

Set MTCH6102 baseline filter thresholds.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	pos	- Positive filter value
[in]	neg	- Negative filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Base_Interval()

FctERR MTCH6102_Set_Base_Interval	(	const MTCH6102_t *const	pCpnt,
		const uint16_t	interval )

inline

Set MTCH6102 base interval.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	interval	- Time interval between baselines

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Debounce()

FctERR MTCH6102_Set_Debounce	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	touch,
		const uint8_t	release )

inline

Set MTCH6102 debounce period.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	touch	- Debounce for touch
[in]	release	- Debounce for release

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Filter()

FctERR MTCH6102_Set_Filter	(	const MTCH6102_t *const	pCpnt,
		const MTCH6102_FILTER_TYPE	type,
		const uint8_t	strength,
		const bool	baseline_filter )

Set MTCH6102 raw acquisition filter.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	type	- Filter type
[in]	strength	- Filter strength
[in]	baseline_filter	- 0: Acquisition filter, 1: Baseline filter

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Hysteresis()

FctERR MTCH6102_Set_Hysteresis	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	hyst )

inline

Set MTCH6102 touch to release hysteresis.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	hyst	- Hysteresis

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Idle_Period()

FctERR MTCH6102_Set_Idle_Period	(	const MTCH6102_t *const	pCpnt,
		const uint16_t	period )

Set MTCH6102 idle period.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	period	- Idle period

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Idle_Timeout()

FctERR MTCH6102_Set_Idle_Timeout	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	timeout )

inline

Set MTCH6102 idle timeout.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	timeout	- Idle timeout

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Large_Activation_Threshold()

FctERR MTCH6102_Set_Large_Activation_Threshold	(	const MTCH6102_t *const	pCpnt,
		const uint16_t	thr )

inline

Set MTCH6102 large activation threshold.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	thr	- Large activation threshold

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Mode()

FctERR MTCH6102_Set_Mode	(	const MTCH6102_t *const	pCpnt,
		const MTCH6102_MODE	mode )

Set MTCH6102 gesture decoding.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	mode	- Gesture decoding mode

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Set_Scan_Count()

FctERR MTCH6102_Set_Scan_Count	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	count )

inline

Set MTCH6102 scan count.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	count	- Scan count

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Touch_Threshold()

FctERR MTCH6102_Set_Touch_Threshold	(	const MTCH6102_t *const	pCpnt,
		const uint8_t	xthr,
		const uint8_t	ythr )

inline

Set MTCH6102 touch threshold.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	xthr	- Rx lines touch threshold
[in]	ythr	- Tx lines touch threshold

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Store_To_Non_Volatile()

FctERR MTCH6102_Store_To_Non_Volatile ( const MTCH6102_t *const pCpnt )

inline

Write MTCH6102 parameters to non volatile storage.

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_SYNC_GPIO_Get()

bool MTCH6102_SYNC_GPIO_Get ( const MTCH6102_t *const pCpnt )

Synchro GPIO pin getter for MTCH6102.

Weak Functions: MTCH6102 Synchro GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: SYNC pin state value (0: inactive, 1: active)

Here is the call graph for this function:

◆ MTCH6102_SYNC_GPIO_Init()

void MTCH6102_SYNC_GPIO_Init	(	MTCH6102_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Synchro GPIO pin init for MTCH6102.

Weak Functions: MTCH6102 Synchro GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	GPIOx	- SYNC port
[in]	GPIO_Pin	- SYNC pin
[in]	GPIO_Active	SYNC pin active state

Here is the call graph for this function:

Data Structures

Macros

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ MTCH_RES_STEP

◆ per100ms

◆ per10ms

◆ per20ms

◆ per50ms

◆ perReg2perVal

◆ perVal2perReg

Enumeration Type Documentation

◆ MTCH6102_COMMAND

Function Documentation

◆ MTCH6102_Command()

◆ MTCH6102_Configuration_Request()

◆ MTCH6102_Force_Baseline()

◆ MTCH6102_Get_Active_Period()

◆ MTCH6102_Get_Gest()

◆ MTCH6102_Get_Idle_Period()

◆ MTCH6102_Get_Mode()

◆ MTCH6102_Get_Raw()

◆ MTCH6102_INT_GPIO_Get()

◆ MTCH6102_INT_GPIO_Init()

◆ MTCH6102_Manufacturing_Test()

◆ MTCH6102_Restore_Defaults()

◆ MTCH6102_Set_Active_Period()

◆ MTCH6102_Set_Base_Filter()

◆ MTCH6102_Set_Base_Interval()

◆ MTCH6102_Set_Debounce()

◆ MTCH6102_Set_Filter()

◆ MTCH6102_Set_Hysteresis()

◆ MTCH6102_Set_Idle_Period()

◆ MTCH6102_Set_Idle_Timeout()

◆ MTCH6102_Set_Large_Activation_Threshold()

◆ MTCH6102_Set_Mode()

◆ MTCH6102_Set_Scan_Count()

◆ MTCH6102_Set_Touch_Threshold()

◆ MTCH6102_Store_To_Non_Volatile()

◆ MTCH6102_SYNC_GPIO_Get()

◆ MTCH6102_SYNC_GPIO_Init()
