MTCH6102_raw_gest Struct Reference

#include <MTCH6102_proc.h>

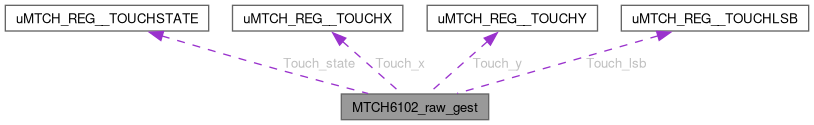

Collaboration diagram for MTCH6102_raw_gest:

Data Fields
uMTCH_REG__TOUCHSTATE	Touch_state
	Raw touch state.
uMTCH_REG__TOUCHX	Touch_x
	Raw x coordinate (MSB)
uMTCH_REG__TOUCHY	Touch_y
	Raw y coordinate (MSB)
uMTCH_REG__TOUCHLSB	Touch_lsb
	Raw x,y coordinate (LSB)
MTCH6102_GESTURE_STATE	Gest_state
	Raw state.
MTCH6102_GESTURE_DIAGNOSTIC	Gest_diag
	Raw diagnostic.

Field Documentation

Gest_diag

MTCH6102_GESTURE_DIAGNOSTIC MTCH6102_raw_gest::Gest_diag

Raw diagnostic.

Gest_state

MTCH6102_GESTURE_STATE MTCH6102_raw_gest::Gest_state

Raw state.

Touch_lsb

uMTCH_REG__TOUCHLSB MTCH6102_raw_gest::Touch_lsb

Raw x,y coordinate (LSB)

Touch_state

uMTCH_REG__TOUCHSTATE MTCH6102_raw_gest::Touch_state

Raw touch state.

Touch_x

uMTCH_REG__TOUCHX MTCH6102_raw_gest::Touch_x

Raw x coordinate (MSB)

Touch_y

uMTCH_REG__TOUCHY MTCH6102_raw_gest::Touch_y

Raw y coordinate (MSB)

---

The documentation for this struct was generated from the following file:

• MTCH6102_proc.h
