MTCH6102.h File Reference

MTCH6102 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "MTCH6102_proc.h"
#include "MTCH6102_ex.h"

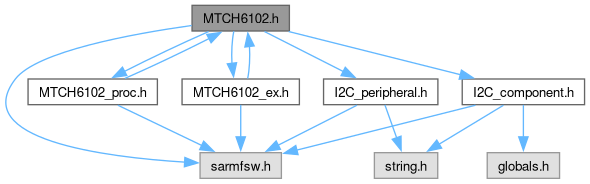

Include dependency graph for MTCH6102.h:

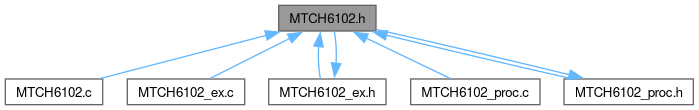

This graph shows which files directly or indirectly include this file:

Data Structures

union  uMTCH_REG__TOUCHSTATE

union  uMTCH_REG__TOUCHX

union  uMTCH_REG__TOUCHY

union  uMTCH_REG__TOUCHLSB

union  uMTCH_REG__CMD

union  uMTCH_REG__MODE

union  uMTCH_REG__MODE_CON


Macros

#define I2C_MTCH6102_NB   1U
 Number of MTCH6102 peripherals.

#define MTCH6102_BASE_ADDR   0x25U
 MTCH6102 default address value.


Typedefs

typedef enum _MTCH6102_compensation_addr_map MTCH6102_compensation


Enumerations

enum  MTCH6102_touch {
  MTCH__TOUCH_STATE = 0x10U , MTCH__TOUCH_X , MTCH__TOUCH_Y , MTCH__TOUCH_LSB ,
  MTCH__GESTURE_STATE , MTCH__GESTURE_DIAG
}

enum  MTCH6102_acquisition {
  MTCH__SENSOR_VALUE_RX0 = 0x80U , MTCH__SENSOR_VALUE_RX1 , MTCH__SENSOR_VALUE_RX2 , MTCH__SENSOR_VALUE_RX3 ,
  MTCH__SENSOR_VALUE_RX4 , MTCH__SENSOR_VALUE_RX5 , MTCH__SENSOR_VALUE_RX6 , MTCH__SENSOR_VALUE_RX7 ,
  MTCH__SENSOR_VALUE_RX8 , MTCH__SENSOR_VALUE_RX9 , MTCH__SENSOR_VALUE_RX10 , MTCH__SENSOR_VALUE_RX11 ,
  MTCH__SENSOR_VALUE_RX12 , MTCH__SENSOR_VALUE_RX13 , MTCH__SENSOR_VALUE_RX14 , MTCH__RAW_VALUE_RX0_L = 0x90U ,
  MTCH__RAW_VALUE_RX0_H , MTCH__RAW_VALUE_RX1_L , MTCH__RAW_VALUE_RX1_H , MTCH__RAW_VALUE_RX2_L ,
  MTCH__RAW_VALUE_RX2_H , MTCH__RAW_VALUE_RX3_L , MTCH__RAW_VALUE_RX3_H , MTCH__RAW_VALUE_RX4_L ,
  MTCH__RAW_VALUE_RX4_H , MTCH__RAW_VALUE_RX5_L , MTCH__RAW_VALUE_RX5_H , MTCH__RAW_VALUE_RX6_L ,
  MTCH__RAW_VALUE_RX6_H , MTCH__RAW_VALUE_RX7_L , MTCH__RAW_VALUE_RX7_H , MTCH__RAW_VALUE_RX8_L ,
  MTCH__RAW_VALUE_RX8_H , MTCH__RAW_VALUE_RX9_L , MTCH__RAW_VALUE_RX9_H , MTCH__RAW_VALUE_RX10_L ,
  MTCH__RAW_VALUE_RX10_H , MTCH__RAW_VALUE_RX11_L , MTCH__RAW_VALUE_RX11_H , MTCH__RAW_VALUE_RX12_L ,
  MTCH__RAW_VALUE_RX12_H , MTCH__RAW_VALUE_RX13_L , MTCH__RAW_VALUE_RX13_H , MTCH__RAW_VALUE_RX14_L ,
  MTCH__RAW_VALUE_RX14_H , MTCH__BASE_VALUE_RX0_L = 0xB0U , MTCH__BASE_VALUE_RX0_H , MTCH__BASE_VALUE_RX1_L ,
  MTCH__BASE_VALUE_RX1_H , MTCH__BASE_VALUE_RX2_L , MTCH__BASE_VALUE_RX2_H , MTCH__BASE_VALUE_RX3_L ,
  MTCH__BASE_VALUE_RX3_H , MTCH__BASE_VALUE_RX4_L , MTCH__BASE_VALUE_RX4_H , MTCH__BASE_VALUE_RX5_L ,
  MTCH__BASE_VALUE_RX5_H , MTCH__BASE_VALUE_RX6_L , MTCH__BASE_VALUE_RX6_H , MTCH__BASE_VALUE_RX7_L ,
  MTCH__BASE_VALUE_RX7_H , MTCH__BASE_VALUE_RX8_L , MTCH__BASE_VALUE_RX8_H , MTCH__BASE_VALUE_RX9_L ,
  MTCH__BASE_VALUE_RX9_H , MTCH__BASE_VALUE_RX10_L , MTCH__BASE_VALUE_RX10_H , MTCH__BASE_VALUE_RX11_L ,
  MTCH__BASE_VALUE_RX11_H , MTCH__BASE_VALUE_RX12_L , MTCH__BASE_VALUE_RX12_H , MTCH__BASE_VALUE_RX13_L ,
  MTCH__BASE_VALUE_RX13_H , MTCH__BASE_VALUE_RX14_L , MTCH__BASE_VALUE_RX14_H , MTCH__RAW_ADC_00 = 0xD0U ,
  MTCH__RAW_ADC_01 , MTCH__RAW_ADC_02 , MTCH__RAW_ADC_03 , MTCH__RAW_ADC_04 ,
  MTCH__RAW_ADC_05 , MTCH__RAW_ADC_06 , MTCH__RAW_ADC_07 , MTCH__RAW_ADC_08 ,
  MTCH__RAW_ADC_09 , MTCH__RAW_ADC_10 , MTCH__RAW_ADC_11 , MTCH__RAW_ADC_12 ,
  MTCH__RAW_ADC_13 , MTCH__RAW_ADC_14 , MTCH__RAW_ADC_15 , MTCH__RAW_ADC_16 ,
  MTCH__RAW_ADC_17 , MTCH__RAW_ADC_18 , MTCH__RAW_ADC_19 , MTCH__RAW_ADC_20 ,
  MTCH__RAW_ADC_21 , MTCH__RAW_ADC_22 , MTCH__RAW_ADC_23 , MTCH__RAW_ADC_24 ,
  MTCH__RAW_ADC_25 , MTCH__RAW_ADC_26 , MTCH__RAW_ADC_27 , MTCH__RAW_ADC_28 ,
  MTCH__RAW_ADC_29 , MTCH__RAW_ADC_30 , MTCH__RAW_ADC_31
}

enum  _MTCH6102_compensation_addr_map {
  MTCH__SENSOR_COMP_RX0 = 0x50U , MTCH__SENSOR_COMP_RX1 , MTCH__SENSOR_COMP_RX2 , MTCH__SENSOR_COMP_RX3 ,
  MTCH__SENSOR_COMP_RX4 , MTCH__SENSOR_COMP_RX5 , MTCH__SENSOR_COMP_RX6 , MTCH__SENSOR_COMP_RX7 ,
  MTCH__SENSOR_COMP_RX8 , MTCH__SENSOR_COMP_RX9 , MTCH__SENSOR_COMP_RX10 , MTCH__SENSOR_COMP_RX11 ,
  MTCH__SENSOR_COMP_RX12 , MTCH__SENSOR_COMP_RX13 , MTCH__SENSOR_COMP_RX14
}

enum  MTCH6102_core {
  MTCH__FW_MAJOR = 0U , MTCH__FW_MINOR , MTCH__APP_ID_H , MTCH__APP_ID_L ,
  MTCH__CMD , MTCH__MODE , MTCH__MODE_CON
}

enum  MTCH6102_reg {
  MTCH__NUMBER_OF_X_CHANNELS = 0x20U , MTCH__NUMBER_OF_Y_CHANNELS , MTCH__SCAN_COUNT , MTCH__TOUCH_THRESH_X ,
  MTCH__TOUCH_THRESH_Y , MTCH__ACTIVE_PERIOD_L , MTCH__ACTIVE_PERIOD_H , MTCH__IDLE_PERIOD_L ,
  MTCH__IDLE_PERIOD_H , MTCH__IDLE_TIMEOUT , MTCH__HYSTERESIS , MTCH__DEBOUNCE_UP ,
  MTCH__DEBOUNCE_DOWN , MTCH__BASE_INTERVAL_L , MTCH__BASE_INTERVAL_H , MTCH__BASE_POS_FILTER ,
  MTCH__BASE_NEG_FILTER , MTCH__FILTER_TYPE , MTCH__FILTER_STRENGTH , MTCH__BASE_FILTER_TYPE ,
  MTCH__BASE_FILTER_STRENGTH , MTCH__LARGE_ACTIVATION_THRESH_L , MTCH__LARGE_ACTIVATION_THRESH_H , MTCH__HORIZONTAL_SWIPE_DISTANCE ,
  MTCH__VERTICAL_SWIPE_DISTANCE , MTCH__SWIPE_HOLD_BOUNDARY , MTCH__TAP_DISTANCE , MTCH__DISTANCE_BETWEEN_TAPS ,
  MTCH__TAP_HOLD_TIME_L , MTCH__TAP_HOLD_TIME_H , MTCH__GESTURE_CLICK_TIME , MTCH__SWIPE_HOLD_THRESH ,
  MTCH__MIN_SWIPE_VELOCITY , MTCH__HORIZONTAL_GESTURE_ANGLE , MTCH__VERTICAL_GESTURE_ANGLE , MTCH__I2CADDR
}
 Register map enum of MTCH6102. More...

enum  MTCH6102_MODE {
  Standby = 0U , Gesture , Touch , Full ,
  RawADC
}

enum  MTCH6102_TYPE { Computed = 0U , Result1 , Result2 }

enum  MTCH6102_CH {
  RX0 = 0U , RX1 , RX2 , RX3 ,
  RX4 , RX5 , RX6 , RX7 ,
  RX8 , RX9 , RX10 , RX11 ,
  RX12 , RX13 , RX14
}

enum  MTCH6102_FILTER_TYPE { Filter_None = 0U , Filter_Median , Filter_IIR , Filter_Average }

enum  MTCH6102_GESTURE_STATE {
  NoGesture = 0U , SingleClick = 0x10U , ClickNHold = 0x11U , DoubleClick = 0x20U ,
  DownSwipe = 0x31U , DownSwipeNHold = 0x32U , RightSwipe = 0x41U , RightSwipeNHold = 0x42U ,
  UpSwipe = 0x51U , UpSwipeNHold = 0x52U , LeftSwipe = 0x61U , LeftSwipeNHold = 0x62U
}

enum  MTCH6102_GESTURE_DIAGNOSTIC {
  ClickTimeout = 0U , SwipeTimeout , GeneralTimeout , ClickThreshExceed ,
  SwipeThreshExceed , SwipeNHoldThreshExceed , SwipeOppositeDirThreshExceed , Reserved ,
  SwipeNHoldValExceed , OutsideSwipeAngle
}


Functions

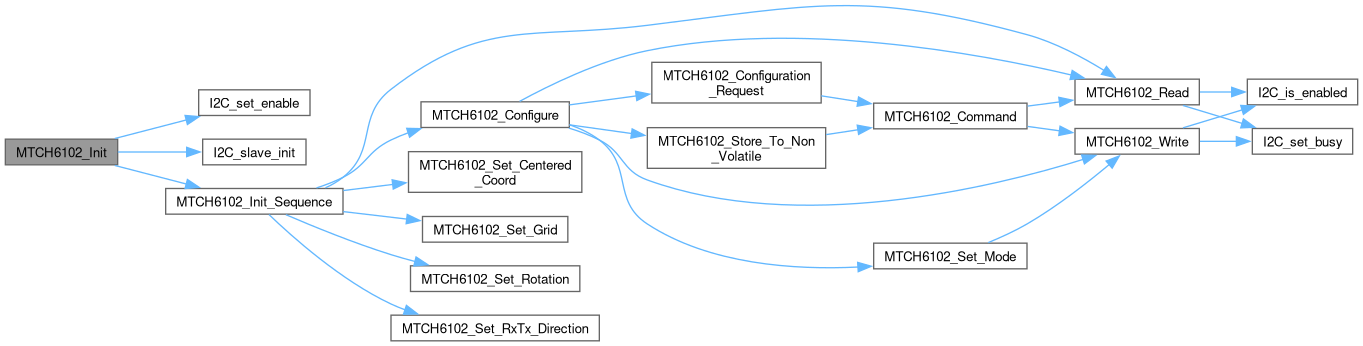

FctERR MTCH6102_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
 Initialization for MTCH6102 peripheral.

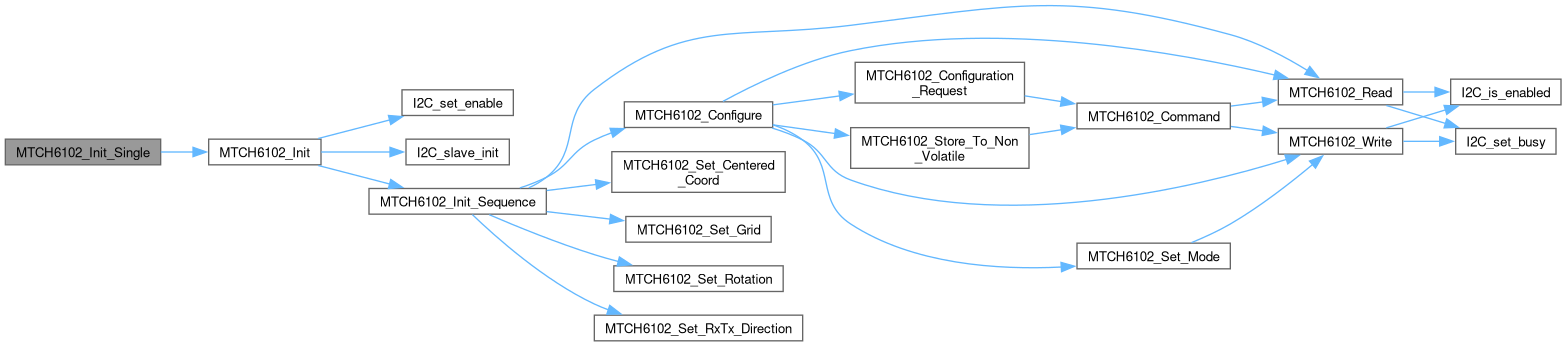

FctERR MTCH6102_Init_Single (void)
 Initialization for MTCH6102 peripheral.

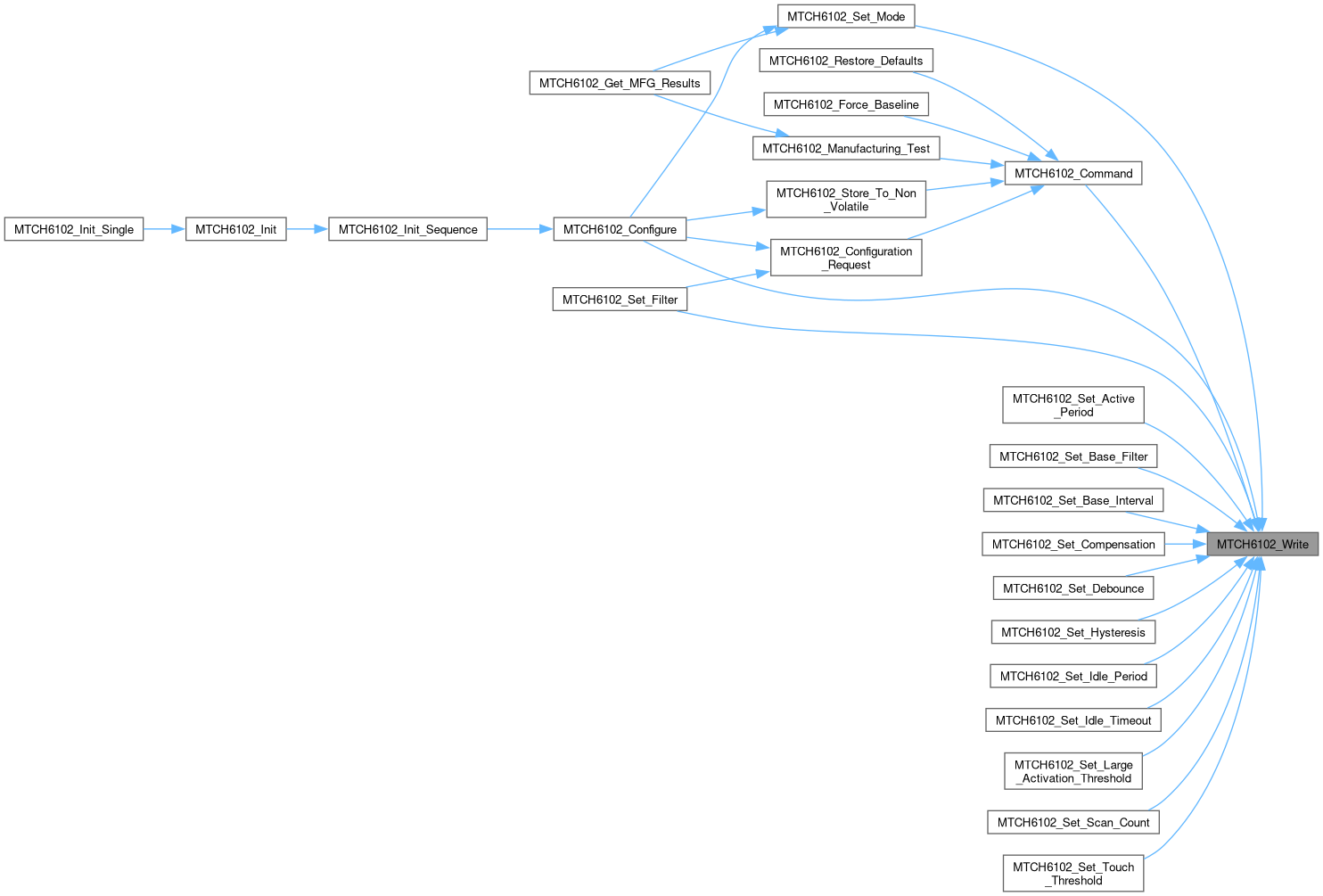

FctERR MTCH6102_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
 I2C Write function for MTCH6102.

FctERR MTCH6102_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
 I2C Read function for MTCH6102.


Detailed Description

MTCH6102 Driver.

Author
SMFSW
Copyright
MIT (c) 2017-2026, SMFSW

MTCH6102: Low-Power Projected Capacitive Touch Controller

Macro Definition Documentation

◆ I2C_MTCH6102_NB

#define I2C_MTCH6102_NB   1U

Number of MTCH6102 peripherals.

Note
Define I2C_MTCH6102_NB to enable multiple peripherals of this type

◆ MTCH6102_BASE_ADDR

#define MTCH6102_BASE_ADDR   0x25U

MTCH6102 default address value.

Note
Define MTCH6102_BASE_ADDR to change default device base address

Typedef Documentation

◆ MTCH6102_compensation

typedef enum _MTCH6102_compensation_addr_map MTCH6102_compensation

Enumeration Type Documentation

◆ _MTCH6102_compensation_addr_map

enum _MTCH6102_compensation_addr_map
Enumerator
MTCH__SENSOR_COMP_RX0
MTCH__SENSOR_COMP_RX1
MTCH__SENSOR_COMP_RX2
MTCH__SENSOR_COMP_RX3
MTCH__SENSOR_COMP_RX4
MTCH__SENSOR_COMP_RX5
MTCH__SENSOR_COMP_RX6
MTCH__SENSOR_COMP_RX7
MTCH__SENSOR_COMP_RX8
MTCH__SENSOR_COMP_RX9
MTCH__SENSOR_COMP_RX10
MTCH__SENSOR_COMP_RX11
MTCH__SENSOR_COMP_RX12
MTCH__SENSOR_COMP_RX13
MTCH__SENSOR_COMP_RX14

◆ MTCH6102_acquisition

enum MTCH6102_acquisition
Enumerator
MTCH__SENSOR_VALUE_RX0
MTCH__SENSOR_VALUE_RX1
MTCH__SENSOR_VALUE_RX2
MTCH__SENSOR_VALUE_RX3
MTCH__SENSOR_VALUE_RX4
MTCH__SENSOR_VALUE_RX5
MTCH__SENSOR_VALUE_RX6
MTCH__SENSOR_VALUE_RX7
MTCH__SENSOR_VALUE_RX8
MTCH__SENSOR_VALUE_RX9
MTCH__SENSOR_VALUE_RX10
MTCH__SENSOR_VALUE_RX11
MTCH__SENSOR_VALUE_RX12
MTCH__SENSOR_VALUE_RX13
MTCH__SENSOR_VALUE_RX14
MTCH__RAW_VALUE_RX0_L
MTCH__RAW_VALUE_RX0_H
MTCH__RAW_VALUE_RX1_L
MTCH__RAW_VALUE_RX1_H
MTCH__RAW_VALUE_RX2_L
MTCH__RAW_VALUE_RX2_H
MTCH__RAW_VALUE_RX3_L
MTCH__RAW_VALUE_RX3_H
MTCH__RAW_VALUE_RX4_L
MTCH__RAW_VALUE_RX4_H
MTCH__RAW_VALUE_RX5_L
MTCH__RAW_VALUE_RX5_H
MTCH__RAW_VALUE_RX6_L
MTCH__RAW_VALUE_RX6_H
MTCH__RAW_VALUE_RX7_L
MTCH__RAW_VALUE_RX7_H
MTCH__RAW_VALUE_RX8_L
MTCH__RAW_VALUE_RX8_H
MTCH__RAW_VALUE_RX9_L
MTCH__RAW_VALUE_RX9_H
MTCH__RAW_VALUE_RX10_L
MTCH__RAW_VALUE_RX10_H
MTCH__RAW_VALUE_RX11_L
MTCH__RAW_VALUE_RX11_H
MTCH__RAW_VALUE_RX12_L
MTCH__RAW_VALUE_RX12_H
MTCH__RAW_VALUE_RX13_L
MTCH__RAW_VALUE_RX13_H
MTCH__RAW_VALUE_RX14_L
MTCH__RAW_VALUE_RX14_H
MTCH__BASE_VALUE_RX0_L
MTCH__BASE_VALUE_RX0_H
MTCH__BASE_VALUE_RX1_L
MTCH__BASE_VALUE_RX1_H
MTCH__BASE_VALUE_RX2_L
MTCH__BASE_VALUE_RX2_H
MTCH__BASE_VALUE_RX3_L
MTCH__BASE_VALUE_RX3_H
MTCH__BASE_VALUE_RX4_L
MTCH__BASE_VALUE_RX4_H
MTCH__BASE_VALUE_RX5_L
MTCH__BASE_VALUE_RX5_H
MTCH__BASE_VALUE_RX6_L
MTCH__BASE_VALUE_RX6_H
MTCH__BASE_VALUE_RX7_L
MTCH__BASE_VALUE_RX7_H
MTCH__BASE_VALUE_RX8_L
MTCH__BASE_VALUE_RX8_H
MTCH__BASE_VALUE_RX9_L
MTCH__BASE_VALUE_RX9_H
MTCH__BASE_VALUE_RX10_L
MTCH__BASE_VALUE_RX10_H
MTCH__BASE_VALUE_RX11_L
MTCH__BASE_VALUE_RX11_H
MTCH__BASE_VALUE_RX12_L
MTCH__BASE_VALUE_RX12_H
MTCH__BASE_VALUE_RX13_L
MTCH__BASE_VALUE_RX13_H
MTCH__BASE_VALUE_RX14_L
MTCH__BASE_VALUE_RX14_H
MTCH__RAW_ADC_00
MTCH__RAW_ADC_01
MTCH__RAW_ADC_02
MTCH__RAW_ADC_03
MTCH__RAW_ADC_04
MTCH__RAW_ADC_05
MTCH__RAW_ADC_06
MTCH__RAW_ADC_07
MTCH__RAW_ADC_08
MTCH__RAW_ADC_09
MTCH__RAW_ADC_10
MTCH__RAW_ADC_11
MTCH__RAW_ADC_12
MTCH__RAW_ADC_13
MTCH__RAW_ADC_14
MTCH__RAW_ADC_15
MTCH__RAW_ADC_16
MTCH__RAW_ADC_17
MTCH__RAW_ADC_18
MTCH__RAW_ADC_19
MTCH__RAW_ADC_20
MTCH__RAW_ADC_21
MTCH__RAW_ADC_22
MTCH__RAW_ADC_23
MTCH__RAW_ADC_24
MTCH__RAW_ADC_25
MTCH__RAW_ADC_26
MTCH__RAW_ADC_27
MTCH__RAW_ADC_28
MTCH__RAW_ADC_29
MTCH__RAW_ADC_30
MTCH__RAW_ADC_31

◆ MTCH6102_CH

enum MTCH6102_CH
Enumerator
RX0

RX0.

RX1

RX1.

RX2

RX2.

RX3

RX3.

RX4

RX4.

RX5

RX5.

RX6

RX6.

RX7

RX7.

RX8

RX8.

RX9

RX9.

RX10

RX10.

RX11

RX11.

RX12

RX12.

RX13

RX13.

RX14

RX14.

◆ MTCH6102_core

enum MTCH6102_core
Enumerator
MTCH__FW_MAJOR
MTCH__FW_MINOR
MTCH__APP_ID_H
MTCH__APP_ID_L
MTCH__CMD
MTCH__MODE
MTCH__MODE_CON

◆ MTCH6102_FILTER_TYPE

enum MTCH6102_FILTER_TYPE
Enumerator
Filter_None

No filtering.

Filter_Median

Size of median window filtering.

Filter_IIR

Weighting of previous to current value filtering.

Filter_Average

Size of average window filtering.

◆ MTCH6102_GESTURE_DIAGNOSTIC

enum MTCH6102_GESTURE_DIAGNOSTIC
Enumerator
ClickTimeout

Click Timeout.

SwipeTimeout

Swipe Timeout.

GeneralTimeout

General Timeout.

ClickThreshExceed

Click threshold exceeded.

SwipeThreshExceed

Swipe threshold exceeded.

SwipeNHoldThreshExceed

Swipe and Hold threshold exceeded.

SwipeOppositeDirThreshExceed

Swipe Opposite Direction threshold exceeded.

Reserved

Reserved.

SwipeNHoldValExceed

Swipe and Hold value exceeded.

OutsideSwipeAngle

Outside Swipe Angle.

◆ MTCH6102_GESTURE_STATE

enum MTCH6102_GESTURE_STATE
Enumerator
NoGesture

No Gesture Present.

SingleClick

Single Click gesture.

ClickNHold

Click and Hold gesture.

DoubleClick

Double click gesture.

DownSwipe

Down Swipe gesture.

DownSwipeNHold

Down Swipe and Hold gesture.

RightSwipe

Right Swipe gesture.

RightSwipeNHold

Right Swipe and Hold gesture.

UpSwipe

Up Swipe gesture.

UpSwipeNHold

Up Swipe and Hold gesture.

LeftSwipe

Left Swipe gesture.

LeftSwipeNHold

Left Swipe and Hold gesture.

◆ MTCH6102_MODE

enum MTCH6102_MODE
Enumerator
Standby

Standby.

Gesture

Gesture only.

Touch

Touch only.

Full

Touch & Gesture.

RawADC

Raw ADC values.

◆ MTCH6102_reg

enum MTCH6102_reg

Register map enum of MTCH6102.

Enumerator
MTCH__NUMBER_OF_X_CHANNELS
MTCH__NUMBER_OF_Y_CHANNELS
MTCH__SCAN_COUNT
MTCH__TOUCH_THRESH_X
MTCH__TOUCH_THRESH_Y
MTCH__ACTIVE_PERIOD_L
MTCH__ACTIVE_PERIOD_H
MTCH__IDLE_PERIOD_L
MTCH__IDLE_PERIOD_H
MTCH__IDLE_TIMEOUT
MTCH__HYSTERESIS
MTCH__DEBOUNCE_UP
MTCH__DEBOUNCE_DOWN
MTCH__BASE_INTERVAL_L
MTCH__BASE_INTERVAL_H
MTCH__BASE_POS_FILTER
MTCH__BASE_NEG_FILTER
MTCH__FILTER_TYPE
MTCH__FILTER_STRENGTH
MTCH__BASE_FILTER_TYPE
MTCH__BASE_FILTER_STRENGTH
MTCH__LARGE_ACTIVATION_THRESH_L
MTCH__LARGE_ACTIVATION_THRESH_H
MTCH__HORIZONTAL_SWIPE_DISTANCE
MTCH__VERTICAL_SWIPE_DISTANCE
MTCH__SWIPE_HOLD_BOUNDARY
MTCH__TAP_DISTANCE
MTCH__DISTANCE_BETWEEN_TAPS
MTCH__TAP_HOLD_TIME_L
MTCH__TAP_HOLD_TIME_H
MTCH__GESTURE_CLICK_TIME
MTCH__SWIPE_HOLD_THRESH
MTCH__MIN_SWIPE_VELOCITY
MTCH__HORIZONTAL_GESTURE_ANGLE
MTCH__VERTICAL_GESTURE_ANGLE
MTCH__I2CADDR

◆ MTCH6102_touch

enum MTCH6102_touch
Enumerator
MTCH__TOUCH_STATE
MTCH__TOUCH_X
MTCH__TOUCH_Y
MTCH__TOUCH_LSB
MTCH__GESTURE_STATE
MTCH__GESTURE_DIAG

◆ MTCH6102_TYPE

enum MTCH6102_TYPE
Enumerator
Computed

(1023 - Res1) + Res2

Result1

Res1 only.

Result2

Res2 only.

Function Documentation

◆ MTCH6102_Init()

FctERR MTCH6102_Init ( const uint8_t idx,
I2C_HandleTypeDef *const hi2c,
const uint16_t devAddress )

Initialization for MTCH6102 peripheral.

Warning
When MTCH6102 is powering up, you should wait around 100ms before you address the first transaction to it
write rx/tx number if needed other than default (9,6), (by implementing your own init sequence)
Note
set MTCH6102_Set_Centered_Coord(true) if 0,0 point needs to be centered on the pad (by implementing your own init sequence)
Parameters
[in]idx- MTCH6102 index
[in]hi2c- pointer to MTCH6102 I2C instance
[in]devAddress- MTCH6102 device address
Returns
FctERR - error code
Here is the call graph for this function:
Here is the caller graph for this function:

◆ MTCH6102_Init_Single()

FctERR MTCH6102_Init_Single ( void )

Initialization for MTCH6102 peripheral.

Warning
When MTCH6102 is powering up, you should wait around 100ms before you address the first transaction to it
In case multiple devices (defined by I2C_MTCH6102_NB > 1), you shall use MTCH6102_Init instead
Returns
FctERR - error code
Here is the call graph for this function:

◆ MTCH6102_Read()

FctERR MTCH6102_Read ( I2C_slave_t *const pSlave,
uint8_t * data,
const uint16_t addr,
const uint16_t nb )

I2C Read function for MTCH6102.

Parameters
[in,out]pSlave- Pointer to I2C slave instance
[in,out]data- pointer to read to
[in]addr- Address to read from
[in]nb- Number of bytes to read
Returns
FctERR - error code
Here is the call graph for this function:
Here is the caller graph for this function:

◆ MTCH6102_Write()

FctERR MTCH6102_Write ( I2C_slave_t *const pSlave,
const uint8_t * data,
const uint16_t addr,
const uint16_t nb )

I2C Write function for MTCH6102.

Parameters
[in,out]pSlave- Pointer to I2C slave instance
[in]data- pointer to write from
[in]addr- Address to write to
[in]nb- Number of bytes to write
Returns
FctERR - error code
Here is the call graph for this function:
Here is the caller graph for this function:
Generated by doxygen 1.13.2
