MTCH6102 Driver procedures. More...

#include "sarmfsw.h"
#include "MTCH6102.h"

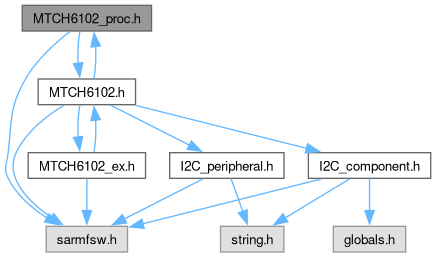

Include dependency graph for MTCH6102_proc.h:

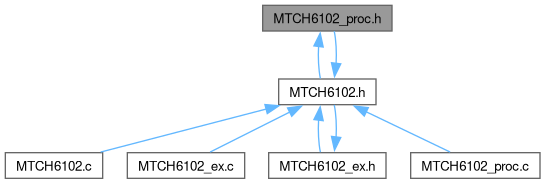

This graph shows which files directly or indirectly include this file:

Data Structures
struct	MTCH6102_raw_gest

struct	MTCH6102_gest

struct	MTCH6102_t
	MTCH6102 user interface struct. More...

Macros
#define	MTCH6102_CARTESIAN_CENTERED
	Define MTCH6102 to use default Cartesian reference centered on pad (using demo board routing)

Functions
FctERR	MTCH6102_Init_Sequence (MTCH6102_t *const pCpnt)
	Initialization Sequence for MTCH6102 peripheral.

FctERR	MTCH6102_Configure (MTCH6102_t *const pCpnt, const bool store_to_nv, const uint16_t active_per, const uint16_t idle_per, const MTCH6102_FILTER_TYPE filter, const uint8_t filter_str, const MTCH6102_FILTER_TYPE base_filter, const uint8_t base_filter_str, const uint8_t rx, const uint8_t tx)
	Configure MTCH6102 parameters needing configure step.

void	MTCH6102_Set_Grid (MTCH6102_t *const pCpnt)
	Set MTCH6102 grid min & max values.

FctERR	MTCH6102_Set_Compensation (MTCH6102_t *const pCpnt)
	Calculates compensation values regarding read values and writes them to MTCH6102.

void	MTCH6102_Set_RxTx_Direction (MTCH6102_t *const pCpnt, const bool rx_dw, const bool tx_dw)
	Set MTCH6102 Tx Direction.

void	MTCH6102_Set_Centered_Coord (MTCH6102_t *const pCpnt, const bool centered)
	Set MTCH6102 coordinates reference.

void	MTCH6102_Set_Rotation (MTCH6102_t *const pCpnt, const int16_t angle)
	Set MTCH6102 coordinates rotation.

FctERR	MTCH6102_Get_MFG_Results (MTCH6102_t const pCpnt, uint32_t const res)
	Get manufacturing test results.

void	MTCH6102_decode_touch_datas (MTCH6102_t const pCpnt, const MTCH6102_raw_gest const dat)
	Decode raw MTCH6102 datas to touch datas.

FctERR	MTCH6102_gesture_to_str (char *const str, const MTCH6102_GESTURE_STATE state)
	Get gesture string from gesture data.

FctERR	MTCH6102_diag_to_str (char *const str, const MTCH6102_GESTURE_DIAGNOSTIC diag)
	Get diagnostic string from diagnostic data.

FctERR	MTCH6102_handler (MTCH6102_t *const pCpnt)
	Handler for MTCH6102 peripheral.

FctERR	MTCH6102_handler_it (MTCH6102_t *const pCpnt)
	Handler for MTCH6102 peripheral GPIO interrupt.

FctERR	MTCH6102_handler_all (void)
	Handler for all MTCH6102 peripherals.

FctERR	MTCH6102_handler_it_all (void)
	Handler for all MTCH6102 peripherals GPIO interrupt.

Variables
MTCH6102_t	MTCH6102 [I2C_MTCH6102_NB]
	MTCH6102 User structure.

Detailed Description

MTCH6102 Driver procedures.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

MTCH6102: Low-Power Projected Capacitive Touch Controller

Macro Definition Documentation

◆ MTCH6102_CARTESIAN_CENTERED

#define MTCH6102_CARTESIAN_CENTERED

Define MTCH6102 to use default Cartesian reference centered on pad (using demo board routing)

Function Documentation

◆ MTCH6102_Configure()

FctERR MTCH6102_Configure	(	MTCH6102_t *const	pCpnt,
		const bool	store_to_nv,
		const uint16_t	active_per,
		const uint16_t	idle_per,
		const MTCH6102_FILTER_TYPE	filter,
		const uint8_t	filter_str,
		const MTCH6102_FILTER_TYPE	base_filter,
		const uint8_t	base_filter_str,
		const uint8_t	rx,
		const uint8_t	tx )

Configure MTCH6102 parameters needing configure step.

Parameters

[in,out]	pCpnt	- Pointer to MTCH6102 component
[in]	store_to_nv	- Store to non-volatile memory after configuration
[in]	active_per	- Active period value
[in]	idle_per	- Idle period value
[in]	filter	- Filter type
[in]	filter_str	- Filter strength
[in]	base_filter	- Base filter type
[in]	base_filter_str	- Base filter strength
[in]	rx	- Number of RX lines
[in]	tx	- Number of TX lines

Returns: FctERR - error code

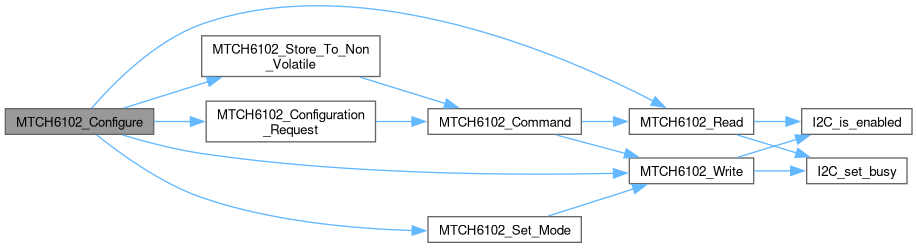

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_decode_touch_datas()

void MTCH6102_decode_touch_datas	(	MTCH6102_t *const	pCpnt,
		const MTCH6102_raw_gest *const	dat )

Decode raw MTCH6102 datas to touch datas.

Warning: You would have to use MTCH6102_Set_RxTx_Direction to change behavior (complementing default demo board design to complement Tx to a Cartesian reference for example)

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in]	dat	- Raw touch datas

Here is the caller graph for this function:

◆ MTCH6102_diag_to_str()

FctERR MTCH6102_diag_to_str	(	char *const	str,
		const MTCH6102_GESTURE_DIAGNOSTIC	diag )

Get diagnostic string from diagnostic data.

Parameters

[in,out]	str	- Pointer to output string
[in,out]	diag	- Raw datas

Returns: FctERR - error code

Here is the caller graph for this function:

◆ MTCH6102_gesture_to_str()

FctERR MTCH6102_gesture_to_str	(	char *const	str,
		const MTCH6102_GESTURE_STATE	state )

Get gesture string from gesture data.

Parameters

[in,out]	str	- Pointer to output string
[in,out]	state	- Raw datas

Returns: FctERR - error code

Here is the caller graph for this function:

◆ MTCH6102_Get_MFG_Results()

FctERR MTCH6102_Get_MFG_Results	(	MTCH6102_t *const	pCpnt,
		uint32_t *const	res )

Get manufacturing test results.

Parameters

[in]	pCpnt	- Pointer to MTCH6102 component
[in,out]	res	- Channels shorted to GND in least significant 16b ; Channels shorted to Vdd in most significant 16b

Returns: FctERR - error code

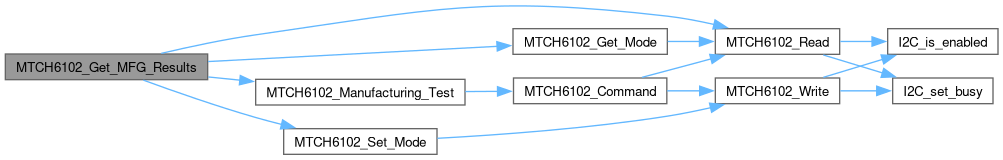

Here is the call graph for this function:

◆ MTCH6102_handler()

FctERR MTCH6102_handler ( MTCH6102_t *const pCpnt )

Handler for MTCH6102 peripheral.

Weak Functions: MTCH6102 handler may be user implemented to suit custom needs

Note: May be called periodically to handle MTCH6102 tasks; Alternately may be called when event occurs on MTCH6102 pin (or by calling MTCH6102_handler_it instead)

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_handler_all()

FctERR MTCH6102_handler_all ( void )

Handler for all MTCH6102 peripherals.

Note: May be called periodically to handle all MTCH6102 tasks

Returns: FctERR - error code

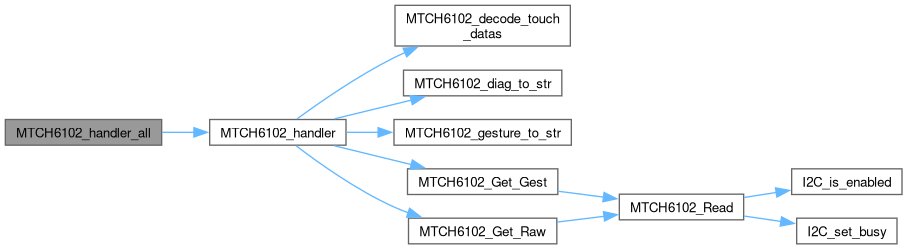

Here is the call graph for this function:

◆ MTCH6102_handler_it()

FctERR MTCH6102_handler_it ( MTCH6102_t *const pCpnt )

Handler for MTCH6102 peripheral GPIO interrupt.

Note: MTCH6102_INT_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions: MTCH6102 GPIO interrupt handler may be user implemented to suit custom needs

Note: May be called periodically to handle MTCH6102 tasks through interrupts

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

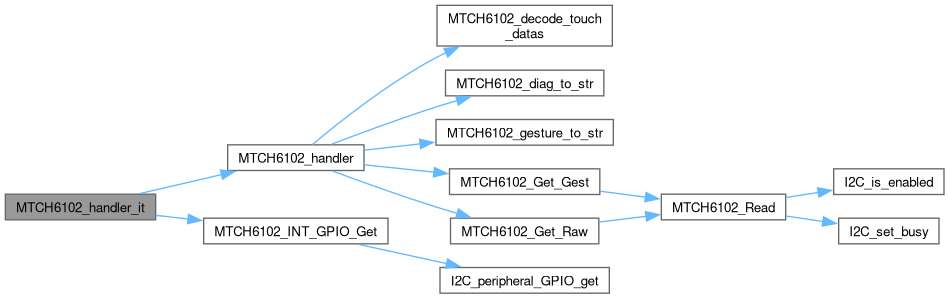

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_handler_it_all()

FctERR MTCH6102_handler_it_all ( void )

Handler for all MTCH6102 peripherals GPIO interrupt.

Note: MTCH6102_INT_GPIO_Init has to be called at init before using interrupt handler function; May be called periodically to handle all MTCH6102 tasks

Returns: FctERR - error code

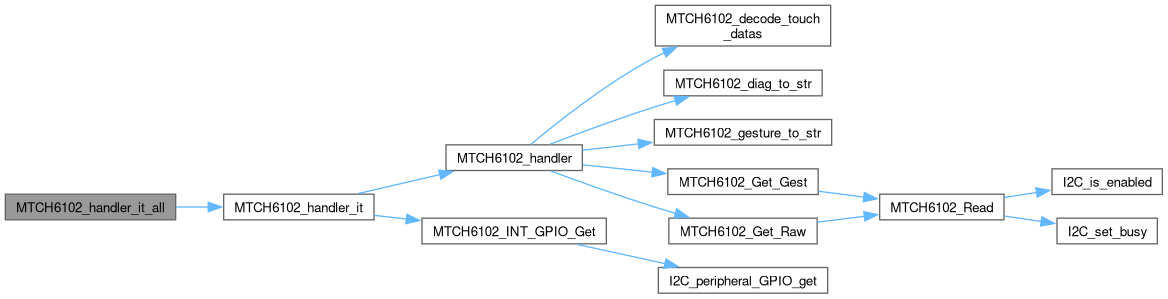

Here is the call graph for this function:

◆ MTCH6102_Init_Sequence()

FctERR MTCH6102_Init_Sequence ( MTCH6102_t *const pCpnt )

Initialization Sequence for MTCH6102 peripheral.

Weak Functions: MTCH6102 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in,out] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MTCH6102_Set_Centered_Coord()

void MTCH6102_Set_Centered_Coord	(	MTCH6102_t *const	pCpnt,
		const bool	centered )

inline

Set MTCH6102 coordinates reference.

Parameters

[in,out]	pCpnt	- Pointer to MTCH6102 component
[in]	centered	- false: reference in the corner / true: reference in the middle of the pad

Here is the caller graph for this function:

◆ MTCH6102_Set_Compensation()

FctERR MTCH6102_Set_Compensation ( MTCH6102_t *const pCpnt )

Calculates compensation values regarding read values and writes them to MTCH6102.

Note: Beware, averaging is done through all read values, not picking a repeated value (this may not suit your needs, but it appeared that the average result was close to repeated values on custom capacitive board)

Parameters

[in] pCpnt - Pointer to MTCH6102 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ MTCH6102_Set_Grid()

void MTCH6102_Set_Grid ( MTCH6102_t *const pCpnt )

Set MTCH6102 grid min & max values.

Parameters

[in,out] pCpnt - Pointer to MTCH6102 component

Here is the caller graph for this function:

◆ MTCH6102_Set_Rotation()

void MTCH6102_Set_Rotation	(	MTCH6102_t *const	pCpnt,
		const int16_t	angle )

inline

Set MTCH6102 coordinates rotation.

Parameters

[in,out]	pCpnt	- Pointer to MTCH6102 component
[in]	angle	- Rotation angle (in degrees, counter clockwise)

Here is the caller graph for this function:

◆ MTCH6102_Set_RxTx_Direction()

void MTCH6102_Set_RxTx_Direction	(	MTCH6102_t *const	pCpnt,
		const bool	rx_dw,
		const bool	tx_dw )

inline

Set MTCH6102 Tx Direction.

Parameters

[in,out]	pCpnt	- Pointer to MTCH6102 component
[in]	rx_dw	- false: rx0 origin left / true: rx0 origin right
[in]	tx_dw	- false: tx0 origin up / true: tx0 origin down

Here is the caller graph for this function:

Variable Documentation

◆ MTCH6102

MTCH6102_t MTCH6102[I2C_MTCH6102_NB]

extern

MTCH6102 User structure.
