TSL2591.h File Reference

TSL2591 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "TSL2591_proc.h"
#include "TSL2591_ex.h"

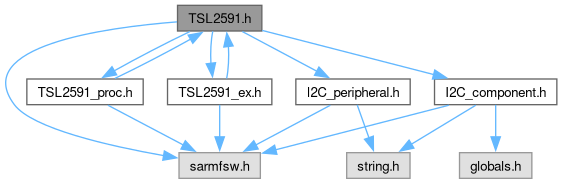

Include dependency graph for TSL2591.h:

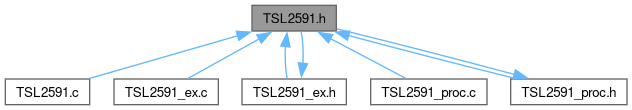

This graph shows which files directly or indirectly include this file:

Data Structures
union	uTSL2591_CMD
	Union for COMMAND register of TSL2591. More...
union	uTSL2591_REG__ENABLE
	Union for ENABLE register of TSL2591. More...
union	uTSL2591_REG__CONFIG
	Union for CONFIG register of TSL2591. More...
union	uTSL2591_REG__PERSIST
	Union for PERSIST register of TSL2591. More...
union	uTSL2591_REG__STATUS
	Union for STATUS register of TSL2591. More...

Macros
#define	I2C_TSL2591_NB   1U
	Number of TSL2591 peripherals.
#define	TSL2591_BASE_ADDR   0x29U
	TSL2591 Base address.

Enumerations
enum	TSL2591_reg {   TSL2591__ENABLE = 0U , TSL2591__CONFIG , TSL2591__AILTL = 0x04U , TSL2591__AILTH ,   TSL2591__AIHTL , TSL2591__AIHTH , TSL2591__NPAILTL , TSL2591__NPAILTH ,   TSL2591__NPAIHTL , TSL2591__NPAIHTH , TSL2591__PERSIST , TSL2591__PID = 0x11U ,   TSL2591__ID , TSL2591__STATUS , TSL2591__C0DATAL , TSL2591__C0DATAH ,   TSL2591__C1DATAL , TSL2591__C1DATAH }
	Register map enum of TSL2591. More...
enum	TSL2591_transaction { TSL2591__TRANS_NORMAL_OP = 1U , TSL2591__TRANS_SPECIAL_FUNC = 3U }
	Transaction types of TSL2591. More...
enum	TSL2591_spec_func { TSL2591__SF_FORCE_IT = 4U , TSL2591__SF_CLR_ALS_IT = 6U , TSL2591__SF_CLR_ALS_AND_NO_PERS = 7U , TSL2591__SF_CLR_NO_PERS = 9U }
	Special functions of TSL2591. More...
enum	TSL2591_gain { TSL2591__LOW_GAIN = 0U , TSL2591__MEDIUM_GAIN , TSL2591__HIGH_GAIN , TSL2591__MAXIMUM_GAIN }
	Gain values of TSL2591. More...
enum	TSL2591_integ {   TSL2591__INTEG_100MS = 0U , TSL2591__INTEG_200MS , TSL2591__INTEG_300MS , TSL2591__INTEG_400MS ,   TSL2591__INTEG_500MS , TSL2591__INTEG_600MS }
	Integration times of TSL2591. More...
enum	TSL2591_it_persist {   TSL2591__PERSIST_EVERY_ADC_CYCLE = 0U , TSL2591__PERSIST_ANY_OUTSIDE_THRESHOLD , TSL2591__PERSIST_2_IT_PERIODS , TSL2591__PERSIST_3_IT_PERIODS ,   TSL2591__PERSIST_5_IT_PERIODS , TSL2591__PERSIST_10_IT_PERIODS , TSL2591__PERSIST_15_IT_PERIODS , TSL2591__PERSIST_20_IT_PERIODS ,   TSL2591__PERSIST_25_IT_PERIODS , TSL2591__PERSIST_30_IT_PERIODS , TSL2591__PERSIST_35_IT_PERIODS , TSL2591__PERSIST_40_IT_PERIODS ,   TSL2591__PERSIST_45_IT_PERIODS , TSL2591__PERSIST_50_IT_PERIODS , TSL2591__PERSIST_55_IT_PERIODS , TSL2591__PERSIST_60_IT_PERIODS }
	Persistence control of TSL2591. More...

Functions
FctERR	TSL2591_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for TSL2591 peripheral.
FctERR	TSL2591_Init_Single (void)
	Initialization for TSL2591 peripheral.
FctERR	TSL2591_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for TSL2591.
FctERR	TSL2591_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for TSL2591.
FctERR	TSL2591_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for TSL2591.
FctERR	TSL2591_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for TSL2591.
FctERR	TSL2591_Write_Special (I2C_slave_t *const pSlave, const TSL2591_spec_func func)
	I2C Special function Write function for TSL2591.

Detailed Description

TSL2591 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TSL2591: Very-high sensitivity light-to-digital converter

Macro Definition Documentation

I2C_TSL2591_NB

#define I2C_TSL2591_NB   1U

Number of TSL2591 peripherals.

Note

Define I2C_TSL2591_NB to enable multiple peripherals of this type

TSL2591_BASE_ADDR

#define TSL2591_BASE_ADDR   0x29U

TSL2591 Base address.

Note

Define TSL2591_BASE_ADDR to change default device base address

Enumeration Type Documentation

TSL2591_gain

enum TSL2591_gain

Gain values of TSL2591.

Enumerator
TSL2591__LOW_GAIN	Low gain mode (x1)
TSL2591__MEDIUM_GAIN	Medium gain mode (x25)
TSL2591__HIGH_GAIN	High gain mode (x428)
TSL2591__MAXIMUM_GAIN	Maximum gain mode (x9876)

TSL2591_integ

enum TSL2591_integ

Integration times of TSL2591.

Enumerator
TSL2591__INTEG_100MS	100ms integration time
TSL2591__INTEG_200MS	200ms integration time
TSL2591__INTEG_300MS	300ms integration time
TSL2591__INTEG_400MS	400ms integration time
TSL2591__INTEG_500MS	500ms integration time
TSL2591__INTEG_600MS	600ms integration time

TSL2591_it_persist

enum TSL2591_it_persist

Persistence control of TSL2591.

Enumerator
TSL2591__PERSIST_EVERY_ADC_CYCLE	Every ADC cycle generates interrupt.
TSL2591__PERSIST_ANY_OUTSIDE_THRESHOLD	Any value outside of threshold range.
TSL2591__PERSIST_2_IT_PERIODS	2 integration time periods out of range
TSL2591__PERSIST_3_IT_PERIODS	3 integration time periods out of range
TSL2591__PERSIST_5_IT_PERIODS	5 integration time periods out of range
TSL2591__PERSIST_10_IT_PERIODS	10 integration time periods out of range
TSL2591__PERSIST_15_IT_PERIODS	15 integration time periods out of range
TSL2591__PERSIST_20_IT_PERIODS	20 integration time periods out of range
TSL2591__PERSIST_25_IT_PERIODS	25 integration time periods out of range
TSL2591__PERSIST_30_IT_PERIODS	30 integration time periods out of range
TSL2591__PERSIST_35_IT_PERIODS	35 integration time periods out of range
TSL2591__PERSIST_40_IT_PERIODS	40 integration time periods out of range
TSL2591__PERSIST_45_IT_PERIODS	45 integration time periods out of range
TSL2591__PERSIST_50_IT_PERIODS	50 integration time periods out of range
TSL2591__PERSIST_55_IT_PERIODS	55 integration time periods out of range
TSL2591__PERSIST_60_IT_PERIODS	60 integration time periods out of range

TSL2591_reg

enum TSL2591_reg

Register map enum of TSL2591.

Enumerator
TSL2591__ENABLE	Enables states and interrupts.
TSL2591__CONFIG	ALS gain and integration time configuration.
TSL2591__AILTL	ALS interrupt low threshold low byte.
TSL2591__AILTH	ALS interrupt low threshold high byte.
TSL2591__AIHTL	ALS interrupt high threshold low byte.
TSL2591__AIHTH	ALS interrupt high threshold high byte.
TSL2591__NPAILTL	No Persist ALS interrupt low threshold low byte.
TSL2591__NPAILTH	No Persist ALS interrupt low threshold high byte.
TSL2591__NPAIHTL	No Persist ALS interrupt high threshold low byte.
TSL2591__NPAIHTH	No Persist ALS interrupt high threshold high byte.
TSL2591__PERSIST	Interrupt persistence filter.
TSL2591__PID	Package ID.
TSL2591__ID	Device ID.
TSL2591__STATUS	Device status.
TSL2591__C0DATAL	CH0 ADC low data byte.
TSL2591__C0DATAH	CH0 ADC high data byte.
TSL2591__C1DATAL	CH1 ADC low data byte.
TSL2591__C1DATAH	CH1 ADC high data byte.

TSL2591_spec_func

enum TSL2591_spec_func

Special functions of TSL2591.

Enumerator
TSL2591__SF_FORCE_IT	Interrupt set (forces an interrupt)
TSL2591__SF_CLR_ALS_IT	Clears ALS interrupt.
TSL2591__SF_CLR_ALS_AND_NO_PERS	Clears ALS and no persist ALS interrupt.
TSL2591__SF_CLR_NO_PERS	Clears no persist ALS interrupt.

TSL2591_transaction

enum TSL2591_transaction

Transaction types of TSL2591.

Enumerator
TSL2591__TRANS_NORMAL_OP	Normal operation.
TSL2591__TRANS_SPECIAL_FUNC	Special Function.

Function Documentation

TSL2591_Init()

FctERR TSL2591_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for TSL2591 peripheral.

Parameters

[in]	idx	- TSL2591 index
[in]	hi2c	- pointer to TSL2591 I2C instance
[in]	devAddress	- TSL2591 device address

Returns

FctERR - error code

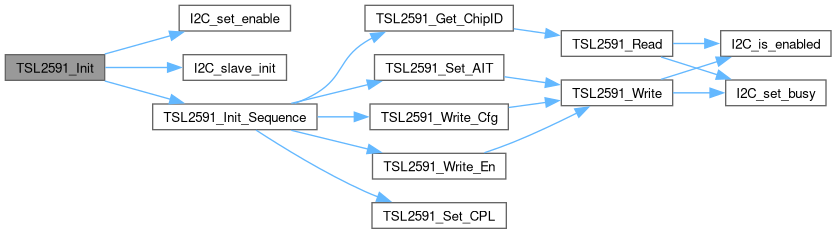

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_Init_Single()

FctERR TSL2591_Init_Single

(

void

)

Initialization for TSL2591 peripheral.

Warning

In case multiple devices (defined by I2C_TSL2591_NB > 1), you shall use TSL2591_Init instead

Returns

FctERR - error code

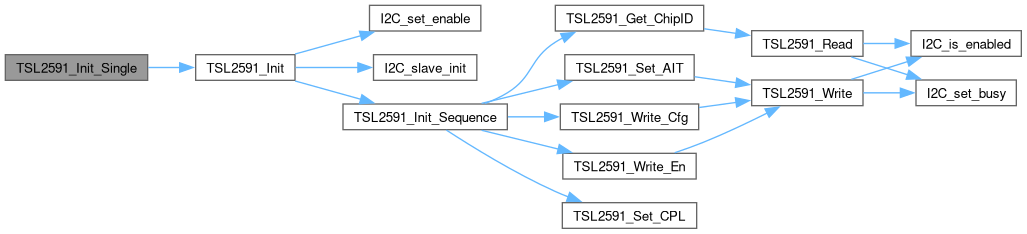

Here is the call graph for this function:

TSL2591_Read()

FctERR TSL2591_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for TSL2591.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_Read_Word()

FctERR TSL2591_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for TSL2591.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_Write()

FctERR TSL2591_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for TSL2591.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

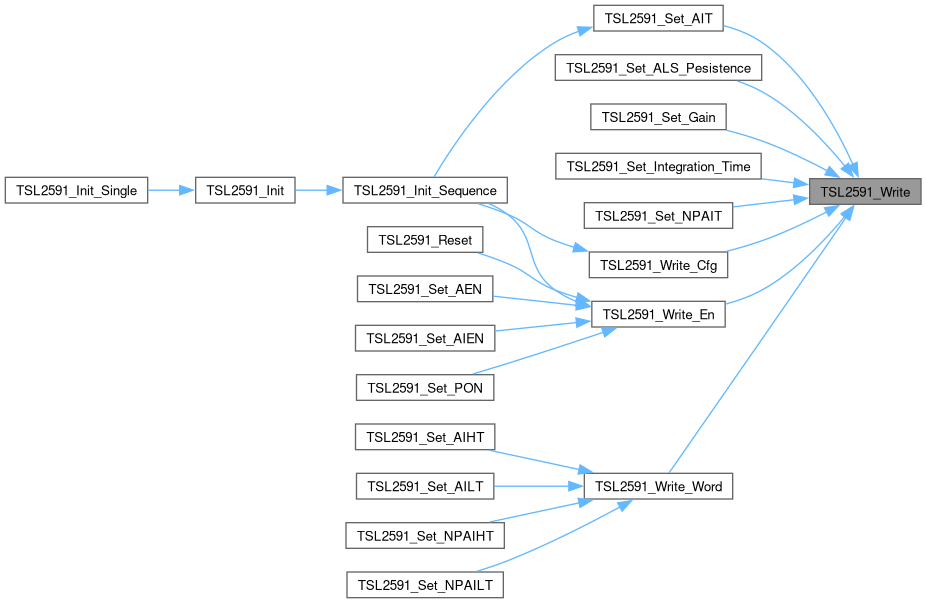

Here is the caller graph for this function:

TSL2591_Write_Special()

FctERR TSL2591_Write_Special	(	I2C_slave_t *const	pSlave,
		const TSL2591_spec_func	func )

I2C Special function Write function for TSL2591.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	func	- special function to execute

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_Write_Word()

FctERR TSL2591_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for TSL2591.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

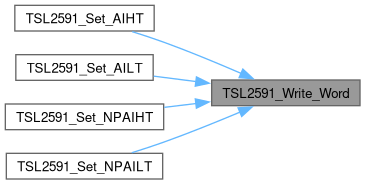

Here is the caller graph for this function:
