TSL2591 Driver extensions. More...

#include "sarmfsw.h"
#include "TSL2591.h"

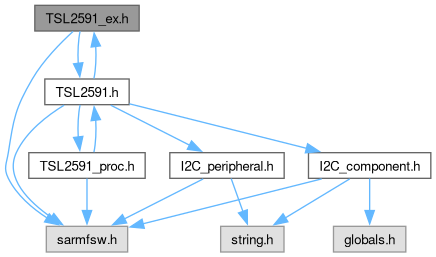

Include dependency graph for TSL2591_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uTSL2591_REG_MAP
	Union of TSL2591 registry map. More...

Enumerations
enum	TSL2591_light { TSL2591__LIGHT_FULL = 0U , TSL2591__LIGHT_IR , TSL2591__LIGHT_VISIBLE }
	Light types of TSL2591. More...

Functions
FctERR	TSL2591_Write_En (TSL2591_t *const pCpnt, const uint8_t en)
	Write TSL2591 Enable register.

FctERR	TSL2591_Write_Cfg (TSL2591_t *const pCpnt, const uint8_t cfg)
	Write TSL2591 Config.

FctERR	TSL2591_Set_PON (TSL2591_t *const pCpnt, const bool en)
	Oscillator Enable / Disable.

FctERR	TSL2591_Set_AEN (TSL2591_t *const pCpnt, const bool en)
	ALS module Enable / Disable.

FctERR	TSL2591_Set_AIEN (TSL2591_t *const pCpnt, const bool en)
	ALS interrupt module Enable / Disable.

FctERR	TSL2591_Set_Gain (TSL2591_t *const pCpnt, const TSL2591_gain gain)
	Gain configuration.

FctERR	TSL2591_Set_Integration_Time (TSL2591_t *const pCpnt, const TSL2591_integ integ)
	Integration time configuration.

FctERR	TSL2591_Set_ALS_Pesistence (TSL2591_t *const pCpnt, const TSL2591_it_persist persist)
	ALS Persistence configuration.

FctERR	TSL2591_Set_AILT (TSL2591_t *const pCpnt, const uint16_t thr)
	ALS interrupt low threshold configuration.

FctERR	TSL2591_Set_AIHT (TSL2591_t *const pCpnt, const uint16_t thr)
	ALS interrupt high threshold configuration.

FctERR	TSL2591_Set_AIT (TSL2591_t *const pCpnt, const uint16_t lthr, const uint16_t hthr)
	ALS interrupt thresholds configuration.

FctERR	TSL2591_Set_NPAILT (TSL2591_t *const pCpnt, const uint16_t thr)
	ALS interrupt Persist Low threshold filter configuration.

FctERR	TSL2591_Set_NPAIHT (TSL2591_t *const pCpnt, const uint16_t thr)
	ALS interrupt Persist High threshold filter configuration.

FctERR	TSL2591_Set_NPAIT (TSL2591_t *const pCpnt, const uint16_t lthr, const uint16_t hthr)
	ALS interrupt Persist threshold filters configuration.

FctERR	TSL2591_SF_Force_IT (TSL2591_t *const pCpnt)
	Force ALS interruption.

FctERR	TSL2591_SF_Clear_IT (TSL2591_t *const pCpnt)
	Clear pending ALS interruption.

FctERR	TSL2591_SF_Clear_IT_PERS (TSL2591_t *const pCpnt)
	Clear pending ALS & Persistence interruptions.

FctERR	TSL2591_SF_Clear_PERS (TSL2591_t *const pCpnt)
	Clear pending Persistence interruption.

FctERR	TSL2591_Get_ChipID (TSL2591_t const pCpnt, uint8_t const id)
	Get TSL2591 chip ID.

FctERR	TSL2591_Reset (TSL2591_t *const pCpnt)
	Reset TSL2591 chip.

FctERR	TSL2591_Get_Full (TSL2591_t const pCpnt, uint16_t const full)
	Get Full conversion (Channel 0)

FctERR	TSL2591_Get_IR (TSL2591_t const pCpnt, uint16_t const ir)
	Get IR conversion (Channel 1)

void	TSL2591_INT_GPIO_Init (TSL2591_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for TSL2591.

bool	TSL2591_INT_GPIO_Get (const TSL2591_t *const pCpnt)
	Interrupt GPIO pin getter for TSL2591.

Detailed Description

TSL2591 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

TSL2591: Very-high sensitivity light-to-digital converter

Enumeration Type Documentation

◆ TSL2591_light

enum TSL2591_light

Light types of TSL2591.

Enumerator
TSL2591__LIGHT_FULL	Full light spectrum (channel 0)
TSL2591__LIGHT_IR	Infra Red light (channel 1)
TSL2591__LIGHT_VISIBLE	Visible light (channel 0 - channel 1)

Function Documentation

◆ TSL2591_Get_ChipID()

FctERR TSL2591_Get_ChipID	(	TSL2591_t *const	pCpnt,
		uint8_t *const	id )

inline

Get TSL2591 chip ID.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in,out]	id	- pointer to chip ID result

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TSL2591_Get_Full()

FctERR TSL2591_Get_Full	(	TSL2591_t *const	pCpnt,
		uint16_t *const	full )

inline

Get Full conversion (Channel 0)

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in,out]	full	- pointer to Full conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Get_IR()

FctERR TSL2591_Get_IR	(	TSL2591_t *const	pCpnt,
		uint16_t *const	ir )

inline

Get IR conversion (Channel 1)

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in,out]	ir	- pointer to IR conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_INT_GPIO_Get()

bool TSL2591_INT_GPIO_Get ( const TSL2591_t *const pCpnt )

Interrupt GPIO pin getter for TSL2591.

Weak Functions: TSL2591 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TSL2591_INT_GPIO_Init()

void TSL2591_INT_GPIO_Init	(	TSL2591_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for TSL2591.

Weak Functions: TSL2591 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

◆ TSL2591_Reset()

FctERR TSL2591_Reset ( TSL2591_t *const pCpnt )

inline

Reset TSL2591 chip.

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_AEN()

FctERR TSL2591_Set_AEN	(	TSL2591_t *const	pCpnt,
		const bool	en )

ALS module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_AIEN()

FctERR TSL2591_Set_AIEN	(	TSL2591_t *const	pCpnt,
		const bool	en )

ALS interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_AIHT()

FctERR TSL2591_Set_AIHT	(	TSL2591_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt high threshold configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	thr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_AILT()

FctERR TSL2591_Set_AILT	(	TSL2591_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt low threshold configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	thr	- Low threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_AIT()

FctERR TSL2591_Set_AIT	(	TSL2591_t *const	pCpnt,
		const uint16_t	lthr,
		const uint16_t	hthr )

inline

ALS interrupt thresholds configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	lthr	- Low threshold value
[in]	hthr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TSL2591_Set_ALS_Pesistence()

FctERR TSL2591_Set_ALS_Pesistence	(	TSL2591_t *const	pCpnt,
		const TSL2591_it_persist	persist )

inline

ALS Persistence configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	persist	- Persistence value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_Gain()

FctERR TSL2591_Set_Gain	(	TSL2591_t *const	pCpnt,
		const TSL2591_gain	gain )

Gain configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	gain	- Gain value

Returns: FctERR - error code

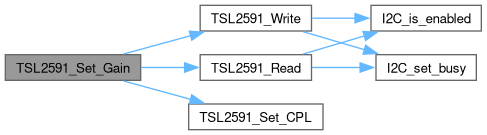

Here is the call graph for this function:

◆ TSL2591_Set_Integration_Time()

FctERR TSL2591_Set_Integration_Time	(	TSL2591_t *const	pCpnt,
		const TSL2591_integ	integ )

Integration time configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	integ	- Integration time value

Returns: FctERR - error code

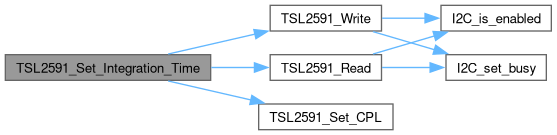

Here is the call graph for this function:

◆ TSL2591_Set_NPAIHT()

FctERR TSL2591_Set_NPAIHT	(	TSL2591_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt Persist High threshold filter configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	thr	- Persist High threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_NPAILT()

FctERR TSL2591_Set_NPAILT	(	TSL2591_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt Persist Low threshold filter configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	thr	- Persist Low threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_NPAIT()

FctERR TSL2591_Set_NPAIT	(	TSL2591_t *const	pCpnt,
		const uint16_t	lthr,
		const uint16_t	hthr )

inline

ALS interrupt Persist threshold filters configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	lthr	- Low threshold filter value
[in]	hthr	- High threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Set_PON()

FctERR TSL2591_Set_PON	(	TSL2591_t *const	pCpnt,
		const bool	en )

Oscillator Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_SF_Clear_IT()

FctERR TSL2591_SF_Clear_IT ( TSL2591_t *const pCpnt )

inline

Clear pending ALS interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TSL2591_SF_Clear_IT_PERS()

FctERR TSL2591_SF_Clear_IT_PERS ( TSL2591_t *const pCpnt )

inline

Clear pending ALS & Persistence interruptions.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_SF_Clear_PERS()

FctERR TSL2591_SF_Clear_PERS ( TSL2591_t *const pCpnt )

inline

Clear pending Persistence interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_SF_Force_IT()

FctERR TSL2591_SF_Force_IT ( TSL2591_t *const pCpnt )

inline

Force ALS interruption.

Parameters

[in] pCpnt - Pointer to TSL2591 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ TSL2591_Write_Cfg()

FctERR TSL2591_Write_Cfg	(	TSL2591_t *const	pCpnt,
		const uint8_t	cfg )

inline

Write TSL2591 Config.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	cfg	- Configuration register value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TSL2591_Write_En()

FctERR TSL2591_Write_En	(	TSL2591_t *const	pCpnt,
		const uint8_t	en )

inline

Write TSL2591 Enable register.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- Enable register value

Returns: FctERR - error code

Here is the call graph for this function:

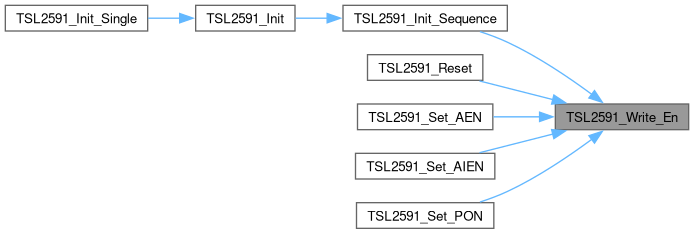

Here is the caller graph for this function:

Data Structures

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ TSL2591_light

Function Documentation

◆ TSL2591_Get_ChipID()

◆ TSL2591_Get_Full()

◆ TSL2591_Get_IR()

◆ TSL2591_INT_GPIO_Get()

◆ TSL2591_INT_GPIO_Init()

◆ TSL2591_Reset()

◆ TSL2591_Set_AEN()

◆ TSL2591_Set_AIEN()

◆ TSL2591_Set_AIHT()

◆ TSL2591_Set_AILT()

◆ TSL2591_Set_AIT()

◆ TSL2591_Set_ALS_Pesistence()

◆ TSL2591_Set_Gain()

◆ TSL2591_Set_Integration_Time()

◆ TSL2591_Set_NPAIHT()

◆ TSL2591_Set_NPAILT()

◆ TSL2591_Set_NPAIT()

◆ TSL2591_Set_PON()

◆ TSL2591_SF_Clear_IT()

◆ TSL2591_SF_Clear_IT_PERS()

◆ TSL2591_SF_Clear_PERS()

◆ TSL2591_SF_Force_IT()

◆ TSL2591_Write_Cfg()

◆ TSL2591_Write_En()
