TSL2591_proc.h File Reference

TSL2591 Driver procedures. More...

#include "sarmfsw.h"
#include "TSL2591.h"

Include dependency graph for TSL2591_proc.h:

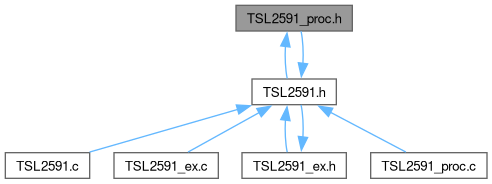

This graph shows which files directly or indirectly include this file:

Data Structures
struct	TSL2591_t
	TSL2591 user interface struct. More...

Macros
#define	TSL2591_CHIP_ID   0x50U
	TSL2591 Chip ID to check against.
#define	TSL2591_DEVICE_FACTOR   53U
	TSL2591 Device factor.
#define	TSL2591_CH0_COUNTS   264.1f
	Counts per uW/cm2 for CH0 (Full spectrum)
#define	TSL2591_CH1_COUNTS   34.9f
	Counts per uW/cm2 for CH1 (IR)

Functions
FctERR	TSL2591_Init_Sequence (TSL2591_t *const pCpnt)
	Initialization Sequence for TSL2591 peripheral.
void	TSL2591_Set_CPL (TSL2591_t *const pCpnt)
	Set proper CPL value (Counts per kiloLux)
uint32_t	TSL2591_Get_Lux (const TSL2591_t *const pCpnt)
	Get current Illuminance (in lux)
FctERR	TSL2591_handler (TSL2591_t *const pCpnt)
	Handler for TSL2591 peripheral.
FctERR	TSL2591_handler_it (TSL2591_t *const pCpnt)
	Handler for TSL2591 peripheral GPIO interrupt.
FctERR	TSL2591_handler_all (void)
	Handler for all TSL2591 peripherals.
FctERR	TSL2591_handler_it_all (void)
	Handler for all TSL2591 peripherals GPIO interrupt.

Variables
TSL2591_t	TSL2591 [I2C_TSL2591_NB]
	TSL2591 User structure.

Detailed Description

TSL2591 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TSL2591: Very-high sensitivity light-to-digital converter

Macro Definition Documentation

TSL2591_CH0_COUNTS

#define TSL2591_CH0_COUNTS   264.1f

Counts per uW/cm2 for CH0 (Full spectrum)

TSL2591_CH1_COUNTS

#define TSL2591_CH1_COUNTS   34.9f

Counts per uW/cm2 for CH1 (IR)

TSL2591_CHIP_ID

#define TSL2591_CHIP_ID   0x50U

TSL2591 Chip ID to check against.

TSL2591_DEVICE_FACTOR

#define TSL2591_DEVICE_FACTOR   53U

TSL2591 Device factor.

Function Documentation

TSL2591_Get_Lux()

uint32_t TSL2591_Get_Lux ( const TSL2591_t *const pCpnt )

inline

Get current Illuminance (in lux)

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

Returns

FctERR - error code

TSL2591_handler()

FctERR TSL2591_handler

(

TSL2591_t *const

pCpnt

)

Handler for TSL2591 peripheral.

Weak Functions

TSL2591 handler may be user implemented to suit custom needs

Note

May be called periodically to handle TSL2591 tasks

Alternately may be called when event occurs on TSL2591 pin (or by calling TSL2591_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

Returns

FctERR - error code

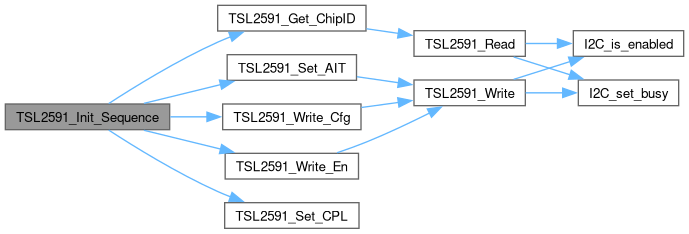

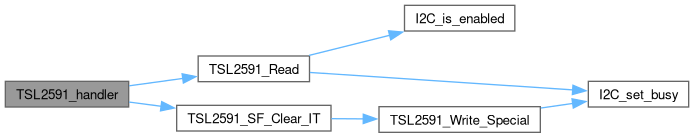

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_handler_all()

FctERR TSL2591_handler_all

(

void

)

Handler for all TSL2591 peripherals.

Note

May be called periodically to handle all TSL2591 tasks

Returns

FctERR - error code

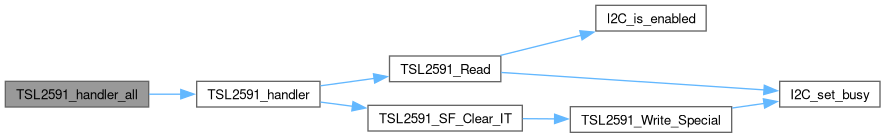

Here is the call graph for this function:

TSL2591_handler_it()

FctERR TSL2591_handler_it

(

TSL2591_t *const

pCpnt

)

Handler for TSL2591 peripheral GPIO interrupt.

Note

TSL2591_INT_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

TSL2591 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle TSL2591 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

Returns

FctERR - error code

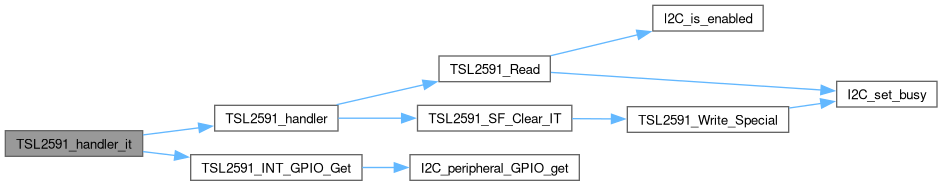

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_handler_it_all()

FctERR TSL2591_handler_it_all

(

void

)

Handler for all TSL2591 peripherals GPIO interrupt.

Note

TSL2591_INT_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all TSL2591 tasks

Returns

FctERR - error code

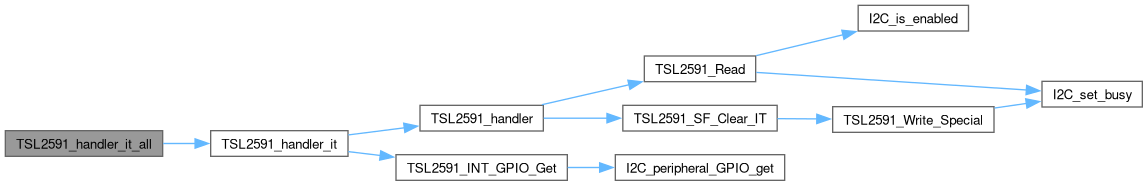

Here is the call graph for this function:

TSL2591_Init_Sequence()

FctERR TSL2591_Init_Sequence

(

TSL2591_t *const

pCpnt

)

Initialization Sequence for TSL2591 peripheral.

Weak Functions

TSL2591 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_Set_CPL()

void TSL2591_Set_CPL

(

TSL2591_t *const

pCpnt

)

Set proper CPL value (Counts per kiloLux)

Note

Should be called after Configuration change of Integration time or Gain

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

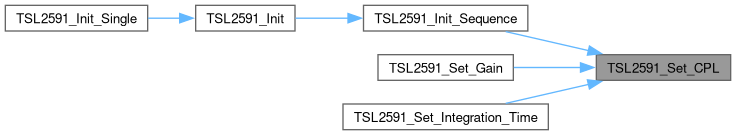

Here is the caller graph for this function:

Variable Documentation

TSL2591

TSL2591_t TSL2591[I2C_TSL2591_NB]

extern

TSL2591 User structure.
