DRV2605L_ex.c File Reference

DRV2605L Driver extensions. More...

#include "DRV2605L.h"

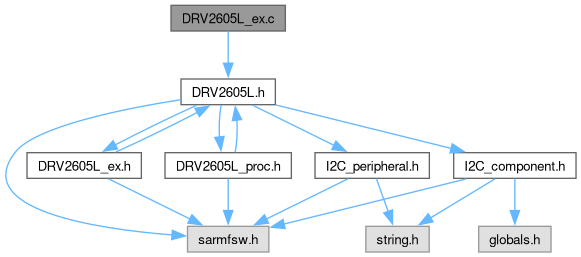

Include dependency graph for DRV2605L_ex.c:

Data Structures
union	uDRV_CFG
	DRV2605L Config registers union. More...

Functions
FctERR	DRV2605L_Set_ActType (const DRV2605L_act act)
	Set haptic actuator type.
FctERR	DRV2605L_Set_OperatingMode (const DRV2605L_mode mode)
	Set haptic operating mode.
FctERR	DRV2605L_Set_Standby (const bool stdby)
	Set haptic device to standby.
FctERR	DRV2605L_Set_InputMode (const DRV2605L_input input)
	Set haptic device input pin type.
FctERR	DRV2605L_Set_LoopMode (const DRV2605L_loop loop)
	Set haptic device input pin type.
FctERR	DRV2605L_Set_Library (const DRV2605L_lib lib)
	Set haptic device library.
FctERR	DRV2605L_Set_Waveform (const uint16_t chan, const DRV2605L_eff effect, const bool wait)
	Set haptic device channel in the waveform sequencer.
FctERR	DRV2605L_Set_RTPDataFormat (const DRV2605L_rtp_format format)
	Set RTP format.
FctERR	DRV2605L_Set_ATVPeakTime (const DRV2605L_peak peak)
	Set Audio To Vibe Peak time.
FctERR	DRV2605L_Set_ATVLowPassFilter (const DRV2605L_filter filt)
	Set Audio To Vibe Low pass filter.
FctERR	DRV2605L_Set_ATVInput_Volt (const float volt, const bool maxi)
	Set Audio To Vibe min/max input voltage.
FctERR	DRV2605L_Set_ATVDrive_Percent (const uint16_t perc, const bool maxi)
	Set Audio To Vibe min/max Drive.
FctERR	DRV2605L_Set_BlankingTime (const uint16_t time)
	Set haptic Blanking time.
FctERR	DRV2605L_Set_CurrentDissipationTime (const uint16_t time)
	Set haptic Current dissipation time.
FctERR	DRV2605L_Set_LRAOpenLoopPeriod_us (const uint16_t per)
	Set haptic LRA Open loop period.
FctERR	DRV2605L_Get_BlankingTime (uint16_t *const time)
	Get haptic Blanking time.
FctERR	DRV2605L_Get_ATVInput_Volt (float *const volt, const bool maxi)
	Get min/max Audio To Vibe Input voltage.
FctERR	DRV2605L_Get_ATVDrive_Percent (float *const perc, const bool maxi)
	Get min/max Audio To Vibe Drive.
FctERR	DRV2605L_Get_CurrentDissipationTime (uint16_t *const time)
	Get haptic Current dissipation time.
FctERR	DRV2605L_Get_Voltage (uint16_t *const vbat)
	Get haptic Voltage.
FctERR	DRV2605L_Get_LRAOpenLoopPeriod (uint16_t *const per)
	Get haptic LRA Open loop period.
FctERR	DRV2605L_Get_ResonancePeriod (uint16_t *const per)
	Get haptic LRA Resonance period.
FctERR	DRV2605L_Get_ChipID (uint8_t *const id)
	Get DRV260x chip ID.
void	DRV2605L_EN_GPIO_Init (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Enable GPIO pin init for DRV2605L.
void	DRV2605L_EN_GPIO_Set (const bool state)
	Enable GPIO pin setter for DRV2605L.
void	DRV2605L_TRIG_GPIO_Init (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Trigger GPIO pin init for DRV2605L.
void	DRV2605L_TRIG_GPIO_Set (const bool state)
	Trigger GPIO pin setter for DRV2605L.

Detailed Description

DRV2605L Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

DRV2605L: 2 to 5.2V Haptic Driver for LRA and ERM With Effect Library and Smart-Loop Architecture

Function Documentation

DRV2605L_EN_GPIO_Init()

void DRV2605L_EN_GPIO_Init	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Enable GPIO pin init for DRV2605L.

Weak Functions

DRV2605L Enable GPIO pin init may be user implemented if needed

Parameters

[in]	GPIOx	- EN port
[in]	GPIO_Pin	- EN pin
[in]	GPIO_Active	EN pin active state

Here is the call graph for this function:

DRV2605L_EN_GPIO_Set()

void DRV2605L_EN_GPIO_Set

(

const bool

state

)

Enable GPIO pin setter for DRV2605L.

Weak Functions

DRV2605L Enable GPIO pin setter may be user implemented if needed

Parameters

[in]

state

- state to write on EN pin (0: inactive, 1: active)

Here is the call graph for this function:

DRV2605L_Get_ATVDrive_Percent()

FctERR DRV2605L_Get_ATVDrive_Percent	(	float *const	perc,
		const bool	maxi )

Get min/max Audio To Vibe Drive.

Parameters

[in,out]	perc	- pointer to Audio To Vibe Drive result
[in]	maxi	- 0 Min, 1 Max

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Get_ATVInput_Volt()

FctERR DRV2605L_Get_ATVInput_Volt	(	float *const	volt,
		const bool	maxi )

Get min/max Audio To Vibe Input voltage.

Parameters

[in,out]	volt	- pointer to Audio To Vibe Input voltage result
[in]	maxi	- 0 Min, 1 Max

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Get_BlankingTime()

FctERR DRV2605L_Get_BlankingTime

(

uint16_t *const

time

)

Get haptic Blanking time.

Parameters

[in,out]

time

- pointer to Blanking time value result

Returns

FctERR - error code

DRV2605L_Get_ChipID()

FctERR DRV2605L_Get_ChipID

(

uint8_t *const

id

)

Get DRV260x chip ID.

Parameters

[in,out]

id

- pointer to chip ID result

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

DRV2605L_Get_CurrentDissipationTime()

FctERR DRV2605L_Get_CurrentDissipationTime

(

uint16_t *const

time

)

Get haptic Current dissipation time.

Parameters

[in,out]

time

- pointer to Blanking time value result

Returns

FctERR - error code

DRV2605L_Get_LRAOpenLoopPeriod()

FctERR DRV2605L_Get_LRAOpenLoopPeriod

(

uint16_t *const

per

)

Get haptic LRA Open loop period.

Parameters

[in,out]

per

- pointer to LRA open loop period result

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Get_ResonancePeriod()

FctERR DRV2605L_Get_ResonancePeriod

(

uint16_t *const

per

)

Get haptic LRA Resonance period.

Parameters

[in,out]

per

- pointer to LRA Resonance period result

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Get_Voltage()

FctERR DRV2605L_Get_Voltage

(

uint16_t *const

vbat

)

Get haptic Voltage.

Parameters

[in,out]

vbat

- pointer to Battery voltage result

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_ActType()

FctERR DRV2605L_Set_ActType

(

const DRV2605L_act

act

)

Set haptic actuator type.

Parameters

[in]

act

- 0 ERM, 1 LRA

Returns

FctERR - error code

Here is the call graph for this function:

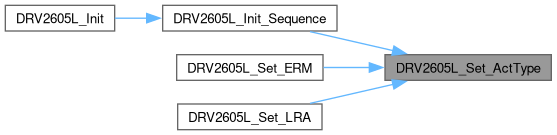

Here is the caller graph for this function:

DRV2605L_Set_ATVDrive_Percent()

FctERR DRV2605L_Set_ATVDrive_Percent	(	const uint16_t	perc,
		const bool	maxi )

Set Audio To Vibe min/max Drive.

Parameters

[in]	perc	- Audio To Vibe drive value (in percent)
[in]	maxi	- 0 Min, 1 Max

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_ATVInput_Volt()

FctERR DRV2605L_Set_ATVInput_Volt	(	const float	volt,
		const bool	maxi )

Set Audio To Vibe min/max input voltage.

Parameters

[in]	volt	- Audio To Vibe Input voltage value
[in]	maxi	- 0 Min, 1 Max

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_ATVLowPassFilter()

FctERR DRV2605L_Set_ATVLowPassFilter

(

const DRV2605L_filter

filt

)

Set Audio To Vibe Low pass filter.

Parameters

[in]

filt

- Audio To Vibe Low pass filter value

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_ATVPeakTime()

FctERR DRV2605L_Set_ATVPeakTime

(

const DRV2605L_peak

peak

)

Set Audio To Vibe Peak time.

Parameters

[in]

peak

- Audio To Vibe Peak time value

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_BlankingTime()

FctERR DRV2605L_Set_BlankingTime

(

const uint16_t

time

)

Set haptic Blanking time.

Parameters

[in]

time

- Blanking time value

Returns

FctERR - error code

DRV2605L_Set_CurrentDissipationTime()

FctERR DRV2605L_Set_CurrentDissipationTime

(

const uint16_t

time

)

Set haptic Current dissipation time.

Parameters

[in]

time

- Current dissipation time value

Returns

FctERR - error code

DRV2605L_Set_InputMode()

FctERR DRV2605L_Set_InputMode

(

const DRV2605L_input

input

)

Set haptic device input pin type.

Parameters

[in]

input

- 0: PWM, 1: Analog

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_Library()

FctERR DRV2605L_Set_Library

(

const DRV2605L_lib

lib

)

Set haptic device library.

Parameters

[in]

lib

- Internal library used

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_LoopMode()

FctERR DRV2605L_Set_LoopMode

(

const DRV2605L_loop

loop

)

Set haptic device input pin type.

Parameters

[in]

loop

- 0: ERM Closed Loop, LRA Auto Resonance, 1: Open Loop

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

DRV2605L_Set_LRAOpenLoopPeriod_us()

FctERR DRV2605L_Set_LRAOpenLoopPeriod_us

(

const uint16_t

per

)

Set haptic LRA Open loop period.

Parameters

[in]

per

- LRA Open loop period (in us)

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_OperatingMode()

FctERR DRV2605L_Set_OperatingMode

(

const DRV2605L_mode

mode

)

Set haptic operating mode.

Parameters

[in]

mode

- haptic input operating mode

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

DRV2605L_Set_RTPDataFormat()

FctERR DRV2605L_Set_RTPDataFormat

(

const DRV2605L_rtp_format

format

)

Set RTP format.

Parameters

[in]

format

- 0: Signed, 1: Unsigned

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Set_Standby()

FctERR DRV2605L_Set_Standby

(

const bool

stdby

)

Set haptic device to standby.

Parameters

[in]

stdby

- 0: Normal operation, 1: standby

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

DRV2605L_Set_Waveform()

FctERR DRV2605L_Set_Waveform	(	const uint16_t	chan,
		const DRV2605L_eff	effect,
		const bool	wait )

Set haptic device channel in the waveform sequencer.

Parameters

[in]	chan	- Waveform sequencer channel
[in]	effect	- Effect number for haptic feedback
[in]	wait	- Wait between patterns

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_TRIG_GPIO_Init()

void DRV2605L_TRIG_GPIO_Init	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Trigger GPIO pin init for DRV2605L.

Weak Functions

DRV2605L Trigger GPIO pin init may be user implemented if needed

Parameters

[in]	GPIOx	- TRIG port
[in]	GPIO_Pin	- TRIG pin
[in]	GPIO_Active	TRIG pin active state

Here is the call graph for this function:

DRV2605L_TRIG_GPIO_Set()

void DRV2605L_TRIG_GPIO_Set

(

const bool

state

)

Trigger GPIO pin setter for DRV2605L.

Weak Functions

DRV2605L Trigger GPIO pin setter may be user implemented if needed

Parameters

[in]

state

- state to write on TRIG pin (0: inactive, 1: active)

Here is the call graph for this function:
