uDRV_CFG Union Reference

DRV2605L Config registers union. More...

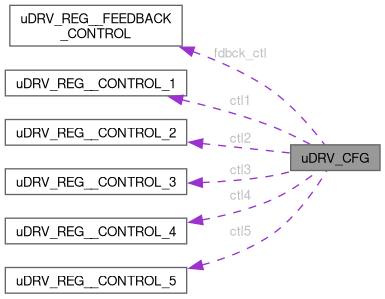

Collaboration diagram for uDRV_CFG:

Data Fields
uint8_t	Bytes [6]
struct {
uDRV_REG__FEEDBACK_CONTROL   fdbck_ctl
uDRV_REG__CONTROL_1   ctl1
uDRV_REG__CONTROL_2   ctl2
uDRV_REG__CONTROL_3   ctl3
uDRV_REG__CONTROL_4   ctl4
uDRV_REG__CONTROL_5   ctl5
}	Reg

Detailed Description

DRV2605L Config registers union.

Field Documentation

Bytes

uint8_t uDRV_CFG::Bytes[6]

ctl1

uDRV_REG__CONTROL_1 uDRV_CFG::ctl1

ctl2

uDRV_REG__CONTROL_2 uDRV_CFG::ctl2

ctl3

uDRV_REG__CONTROL_3 uDRV_CFG::ctl3

ctl4

uDRV_REG__CONTROL_4 uDRV_CFG::ctl4

ctl5

uDRV_REG__CONTROL_5 uDRV_CFG::ctl5

fdbck_ctl

uDRV_REG__FEEDBACK_CONTROL uDRV_CFG::fdbck_ctl

[struct]

struct { ... } uDRV_CFG::Reg

---

The documentation for this union was generated from the following file:

• DRV2605L_ex.c
