DRV2605L.h File Reference

DRV2605L Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "DRV2605L_ex.h"
#include "DRV2605L_proc.h"

Include dependency graph for DRV2605L.h:

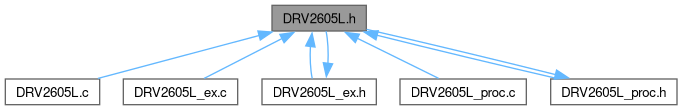

This graph shows which files directly or indirectly include this file:

Data Structures
union	uDRV_REG__STATUS
	DRV2605L STATUS register union. More...
union	uDRV_REG__MODE
	DRV2605L MODE register union. More...
union	uDRV_REG__LIBRARY_SELECTION
	DRV2605L LIBRARY SELECTION register union. More...
union	uDRV_REG__WAVEFORM_SEQUENCER
	DRV2605L WAVEFORM SEQUENCER register union. More...
union	uDRV_REG__GO
	DRV2605L GO register union. More...
union	uDRV_REG__ATV_CONTROL
	DRV2605L audio-to-vibe CONTROL register union. More...
union	uDRV_REG__FEEDBACK_CONTROL
	DRV2605L FEEDBACK CONTROL register union. More...
union	uDRV_REG__CONTROL_1
	DRV2605L CONTROL 1 register union. More...
union	uDRV_REG__CONTROL_2
	DRV2605L CONTROL 2 register union. More...
union	uDRV_REG__CONTROL_3
	DRV2605L CONTROL 3 register union. More...
union	uDRV_REG__CONTROL_4
	DRV2605L CONTROL 4 register union. More...
union	uDRV_REG__CONTROL_5
	DRV2605L CONTROL 5 register union. More...

Macros
#define	DRV2605L_BASE_ADDR   0x5AU
	DRV2605L Base address.

Enumerations
enum	DRV2605L_reg {   DRV__STATUS = 0U , DRV__MODE , DRV__RTP_INPUT , DRV__LIBRARY_SELECTION ,   DRV__WAVEFORM_SEQUENCER_1 , DRV__WAVEFORM_SEQUENCER_2 , DRV__WAVEFORM_SEQUENCER_3 , DRV__WAVEFORM_SEQUENCER_4 ,   DRV__WAVEFORM_SEQUENCER_5 , DRV__WAVEFORM_SEQUENCER_6 , DRV__WAVEFORM_SEQUENCER_7 , DRV__WAVEFORM_SEQUENCER_8 ,   DRV__GO , DRV__OVERDRIVE_TIME_OFFSET , DRV__SUSTAIN_TIME_OFFSET_POS , DRV__SUSTAIN_TIME_OFFSET_NEG ,   DRV__BRAKE_TIME_OFFSET , DRV__ATV_CONTROL , DRV__ATV_MIN_INPUT_LEVEL , DRV__ATV_MAX_INPUT_LEVEL ,   DRV__ATV_MIN_OUTPUT_DRIVE , DRV__ATV_MAX_OUTPUT_DRIVE , DRV__RATED_VOLTAGE , DRV__OVERDRIVE_CLAMP_VOLTAGE ,   DRV__AUTO_CALIB_COMPENSATION_RESULT , DRV__AUTO_CALIB_BACK_EMF_RESULT , DRV__FEEDBACK_CONTROL , DRV__CONTROL_1 ,   DRV__CONTROL_2 , DRV__CONTROL_3 , DRV__CONTROL_4 , DRV__CONTROL_5 ,   DRV__LRA_OPEN_LOOP_PERIOD , DRV__VBAT_VOLTAGE_MONITOR , DRV__LRA_RESONANCE_PERIOD }
	Register map enum of DRV2605L. More...
enum	DRV2605L_lib {   DRV__LIB_EMPTY = 0U , DRV__LIB_TS2200_LIBRARY_A , DRV__LIB_TS2200_LIBRARY_B , DRV__LIB_TS2200_LIBRARY_C ,   DRV__LIB_TS2200_LIBRARY_D , DRV__LIB_TS2200_LIBRARY_E , DRV__LIB_LRA_LIBRARY , DRV__LIB_TS2200_LIBRARY_F }
	Waveform library selection value. More...
enum	DRV2605L_mode {   DRV__MODE_INTERNAL_TRIGGER = 0U , DRV__MODE_EXTERNAL_TRIGGER_EDGE , DRV__MODE_EXTERNAL_TRIGGER_LEVEL , DRV__MODE_PWM_ANA_INPUT ,   DRV__MODE_AUDIO_TO_VIBE , DRV__MODE_REAL_TIME_PLAYBACK , DRV__MODE_DIAGNOSTICS , DRV__MODE_AUTO_CALIBRATION }
	DRV2605L operating mode. More...
enum	DRV2605L_act { DRV__ACT_ERM = 0U , DRV__ACT_LRA }
	DRV2605L actuator. More...
enum	DRV2605L_go { DRV__STOP = 0U , DRV__START }
	DRV2605L Go mode. More...
enum	DRV2605L_peak { DRV__PEAK_10MS = 0U , DRV__PEAK_20MS , DRV__PEAK_30MS , DRV__PEAK_40MS }
	Peak detection time for the audio-to-vibe signal path. More...
enum	DRV2605L_filter { DRV__FILTER_100HZ = 0U , DRV__FILTER_125HZ , DRV__FILTER_150HZ , DRV__FILTER_200HZ }
	Low-pass filter frequency for the audio-to-vibe signal path. More...
enum	DRV2605L_loop { DRV__CLOSED_LOOP = 0U , DRV__OPEN_LOOP }
	DRV2605L loop mode. More...
enum	DRV2605L_input { DRV__IN_PWM = 0U , DRV__IN_ANALOG }
	DRV2605L input pin mode. More...
enum	DRV2605L_rtp_format { DRV__RTP_SIGNED = 0U , DRV__RTP_UNSIGNED }
	DRV2605L RTP format. More...
enum	DRV2605L_eff {   DRV__EFF_STRONG_CLK_100 = 1U , DRV__EFF_STRONG_CLK_60 = 2U , DRV__EFF_STRONG_CLK_30 = 3U , DRV__EFF_SHARP_CLK_100 = 4U ,   DRV__EFF_SHARP_CLK_60 = 5U , DRV__EFF_SHARP_CLK_30 = 6U , DRV__EFF_SOFT_BUMP_100 = 7U , DRV__EFF_SOFT_BUMP_60 = 8U ,   DRV__EFF_SOFT_BUMP_30 = 9U , DRV__EFF_DBL_CLK_100 = 10U , DRV__EFF_DBL_CLK_60 = 11U , DRV__EFF_DBL_CLK_30 = 12U ,   DRV__EFF_SOFT_FUZZ_60 = 13U , DRV__EFF_STRONG_BUZZ_100 = 14U , DRV__EFF_ALERT_750MS = 15U , DRV__EFF_ALERT_1000MS = 16U ,   DRV__EFF_STRONG_CLK_1 = 17U , DRV__EFF_STRONG_CLK_2 = 18U , DRV__EFF_STRONG_CLK_3 = 19U , DRV__EFF_STRONG_CLK_4 = 20U ,   DRV__EFF_MEDIUM_CLK_1 = 21U , DRV__EFF_MEDIUM_CLK_2 = 22U , DRV__EFF_MEDIUM_CLK_3 = 23U , DRV__EFF_SHARP_TICK_1 = 24U ,   DRV__EFF_SHARP_TICK_2 = 25U , DRV__EFF_SHARP_TICK_3 = 26U , DRV__EFF_SHORT_DBL_CLK_STRONG_1 = 27U , DRV__EFF_SHORT_DBL_CLK_STRONG_2 = 28U ,   DRV__EFF_SHORT_DBL_CLK_STRONG_3 = 29U , DRV__EFF_SHORT_DBL_CLK_STRONG_4 = 30U , DRV__EFF_SHORT_DBL_CLK_MEDIUM_1 = 31U , DRV__EFF_SHORT_DBL_CLK_MEDIUM_2 = 32U ,   DRV__EFF_SHORT_DBL_CLK_MEDIUM_3 = 33U , DRV__EFF_SHORT_DBL_SHARP_TICK_1 = 34U , DRV__EFF_SHORT_DBL_SHARP_TICK_2 = 35U , DRV__EFF_SHORT_DBL_SHARP_TICK_3 = 36U ,   DRV__EFF_LONG_DBL_CLK_STRONG_1 = 37U , DRV__EFF_LONG_DBL_CLK_STRONG_2 = 38U , DRV__EFF_LONG_DBL_CLK_STRONG_3 = 39U , DRV__EFF_LONG_DBL_CLK_STRONG_4 = 40U ,   DRV__EFF_LONG_DBL_CLK_MEDIUM_1 = 41U , DRV__EFF_LONG_DBL_CLK_MEDIUM_2 = 42U , DRV__EFF_LONG_DBL_CLK_MEDIUM_3 = 43U , DRV__EFF_LONG_DBL_SHARP_TICK_1 = 44U ,   DRV__EFF_LONG_DBL_SHARP_TICK_2 = 45U , DRV__EFF_LONG_DBL_SHARP_TICK_3 = 46U , DRV__EFF_BUZZ_1 = 47U , DRV__EFF_BUZZ_2 = 48U ,   DRV__EFF_BUZZ_3 = 49U , DRV__EFF_BUZZ_4 = 50U , DRV__EFF_BUZZ_5 = 51U , DRV__EFF_PULSING_STRONG_1 = 52U ,   DRV__EFF_PULSING_STRONG_2 = 53U , DRV__EFF_PULSING_MEDIUM_1 = 54U , DRV__EFF_PULSING_MEDIUM_2 = 55U , DRV__EFF_PULSING_SHARP_1 = 56U ,   DRV__EFF_PULSING_SHARP_2 = 57U , DRV__EFF_TRANS_CLK_1 = 58U , DRV__EFF_TRANS_CLK_2 = 59U , DRV__EFF_TRANS_CLK_3 = 60U ,   DRV__EFF_TRANS_CLK_4 = 61U , DRV__EFF_TRANS_CLK_5 = 62U , DRV__EFF_TRANS_CLK_6 = 63U , DRV__EFF_TRANS_HUM_1 = 64U ,   DRV__EFF_TRANS_HUM_2 = 65U , DRV__EFF_TRANS_HUM_3 = 66U , DRV__EFF_TRANS_HUM_4 = 67U , DRV__EFF_TRANS_HUM_5 = 68U ,   DRV__EFF_TRANS_HUM_6 = 69U , DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_1 = 70U , DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_2 = 71U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_1 = 72U ,   DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_2 = 73U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_1 = 74U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_2 = 75U , DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_1 = 76U ,   DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_2 = 77U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_1 = 78U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_2 = 79U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_1 = 80U ,   DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_2 = 81U , DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_1 = 82U , DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_2 = 83U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_1 = 84U ,   DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_2 = 85U , DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_1 = 86U , DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_2 = 87U , DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_1 = 88U ,   DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_2 = 89U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_1 = 90U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_2 = 91U , DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_1 = 92U ,   DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_2 = 93U , DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_1_LOW = 94U , DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_2_LOW = 95U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_1_LOW = 96U ,   DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_2_LOW = 97U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_1_LOW = 98U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_2_LOW = 99U , DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_1_LOW = 100U ,   DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_2_LOW = 101U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_1_LOW = 102U , DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_2_LOW = 103U , DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_1_LOW = 104U ,   DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_2_LOW = 105U , DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_1_LOW = 106U , DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_2_LOW = 107U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_1_LOW = 108U ,   DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_2_LOW = 109U , DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_1_LOW = 110U , DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_2_LOW = 111U , DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_1_LOW = 112U ,   DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_2_LOW = 113U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_1_LOW = 114U , DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_2_LOW = 115U , DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_1_LOW = 116U ,   DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_2_LOW = 117U , DRV__EFF_LONG_BUZZ = 118U , DRV__EFF_SMOOTH_HUM_1 = 119U , DRV__EFF_SMOOTH_HUM_2 = 120U ,   DRV__EFF_SMOOTH_HUM_3 = 121U , DRV__EFF_SMOOTH_HUM_4 = 122U , DRV__EFF_SMOOTH_HUM_5 = 123U }
	Waveform Library Effects List. More...

Functions

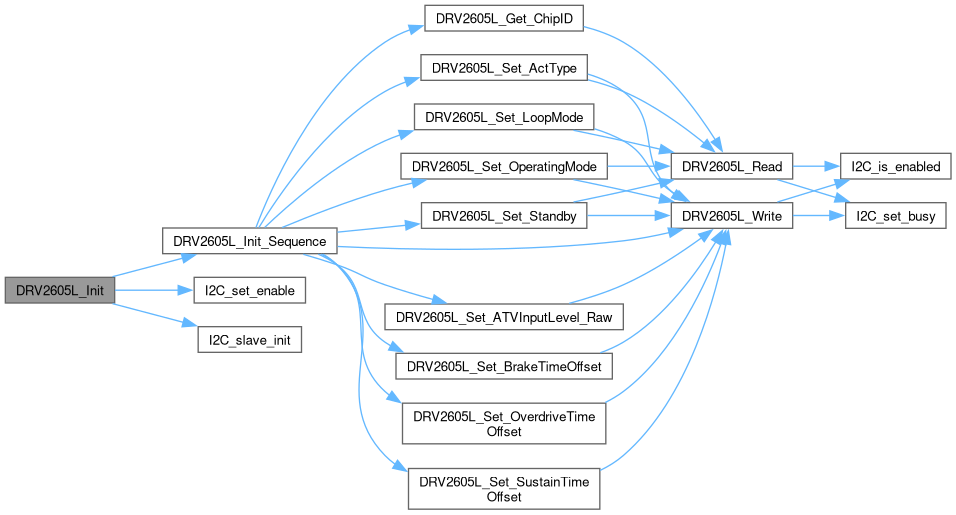

FctERR	DRV2605L_Init (void)
	Initialization for DRV2605L peripheral.

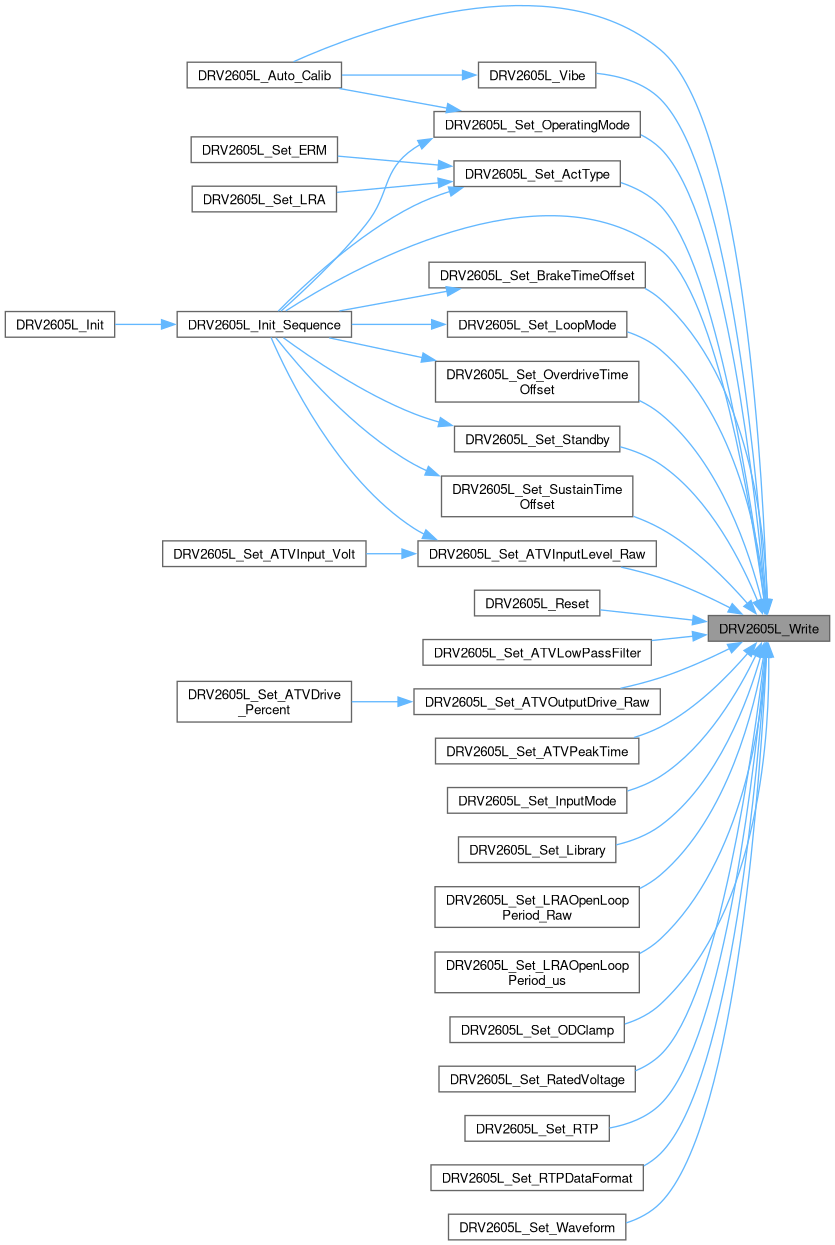

FctERR	DRV2605L_Write (const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for DRV2605L.

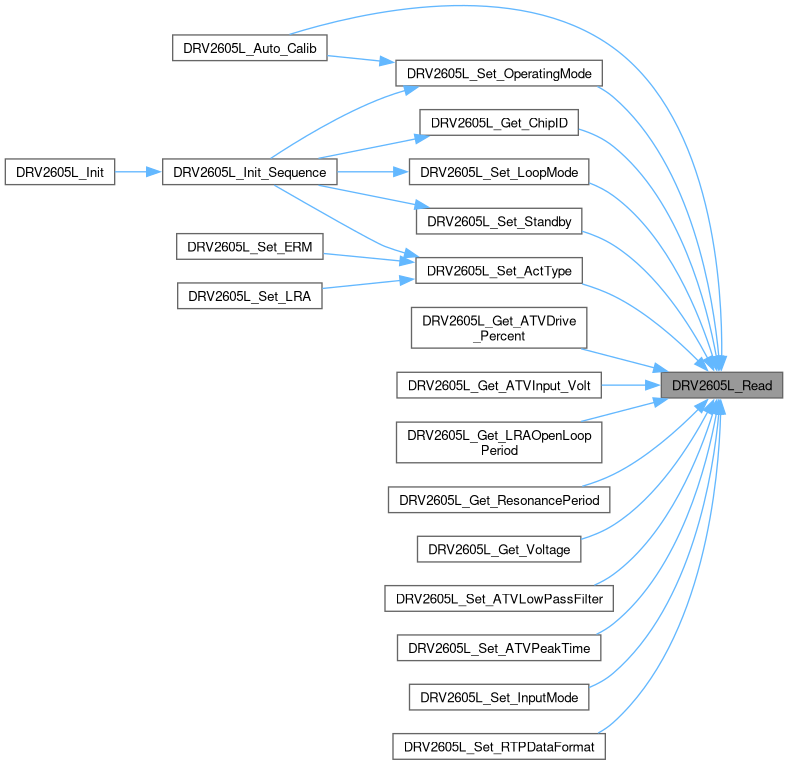

FctERR	DRV2605L_Read (uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for DRV2605L.

Detailed Description

DRV2605L Driver.

DRV2605L Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

DRV2605L: 2 to 5.2V Haptic Driver for LRA and ERM With Effect Library and Smart-Loop Architecture

Macro Definition Documentation

DRV2605L_BASE_ADDR

#define DRV2605L_BASE_ADDR   0x5AU

DRV2605L Base address.

Note

Define DRV2605L_BASE_ADDR to change default device base address

Enumeration Type Documentation

DRV2605L_act

enum DRV2605L_act

DRV2605L actuator.

Enumerator
DRV__ACT_ERM	Eccentric Rotating Mass actuator.
DRV__ACT_LRA	Linear Resonant Actuators actuator.

DRV2605L_eff

enum DRV2605L_eff

Waveform Library Effects List.

Enumerator
DRV__EFF_STRONG_CLK_100	Strong Click - 100%.
DRV__EFF_STRONG_CLK_60	Strong Click - 60%.
DRV__EFF_STRONG_CLK_30	Strong Click - 30%.
DRV__EFF_SHARP_CLK_100	Sharp Click - 100%.
DRV__EFF_SHARP_CLK_60	Sharp Click - 60%.
DRV__EFF_SHARP_CLK_30	Sharp Click - 30%.
DRV__EFF_SOFT_BUMP_100	Soft Bump - 100%.
DRV__EFF_SOFT_BUMP_60	Soft Bump - 60%.
DRV__EFF_SOFT_BUMP_30	Soft Bump - 30%.
DRV__EFF_DBL_CLK_100	Double Click - 100%.
DRV__EFF_DBL_CLK_60	Double Click - 60%.
DRV__EFF_DBL_CLK_30	Triple Click - 100%.
DRV__EFF_SOFT_FUZZ_60	Soft Fuzz - 60%.
DRV__EFF_STRONG_BUZZ_100	Strong Buzz - 100%.
DRV__EFF_ALERT_750MS	750ms Alert 100%
DRV__EFF_ALERT_1000MS	1000ms Alert 100%
DRV__EFF_STRONG_CLK_1	Strong Click 1 - 100%.
DRV__EFF_STRONG_CLK_2	Strong Click 2 - 80%.
DRV__EFF_STRONG_CLK_3	Strong Click 3 - 60%.
DRV__EFF_STRONG_CLK_4	Strong Click 4 - 30%.
DRV__EFF_MEDIUM_CLK_1	Medium Click 1 - 100%.
DRV__EFF_MEDIUM_CLK_2	Medium Click 2 - 80%.
DRV__EFF_MEDIUM_CLK_3	Medium Click 3 - 60%.
DRV__EFF_SHARP_TICK_1	Sharp Tick 1 - 100%.
DRV__EFF_SHARP_TICK_2	Sharp Tick 2 - 80%.
DRV__EFF_SHARP_TICK_3	Sharp Tick 3 - 60%.
DRV__EFF_SHORT_DBL_CLK_STRONG_1	Short Double Click Strong 1 - 100%.
DRV__EFF_SHORT_DBL_CLK_STRONG_2	Short Double Click Strong 2 - 80%.
DRV__EFF_SHORT_DBL_CLK_STRONG_3	Short Double Click Strong 3 - 60%.
DRV__EFF_SHORT_DBL_CLK_STRONG_4	Short Double Click Strong 4 - 30%.
DRV__EFF_SHORT_DBL_CLK_MEDIUM_1	Short Double Click Medium 1 - 100%.
DRV__EFF_SHORT_DBL_CLK_MEDIUM_2	Short Double Click Medium 2 - 80%.
DRV__EFF_SHORT_DBL_CLK_MEDIUM_3	Short Double Click Medium 3 - 60%.
DRV__EFF_SHORT_DBL_SHARP_TICK_1	Short Double Sharp Tick 1 - 100%.
DRV__EFF_SHORT_DBL_SHARP_TICK_2	Short Double Sharp Tick 2 - 80%.
DRV__EFF_SHORT_DBL_SHARP_TICK_3	Short Double Sharp Tick 3 - 60%.
DRV__EFF_LONG_DBL_CLK_STRONG_1	Long Double Sharp Click Strong 1 - 100%.
DRV__EFF_LONG_DBL_CLK_STRONG_2	Long Double Sharp Click Strong 2 - 80%.
DRV__EFF_LONG_DBL_CLK_STRONG_3	Long Double Sharp Click Strong 3 - 60%.
DRV__EFF_LONG_DBL_CLK_STRONG_4	Long Double Sharp Click Strong 4 - 30%.
DRV__EFF_LONG_DBL_CLK_MEDIUM_1	Long Double Sharp Click Medium 1 - 100%.
DRV__EFF_LONG_DBL_CLK_MEDIUM_2	Long Double Sharp Click Medium 2 - 80%.
DRV__EFF_LONG_DBL_CLK_MEDIUM_3	Long Double Sharp Click Medium 3 - 60%.
DRV__EFF_LONG_DBL_SHARP_TICK_1	Long Double Sharp Tick 1 - 100%.
DRV__EFF_LONG_DBL_SHARP_TICK_2	Long Double Sharp Tick 2 - 80%.
DRV__EFF_LONG_DBL_SHARP_TICK_3	Long Double Sharp Tick 3 - 60%.
DRV__EFF_BUZZ_1	Buzz 1 - 100%.
DRV__EFF_BUZZ_2	Buzz 2 - 80%.
DRV__EFF_BUZZ_3	Buzz 3 - 60%.
DRV__EFF_BUZZ_4	Buzz 4 - 40%.
DRV__EFF_BUZZ_5	Buzz 5 - 20%.
DRV__EFF_PULSING_STRONG_1	Pulsing Strong 1 - 100%.
DRV__EFF_PULSING_STRONG_2	Pulsing Strong 2 - 60%.
DRV__EFF_PULSING_MEDIUM_1	Pulsing Medium 1 - 100%.
DRV__EFF_PULSING_MEDIUM_2	Pulsing Medium 2 - 60%.
DRV__EFF_PULSING_SHARP_1	Pulsing Sharp 1 - 100%.
DRV__EFF_PULSING_SHARP_2	Pulsing Sharp 2 - 60%.
DRV__EFF_TRANS_CLK_1	Transition Click 1 - 100%.
DRV__EFF_TRANS_CLK_2	Transition Click 2 - 80%.
DRV__EFF_TRANS_CLK_3	Transition Click 3 - 60%.
DRV__EFF_TRANS_CLK_4	Transition Click 4 - 40%.
DRV__EFF_TRANS_CLK_5	Transition Click 5 - 20%.
DRV__EFF_TRANS_CLK_6	Transition Click 6 - 10%.
DRV__EFF_TRANS_HUM_1	Transition Hum 1 - 100%.
DRV__EFF_TRANS_HUM_2	Transition Hum 2 - 80%.
DRV__EFF_TRANS_HUM_3	Transition Hum 3 - 60%.
DRV__EFF_TRANS_HUM_4	Transition Hum 4 - 40%.
DRV__EFF_TRANS_HUM_5	Transition Hum 5 - 20%.
DRV__EFF_TRANS_HUM_6	Transition Hum 6 - 10%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_1	Transition Ramp Down Long Smooth 1 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_2	Transition Ramp Down Long Smooth 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_1	Transition Ramp Down Medium Smooth 1 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_2	Transition Ramp Down Medium Smooth 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_1	Transition Ramp Down Short Smooth 1 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_2	Transition Ramp Down Short Smooth 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_1	Transition Ramp Down Long Sharp 1 - 100 t0 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_2	Transition Ramp Down Long Sharp 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_1	Transition Ramp Down Medium Sharp 1 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_2	Transition Ramp Down Medium Sharp 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_1	Transition Ramp Down Short Sharp 1 - 100 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_2	Transition Ramp Down Short Sharp 2 - 100 to 0%.
DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_1	Transition Ramp Up Long Smooth 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_2	Transition Ramp Up Long Smooth 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_1	Transition Ramp Up Medium Smooth 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_2	Transition Ramp Up Medium Smooth 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_1	Transition Ramp Up Short Smooth 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_2	Transition Ramp Up Short Smooth 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_1	Transition Ramp Up Long Sharp 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_2	Transition Ramp Up Long Sharp 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_1	Transition Ramp Up Medium Sharp 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_2	Transition Ramp Up Medium Sharp 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_1	Transition Ramp Up Short Sharp 1 - 0 to 100%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_2	Transition Ramp Up Short Sharp 2 - 0 to 100%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_1_LOW	Transition Ramp Down Long Smooth 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SMOOTH_2_LOW	Transition Ramp Down Long Smooth 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_1_LOW	Transition Ramp Down Medium Smooth 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SMOOTH_2_LOW	Transition Ramp Down Medium Smooth 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_1_LOW	Transition Ramp Down Short Smooth 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SMOOTH_2_LOW	Transition Ramp Down Short Smooth 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_1_LOW	Transition Ramp Down Long Sharp 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_LONG_SHARP_2_LOW	Transition Ramp Down Long Sharp 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_1_LOW	Transition Ramp Down Medium Sharp 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_MEDIUM_SHARP_2_LOW	Transition Ramp Down Medium Sharp 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_1_LOW	Transition Ramp Down Short Sharp 1 - 50 to 0%.
DRV__EFF_TRANS_RAMP_DWN_SHORT_SHARP_2_LOW	Transition Ramp Down Short Sharp 2 - 50 to 0%.
DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_1_LOW	Transition Ramp Up Long Smooth 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_LONG_SMOOTH_2_LOW	Transition Ramp Up Long Smooth 2 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_1_LOW	Transition Ramp Up Medium Smooth 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SMOOTH_2_LOW	Transition Ramp Up Medium Smooth 2 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_1_LOW	Transition Ramp Up Short Smooth 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SMOOTH_2_LOW	Transition Ramp Up Short Smooth 2 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_1_LOW	Transition Ramp Up Long Sharp 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_LONG_SHARP_2_LOW	Transition Ramp Up Long Sharp 2 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_1_LOW	Transition Ramp Up Medium Sharp 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_MEDIUM_SHARP_2_LOW	Transition Ramp Up Medium Sharp 2 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_1_LOW	Transition Ramp Up Short Sharp 1 - 0 to 50%.
DRV__EFF_TRANS_RAMP_UP_SHORT_SHARP_2_LOW	Transition Ramp Up Short Sharp 2 - 0 to 50%.
DRV__EFF_LONG_BUZZ	Long buzz for programmatic stopping - 100%.
DRV__EFF_SMOOTH_HUM_1	Smooth Hum 1 (No kick or brake pulse) - 50%.
DRV__EFF_SMOOTH_HUM_2	Smooth Hum 2 (No kick or brake pulse) - 40%.
DRV__EFF_SMOOTH_HUM_3	Smooth Hum 3 (No kick or brake pulse) - 30%.
DRV__EFF_SMOOTH_HUM_4	Smooth Hum 4 (No kick or brake pulse) - 20%.
DRV__EFF_SMOOTH_HUM_5	Smooth Hum 5 (No kick or brake pulse) - 10%.

DRV2605L_filter

enum DRV2605L_filter

Low-pass filter frequency for the audio-to-vibe signal path.

Enumerator
DRV__FILTER_100HZ	100Hz low-pass filter
DRV__FILTER_125HZ	125Hz low-pass filter
DRV__FILTER_150HZ	150Hz low-pass filter
DRV__FILTER_200HZ	200Hz low-pass filter

DRV2605L_go

enum DRV2605L_go

DRV2605L Go mode.

Enumerator
DRV__STOP	Start haptic.
DRV__START	Stop haptic.

DRV2605L_input

enum DRV2605L_input

DRV2605L input pin mode.

Enumerator
DRV__IN_PWM	PWM input.
DRV__IN_ANALOG	Analog input.

DRV2605L_lib

enum DRV2605L_lib

Waveform library selection value.

Enumerator
DRV__LIB_EMPTY	Empty.
DRV__LIB_TS2200_LIBRARY_A	TS2200 Library A.
DRV__LIB_TS2200_LIBRARY_B	TS2200 Library B.
DRV__LIB_TS2200_LIBRARY_C	TS2200 Library C.
DRV__LIB_TS2200_LIBRARY_D	TS2200 Library D.
DRV__LIB_TS2200_LIBRARY_E	TS2200 Library E.
DRV__LIB_LRA_LIBRARY	LRA Library.
DRV__LIB_TS2200_LIBRARY_F	TS2200 Library F.

DRV2605L_loop

enum DRV2605L_loop

DRV2605L loop mode.

Enumerator
DRV__CLOSED_LOOP	ERM: Close Loop / LRA: Auto resonance.
DRV__OPEN_LOOP	Open Loop.

DRV2605L_mode

enum DRV2605L_mode

DRV2605L operating mode.

Enumerator
DRV__MODE_INTERNAL_TRIGGER	Internal trigger.
DRV__MODE_EXTERNAL_TRIGGER_EDGE	External trigger (edge mode)
DRV__MODE_EXTERNAL_TRIGGER_LEVEL	External trigger (level mode)
DRV__MODE_PWM_ANA_INPUT	PWM input and analog input.
DRV__MODE_AUDIO_TO_VIBE	Audio-to-vibe.
DRV__MODE_REAL_TIME_PLAYBACK	Real-time playback (RTP mode)
DRV__MODE_DIAGNOSTICS	Diagnostics.
DRV__MODE_AUTO_CALIBRATION	Auto calibration.

DRV2605L_peak

enum DRV2605L_peak

Peak detection time for the audio-to-vibe signal path.

Enumerator
DRV__PEAK_10MS	10ms peak time
DRV__PEAK_20MS	20ms peak time
DRV__PEAK_30MS	30ms peak time
DRV__PEAK_40MS	40ms peak time

DRV2605L_reg

enum DRV2605L_reg

Register map enum of DRV2605L.

Enumerator
DRV__STATUS	Status register.
DRV__MODE	Mode register.
DRV__RTP_INPUT	Real Time Playback Input register.
DRV__LIBRARY_SELECTION	Library Selection register.
DRV__WAVEFORM_SEQUENCER_1	Waveform Sequencer 1 register.
DRV__WAVEFORM_SEQUENCER_2	Waveform Sequencer 2 register.
DRV__WAVEFORM_SEQUENCER_3	Waveform Sequencer 3 register.
DRV__WAVEFORM_SEQUENCER_4	Waveform Sequencer 4 register.
DRV__WAVEFORM_SEQUENCER_5	Waveform Sequencer 5 register.
DRV__WAVEFORM_SEQUENCER_6	Waveform Sequencer 6 register.
DRV__WAVEFORM_SEQUENCER_7	Waveform Sequencer 7 register.
DRV__WAVEFORM_SEQUENCER_8	Waveform Sequencer 8 register.
DRV__GO	Go register.
DRV__OVERDRIVE_TIME_OFFSET	Overdrive Time Offset register.
DRV__SUSTAIN_TIME_OFFSET_POS	Sustain Time Offset positive register.
DRV__SUSTAIN_TIME_OFFSET_NEG	Sustain Time Offset negative register.
DRV__BRAKE_TIME_OFFSET	Brake Time Offset register.
DRV__ATV_CONTROL	Audio-To-Vibe Control register.
DRV__ATV_MIN_INPUT_LEVEL	Audio-To-Vibe Minimum Input Level register.
DRV__ATV_MAX_INPUT_LEVEL	Audio-To-Vibe Maximum Input Level register.
DRV__ATV_MIN_OUTPUT_DRIVE	Audio-To-Vibe Minimum Output Drive Level register.
DRV__ATV_MAX_OUTPUT_DRIVE	Audio-To-Vibe Maximum Output Drive Level register.
DRV__RATED_VOLTAGE	Rated Voltage register.
DRV__OVERDRIVE_CLAMP_VOLTAGE	Overdrive Clamp Voltage register.
DRV__AUTO_CALIB_COMPENSATION_RESULT	Auto-Calibration Compensation Result register.
DRV__AUTO_CALIB_BACK_EMF_RESULT	Auto-Calibration Back EMF Result register.
DRV__FEEDBACK_CONTROL	Feedback Control register.
DRV__CONTROL_1	Control 1 register.
DRV__CONTROL_2	Control 2 register.
DRV__CONTROL_3	Control 3 register.
DRV__CONTROL_4	Control 4 register.
DRV__CONTROL_5	Control 5 register.
DRV__LRA_OPEN_LOOP_PERIOD	LRA Open Loop Period register.
DRV__VBAT_VOLTAGE_MONITOR	VBAT Voltage Monitor register.
DRV__LRA_RESONANCE_PERIOD	LRA Resonance Period register.

DRV2605L_rtp_format

enum DRV2605L_rtp_format

DRV2605L RTP format.

Enumerator
DRV__RTP_SIGNED	RTP signed format.
DRV__RTP_UNSIGNED	RTP unsigned format.

Function Documentation

DRV2605L_Init()

FctERR DRV2605L_Init

(

void

)

Initialization for DRV2605L peripheral.

Weak Functions

DRV2605L Base address may be changed if user implemented

Returns

FctERR - error code

Here is the call graph for this function:

DRV2605L_Read()

FctERR DRV2605L_Read	(	uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for DRV2605L.

Parameters

[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

DRV2605L_Write()

FctERR DRV2605L_Write	(	const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for DRV2605L.

Parameters

[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
