TSL2591_ex.c File Reference

TSL2591 Driver extensions. More...

#include "TSL2591.h"

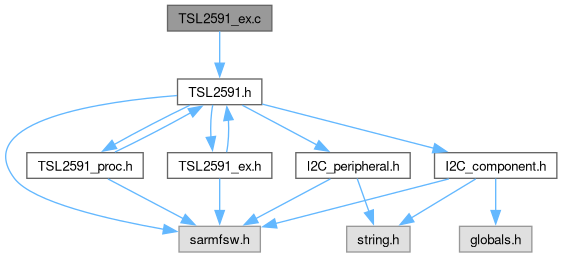

Include dependency graph for TSL2591_ex.c:

Functions
FctERR	TSL2591_Set_PON (TSL2591_t *const pCpnt, const bool en)
	Oscillator Enable / Disable.
FctERR	TSL2591_Set_AEN (TSL2591_t *const pCpnt, const bool en)
	ALS module Enable / Disable.
FctERR	TSL2591_Set_AIEN (TSL2591_t *const pCpnt, const bool en)
	ALS interrupt module Enable / Disable.
FctERR	TSL2591_Set_Gain (TSL2591_t *const pCpnt, const TSL2591_gain gain)
	Gain configuration.
FctERR	TSL2591_Set_Integration_Time (TSL2591_t *const pCpnt, const TSL2591_integ integ)
	Integration time configuration.
void	TSL2591_INT_GPIO_Init (TSL2591_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for TSL2591.
bool	TSL2591_INT_GPIO_Get (const TSL2591_t *const pCpnt)
	Interrupt GPIO pin getter for TSL2591.

Detailed Description

TSL2591 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TSL2591: Very-high sensitivity light-to-digital converter

Function Documentation

TSL2591_INT_GPIO_Get()

bool TSL2591_INT_GPIO_Get

(

const TSL2591_t *const

pCpnt

)

Interrupt GPIO pin getter for TSL2591.

Weak Functions

TSL2591 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in]

pCpnt

- Pointer to TSL2591 component

Returns

INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

TSL2591_INT_GPIO_Init()

void TSL2591_INT_GPIO_Init	(	TSL2591_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for TSL2591.

Weak Functions

TSL2591 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

TSL2591_Set_AEN()

FctERR TSL2591_Set_AEN	(	TSL2591_t *const	pCpnt,
		const bool	en )

ALS module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns

FctERR - error code

Here is the call graph for this function:

TSL2591_Set_AIEN()

FctERR TSL2591_Set_AIEN	(	TSL2591_t *const	pCpnt,
		const bool	en )

ALS interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns

FctERR - error code

Here is the call graph for this function:

TSL2591_Set_Gain()

FctERR TSL2591_Set_Gain	(	TSL2591_t *const	pCpnt,
		const TSL2591_gain	gain )

Gain configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	gain	- Gain value

Returns

FctERR - error code

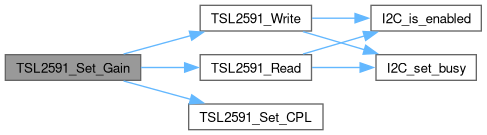

Here is the call graph for this function:

TSL2591_Set_Integration_Time()

FctERR TSL2591_Set_Integration_Time	(	TSL2591_t *const	pCpnt,
		const TSL2591_integ	integ )

Integration time configuration.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	integ	- Integration time value

Returns

FctERR - error code

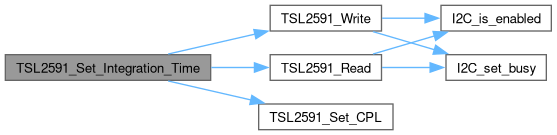

Here is the call graph for this function:

TSL2591_Set_PON()

FctERR TSL2591_Set_PON	(	TSL2591_t *const	pCpnt,
		const bool	en )

Oscillator Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to TSL2591 component
[in]	en	- 0 Disable, 1 Enable

Returns

FctERR - error code

Here is the call graph for this function:
