APDS9930.h File Reference

APDS9930 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "APDS9930_proc.h"
#include "APDS9930_ex.h"

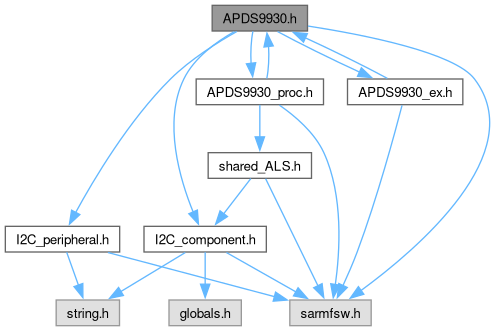

Include dependency graph for APDS9930.h:

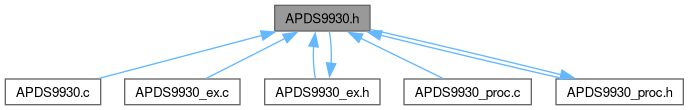

This graph shows which files directly or indirectly include this file:

Data Structures
union	uAPDS9930_CMD
	Union for COMMAND register of APDS9930. More...
union	uAPDS9930_REG__ENABLE
	Union for ENABLE register of APDS9930. More...
union	uAPDS9930_REG__CONFIG
	Union for CONFIG register of APDS9930. More...
union	uAPDS9930_REG__CONTROL
	Union for CONTROL register of APDS9930. More...
union	uAPDS9930_REG__PERSIST
	Union for PERSIST register of APDS9930. More...
union	uAPDS9930_REG__STATUS
	Union for STATUS register of APDS9930. More...

Macros
#define	I2C_APDS9930_NB   1U
	Number of APDS9930 peripherals.
#define	APDS9930_ADDR   0x39U
	APDS9930 address.
#define	APDS9930_BASE_ADDR   APDS9930_ADDR
	APDS9930 Base address.

Enumerations
enum	APDS9930_reg {   APDS9930__ENABLE = 0U , APDS9930__ATIME , APDS9930__PTIME , APDS9930__WTIME ,   APDS9930__AILTL , APDS9930__AILTH , APDS9930__AIHTL , APDS9930__AIHTH ,   APDS9930__PILTL , APDS9930__PILTH , APDS9930__PIHTL , APDS9930__PIHTH ,   APDS9930__PERS , APDS9930__CONFIG , APDS9930__PPULSE , APDS9930__CONTROL ,   APDS9930__ID = 0x12 , APDS9930__STATUS , APDS9930__CH0DATAL , APDS9930__CH0DATAH ,   APDS9930__CH1DATAL , APDS9930__CH1DATAH , APDS9930__PDATAL , APDS9930__PDATAH ,   APDS9930__POFFSET }
	Register map enum of APDS9930. More...
enum	APDS9930_transaction { APDS9930__TRANS_REPEATED_BYTE = 0U , APDS9930__TRANS_AUTO_INCREMENT = 1U , APDS9930__TRANS_SPECIAL_FUNC = 3U }
	Transaction types of APDS9930. More...
enum	APDS9930_spec_func { APDS9930__SF_CLR_PROX_IT = 5U , APDS9930__SF_CLR_ALS_IT = 6U , APDS9930__SF_CLR_PROX_ALS_IT = 7U }
	Special functions of APDS9930. More...
enum	APDS9930_als_gain { APDS9930__ALS_1X_GAIN = 0U , APDS9930__ALS_8X_GAIN , APDS9930__ALS_16X_GAIN , APDS9930__ALS_120X_GAIN }
	Gain values of APDS9930 ALS. More...
enum	APDS9930_prox_gain { APDS9930__PROX_1X_GAIN = 0U , APDS9930__PROX_2X_GAIN , APDS9930__PROX_4X_GAIN , APDS9930__PROX_8X_GAIN }
	Gain values of APDS9930 proximity. More...
enum	APDS9930_prox_diode { APDS9930__PDIODE_RESERVED1 = 0U , APDS9930__PDIODE_RESERVED2 , APDS9930__PDIODE_CH1 , APDS9930__PDIODE_RESERVED3 }
	Proximity Diode Select values. More...
enum	APDS9930_drive_strength { APDS9930__STRENGTH_MAX = 0U , APDS9930__STRENGTH_HIGH , APDS9930__STRENGTH_MEDIUM , APDS9930__STRENGTH_LOW }
	Proximity LED Drive strength values. More...
enum	APDS9930_als_it_persist {   APDS9930__PERSIST_EVERY_ALS_CYCLE = 0U , APDS9930__PERSIST_1_ALS_PERIODS , APDS9930__PERSIST_2_ALS_PERIODS , APDS9930__PERSIST_3_ALS_PERIODS ,   APDS9930__PERSIST_5_ALS_PERIODS , APDS9930__PERSIST_10_ALS_PERIODS , APDS9930__PERSIST_15_ALS_PERIODS , APDS9930__PERSIST_20_ALS_PERIODS ,   APDS9930__PERSIST_25_ALS_PERIODS , APDS9930__PERSIST_30_ALS_PERIODS , APDS9930__PERSIST_35_ALS_PERIODS , APDS9930__PERSIST_40_ALS_PERIODS ,   APDS9930__PERSIST_45_ALS_PERIODS , APDS9930__PERSIST_50_ALS_PERIODS , APDS9930__PERSIST_55_ALS_PERIODS , APDS9930__PERSIST_60_ALS_PERIODS }
	Persistence control of APDS9930 ALS. More...
enum	APDS9930_prox_it_persist {   APDS9930__PERSIST_EVERY_PROX_CYCLE = 0U , APDS9930__PERSIST_1_PROX_PERIODS , APDS9930__PERSIST_2_PROX_PERIODS , APDS9930__PERSIST_3_PROX_PERIODS ,   APDS9930__PERSIST_4_PROX_PERIODS , APDS9930__PERSIST_5_PROX_PERIODS , APDS9930__PERSIST_6_PROX_PERIODS , APDS9930__PERSIST_7_PROX_PERIODS ,   APDS9930__PERSIST_8_PROX_PERIODS , APDS9930__PERSIST_9_PROX_PERIODS , APDS9930__PERSIST_10_PROX_PERIODS , APDS9930__PERSIST_11_PROX_PERIODS ,   APDS9930__PERSIST_12_PROX_PERIODS , APDS9930__PERSIST_13_PROX_PERIODS , APDS9930__PERSIST_14_PROX_PERIODS , APDS9930__PERSIST_15_PROX_PERIODS }
	Persistence control of APDS9930 Proximity. More...

Functions
FctERR	APDS9930_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for APDS9930 peripheral.
FctERR	APDS9930_Init_Single (void)
	Initialization for APDS9930 peripheral.
FctERR	APDS9930_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for APDS9930.
FctERR	APDS9930_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for APDS9930.
FctERR	APDS9930_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for APDS9930.
FctERR	APDS9930_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for APDS9930.
FctERR	APDS9930_Write_Special (I2C_slave_t *const pSlave, const APDS9930_spec_func func)
	I2C Special function Write function for APDS9930.

Detailed Description

APDS9930 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

APDS9930: Digital Proximity and Ambient Light Sensor

Macro Definition Documentation

APDS9930_ADDR

#define APDS9930_ADDR   0x39U

APDS9930 address.

APDS9930_BASE_ADDR

#define APDS9930_BASE_ADDR   APDS9930_ADDR

APDS9930 Base address.

Note

Define APDS9930_BASE_ADDR to change default device base address

I2C_APDS9930_NB

#define I2C_APDS9930_NB   1U

Number of APDS9930 peripherals.

Note

Define I2C_APDS9930_NB to enable multiple peripherals of this type

Enumeration Type Documentation

APDS9930_als_gain

enum APDS9930_als_gain

Gain values of APDS9930 ALS.

Enumerator
APDS9930__ALS_1X_GAIN	ALS 1X Gain.
APDS9930__ALS_8X_GAIN	ALS 8X Gain.
APDS9930__ALS_16X_GAIN	ALS 16X Gain.
APDS9930__ALS_120X_GAIN	ALS 120X Gain.

APDS9930_als_it_persist

enum APDS9930_als_it_persist

Persistence control of APDS9930 ALS.

Enumerator
APDS9930__PERSIST_EVERY_ALS_CYCLE	Every ALS cycle generates interrupt.
APDS9930__PERSIST_1_ALS_PERIODS	1 consecutive Ch0 channel values out of range
APDS9930__PERSIST_2_ALS_PERIODS	2 consecutive Ch0 channel values out of range
APDS9930__PERSIST_3_ALS_PERIODS	3 consecutive Ch0 channel values out of range
APDS9930__PERSIST_5_ALS_PERIODS	5 consecutive Ch0 channel values out of range
APDS9930__PERSIST_10_ALS_PERIODS	10 consecutive Ch0 channel values out of range
APDS9930__PERSIST_15_ALS_PERIODS	15 consecutive Ch0 channel values out of range
APDS9930__PERSIST_20_ALS_PERIODS	20 consecutive Ch0 channel values out of range
APDS9930__PERSIST_25_ALS_PERIODS	25 consecutive Ch0 channel values out of range
APDS9930__PERSIST_30_ALS_PERIODS	30 consecutive Ch0 channel values out of range
APDS9930__PERSIST_35_ALS_PERIODS	35 consecutive Ch0 channel values out of range
APDS9930__PERSIST_40_ALS_PERIODS	40 consecutive Ch0 channel values out of range
APDS9930__PERSIST_45_ALS_PERIODS	45 consecutive Ch0 channel values out of range
APDS9930__PERSIST_50_ALS_PERIODS	50 consecutive Ch0 channel values out of range
APDS9930__PERSIST_55_ALS_PERIODS	55 consecutive Ch0 channel values out of range
APDS9930__PERSIST_60_ALS_PERIODS	60 consecutive Ch0 channel values out of range

APDS9930_drive_strength

enum APDS9930_drive_strength

Proximity LED Drive strength values.

Enumerator
APDS9930__STRENGTH_MAX	PDL=0 : 100mA ; PDL=1 : 11.1mA.
APDS9930__STRENGTH_HIGH	PDL=0 : 50mA ; PDL=1 : 5.6mA.
APDS9930__STRENGTH_MEDIUM	PDL=0 : 25mA ; PDL=1 : 2.8mA.
APDS9930__STRENGTH_LOW	PDL=0 : 12.5mA ; PDL=1 : 1.4mA.

APDS9930_prox_diode

enum APDS9930_prox_diode

Proximity Diode Select values.

Enumerator
APDS9930__PDIODE_RESERVED1	Reserved.
APDS9930__PDIODE_RESERVED2	Reserved.
APDS9930__PDIODE_CH1	Proximity uses the Ch1 diode.
APDS9930__PDIODE_RESERVED3	Reserved.

APDS9930_prox_gain

enum APDS9930_prox_gain

Gain values of APDS9930 proximity.

Enumerator
APDS9930__PROX_1X_GAIN	Proximity 1X Gain.
APDS9930__PROX_2X_GAIN	Proximity 2X Gain.
APDS9930__PROX_4X_GAIN	Proximity 4X Gain.
APDS9930__PROX_8X_GAIN	Proximity 8X Gain.

APDS9930_prox_it_persist

enum APDS9930_prox_it_persist

Persistence control of APDS9930 Proximity.

Enumerator
APDS9930__PERSIST_EVERY_PROX_CYCLE	Every proximity cycle generates an interrupt.
APDS9930__PERSIST_1_PROX_PERIODS	1 consecutive proximity values out of range
APDS9930__PERSIST_2_PROX_PERIODS	2 consecutive proximity values out of range
APDS9930__PERSIST_3_PROX_PERIODS	3 consecutive proximity values out of range
APDS9930__PERSIST_4_PROX_PERIODS	4 consecutive proximity values out of range
APDS9930__PERSIST_5_PROX_PERIODS	5 consecutive proximity values out of range
APDS9930__PERSIST_6_PROX_PERIODS	6 consecutive proximity values out of range
APDS9930__PERSIST_7_PROX_PERIODS	7 consecutive proximity values out of range
APDS9930__PERSIST_8_PROX_PERIODS	8 consecutive proximity values out of range
APDS9930__PERSIST_9_PROX_PERIODS	9 consecutive proximity values out of range
APDS9930__PERSIST_10_PROX_PERIODS	10 consecutive proximity values out of range
APDS9930__PERSIST_11_PROX_PERIODS	11 consecutive proximity values out of range
APDS9930__PERSIST_12_PROX_PERIODS	12 consecutive proximity values out of range
APDS9930__PERSIST_13_PROX_PERIODS	13 consecutive proximity values out of range
APDS9930__PERSIST_14_PROX_PERIODS	14 consecutive proximity values out of range
APDS9930__PERSIST_15_PROX_PERIODS	15 consecutive proximity values out of range

APDS9930_reg

enum APDS9930_reg

Register map enum of APDS9930.

Enumerator
APDS9930__ENABLE	Enables states and interrupts.
APDS9930__ATIME	ALS ADC time.
APDS9930__PTIME	Proximity ADC time.
APDS9930__WTIME	Wait time.
APDS9930__AILTL	ALS interrupt low threshold low byte.
APDS9930__AILTH	ALS interrupt low threshold high byte.
APDS9930__AIHTL	ALS interrupt high threshold low byte.
APDS9930__AIHTH	ALS interrupt high threshold high byte.
APDS9930__PILTL	Proximity interrupt low threshold low byte.
APDS9930__PILTH	Proximity interrupt low threshold high byte.
APDS9930__PIHTL	Proximity interrupt high threshold low byte.
APDS9930__PIHTH	Proximity interrupt high threshold high byte.
APDS9930__PERS	Interrupt persistence filter.
APDS9930__CONFIG	Configuration.
APDS9930__PPULSE	Proximity pulse count.
APDS9930__CONTROL	Gain control register.
APDS9930__ID	Device ID.
APDS9930__STATUS	Device status.
APDS9930__CH0DATAL	CH0 ADC low data register.
APDS9930__CH0DATAH	CH0 ADC high data register.
APDS9930__CH1DATAL	CH1 ADC low data register.
APDS9930__CH1DATAH	CH1 ADC high data register.
APDS9930__PDATAL	Proximity ADC low data register.
APDS9930__PDATAH	Proximity ADC high data register.
APDS9930__POFFSET	Proximity offset register.

APDS9930_spec_func

enum APDS9930_spec_func

Special functions of APDS9930.

Enumerator
APDS9930__SF_CLR_PROX_IT	Proximity interrupt clear.
APDS9930__SF_CLR_ALS_IT	ALS interrupt clear.
APDS9930__SF_CLR_PROX_ALS_IT	Proximity and ALS interrupt clear.

APDS9930_transaction

enum APDS9930_transaction

Transaction types of APDS9930.

Enumerator
APDS9930__TRANS_REPEATED_BYTE	Repeated Byte protocol transaction.
APDS9930__TRANS_AUTO_INCREMENT	Auto-Increment protocol transaction.
APDS9930__TRANS_SPECIAL_FUNC	Special Function.

Function Documentation

APDS9930_Init()

FctERR APDS9930_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for APDS9930 peripheral.

Parameters

[in]	idx	- APDS9930 index
[in]	hi2c	- pointer to APDS9930 I2C instance
[in]	devAddress	- APDS9930 device address

Returns

FctERR - error code

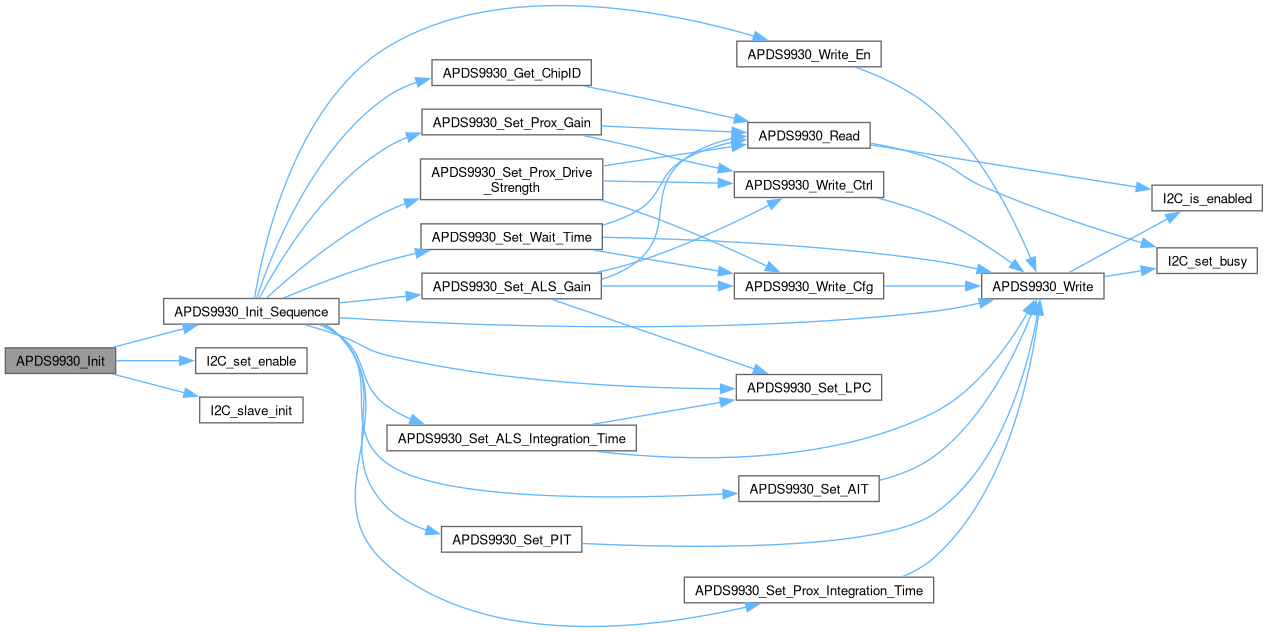

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_Init_Single()

FctERR APDS9930_Init_Single

(

void

)

Initialization for APDS9930 peripheral.

Warning

In case multiple devices (defined by I2C_APDS9930_NB > 1), you shall use APDS9930_Init instead

Returns

FctERR - error code

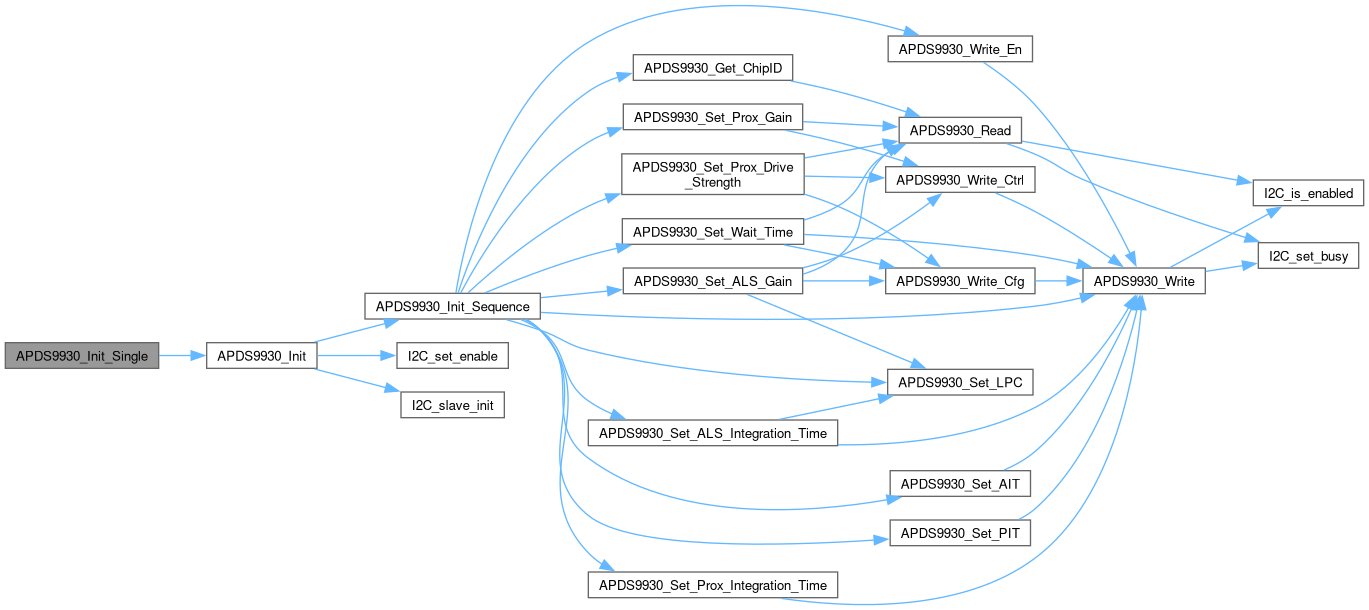

Here is the call graph for this function:

APDS9930_Read()

FctERR APDS9930_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for APDS9930.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

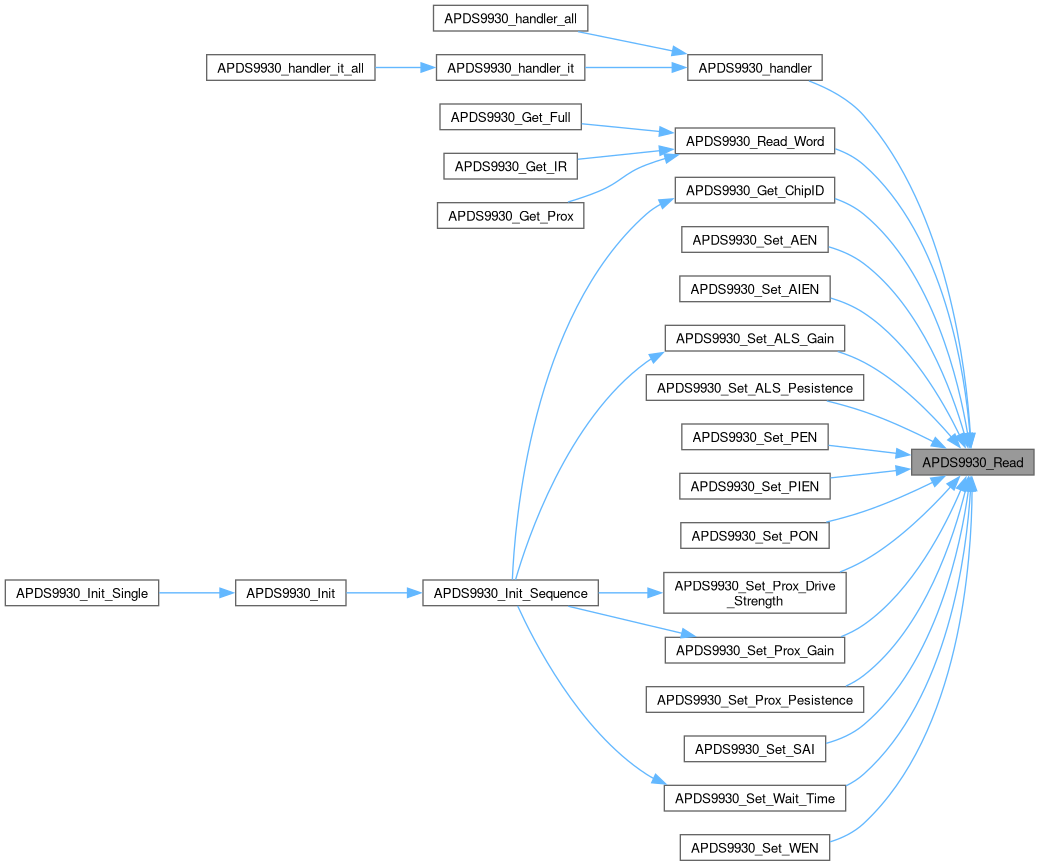

Here is the caller graph for this function:

APDS9930_Read_Word()

FctERR APDS9930_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for APDS9930.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_Write()

FctERR APDS9930_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for APDS9930.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_Write_Special()

FctERR APDS9930_Write_Special	(	I2C_slave_t *const	pSlave,
		const APDS9930_spec_func	func )

I2C Special function Write function for APDS9930.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	func	- special function to execute

Returns

FctERR - error code

Here is the call graph for this function:

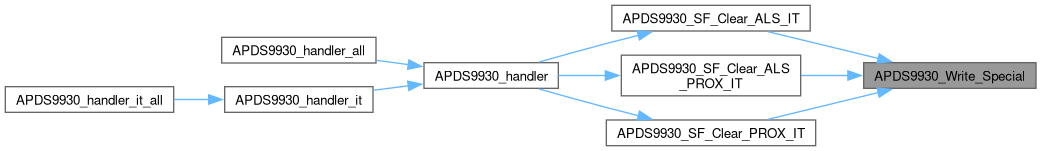

Here is the caller graph for this function:

APDS9930_Write_Word()

FctERR APDS9930_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for APDS9930.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
