APDS9930 Driver extensions. More...

#include "sarmfsw.h"
#include "APDS9930.h"

Include dependency graph for APDS9930_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uAPDS9930_REG_MAP
	Union of APDS9930 registry map. More...

Enumerations
enum	APDS9930_chan { APDS9930__CHAN_FULL = 0U , APDS9930__CHAN_IR , APDS9930__CHAN_PROXIMITY , APDS9930__CHAN_VISIBLE }
	Light types of APDS9930. More...

Functions
FctERR	APDS9930_Write_En (APDS9930_t *const pCpnt, const uint8_t en)
	Write APDS9930 Enable register.

FctERR	APDS9930_Write_Cfg (APDS9930_t *const pCpnt, const uint8_t cfg)
	Write APDS9930 Config.

FctERR	APDS9930_Write_Ctrl (APDS9930_t *const pCpnt, const uint8_t ctrl)
	Write APDS9930 Control.

FctERR	APDS9930_Set_PON (APDS9930_t *const pCpnt, const bool en)
	Oscillator Enable / Disable.

FctERR	APDS9930_Set_AEN (APDS9930_t *const pCpnt, const bool en)
	ALS module Enable / Disable.

FctERR	APDS9930_Set_PEN (APDS9930_t *const pCpnt, const bool en)
	Proximity module Enable / Disable.

FctERR	APDS9930_Set_AIEN (APDS9930_t *const pCpnt, const bool en)
	ALS interrupt module Enable / Disable.

FctERR	APDS9930_Set_PIEN (APDS9930_t *const pCpnt, const bool en)
	Proximity interrupt module Enable / Disable.

FctERR	APDS9930_Set_WEN (APDS9930_t *const pCpnt, const bool en)
	WAIT module Enable / Disable.

FctERR	APDS9930_Set_SAI (APDS9930_t *const pCpnt, const bool en)
	Sleep After Interrupt Enable / Disable.

FctERR	APDS9930_Set_ALS_Gain (APDS9930_t *const pCpnt, const APDS9930_als_gain_ex gain)
	ALS Gain configuration.

FctERR	APDS9930_Set_Prox_Gain (APDS9930_t *const pCpnt, const APDS9930_prox_gain gain)
	Proximity Gain configuration.

FctERR	APDS9930_Set_Prox_Drive_Strength (APDS9930_t *const pCpnt, const APDS9930_drive_strength_ex pdrive)
	Proximity Drive configuration.

FctERR	APDS9930_Set_ALS_Pesistence (APDS9930_t *const pCpnt, const APDS9930_als_it_persist persist)
	ALS Persistence configuration.

FctERR	APDS9930_Set_Prox_Pesistence (APDS9930_t *const pCpnt, const APDS9930_prox_it_persist persist)
	Proximity Persistence configuration.

FctERR	APDS9930_Set_ALS_Integration_Time (APDS9930_t *const pCpnt, const uint16_t integ)
	ALS Integration time configuration.

FctERR	APDS9930_Set_Prox_Integration_Time (APDS9930_t *const pCpnt, const uint16_t integ)
	Proximity Integration time configuration.

FctERR	APDS9930_Set_Wait_Time (APDS9930_t *const pCpnt, const uint16_t wait)
	Wait time configuration.

FctERR	APDS9930_Set_AILT (APDS9930_t *const pCpnt, const uint16_t thr)
	ALS interrupt low threshold configuration.

FctERR	APDS9930_Set_AIHT (APDS9930_t *const pCpnt, const uint16_t thr)
	ALS interrupt high threshold configuration.

FctERR	APDS9930_Set_AIT (APDS9930_t *const pCpnt, const uint16_t lthr, const uint16_t hthr)
	ALS interrupt thresholds configuration.

FctERR	APDS9930_Set_PILT (APDS9930_t *const pCpnt, const uint16_t thr)
	Proximity interrupt Persist Low threshold filter configuration.

FctERR	APDS9930_Set_PIHT (APDS9930_t *const pCpnt, const uint16_t thr)
	Proximity interrupt Persist High threshold filter configuration.

FctERR	APDS9930_Set_PIT (APDS9930_t *const pCpnt, const uint16_t lthr, const uint16_t hthr)
	Proximity interrupt Persist threshold filters configuration.

FctERR	APDS9930_SF_Clear_ALS_IT (APDS9930_t *const pCpnt)
	Clear pending ALS interruption.

FctERR	APDS9930_SF_Clear_PROX_IT (APDS9930_t *const pCpnt)
	Clear pending Proximity interruption.

FctERR	APDS9930_SF_Clear_ALS_PROX_IT (APDS9930_t *const pCpnt)
	Clear pending ALS & Proximity interruptions.

FctERR	APDS9930_Get_ChipID (APDS9930_t const pCpnt, uint8_t const id)
	Get APDS9930 chip ID.

FctERR	APDS9930_Get_Full (APDS9930_t const pCpnt, uint16_t const full)
	Get Full conversion (Channel 0)

FctERR	APDS9930_Get_IR (APDS9930_t const pCpnt, uint16_t const ir)
	Get IR conversion (Channel 1)

FctERR	APDS9930_Get_Prox (APDS9930_t const pCpnt, uint16_t const prox)
	Get Proximity conversion.

void	APDS9930_INT_GPIO_Init (APDS9930_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for APDS9930.

bool	APDS9930_INT_GPIO_Get (const APDS9930_t *const pCpnt)
	Interrupt GPIO pin getter for APDS9930.

Detailed Description

APDS9930 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

APDS9930: Digital Proximity and Ambient Light Sensor

Enumeration Type Documentation

◆ APDS9930_chan

enum APDS9930_chan

Light types of APDS9930.

Enumerator
APDS9930__CHAN_FULL	Full light spectrum channel (channel 0)
APDS9930__CHAN_IR	Infra Red light channel (channel 1)
APDS9930__CHAN_PROXIMITY	Proximity channel.
APDS9930__CHAN_VISIBLE	Visible light (channel 0 - channel 1)

Function Documentation

◆ APDS9930_Get_ChipID()

FctERR APDS9930_Get_ChipID	(	APDS9930_t *const	pCpnt,
		uint8_t *const	id )

inline

Get APDS9930 chip ID.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in,out]	id	- pointer to chip ID result

Returns: FctERR - error code

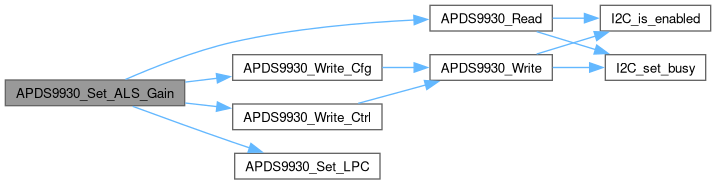

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Get_Full()

FctERR APDS9930_Get_Full	(	APDS9930_t *const	pCpnt,
		uint16_t *const	full )

inline

Get Full conversion (Channel 0)

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in,out]	full	- pointer to Full conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Get_IR()

FctERR APDS9930_Get_IR	(	APDS9930_t *const	pCpnt,
		uint16_t *const	ir )

inline

Get IR conversion (Channel 1)

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in,out]	ir	- pointer to IR conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Get_Prox()

FctERR APDS9930_Get_Prox	(	APDS9930_t *const	pCpnt,
		uint16_t *const	prox )

inline

Get Proximity conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in,out]	prox	- pointer to Proximity conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_INT_GPIO_Get()

bool APDS9930_INT_GPIO_Get ( const APDS9930_t *const pCpnt )

Interrupt GPIO pin getter for APDS9930.

Weak Functions: APDS9930 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to APDS9930 component

Returns: INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_INT_GPIO_Init()

void APDS9930_INT_GPIO_Init	(	APDS9930_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for APDS9930.

Weak Functions: APDS9930 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

◆ APDS9930_Set_AEN()

FctERR APDS9930_Set_AEN	(	APDS9930_t *const	pCpnt,
		const bool	en )

ALS module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_AIEN()

FctERR APDS9930_Set_AIEN	(	APDS9930_t *const	pCpnt,
		const bool	en )

ALS interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_AIHT()

FctERR APDS9930_Set_AIHT	(	APDS9930_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt high threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	thr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_AILT()

FctERR APDS9930_Set_AILT	(	APDS9930_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt low threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	thr	- Low threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_AIT()

FctERR APDS9930_Set_AIT	(	APDS9930_t *const	pCpnt,
		const uint16_t	lthr,
		const uint16_t	hthr )

inline

ALS interrupt thresholds configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	lthr	- Low threshold value
[in]	hthr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_ALS_Gain()

FctERR APDS9930_Set_ALS_Gain	(	APDS9930_t *const	pCpnt,
		const APDS9930_als_gain_ex	gain )

ALS Gain configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	gain	- Gain value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_ALS_Integration_Time()

FctERR APDS9930_Set_ALS_Integration_Time	(	APDS9930_t *const	pCpnt,
		const uint16_t	integ )

ALS Integration time configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	integ	- Integration time value (from 3ms to 699ms)

Returns: FctERR - error code

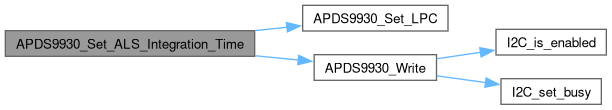

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_ALS_Pesistence()

FctERR APDS9930_Set_ALS_Pesistence	(	APDS9930_t *const	pCpnt,
		const APDS9930_als_it_persist	persist )

ALS Persistence configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	persist	- Persistence value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_PEN()

FctERR APDS9930_Set_PEN	(	APDS9930_t *const	pCpnt,
		const bool	en )

Proximity module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_PIEN()

FctERR APDS9930_Set_PIEN	(	APDS9930_t *const	pCpnt,
		const bool	en )

Proximity interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_PIHT()

FctERR APDS9930_Set_PIHT	(	APDS9930_t *const	pCpnt,
		const uint16_t	thr )

inline

Proximity interrupt Persist High threshold filter configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	thr	- Persist High threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_PILT()

FctERR APDS9930_Set_PILT	(	APDS9930_t *const	pCpnt,
		const uint16_t	thr )

inline

Proximity interrupt Persist Low threshold filter configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	thr	- Persist Low threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_PIT()

FctERR APDS9930_Set_PIT	(	APDS9930_t *const	pCpnt,
		const uint16_t	lthr,
		const uint16_t	hthr )

inline

Proximity interrupt Persist threshold filters configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	lthr	- Low threshold filter value
[in]	hthr	- High threshold filter value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_PON()

FctERR APDS9930_Set_PON	(	APDS9930_t *const	pCpnt,
		const bool	en )

Oscillator Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

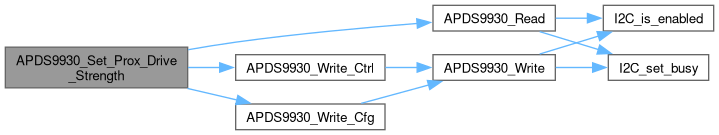

Here is the call graph for this function:

◆ APDS9930_Set_Prox_Drive_Strength()

FctERR APDS9930_Set_Prox_Drive_Strength	(	APDS9930_t *const	pCpnt,
		const APDS9930_drive_strength_ex	pdrive )

Proximity Drive configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	pdrive	- Proximity Drive Strength value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_Prox_Gain()

FctERR APDS9930_Set_Prox_Gain	(	APDS9930_t *const	pCpnt,
		const APDS9930_prox_gain	gain )

Proximity Gain configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	gain	- Gain value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_Prox_Integration_Time()

FctERR APDS9930_Set_Prox_Integration_Time	(	APDS9930_t *const	pCpnt,
		const uint16_t	integ )

Proximity Integration time configuration.

Note: It is recommended that this register be programmed to a value of 0xff (1 cycle, 1023 bits). -> integ = 3

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	integ	- Integration time value (from 3ms to 699ms)

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_Prox_Pesistence()

FctERR APDS9930_Set_Prox_Pesistence	(	APDS9930_t *const	pCpnt,
		const APDS9930_prox_it_persist	persist )

Proximity Persistence configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	persist	- Persistence value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_SAI()

FctERR APDS9930_Set_SAI	(	APDS9930_t *const	pCpnt,
		const bool	en )

Sleep After Interrupt Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_Set_Wait_Time()

FctERR APDS9930_Set_Wait_Time	(	APDS9930_t *const	pCpnt,
		const uint16_t	wait )

Wait time configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	wait	- Wait time value (from 3ms to 8400ms)

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Set_WEN()

FctERR APDS9930_Set_WEN	(	APDS9930_t *const	pCpnt,
		const bool	en )

WAIT module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9930_SF_Clear_ALS_IT()

FctERR APDS9930_SF_Clear_ALS_IT ( APDS9930_t *const pCpnt )

inline

Clear pending ALS interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9930 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_SF_Clear_ALS_PROX_IT()

FctERR APDS9930_SF_Clear_ALS_PROX_IT ( APDS9930_t *const pCpnt )

inline

Clear pending ALS & Proximity interruptions.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9930 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_SF_Clear_PROX_IT()

FctERR APDS9930_SF_Clear_PROX_IT ( APDS9930_t *const pCpnt )

inline

Clear pending Proximity interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9930 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Write_Cfg()

FctERR APDS9930_Write_Cfg	(	APDS9930_t *const	pCpnt,
		const uint8_t	cfg )

inline

Write APDS9930 Config.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	cfg	- Configuration register value

Returns: FctERR - error code

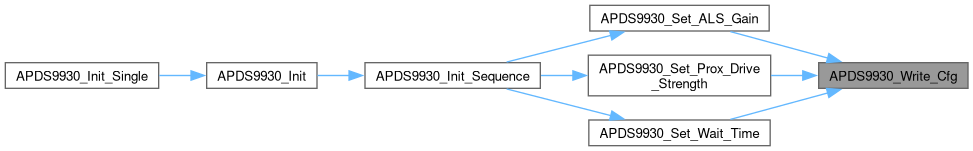

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Write_Ctrl()

FctERR APDS9930_Write_Ctrl	(	APDS9930_t *const	pCpnt,
		const uint8_t	ctrl )

inline

Write APDS9930 Control.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	ctrl	- Control register value

Returns: FctERR - error code

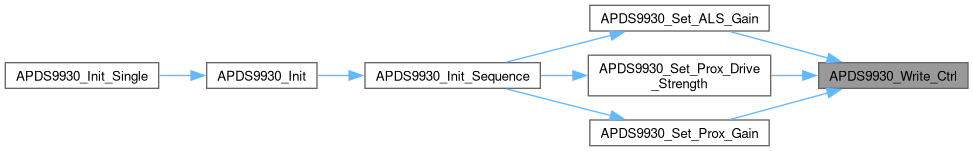

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9930_Write_En()

FctERR APDS9930_Write_En	(	APDS9930_t *const	pCpnt,
		const uint8_t	en )

inline

Write APDS9930 Enable register.

Parameters

[in]	pCpnt	- Pointer to APDS9930 component
[in]	en	- Enable register value

Returns: FctERR - error code

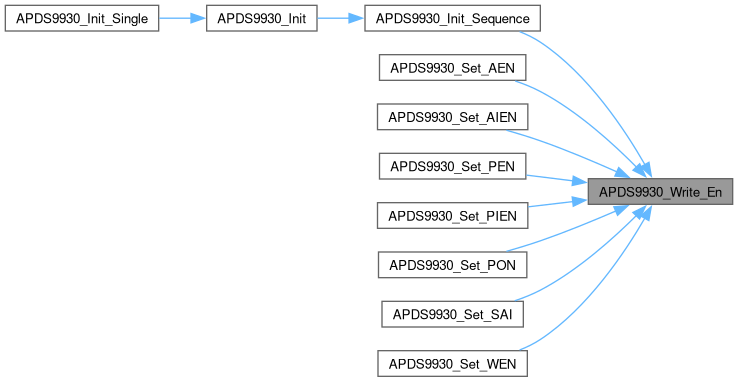

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ APDS9930_chan

Function Documentation

◆ APDS9930_Get_ChipID()

◆ APDS9930_Get_Full()

◆ APDS9930_Get_IR()

◆ APDS9930_Get_Prox()

◆ APDS9930_INT_GPIO_Get()

◆ APDS9930_INT_GPIO_Init()

◆ APDS9930_Set_AEN()

◆ APDS9930_Set_AIEN()

◆ APDS9930_Set_AIHT()

◆ APDS9930_Set_AILT()

◆ APDS9930_Set_AIT()

◆ APDS9930_Set_ALS_Gain()

◆ APDS9930_Set_ALS_Integration_Time()

◆ APDS9930_Set_ALS_Pesistence()

◆ APDS9930_Set_PEN()

◆ APDS9930_Set_PIEN()

◆ APDS9930_Set_PIHT()

◆ APDS9930_Set_PILT()

◆ APDS9930_Set_PIT()

◆ APDS9930_Set_PON()

◆ APDS9930_Set_Prox_Drive_Strength()

◆ APDS9930_Set_Prox_Gain()

◆ APDS9930_Set_Prox_Integration_Time()

◆ APDS9930_Set_Prox_Pesistence()

◆ APDS9930_Set_SAI()

◆ APDS9930_Set_Wait_Time()

◆ APDS9930_Set_WEN()

◆ APDS9930_SF_Clear_ALS_IT()

◆ APDS9930_SF_Clear_ALS_PROX_IT()

◆ APDS9930_SF_Clear_PROX_IT()

◆ APDS9930_Write_Cfg()

◆ APDS9930_Write_Ctrl()

◆ APDS9930_Write_En()
