APDS9930_proc.h File Reference

APDS9930 Driver procedures. More...

#include "sarmfsw.h"
#include "APDS9930.h"
#include "shared_ALS.h"

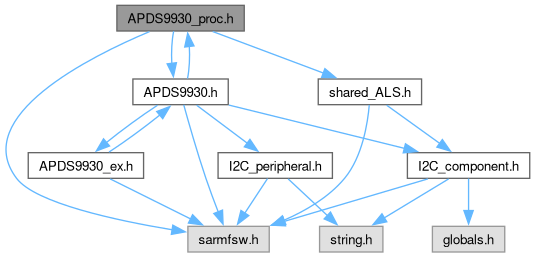

Include dependency graph for APDS9930_proc.h:

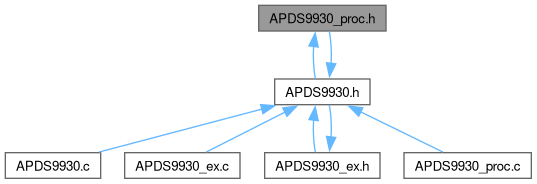

This graph shows which files directly or indirectly include this file:

Data Structures
struct	APDS9930_t
	APDS9930 user interface struct. More...

Macros
#define	APDS9930_CHIP_ID   0x39U
	APDS9930 Chip ID to check against.
#define	APDS9930_DEVICE_FACTOR   52U
	APDS9930 Device factor.
#define	APDS9930_DEF_PROX_PULSES   8U
	Recommended proximity pulses in a cycle.

Enumerations
enum	APDS9930_als_gain_ex {   APDS9930__ALS_GAIN_1X = 0U , APDS9930__ALS_GAIN_8X , APDS9930__ALS_GAIN_16X , APDS9930__ALS_GAIN_120X ,   APDS9930__ALS_GAIN_1ON6X , APDS9930__ALS_GAIN_8ON6X }
	Gain values of APDS9930 ALS. More...
enum	APDS9930_drive_strength_ex {   APDS9930__STRENGTH_100MA = 0U , APDS9930__STRENGTH_50MA , APDS9930__STRENGTH_25MA , APDS9930__STRENGTH_12_5MA ,   APDS9930__STRENGTH_11_1MA , APDS9930__STRENGTH_5_6MA , APDS9930__STRENGTH_2_8MA , APDS9930__STRENGTH_1_4MA }
	Proximity LED Drive strength values. More...

Functions
FctERR	APDS9930_Init_Sequence (APDS9930_t *const pCpnt)
	Initialization Sequence for APDS9930 peripheral.
void	APDS9930_Set_LPC (APDS9930_t *const pCpnt)
	Set proper LPC value (Lux per Count)
uint32_t	APDS9930_Get_Lux (const APDS9930_t *const pCpnt)
	Get current Illuminance (in lux)
FctERR	APDS9930_handler (APDS9930_t *const pCpnt)
	Handler for APDS9930 peripheral.
FctERR	APDS9930_handler_it (APDS9930_t *const pCpnt)
	Handler for APDS9930 peripheral GPIO interrupt.
FctERR	APDS9930_handler_all (void)
	Handler for all APDS9930 peripherals.
FctERR	APDS9930_handler_it_all (void)
	Handler for all APDS9930 peripherals GPIO interrupt.

Variables
APDS9930_t	APDS9930 [I2C_APDS9930_NB]
	APDS9930 User structure.

Detailed Description

APDS9930 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

APDS9930: Digital Proximity and Ambient Light Sensor

Macro Definition Documentation

APDS9930_CHIP_ID

#define APDS9930_CHIP_ID   0x39U

APDS9930 Chip ID to check against.

APDS9930_DEF_PROX_PULSES

#define APDS9930_DEF_PROX_PULSES   8U

Recommended proximity pulses in a cycle.

APDS9930_DEVICE_FACTOR

#define APDS9930_DEVICE_FACTOR   52U

APDS9930 Device factor.

Enumeration Type Documentation

APDS9930_als_gain_ex

enum APDS9930_als_gain_ex

Gain values of APDS9930 ALS.

Warning

Datasheet p9 states ok, but CONFIG register description p22 states not to use 16 or 120 gain when AGL asserted

Enumerator
APDS9930__ALS_GAIN_1X	ALS 1X Gain.
APDS9930__ALS_GAIN_8X	ALS 8X Gain.
APDS9930__ALS_GAIN_16X	ALS 16X Gain.
APDS9930__ALS_GAIN_120X	ALS 120X Gain.
APDS9930__ALS_GAIN_1ON6X	ALS 1/6X Gain.
APDS9930__ALS_GAIN_8ON6X	ALS 8/6X Gain.

APDS9930_drive_strength_ex

enum APDS9930_drive_strength_ex

Proximity LED Drive strength values.

Enumerator
APDS9930__STRENGTH_100MA	PDL=0 : 100mA.
APDS9930__STRENGTH_50MA	PDL=0 : 50mA.
APDS9930__STRENGTH_25MA	PDL=0 : 25mA.
APDS9930__STRENGTH_12_5MA	PDL=0 : 12.5mA.
APDS9930__STRENGTH_11_1MA	PDL=1 : 11.1mA.
APDS9930__STRENGTH_5_6MA	PDL=1 : 5.6mA.
APDS9930__STRENGTH_2_8MA	PDL=1 : 2.8mA.
APDS9930__STRENGTH_1_4MA	PDL=1 : 1.4mA.

Function Documentation

APDS9930_Get_Lux()

uint32_t APDS9930_Get_Lux ( const APDS9930_t *const pCpnt )

inline

Get current Illuminance (in lux)

Parameters

[in]

pCpnt

- Pointer to APDS9930 component

Returns

FctERR - error code

APDS9930_handler()

FctERR APDS9930_handler

(

APDS9930_t *const

pCpnt

)

Handler for APDS9930 peripheral.

Weak Functions

APDS9930 handler may be user implemented to suit custom needs

Note

May be called periodically to handle APDS9930 tasks

Alternately may be called when event occurs on APDS9930 pin (or by calling APDS9930_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to APDS9930 component

Returns

FctERR - error code

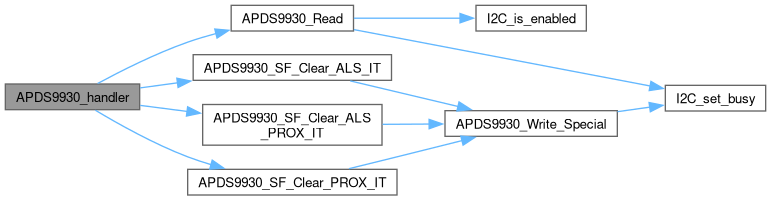

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_handler_all()

FctERR APDS9930_handler_all

(

void

)

Handler for all APDS9930 peripherals.

Note

May be called periodically to handle all APDS9930 tasks

Returns

FctERR - error code

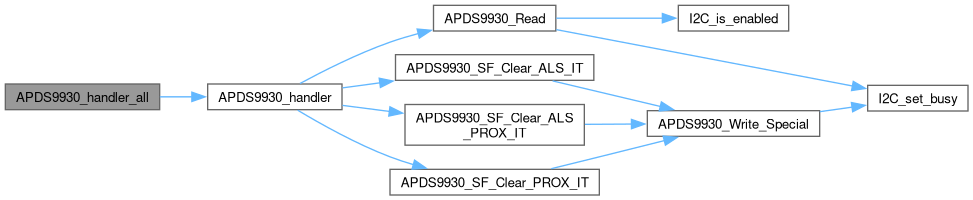

Here is the call graph for this function:

APDS9930_handler_it()

FctERR APDS9930_handler_it

(

APDS9930_t *const

pCpnt

)

Handler for APDS9930 peripheral GPIO interrupt.

Note

APDS9930_INT_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

APDS9930 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle APDS9930 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to APDS9930 component

Returns

FctERR - error code

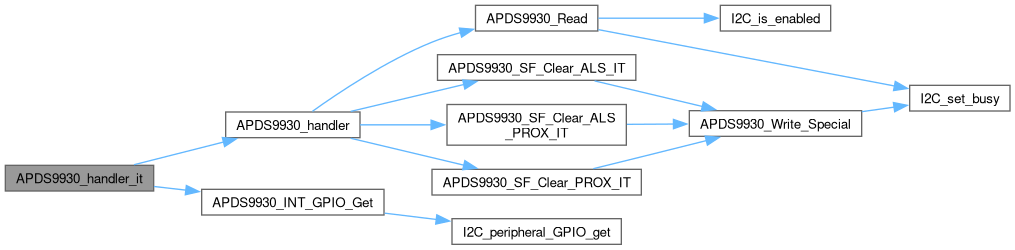

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_handler_it_all()

FctERR APDS9930_handler_it_all

(

void

)

Handler for all APDS9930 peripherals GPIO interrupt.

Note

APDS9930_INT_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all APDS9930 tasks

Returns

FctERR - error code

Here is the call graph for this function:

APDS9930_Init_Sequence()

FctERR APDS9930_Init_Sequence

(

APDS9930_t *const

pCpnt

)

Initialization Sequence for APDS9930 peripheral.

Weak Functions

APDS9930 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to APDS9930 component

Returns

FctERR - error code

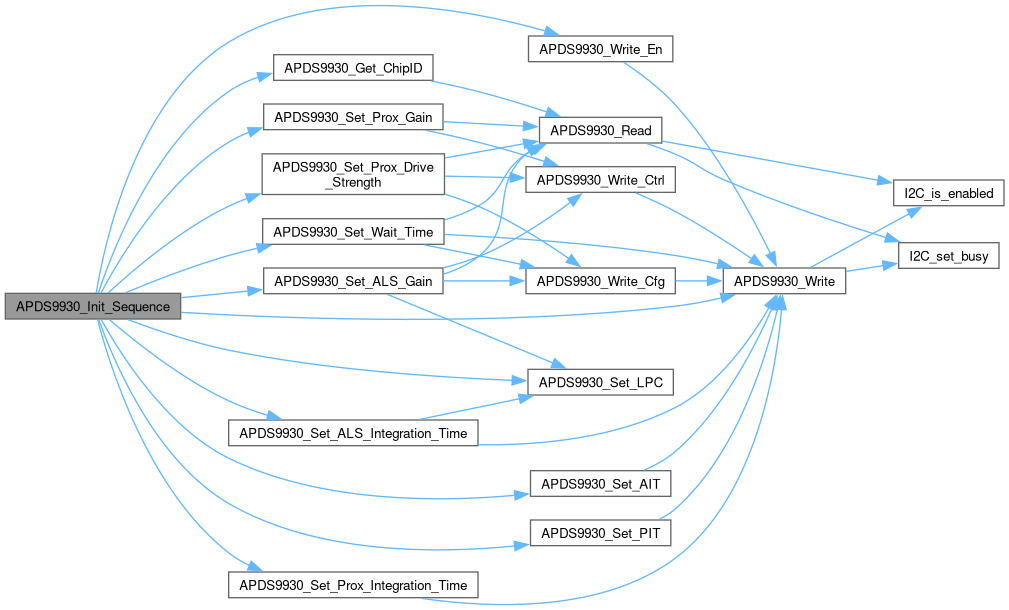

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9930_Set_LPC()

void APDS9930_Set_LPC

(

APDS9930_t *const

pCpnt

)

Set proper LPC value (Lux per Count)

Note

Should be called after Configuration change of Integration time or Gain

Parameters

[in]

pCpnt

- Pointer to APDS9930 component

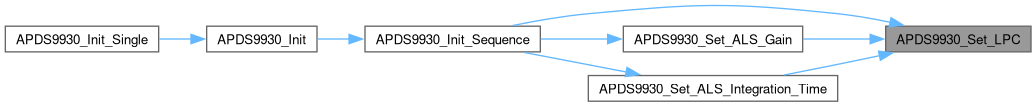

Here is the caller graph for this function:

Variable Documentation

APDS9930

APDS9930_t APDS9930[I2C_APDS9930_NB]

extern

APDS9930 User structure.
