#include "sarmfsw.h"
#include "DRV2605L.h"

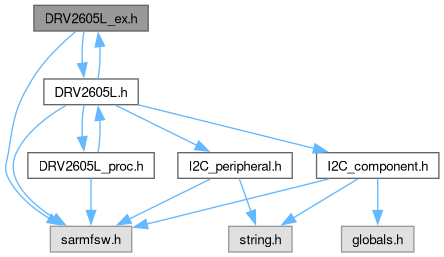

Include dependency graph for DRV2605L_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uDRV_REG_MAP
	DRV2605L Register map union. More...

Functions
FctERR	DRV2605L_Vibe (const DRV2605L_go go)
	Start/Stop haptic pattern.

FctERR	DRV2605L_Reset (void)
	Reset DRV260x chip.

FctERR	DRV2605L_Set_ActType (const DRV2605L_act act)
	Set haptic actuator type.

FctERR	DRV2605L_Set_ERM (void)
	Set haptic actuator type to ERM.

FctERR	DRV2605L_Set_LRA (void)
	Set haptic device actuator type to LRA.

FctERR	DRV2605L_Set_OperatingMode (const DRV2605L_mode mode)
	Set haptic operating mode.

FctERR	DRV2605L_Set_Standby (const bool stdby)
	Set haptic device to standby.

FctERR	DRV2605L_Set_InputMode (const DRV2605L_input input)
	Set haptic device input pin type.

FctERR	DRV2605L_Set_LoopMode (const DRV2605L_loop loop)
	Set haptic device input pin type.

FctERR	DRV2605L_Set_Library (const DRV2605L_lib lib)
	Set haptic device library.

FctERR	DRV2605L_Set_Waveform (const uint16_t chan, const DRV2605L_eff effect, const bool wait)
	Set haptic device channel in the waveform sequencer.

FctERR	DRV2605L_Set_OverdriveTimeOffset (const uint8_t val)
	Set Overdrive time offset.

FctERR	DRV2605L_Set_SustainTimeOffset (const uint8_t val, const bool pos)
	Set Sustain time offset.

FctERR	DRV2605L_Set_BrakeTimeOffset (const uint8_t val)
	Set Brake time offset.

FctERR	DRV2605L_Set_RTP (const uint8_t val)
	Set RTP input level.

FctERR	DRV2605L_Set_RTPDataFormat (const DRV2605L_rtp_format format)
	Set RTP format.

FctERR	DRV2605L_Set_ATVPeakTime (const DRV2605L_peak peak)
	Set Audio To Vibe Peak time.

FctERR	DRV2605L_Set_ATVLowPassFilter (const DRV2605L_filter filt)
	Set Audio To Vibe Low pass filter.

FctERR	DRV2605L_Set_ATVInputLevel_Raw (const uint8_t val, const bool maxi)
	Set Audio To Vibe min/max input level.

FctERR	DRV2605L_Set_ATVOutputDrive_Raw (const uint8_t val, const bool maxi)
	Set Audio To Vibe min/max output drive.

FctERR	DRV2605L_Set_ATVInput_Volt (const float volt, const bool maxi)
	Set Audio To Vibe min/max input voltage.

FctERR	DRV2605L_Set_ATVDrive_Percent (const uint16_t perc, const bool maxi)
	Set Audio To Vibe min/max Drive.

FctERR	DRV2605L_Set_RatedVoltage (const uint8_t val)
	Set haptic Rated voltage.

FctERR	DRV2605L_Set_ODClamp (const uint8_t val)
	Set haptic Overdrive Clamp.

FctERR	DRV2605L_Set_BlankingTime (const uint16_t time)
	Set haptic Blanking time.

FctERR	DRV2605L_Set_CurrentDissipationTime (const uint16_t time)
	Set haptic Current dissipation time.

FctERR	DRV2605L_Set_LRAOpenLoopPeriod_Raw (const uint8_t val)
	Set haptic LRA Open loop period.

FctERR	DRV2605L_Set_LRAOpenLoopPeriod_us (const uint16_t per)
	Set haptic LRA Open loop period.

FctERR	DRV2605L_Get_ATVInput_Volt (float *const volt, const bool maxi)
	Get min/max Audio To Vibe Input voltage.

FctERR	DRV2605L_Get_ATVDrive_Percent (float *const perc, const bool maxi)
	Get min/max Audio To Vibe Drive.

FctERR	DRV2605L_Get_BlankingTime (uint16_t *const time)
	Get haptic Blanking time.

FctERR	DRV2605L_Get_CurrentDissipationTime (uint16_t *const time)
	Get haptic Current dissipation time.

FctERR	DRV2605L_Get_Voltage (uint16_t *const vbat)
	Get haptic Voltage.

FctERR	DRV2605L_Get_LRAOpenLoopPeriod (uint16_t *const per)
	Get haptic LRA Open loop period.

FctERR	DRV2605L_Get_ResonancePeriod (uint16_t *const per)
	Get haptic LRA Resonance period.

FctERR	DRV2605L_Get_ChipID (uint8_t *const id)
	Get DRV260x chip ID.

void	DRV2605L_EN_GPIO_Init (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Enable GPIO pin init for DRV2605L.

void	DRV2605L_EN_GPIO_Set (const bool state)
	Enable GPIO pin setter for DRV2605L.

void	DRV2605L_TRIG_GPIO_Init (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Trigger GPIO pin init for DRV2605L.

void	DRV2605L_TRIG_GPIO_Set (const bool state)
	Trigger GPIO pin setter for DRV2605L.

Function Documentation

◆ DRV2605L_EN_GPIO_Init()

void DRV2605L_EN_GPIO_Init	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Enable GPIO pin init for DRV2605L.

Weak Functions: DRV2605L Enable GPIO pin init may be user implemented if needed

Parameters

[in]	GPIOx	- EN port
[in]	GPIO_Pin	- EN pin
[in]	GPIO_Active	EN pin active state

Here is the call graph for this function:

◆ DRV2605L_EN_GPIO_Set()

void DRV2605L_EN_GPIO_Set ( const bool state )

Enable GPIO pin setter for DRV2605L.

Weak Functions: DRV2605L Enable GPIO pin setter may be user implemented if needed

Parameters

[in] state - state to write on EN pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ DRV2605L_Get_ATVDrive_Percent()

FctERR DRV2605L_Get_ATVDrive_Percent	(	float *const	perc,
		const bool	maxi )

Get min/max Audio To Vibe Drive.

Parameters

[in,out]	perc	- pointer to Audio To Vibe Drive result
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Get_ATVInput_Volt()

FctERR DRV2605L_Get_ATVInput_Volt	(	float *const	volt,
		const bool	maxi )

Get min/max Audio To Vibe Input voltage.

Parameters

[in,out]	volt	- pointer to Audio To Vibe Input voltage result
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Get_BlankingTime()

FctERR DRV2605L_Get_BlankingTime ( uint16_t *const time )

Get haptic Blanking time.

Parameters

[in,out] time - pointer to Blanking time value result

Returns: FctERR - error code

◆ DRV2605L_Get_ChipID()

FctERR DRV2605L_Get_ChipID ( uint8_t *const id )

Get DRV260x chip ID.

Parameters

[in,out] id - pointer to chip ID result

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Get_CurrentDissipationTime()

FctERR DRV2605L_Get_CurrentDissipationTime ( uint16_t *const time )

Get haptic Current dissipation time.

Parameters

[in,out] time - pointer to Blanking time value result

Returns: FctERR - error code

◆ DRV2605L_Get_LRAOpenLoopPeriod()

FctERR DRV2605L_Get_LRAOpenLoopPeriod ( uint16_t *const per )

Get haptic LRA Open loop period.

Parameters

[in,out] per - pointer to LRA open loop period result

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Get_ResonancePeriod()

FctERR DRV2605L_Get_ResonancePeriod ( uint16_t *const per )

Get haptic LRA Resonance period.

Parameters

[in,out] per - pointer to LRA Resonance period result

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Get_Voltage()

FctERR DRV2605L_Get_Voltage ( uint16_t *const vbat )

Get haptic Voltage.

Parameters

[in,out] vbat - pointer to Battery voltage result

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Reset()

FctERR DRV2605L_Reset ( void )

inline

Reset DRV260x chip.

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_ActType()

FctERR DRV2605L_Set_ActType ( const DRV2605L_act act )

Set haptic actuator type.

Parameters

[in] act - 0 ERM, 1 LRA

Returns: FctERR - error code

Here is the call graph for this function:

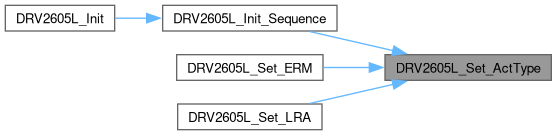

Here is the caller graph for this function:

◆ DRV2605L_Set_ATVDrive_Percent()

FctERR DRV2605L_Set_ATVDrive_Percent	(	const uint16_t	perc,
		const bool	maxi )

Set Audio To Vibe min/max Drive.

Parameters

[in]	perc	- Audio To Vibe drive value (in percent)
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_ATVInput_Volt()

FctERR DRV2605L_Set_ATVInput_Volt	(	const float	volt,
		const bool	maxi )

Set Audio To Vibe min/max input voltage.

Parameters

[in]	volt	- Audio To Vibe Input voltage value
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_ATVInputLevel_Raw()

FctERR DRV2605L_Set_ATVInputLevel_Raw	(	const uint8_t	val,
		const bool	maxi )

inline

Set Audio To Vibe min/max input level.

Parameters

[in]	val	- Audio To Vibe Input level value
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_ATVLowPassFilter()

FctERR DRV2605L_Set_ATVLowPassFilter ( const DRV2605L_filter filt )

Set Audio To Vibe Low pass filter.

Parameters

[in] filt - Audio To Vibe Low pass filter value

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_ATVOutputDrive_Raw()

FctERR DRV2605L_Set_ATVOutputDrive_Raw	(	const uint8_t	val,
		const bool	maxi )

inline

Set Audio To Vibe min/max output drive.

Parameters

[in]	val	- Audio To Vibe Output drive value
[in]	maxi	- 0 Min, 1 Max

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_ATVPeakTime()

FctERR DRV2605L_Set_ATVPeakTime ( const DRV2605L_peak peak )

Set Audio To Vibe Peak time.

Parameters

[in] peak - Audio To Vibe Peak time value

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_BlankingTime()

FctERR DRV2605L_Set_BlankingTime ( const uint16_t time )

Set haptic Blanking time.

Parameters

[in] time - Blanking time value

Returns: FctERR - error code

◆ DRV2605L_Set_BrakeTimeOffset()

FctERR DRV2605L_Set_BrakeTimeOffset ( const uint8_t val )

inline

Set Brake time offset.

Parameters

[in] val - Brake time offset value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_CurrentDissipationTime()

FctERR DRV2605L_Set_CurrentDissipationTime ( const uint16_t time )

Set haptic Current dissipation time.

Parameters

[in] time - Current dissipation time value

Returns: FctERR - error code

◆ DRV2605L_Set_ERM()

FctERR DRV2605L_Set_ERM ( void )

inline

Set haptic actuator type to ERM.

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_InputMode()

FctERR DRV2605L_Set_InputMode ( const DRV2605L_input input )

Set haptic device input pin type.

Parameters

[in] input - 0: PWM, 1: Analog

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_Library()

FctERR DRV2605L_Set_Library ( const DRV2605L_lib lib )

Set haptic device library.

Parameters

[in] lib - Internal library used

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_LoopMode()

FctERR DRV2605L_Set_LoopMode ( const DRV2605L_loop loop )

Set haptic device input pin type.

Parameters

[in] loop - 0: ERM Closed Loop, LRA Auto Resonance, 1: Open Loop

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_LRA()

FctERR DRV2605L_Set_LRA ( void )

inline

Set haptic device actuator type to LRA.

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_LRAOpenLoopPeriod_Raw()

FctERR DRV2605L_Set_LRAOpenLoopPeriod_Raw ( const uint8_t val )

inline

Set haptic LRA Open loop period.

Parameters

[in] val - LRA Open loop period raw

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_LRAOpenLoopPeriod_us()

FctERR DRV2605L_Set_LRAOpenLoopPeriod_us ( const uint16_t per )

Set haptic LRA Open loop period.

Parameters

[in] per - LRA Open loop period (in us)

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_ODClamp()

FctERR DRV2605L_Set_ODClamp ( const uint8_t val )

inline

Set haptic Overdrive Clamp.

Parameters

[in] val - Overdrive clamp value

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_OperatingMode()

FctERR DRV2605L_Set_OperatingMode ( const DRV2605L_mode mode )

Set haptic operating mode.

Parameters

[in] mode - haptic input operating mode

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_OverdriveTimeOffset()

FctERR DRV2605L_Set_OverdriveTimeOffset ( const uint8_t val )

inline

Set Overdrive time offset.

Parameters

[in] val - Overdrive time offset value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_RatedVoltage()

FctERR DRV2605L_Set_RatedVoltage ( const uint8_t val )

inline

Set haptic Rated voltage.

Parameters

[in] val - Rated voltage value

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_RTP()

FctERR DRV2605L_Set_RTP ( const uint8_t val )

inline

Set RTP input level.

Parameters

[in] val - RTP input level value

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_RTPDataFormat()

FctERR DRV2605L_Set_RTPDataFormat ( const DRV2605L_rtp_format format )

Set RTP format.

Parameters

[in] format - 0: Signed, 1: Unsigned

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_Set_Standby()

FctERR DRV2605L_Set_Standby ( const bool stdby )

Set haptic device to standby.

Parameters

[in] stdby - 0: Normal operation, 1: standby

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_SustainTimeOffset()

FctERR DRV2605L_Set_SustainTimeOffset	(	const uint8_t	val,
		const bool	pos )

inline

Set Sustain time offset.

Parameters

[in]	val	- Sustain time offset value
[in]	pos	- 0 Negative, 1 Positive

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DRV2605L_Set_Waveform()

FctERR DRV2605L_Set_Waveform	(	const uint16_t	chan,
		const DRV2605L_eff	effect,
		const bool	wait )

Set haptic device channel in the waveform sequencer.

Parameters

[in]	chan	- Waveform sequencer channel
[in]	effect	- Effect number for haptic feedback
[in]	wait	- Wait between patterns

Returns: FctERR - error code

Here is the call graph for this function:

◆ DRV2605L_TRIG_GPIO_Init()

void DRV2605L_TRIG_GPIO_Init	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Trigger GPIO pin init for DRV2605L.

Weak Functions: DRV2605L Trigger GPIO pin init may be user implemented if needed

Parameters

[in]	GPIOx	- TRIG port
[in]	GPIO_Pin	- TRIG pin
[in]	GPIO_Active	TRIG pin active state

Here is the call graph for this function:

◆ DRV2605L_TRIG_GPIO_Set()

void DRV2605L_TRIG_GPIO_Set ( const bool state )

Trigger GPIO pin setter for DRV2605L.

Weak Functions: DRV2605L Trigger GPIO pin setter may be user implemented if needed

Parameters

[in] state - state to write on TRIG pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ DRV2605L_Vibe()

FctERR DRV2605L_Vibe ( const DRV2605L_go go )

inline

Start/Stop haptic pattern.

Parameters

[in] go - 0 OFF, 1 ON

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Functions

Function Documentation

◆ DRV2605L_EN_GPIO_Init()

◆ DRV2605L_EN_GPIO_Set()

◆ DRV2605L_Get_ATVDrive_Percent()

◆ DRV2605L_Get_ATVInput_Volt()

◆ DRV2605L_Get_BlankingTime()

◆ DRV2605L_Get_ChipID()

◆ DRV2605L_Get_CurrentDissipationTime()

◆ DRV2605L_Get_LRAOpenLoopPeriod()

◆ DRV2605L_Get_ResonancePeriod()

◆ DRV2605L_Get_Voltage()

◆ DRV2605L_Reset()

◆ DRV2605L_Set_ActType()

◆ DRV2605L_Set_ATVDrive_Percent()

◆ DRV2605L_Set_ATVInput_Volt()

◆ DRV2605L_Set_ATVInputLevel_Raw()

◆ DRV2605L_Set_ATVLowPassFilter()

◆ DRV2605L_Set_ATVOutputDrive_Raw()

◆ DRV2605L_Set_ATVPeakTime()

◆ DRV2605L_Set_BlankingTime()

◆ DRV2605L_Set_BrakeTimeOffset()

◆ DRV2605L_Set_CurrentDissipationTime()

◆ DRV2605L_Set_ERM()

◆ DRV2605L_Set_InputMode()

◆ DRV2605L_Set_Library()

◆ DRV2605L_Set_LoopMode()

◆ DRV2605L_Set_LRA()

◆ DRV2605L_Set_LRAOpenLoopPeriod_Raw()

◆ DRV2605L_Set_LRAOpenLoopPeriod_us()

◆ DRV2605L_Set_ODClamp()

◆ DRV2605L_Set_OperatingMode()

◆ DRV2605L_Set_OverdriveTimeOffset()

◆ DRV2605L_Set_RatedVoltage()

◆ DRV2605L_Set_RTP()

◆ DRV2605L_Set_RTPDataFormat()

◆ DRV2605L_Set_Standby()

◆ DRV2605L_Set_SustainTimeOffset()

◆ DRV2605L_Set_Waveform()

◆ DRV2605L_TRIG_GPIO_Init()

◆ DRV2605L_TRIG_GPIO_Set()

◆ DRV2605L_Vibe()
