DRV2605L_proc.h File Reference

DRV2605L Driver procedures. More...

#include "sarmfsw.h"
#include "DRV2605L.h"

Include dependency graph for DRV2605L_proc.h:

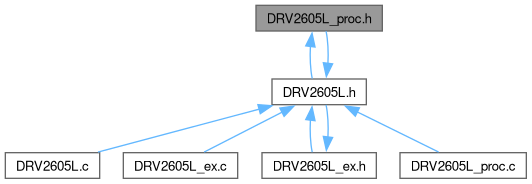

This graph shows which files directly or indirectly include this file:

Data Structures
struct	DRV2605L_t
	DRV2605L user interface struct. More...

Macros
#define	DRV2604_CHIP_ID   0x80U
	DRV2604 Chip ID to check against.
#define	DRV2605_CHIP_ID   0x60U
	DRV2605 Chip ID to check against.
#define	DRV2604L_CHIP_ID   0xA0U
	DRV2604L Chip ID to check against.
#define	DRV2605L_CHIP_ID   0xE0U
	DRV2605L Chip ID to check against.

Functions
FctERR	DRV2605L_Init_Sequence (void)
	Initialization Sequence for DRV2605L peripheral.
FctERR	DRV2605L_Auto_Calib (void)
	Auto-calibration procedure for DRV2605L peripheral.

Variables
DRV2605L_t	DRV2605L
	DRV2605L User structure.

Detailed Description

DRV2605L Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

DRV2605L: 2 to 5.2V Haptic Driver for LRA and ERM With Effect Library and Smart-Loop Architecture

Macro Definition Documentation

DRV2604_CHIP_ID

#define DRV2604_CHIP_ID   0x80U

DRV2604 Chip ID to check against.

DRV2604L_CHIP_ID

#define DRV2604L_CHIP_ID   0xA0U

DRV2604L Chip ID to check against.

DRV2605_CHIP_ID

#define DRV2605_CHIP_ID   0x60U

DRV2605 Chip ID to check against.

DRV2605L_CHIP_ID

#define DRV2605L_CHIP_ID   0xE0U

DRV2605L Chip ID to check against.

Function Documentation

DRV2605L_Auto_Calib()

FctERR DRV2605L_Auto_Calib

(

void

)

Auto-calibration procedure for DRV2605L peripheral.

Returns

FctERR - error code

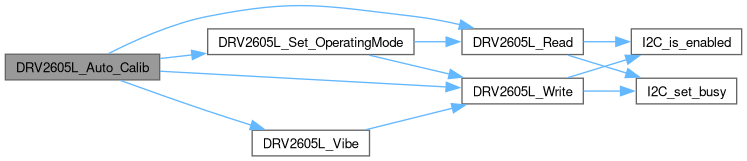

Here is the call graph for this function:

DRV2605L_Init_Sequence()

FctERR DRV2605L_Init_Sequence

(

void

)

Initialization Sequence for DRV2605L peripheral.

Weak Functions

DRV2605L Init sequence may be user implemented if custom initialization sequence needed

Returns

FctERR - error code

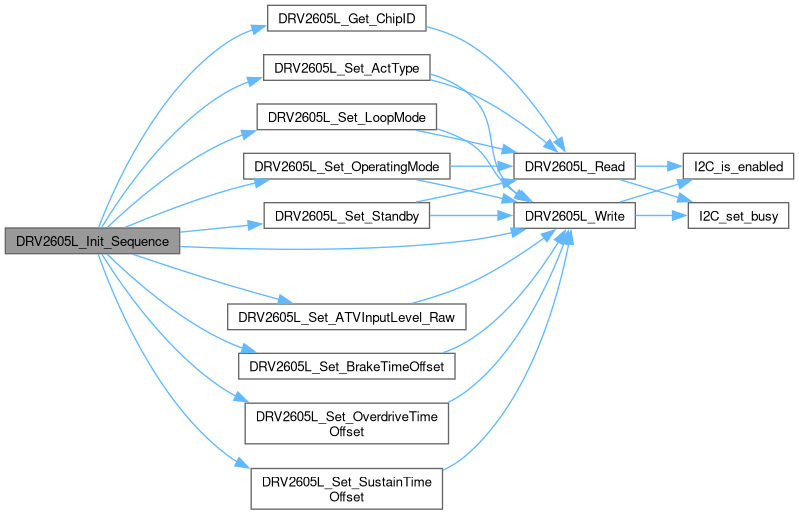

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

DRV2605L

DRV2605L_t DRV2605L

extern

DRV2605L User structure.
