AT42QT1244_proc.h File Reference

AT42QT1244 Driver procedures. More...

#include "sarmfsw.h"
#include "AT42QT1244.h"

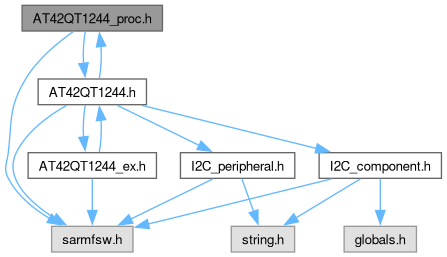

Include dependency graph for AT42QT1244_proc.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	AT42QT1244_t
	AT42QT1244 user interface struct. More...

Functions
FctERR	AT42QT1244_Init_Sequence (AT42QT1244_t *const pCpnt)
	Initialization Sequence for AT42QT1244 peripheral.
void	AT42QT1244_Set_Reset_Time (AT42QT1244_t *const pCpnt)
	Set last reset time for AT42QT1244 peripheral.
void	AT42QT1244_Delay_PowerOn (const AT42QT1244_t *const pCpnt)
	100ms delay generator for AT42QT1244 peripheral
uint16_t	AT42QT1244_crc16 (uint16_t crc, const uint8_t data)
	16bits CRC calculation for AT42QT1244
FctERR	AT42QT1244_Calibrate_Freq_Hopping (AT42QT1244_t *const pCpnt, uint16_t *const hcrc)
	Frequencies calibration for AT42QT1244 peripheral.
FctERR	AT42QT1244_Calibrate_Low_Level (AT42QT1244_t *const pCpnt)
	Low level calibration for AT42QT1244 peripheral.
FctERR	AT42QT1244_Calibrate_All_Keys (AT42QT1244_t *const pCpnt)
	All keys calibration for AT42QT1244 peripheral.
FctERR	AT42QT1244_Calibrate_Key (AT42QT1244_t *const pCpnt, uint8_t Key)
	Key calibration for AT42QT1244 peripheral.
FctERR	AT42QT1244_handler (AT42QT1244_t *const pCpnt)
	Handler for AT42QT1244 peripheral.
FctERR	AT42QT1244_handler_it (AT42QT1244_t *const pCpnt)
	Handler for AT42QT1244 peripheral GPIO interrupt.
FctERR	AT42QT1244_handler_all (void)
	Handler for all AT42QT1244 peripherals.
FctERR	AT42QT1244_handler_it_all (void)
	Handler for all AT42QT1244 peripherals GPIO interrupt.

Variables
AT42QT1244_t	AT42QT1244 [I2C_AT42QT1244_NB]
	AT42QT1244 User structure.

Detailed Description

AT42QT1244 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

AT42QT1244: 24-key QMatrix FMEA IEC/EN/UL60730 Touch Sensor

Function Documentation

AT42QT1244_Calibrate_All_Keys()

FctERR AT42QT1244_Calibrate_All_Keys

(

AT42QT1244_t *const

pCpnt

)

All keys calibration for AT42QT1244 peripheral.

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

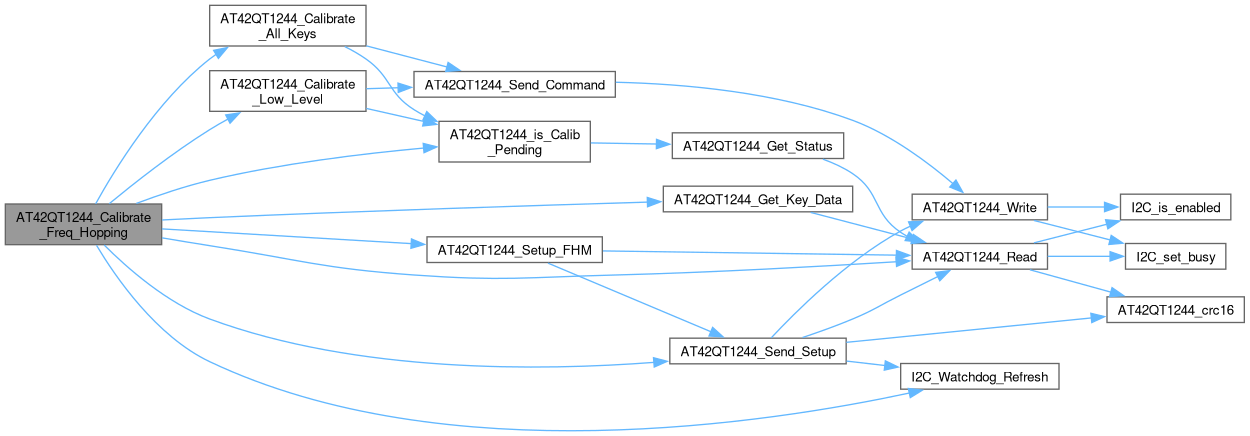

AT42QT1244_Calibrate_Freq_Hopping()

FctERR AT42QT1244_Calibrate_Freq_Hopping	(	AT42QT1244_t *const	pCpnt,
		uint16_t *const	hcrc )

Frequencies calibration for AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in,out]	hcrc	- Pointer to resulting CRC value

Returns

FctERR - error code

Here is the call graph for this function:

AT42QT1244_Calibrate_Key()

FctERR AT42QT1244_Calibrate_Key	(	AT42QT1244_t *const	pCpnt,
		uint8_t	Key )

Key calibration for AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	Key	- Key to calibrate

Returns

FctERR - error code

Here is the call graph for this function:

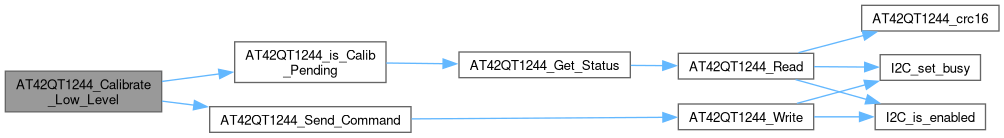

AT42QT1244_Calibrate_Low_Level()

FctERR AT42QT1244_Calibrate_Low_Level

(

AT42QT1244_t *const

pCpnt

)

Low level calibration for AT42QT1244 peripheral.

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

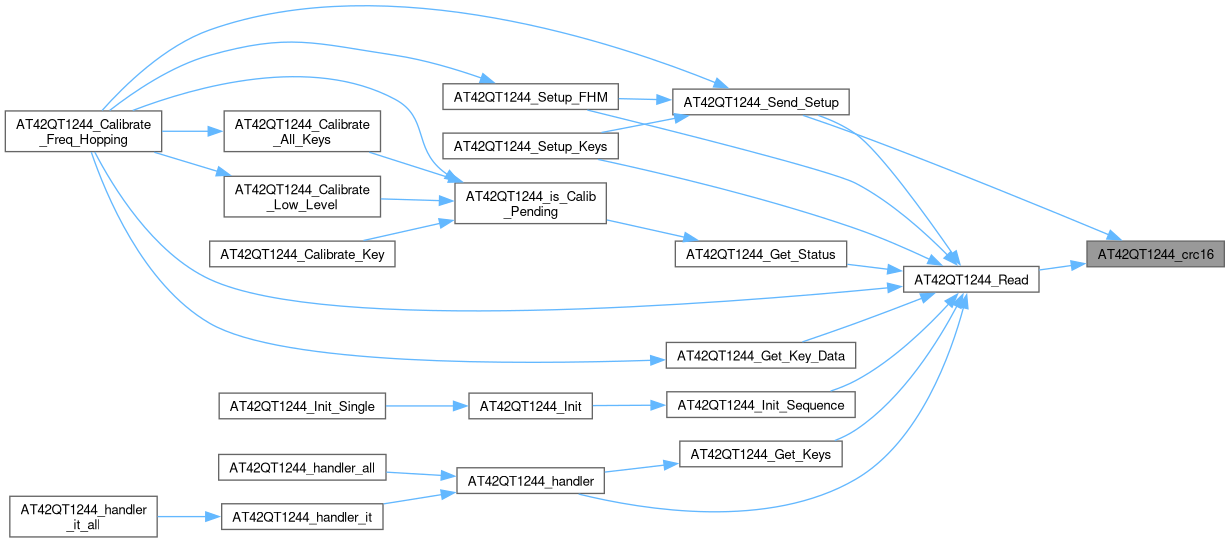

AT42QT1244_crc16()

uint16_t AT42QT1244_crc16	(	uint16_t	crc,
		const uint8_t	data )

16bits CRC calculation for AT42QT1244

16bits crc calculation. Initial crc entry must be 0. The message is not augmented with 'zero' bits. polynomial = X16 + X15 + X2 + 1 Repeat this function for each data block byte, folding the result back into the call parameter crc

Parameters

[in]	crc	- current crc value
[in]	data	- new data for crc

Returns

New CRC value

Here is the caller graph for this function:

AT42QT1244_Delay_PowerOn()

void AT42QT1244_Delay_PowerOn

(

const AT42QT1244_t *const

pCpnt

)

100ms delay generator for AT42QT1244 peripheral

Warning

Delay is in blocking mode (only interrupts will run) and can take up to 100ms

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_handler()

FctERR AT42QT1244_handler

(

AT42QT1244_t *const

pCpnt

)

Handler for AT42QT1244 peripheral.

Weak Functions

AT42QT1244 handler may be user implemented to suit custom needs

Note

May be called periodically to handle AT42QT1244 tasks

Alternately may be called when event occurs on AT42QT1244 pin (or by calling AT42QT1244_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

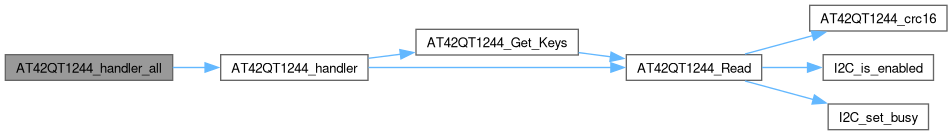

AT42QT1244_handler_all()

FctERR AT42QT1244_handler_all

(

void

)

Handler for all AT42QT1244 peripherals.

Note

May be called periodically to handle all AT42QT1244 tasks

Returns

FctERR - error code

Here is the call graph for this function:

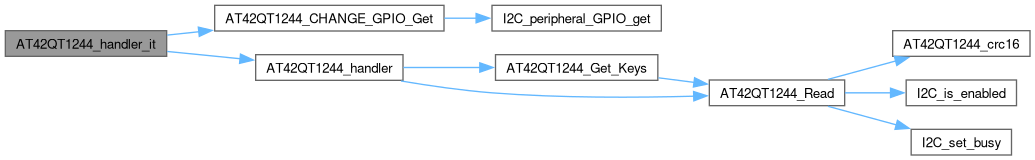

AT42QT1244_handler_it()

FctERR AT42QT1244_handler_it

(

AT42QT1244_t *const

pCpnt

)

Handler for AT42QT1244 peripheral GPIO interrupt.

Note

AT42QT1244_CHANGE_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

AT42QT1244 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle AT42QT1244 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_handler_it_all()

FctERR AT42QT1244_handler_it_all

(

void

)

Handler for all AT42QT1244 peripherals GPIO interrupt.

Note

AT42QT1244_CHANGE_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all AT42QT1244 tasks

Returns

FctERR - error code

Here is the call graph for this function:

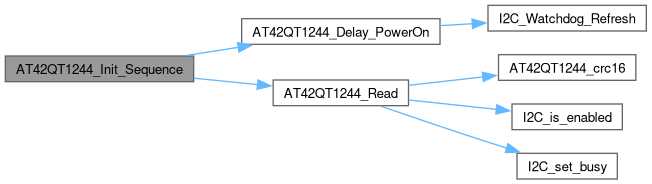

AT42QT1244_Init_Sequence()

FctERR AT42QT1244_Init_Sequence

(

AT42QT1244_t *const

pCpnt

)

Initialization Sequence for AT42QT1244 peripheral.

Weak Functions

AT42QT1244 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

// Example: Setup the component to disable unused keys (last 14 ones)
if (err == ERROR_OK)
{
    const uint8_t   idx = pCpnt - AT42QT1244;
    const uint16_t  HCRC = NVM_Get_AT42QT1244_HCRC(idx);    // USER IMPLEMENTED: Get previously computed HCRC from host to check against component one

    if (HCRC != (MAKEWORD(DATA[0], DATA[1])))   // HCRC mismatch between host and component, setup needs to be performed
    {
        const uint8_t DATA[14] = { 0 };
        err |= AT42QT1244_Send_Setup(pCpnt, DATA, AT42QT__SETUP_KEYS_MODE_10, sizeof(DATA));

        // Some issues encountered while writing setup block (reason unidentified), resetting the MCU and trying to write again seems to solve issue
        if (err != ERROR_OK)    { NVIC_SystemReset(); }
        else
        {
            NVM_Save_AT42QT1244_HCRC(idx, crc);             // USER IMPLEMENTED: Save new HCRC to host non-volatile memory

            AT42QT1244_Reset(pCpnt);
            NVIC_SystemReset();                             // Ensure CRC is properly written in NVM (not relying on interrupts) before reset
        }
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_Set_Reset_Time()

void AT42QT1244_Set_Reset_Time ( AT42QT1244_t *const pCpnt )

inline

Set last reset time for AT42QT1244 peripheral.

Here is the caller graph for this function:

Variable Documentation

AT42QT1244

AT42QT1244_t AT42QT1244[I2C_AT42QT1244_NB]

extern

AT42QT1244 User structure.
