AT42QT1244 user interface struct. More...

#include <AT42QT1244_proc.h>

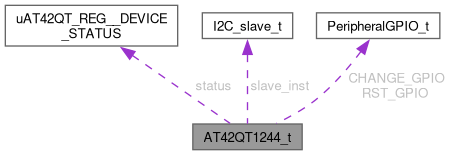

Collaboration diagram for AT42QT1244_t:

[legend]

Data Fields
uint32_t	hPowerOn
	Time of the last reset.

uint8_t	cnt_100ms
	100ms counter

uint8_t	cnt_SignalFail
	Signal Fail counter.

uint8_t	cnt_MatrixScan
	Matrix Scan counter.

uAT42QT_REG__DEVICE_STATUS	status
	Device status.

uint32_t	keys
	Keys results.

struct {

I2C_slave_t * slave_inst
	Slave structure. More...

PeripheralGPIO_t CHANGE_GPIO
	Change GPIO struct. More...

PeripheralGPIO_t RST_GPIO
	Reset GPIO struct. More...

}	cfg

Detailed Description

AT42QT1244 user interface struct.

Field Documentation

◆ [struct]

struct { ... } AT42QT1244_t::cfg

◆ CHANGE_GPIO

PeripheralGPIO_t AT42QT1244_t::CHANGE_GPIO

Change GPIO struct.

◆ cnt_100ms

uint8_t AT42QT1244_t::cnt_100ms

100ms counter

◆ cnt_MatrixScan

uint8_t AT42QT1244_t::cnt_MatrixScan

Matrix Scan counter.

◆ cnt_SignalFail

uint8_t AT42QT1244_t::cnt_SignalFail

Signal Fail counter.

◆ hPowerOn

uint32_t AT42QT1244_t::hPowerOn

Time of the last reset.

◆ keys

uint32_t AT42QT1244_t::keys

Keys results.

◆ RST_GPIO

PeripheralGPIO_t AT42QT1244_t::RST_GPIO

Reset GPIO struct.

◆ slave_inst

I2C_slave_t* AT42QT1244_t::slave_inst

Slave structure.

◆ status

uAT42QT_REG__DEVICE_STATUS AT42QT1244_t::status

Device status.

The documentation for this struct was generated from the following file:

AT42QT1244_proc.h
