AT42QT1244_ex.c File Reference

AT42QT1244 Driver extensions. More...

#include "AT42QT1244.h"

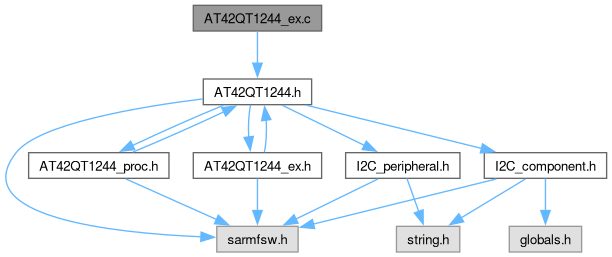

Include dependency graph for AT42QT1244_ex.c:

Functions
FctERR	AT42QT1244_Send_Command (AT42QT1244_t *const pCpnt, const AT42QT_cmd cmd)
	Send command to AT42QT1244 peripheral.
FctERR	AT42QT1244_Send_Setup (AT42QT1244_t *const pCpnt, uint16_t *const hcrc, const uint8_t *setup, const uint8_t addr, const uint8_t nb)
	Send setup parameters to AT42QT1244 peripheral.
FctERR	AT42QT1244_Setup_Keys (AT42QT1244_t *const pCpnt, uint16_t *const hcrc, const uint32_t mask_keys, const bool use)
	Key use setup for AT42QT1244 peripheral.
FctERR	AT42QT1244_Setup_FHM (AT42QT1244_t *const pCpnt, uint16_t *const hcrc, const AT42QT_FHM FHM)
	Frequency hopping mode setup for AT42QT1244 peripheral.
FctERR	AT42QT1244_Reset (AT42QT1244_t *const pCpnt)
	Reset command for AT42QT1244 peripheral.
FctERR	AT42QT1244_Get_Keys (AT42QT1244_t *const pCpnt, uint32_t *Keys)
	Get keys detect status for AT42QT1244 peripheral.
bool	AT42QT1244_is_Calib_Pending (AT42QT1244_t *const pCpnt)
	Get calibration status for AT42QT1244 peripheral.
void	AT42QT1244_CHANGE_GPIO_Init (AT42QT1244_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Change GPIO pin init for AT42QT1244.
bool	AT42QT1244_CHANGE_GPIO_Get (const AT42QT1244_t *const pCpnt)
	Change GPIO pin getter for AT42QT1244.
void	AT42QT1244_RST_GPIO_Init (AT42QT1244_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Reset GPIO pin init for AT42QT1244.
void	AT42QT1244_RST_GPIO_Set (AT42QT1244_t *const pCpnt, const bool state)
	Reset GPIO pin setter for AT42QT1244.

Detailed Description

AT42QT1244 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

AT42QT1244: 24-key QMatrix FMEA IEC/EN/UL60730 Touch Sensor

Function Documentation

AT42QT1244_CHANGE_GPIO_Get()

bool AT42QT1244_CHANGE_GPIO_Get

(

const AT42QT1244_t *const

pCpnt

)

Change GPIO pin getter for AT42QT1244.

Weak Functions

AT42QT1244 Change GPIO pin getter may be user implemented if needed

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

CHANGE pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_CHANGE_GPIO_Init()

void AT42QT1244_CHANGE_GPIO_Init	(	AT42QT1244_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Change GPIO pin init for AT42QT1244.

Weak Functions

AT42QT1244 Change GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	GPIOx	- CHANGE port
[in]	GPIO_Pin	- CHANGE pin
[in]	GPIO_Active	CHANGE pin active state

Here is the call graph for this function:

AT42QT1244_Get_Keys()

FctERR AT42QT1244_Get_Keys	(	AT42QT1244_t *const	pCpnt,
		uint32_t *	Keys )

Get keys detect status for AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	Keys	- Pointer to keys result

Returns

FctERR - error code

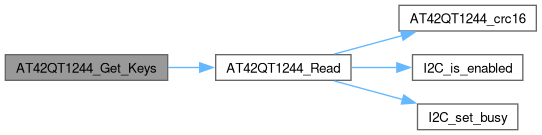

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_is_Calib_Pending()

bool AT42QT1244_is_Calib_Pending

(

AT42QT1244_t *const

pCpnt

)

Get calibration status for AT42QT1244 peripheral.

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

Calibration status

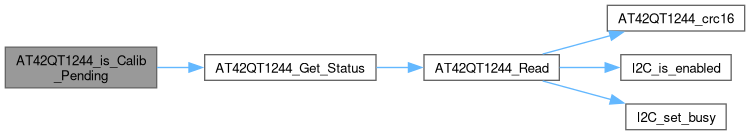

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_Reset()

FctERR AT42QT1244_Reset

(

AT42QT1244_t *const

pCpnt

)

Reset command for AT42QT1244 peripheral.

Warning

After Reset command is sent, a blocking delay described in AT42QT1244_Delay_PowerOn is called to let component initialize properly

Parameters

[in]

pCpnt

- Pointer to AT42QT1244 component

Returns

FctERR - error code

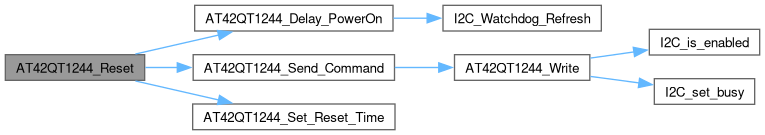

Here is the call graph for this function:

AT42QT1244_RST_GPIO_Init()

void AT42QT1244_RST_GPIO_Init	(	AT42QT1244_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Reset GPIO pin init for AT42QT1244.

Weak Functions

AT42QT1244 Reset GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	GPIOx	- RST port
[in]	GPIO_Pin	- RST pin
[in]	GPIO_Active	RST pin active state

Here is the call graph for this function:

AT42QT1244_RST_GPIO_Set()

void AT42QT1244_RST_GPIO_Set	(	AT42QT1244_t *const	pCpnt,
		const bool	state )

Reset GPIO pin setter for AT42QT1244.

Weak Functions

AT42QT1244 Reset GPIO pin setter may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	state	- state to write on RST pin (0: inactive, 1: active)

Here is the call graph for this function:

AT42QT1244_Send_Command()

FctERR AT42QT1244_Send_Command	(	AT42QT1244_t *const	pCpnt,
		const AT42QT_cmd	cmd )

Send command to AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in]	cmd	- Command to send

Note

AT42QT__WRITE_SETUPS cannot be used in this function (does not make sense, as it's used to write whole setup in one transmission)

Returns

FctERR - error code

Here is the call graph for this function:

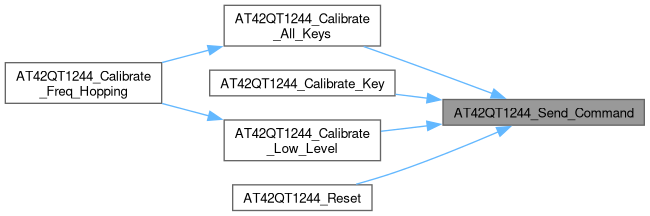

Here is the caller graph for this function:

AT42QT1244_Send_Setup()

FctERR AT42QT1244_Send_Setup	(	AT42QT1244_t *const	pCpnt,
		uint16_t *const	hcrc,
		const uint8_t *	setup,
		const uint8_t	addr,
		const uint8_t	nb )

Send setup parameters to AT42QT1244 peripheral.

Note

No AT42QT1244 peripheral reset done after writing setups, should be customly implemented when needed

Some issues encountered while writing setup block (reason unidentified), resetting the MCU and trying to write again seems to solve issue

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in,out]	hcrc	- Pointer to resulting CRC value
[in]	setup	- Parameters to send
[in]	addr	- Setup address in AT42QT1244 peripheral
[in]	nb	- Number of setup values to send

Returns

FctERR - error code

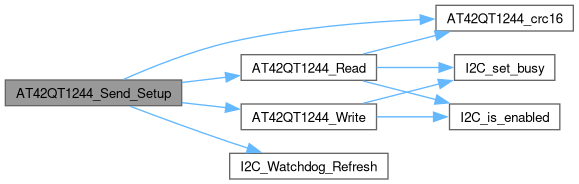

Here is the call graph for this function:

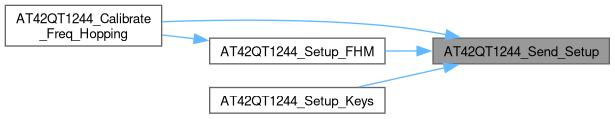

Here is the caller graph for this function:

AT42QT1244_Setup_FHM()

FctERR AT42QT1244_Setup_FHM	(	AT42QT1244_t *const	pCpnt,
		uint16_t *const	hcrc,
		const AT42QT_FHM	FHM )

Frequency hopping mode setup for AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in,out]	hcrc	- Pointer to resulting CRC value
[in]	FHM	- Frequency hopping mode parameters

Returns

FctERR - error code

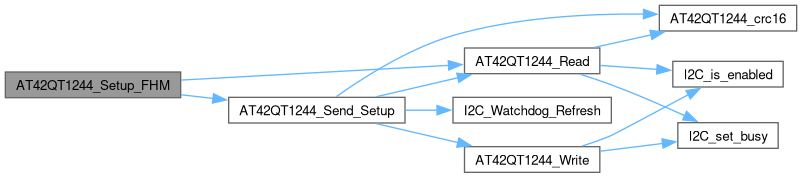

Here is the call graph for this function:

Here is the caller graph for this function:

AT42QT1244_Setup_Keys()

FctERR AT42QT1244_Setup_Keys	(	AT42QT1244_t *const	pCpnt,
		uint16_t *const	hcrc,
		const uint32_t	mask_keys,
		const bool	use )

Key use setup for AT42QT1244 peripheral.

Parameters

[in]	pCpnt	- Pointer to AT42QT1244 component
[in,out]	hcrc	- Pointer to resulting CRC value
[in]	mask_keys	- mask for keys to configure
[in]	use	- Key enabled/disabled

Returns

FctERR - error code

Here is the call graph for this function:
