APDS9960.h File Reference

APDS9960 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "APDS9960_proc.h"
#include "APDS9960_ex.h"

Include dependency graph for APDS9960.h:

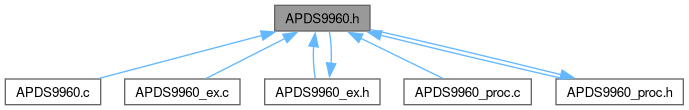

This graph shows which files directly or indirectly include this file:

Data Structures
union	uAPDS9960_REG__ENABLE
	Union for ENABLE register of APDS9960. More...
union	uAPDS9960_REG__PERSIST
	Union for PERSIST register of APDS9960. More...
union	uAPDS9960_REG__CONFIG1
	Union for CONFIG1 register of APDS9960. More...
union	uAPDS9960_REG__CONFIG2
	Union for CONFIG2 register of APDS9960. More...
union	uAPDS9960_REG__CONFIG3
	Union for CONFIG3 register of APDS9960. More...
union	uAPDS9960_REG__GCONFIG1
	Union for GCONFIG1 register of APDS9960. More...
union	uAPDS9960_REG__GCONFIG2
	Union for GCONFIG2 register of APDS9960. More...
union	uAPDS9960_REG__GCONFIG3
	Union for GCONFIG3 register of APDS9960. More...
union	uAPDS9960_REG__GCONFIG4
	Union for GCONFIG4 register of APDS9960. More...
union	uAPDS9960_REG__PULSE
	Union for PPULSE & GPULSE registers of APDS9960. More...
union	uAPDS9960_REG__CONTROL
	Union for CONTROL register of APDS9960. More...
union	uAPDS9960_REG__STATUS
	Union for STATUS register of APDS9960. More...
union	uAPDS9960_REG__GSTATUS
	Union for GSTATUS register of APDS9960. More...

Macros
#define	I2C_APDS9960_NB   1U
	Number of APDS9960 peripherals.
#define	APDS9960_ADDR   0x39U
	APDS9960 address.
#define	APDS9960_BASE_ADDR   APDS9960_ADDR
	APDS9960 Base address.

Enumerations
enum	APDS9960_reg {   APDS9960__ENABLE = 0x80U , APDS9960__ATIME , APDS9960__WTIME = 0x83U , APDS9960__AILTL ,   APDS9960__AILTH , APDS9960__AIHTL , APDS9960__AIHTH , APDS9960__PILT = 0x89U ,   APDS9960__PIHT = 0x8BU , APDS9960__PERS , APDS9960__CONFIG1 , APDS9960__PPULSE ,   APDS9960__CONTROL , APDS9960__CONFIG2 , APDS9960__ID = 0x92U , APDS9960__STATUS ,   APDS9960__CDATAL , APDS9960__CDATAH , APDS9960__RDATAL , APDS9960__RDATAH ,   APDS9960__GDATAL , APDS9960__GDATAH , APDS9960__BDATAL , APDS9960__BDATAH ,   APDS9960__PDATA , APDS9960__POFFSET_UR , APDS9960__POFFSET_DL , APDS9960__CONFIG3 ,   APDS9960__GPENTH , APDS9960__GEXTH , APDS9960__GCONF1 , APDS9960__GCONF2 ,   APDS9960__GOFFSET_U , APDS9960__GOFFSET_D , APDS9960__GPULSE , APDS9960__GOFFSET_L ,   APDS9960__GOFFSET_R = 0xA9U , APDS9960__GCONF3 , APDS9960__GCONF4 , APDS9960__GFLVL = 0xAEU ,   APDS9960__GSTATUS , APDS9960__IFORCE = 0xE4U , APDS9960__PICLEAR , APDS9960__CICLEAR ,   APDS9960__AICLEAR , APDS9960__GFIFO_U = 0xFCU , APDS9960__GFIFO_D , APDS9960__GFIFO_L ,   APDS9960__GFIFO_R }
	Register map enum of APDS9960. More...
enum	APDS9960_spec_func { APDS9960__SF_IFORCE = 0U , APDS9960__SF_PICLEAR , APDS9960__SF_CICLEAR , APDS9960__SF_AICLEAR }
	Special functions of APDS9960. More...
enum	APDS9960_als_it_persist {   APDS9960__PERSIST_EVERY_ALS_CYCLE = 0U , APDS9960__PERSIST_1_ALS_PERIODS , APDS9960__PERSIST_2_ALS_PERIODS , APDS9960__PERSIST_3_ALS_PERIODS ,   APDS9960__PERSIST_5_ALS_PERIODS , APDS9960__PERSIST_10_ALS_PERIODS , APDS9960__PERSIST_15_ALS_PERIODS , APDS9960__PERSIST_20_ALS_PERIODS ,   APDS9960__PERSIST_25_ALS_PERIODS , APDS9960__PERSIST_30_ALS_PERIODS , APDS9960__PERSIST_35_ALS_PERIODS , APDS9960__PERSIST_40_ALS_PERIODS ,   APDS9960__PERSIST_45_ALS_PERIODS , APDS9960__PERSIST_50_ALS_PERIODS , APDS9960__PERSIST_55_ALS_PERIODS , APDS9960__PERSIST_60_ALS_PERIODS }
	Persistence control of APDS9960 ALS. More...
enum	APDS9960_prox_it_persist {   APDS9960__PERSIST_EVERY_PROX_CYCLE = 0U , APDS9960__PERSIST_1_PROX_PERIODS , APDS9960__PERSIST_2_PROX_PERIODS , APDS9960__PERSIST_3_PROX_PERIODS ,   APDS9960__PERSIST_4_PROX_PERIODS , APDS9960__PERSIST_5_PROX_PERIODS , APDS9960__PERSIST_6_PROX_PERIODS , APDS9960__PERSIST_7_PROX_PERIODS ,   APDS9960__PERSIST_8_PROX_PERIODS , APDS9960__PERSIST_9_PROX_PERIODS , APDS9960__PERSIST_10_PROX_PERIODS , APDS9960__PERSIST_11_PROX_PERIODS ,   APDS9960__PERSIST_12_PROX_PERIODS , APDS9960__PERSIST_13_PROX_PERIODS , APDS9960__PERSIST_14_PROX_PERIODS , APDS9960__PERSIST_15_PROX_PERIODS }
	Persistence control of APDS9960 Proximity. More...
enum	APDS9960_pulse_length { APDS9960__PL_4US = 0U , APDS9960__PL_8US , APDS9960__PL_16US , APDS9960__PL_32US }
	Proximity LED Pulse Length values. More...
enum	APDS9960_als_gain { APDS9960__ALS_1X_GAIN = 0U , APDS9960__ALS_4X_GAIN , APDS9960__ALS_16X_GAIN , APDS9960__ALS_64X_GAIN }
	Gain values of APDS9960 ALS & Color. More...
enum	APDS9960_prox_gain { APDS9960__PROX_1X_GAIN = 0U , APDS9960__PROX_2X_GAIN , APDS9960__PROX_4X_GAIN , APDS9960__PROX_8X_GAIN }
	Gain values of APDS9960 proximity. More...
enum	APDS9960_drive_strength { APDS9960__DS_100MA = 0U , APDS9960__DS_50MA , APDS9960__DS_25MA , APDS9960__DS_12_5MA }
	Proximity LED Drive strength values. More...
enum	APDS9960_led_boost { APDS9960__BOOST_1X = 0U , APDS9960__BOOST_1_5X , APDS9960__BOOST_2X , APDS9960__BOOST_3X }
	Proximity LED boost values. More...
enum	APDS9960_gesture_dim { APDS9960__GD_UDLR = 0U , APDS9960__GD_UD , APDS9960__GD_LR , APDS9960__GD_UDLR2 }
	Gesture dimension values. More...

Functions
FctERR	APDS9960_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for APDS9960 peripheral.

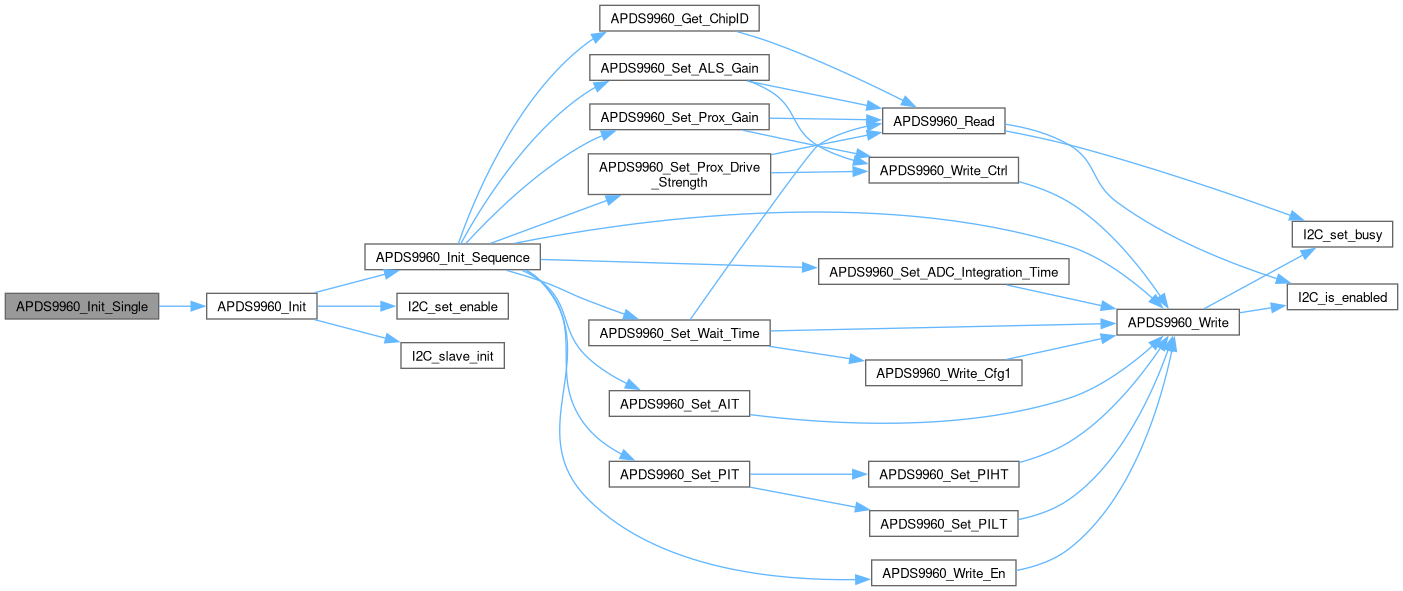

FctERR	APDS9960_Init_Single (void)
	Initialization for APDS9960 peripheral.
FctERR	APDS9960_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for APDS9960.

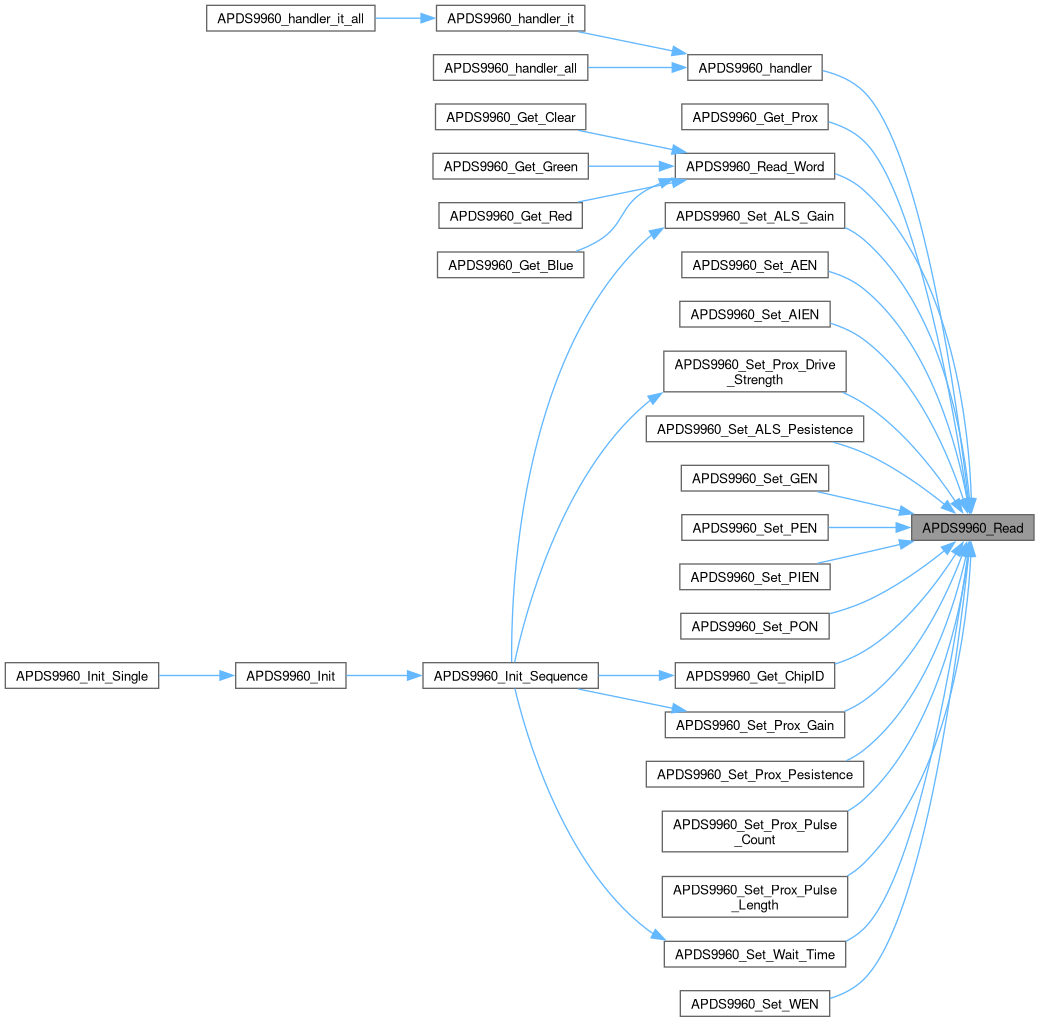

FctERR	APDS9960_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for APDS9960.
FctERR	APDS9960_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for APDS9960.

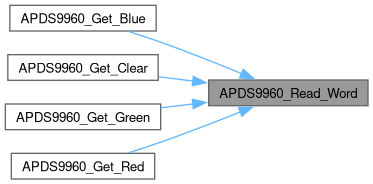

FctERR	APDS9960_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for APDS9960.

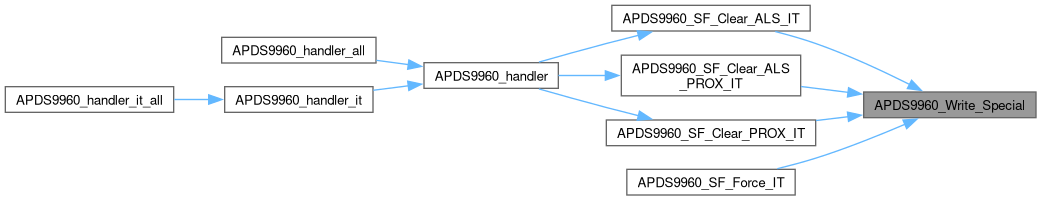

FctERR	APDS9960_Write_Special (I2C_slave_t *const pSlave, const APDS9960_spec_func func)
	I2C Special function Write function for APDS9960.

Detailed Description

APDS9960 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

APDS9960: Digital Proximity, Ambient Light, RGB and Gesture Sensor

Macro Definition Documentation

APDS9960_ADDR

#define APDS9960_ADDR   0x39U

APDS9960 address.

APDS9960_BASE_ADDR

#define APDS9960_BASE_ADDR   APDS9960_ADDR

APDS9960 Base address.

Note

Define APDS9960_BASE_ADDR to change default device base address

I2C_APDS9960_NB

#define I2C_APDS9960_NB   1U

Number of APDS9960 peripherals.

Note

Define I2C_APDS9960_NB to enable multiple peripherals of this type

Enumeration Type Documentation

APDS9960_als_gain

enum APDS9960_als_gain

Gain values of APDS9960 ALS & Color.

Enumerator
APDS9960__ALS_1X_GAIN	ALS 1X Gain.
APDS9960__ALS_4X_GAIN	ALS 4X Gain.
APDS9960__ALS_16X_GAIN	ALS 16X Gain.
APDS9960__ALS_64X_GAIN	ALS 64X Gain.

APDS9960_als_it_persist

enum APDS9960_als_it_persist

Persistence control of APDS9960 ALS.

Enumerator
APDS9960__PERSIST_EVERY_ALS_CYCLE	Every ALS cycle generates interrupt.
APDS9960__PERSIST_1_ALS_PERIODS	1 consecutive Ch0 channel values out of range
APDS9960__PERSIST_2_ALS_PERIODS	2 consecutive Ch0 channel values out of range
APDS9960__PERSIST_3_ALS_PERIODS	3 consecutive Ch0 channel values out of range
APDS9960__PERSIST_5_ALS_PERIODS	5 consecutive Ch0 channel values out of range
APDS9960__PERSIST_10_ALS_PERIODS	10 consecutive Ch0 channel values out of range
APDS9960__PERSIST_15_ALS_PERIODS	15 consecutive Ch0 channel values out of range
APDS9960__PERSIST_20_ALS_PERIODS	20 consecutive Ch0 channel values out of range
APDS9960__PERSIST_25_ALS_PERIODS	25 consecutive Ch0 channel values out of range
APDS9960__PERSIST_30_ALS_PERIODS	30 consecutive Ch0 channel values out of range
APDS9960__PERSIST_35_ALS_PERIODS	35 consecutive Ch0 channel values out of range
APDS9960__PERSIST_40_ALS_PERIODS	40 consecutive Ch0 channel values out of range
APDS9960__PERSIST_45_ALS_PERIODS	45 consecutive Ch0 channel values out of range
APDS9960__PERSIST_50_ALS_PERIODS	50 consecutive Ch0 channel values out of range
APDS9960__PERSIST_55_ALS_PERIODS	55 consecutive Ch0 channel values out of range
APDS9960__PERSIST_60_ALS_PERIODS	60 consecutive Ch0 channel values out of range

APDS9960_drive_strength

enum APDS9960_drive_strength

Proximity LED Drive strength values.

Enumerator
APDS9960__DS_100MA	Proximity LED Drive Strength 100mA.
APDS9960__DS_50MA	Proximity LED Drive Strength 50mA.
APDS9960__DS_25MA	Proximity LED Drive Strength 25mA.
APDS9960__DS_12_5MA	Proximity LED Drive Strength 12.5mA.

APDS9960_gesture_dim

enum APDS9960_gesture_dim

Gesture dimension values.

Enumerator
APDS9960__GD_UDLR	Both pairs are active. UP-DOWN and LEFT-RIGHT FIFO data is valid.
APDS9960__GD_UD	Only the UP-DOWN pair is active. Ignore LEFT-RIGHT data in FIFO.
APDS9960__GD_LR	Only the LEFT-RIGHT pair is active. Ignore UP-DOWN data in FIFO.
APDS9960__GD_UDLR2	Both pairs are active. UP-DOWN and LEFT-RIGHT FIFO data is valid.

APDS9960_led_boost

enum APDS9960_led_boost

Proximity LED boost values.

Enumerator
APDS9960__BOOST_1X	LED Boost 100%. A LED_BOOST value of 0 results in 100% of the current as set by LDRIVE (no additional current)
APDS9960__BOOST_1_5X	LED Boost 150%.
APDS9960__BOOST_2X	LED Boost 200%.
APDS9960__BOOST_3X	LED Boost 300%.

APDS9960_prox_gain

enum APDS9960_prox_gain

Gain values of APDS9960 proximity.

Enumerator
APDS9960__PROX_1X_GAIN	Proximity 1X Gain.
APDS9960__PROX_2X_GAIN	Proximity 2X Gain.
APDS9960__PROX_4X_GAIN	Proximity 4X Gain.
APDS9960__PROX_8X_GAIN	Proximity 8X Gain.

APDS9960_prox_it_persist

enum APDS9960_prox_it_persist

Persistence control of APDS9960 Proximity.

Enumerator
APDS9960__PERSIST_EVERY_PROX_CYCLE	Every proximity cycle generates an interrupt.
APDS9960__PERSIST_1_PROX_PERIODS	1 consecutive proximity values out of range
APDS9960__PERSIST_2_PROX_PERIODS	2 consecutive proximity values out of range
APDS9960__PERSIST_3_PROX_PERIODS	3 consecutive proximity values out of range
APDS9960__PERSIST_4_PROX_PERIODS	4 consecutive proximity values out of range
APDS9960__PERSIST_5_PROX_PERIODS	5 consecutive proximity values out of range
APDS9960__PERSIST_6_PROX_PERIODS	6 consecutive proximity values out of range
APDS9960__PERSIST_7_PROX_PERIODS	7 consecutive proximity values out of range
APDS9960__PERSIST_8_PROX_PERIODS	8 consecutive proximity values out of range
APDS9960__PERSIST_9_PROX_PERIODS	9 consecutive proximity values out of range
APDS9960__PERSIST_10_PROX_PERIODS	10 consecutive proximity values out of range
APDS9960__PERSIST_11_PROX_PERIODS	11 consecutive proximity values out of range
APDS9960__PERSIST_12_PROX_PERIODS	12 consecutive proximity values out of range
APDS9960__PERSIST_13_PROX_PERIODS	13 consecutive proximity values out of range
APDS9960__PERSIST_14_PROX_PERIODS	14 consecutive proximity values out of range
APDS9960__PERSIST_15_PROX_PERIODS	15 consecutive proximity values out of range

APDS9960_pulse_length

enum APDS9960_pulse_length

Proximity LED Pulse Length values.

Enumerator
APDS9960__PL_4US	Pulse Length 4�s.
APDS9960__PL_8US	Pulse Length 8�s.
APDS9960__PL_16US	Pulse Length 16�s.
APDS9960__PL_32US	Pulse Length 32�s.

APDS9960_reg

enum APDS9960_reg

Register map enum of APDS9960.

Enumerator
APDS9960__ENABLE	Enables states and interrupts.
APDS9960__ATIME	ADC integration time.
APDS9960__WTIME	Wait time (non-gesture)
APDS9960__AILTL	ALS interrupt low threshold low byte.
APDS9960__AILTH	ALS interrupt low threshold high byte.
APDS9960__AIHTL	ALS interrupt high threshold low byte.
APDS9960__AIHTH	ALS interrupt high threshold high byte.
APDS9960__PILT	Proximity interrupt low threshold.
APDS9960__PIHT	Proximity interrupt high threshold.
APDS9960__PERS	Interrupt persistence filters (non-gesture)
APDS9960__CONFIG1	Configuration register one.
APDS9960__PPULSE	Proximity pulse count and length.
APDS9960__CONTROL	Gain control.
APDS9960__CONFIG2	Configuration register two.
APDS9960__ID	Device ID.
APDS9960__STATUS	Device status.
APDS9960__CDATAL	Low byte of clear channel data.
APDS9960__CDATAH	High byte of clear channel data.
APDS9960__RDATAL	Low byte of red channel data.
APDS9960__RDATAH	High byte of red channel data.
APDS9960__GDATAL	Low byte of green channel data.
APDS9960__GDATAH	High byte of green channel data.
APDS9960__BDATAL	Low byte of blue channel data.
APDS9960__BDATAH	High byte of blue channel data.
APDS9960__PDATA	Proximity data.
APDS9960__POFFSET_UR	Proximity offset for UP and RIGHT photodiodes.
APDS9960__POFFSET_DL	Proximity offset for DOWN and LEFT photodiodes.
APDS9960__CONFIG3	Configuration register three.
APDS9960__GPENTH	Gesture proximity enter threshold.
APDS9960__GEXTH	Gesture exit threshold.
APDS9960__GCONF1	Gesture configuration one.
APDS9960__GCONF2	Gesture configuration two.
APDS9960__GOFFSET_U	Gesture UP offset register.
APDS9960__GOFFSET_D	Gesture DOWN offset register.
APDS9960__GPULSE	Gesture pulse count and length.
APDS9960__GOFFSET_L	Gesture LEFT offset register.
APDS9960__GOFFSET_R	Gesture RIGHT offset register.
APDS9960__GCONF3	Gesture configuration three.
APDS9960__GCONF4	Gesture configuration four.
APDS9960__GFLVL	Gesture FIFO level.
APDS9960__GSTATUS	Gesture status.
APDS9960__IFORCE	Force interrupt.
APDS9960__PICLEAR	Proximity interrupt clear.
APDS9960__CICLEAR	ALS clear channel interrupt clear.
APDS9960__AICLEAR	All non-gesture interrupts clear.
APDS9960__GFIFO_U	Gesture FIFO UP value.
APDS9960__GFIFO_D	Gesture FIFO DOWN value.
APDS9960__GFIFO_L	Gesture FIFO LEFT value.
APDS9960__GFIFO_R	Gesture FIFO RIGHT value.

APDS9960_spec_func

enum APDS9960_spec_func

Special functions of APDS9960.

Enumerator
APDS9960__SF_IFORCE	Forces an interrupt.
APDS9960__SF_PICLEAR	Proximity interrupt clear.
APDS9960__SF_CICLEAR	ALS interrupt clear.
APDS9960__SF_AICLEAR	Clears all non-gesture interrupts.

Function Documentation

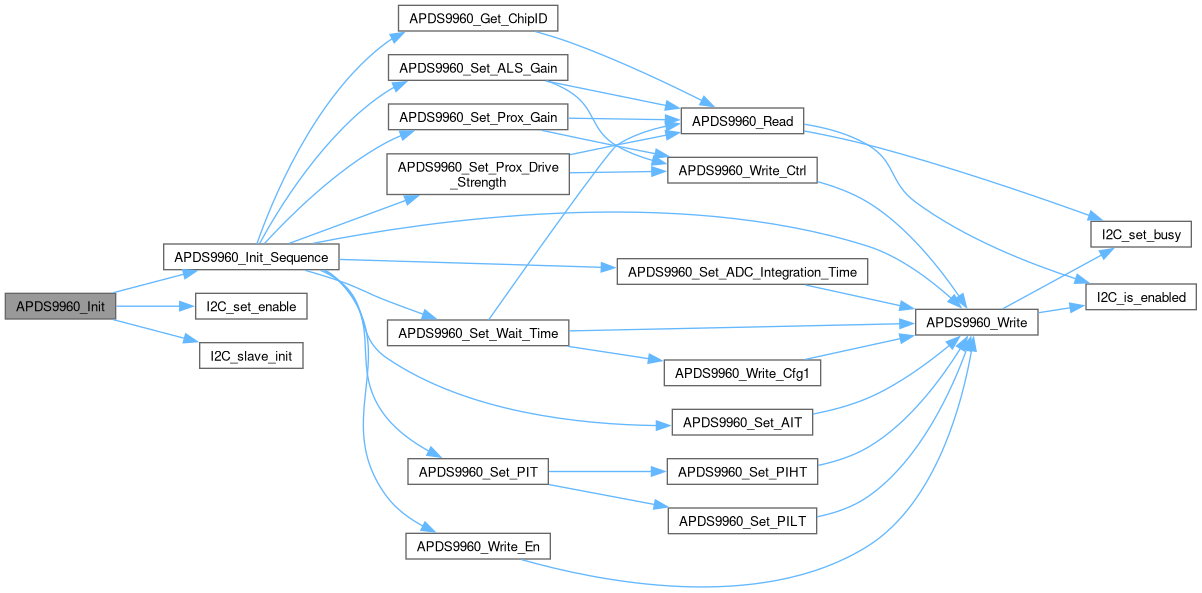

APDS9960_Init()

FctERR APDS9960_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for APDS9960 peripheral.

Parameters

[in]	idx	- APDS9960 index
[in]	hi2c	- pointer to APDS9960 I2C instance
[in]	devAddress	- APDS9960 device address

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_Init_Single()

FctERR APDS9960_Init_Single

(

void

)

Initialization for APDS9960 peripheral.

Warning

In case multiple devices (defined by I2C_APDS9960_NB > 1), you shall use APDS9960_Init instead

Returns

FctERR - error code

Here is the call graph for this function:

APDS9960_Read()

FctERR APDS9960_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for APDS9960.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_Read_Word()

FctERR APDS9960_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for APDS9960.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_Write()

FctERR APDS9960_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for APDS9960.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_Write_Special()

FctERR APDS9960_Write_Special	(	I2C_slave_t *const	pSlave,
		const APDS9960_spec_func	func )

I2C Special function Write function for APDS9960.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	func	- special function to execute

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_Write_Word()

FctERR APDS9960_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for APDS9960.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
