APDS9960 Driver extensions. More...

#include "sarmfsw.h"
#include "APDS9960.h"

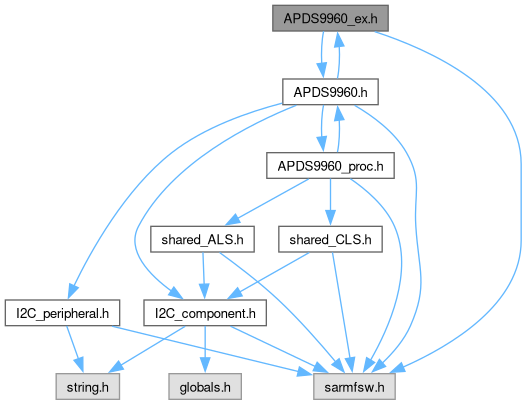

Include dependency graph for APDS9960_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uAPDS9960_REG_MAP
	Union of APDS9960 registry map. More...

Enumerations
enum	APDS9960_chan { APDS9960__CHAN_CLEAR = 0U , APDS9960__CHAN_RED , APDS9960__CHAN_GREEN , APDS9960__CHAN_BLUE , APDS9960__CHAN_PROXIMITY }
	Type channels of APDS9960. More...

Functions
FctERR	APDS9960_Write_En (APDS9960_t *const pCpnt, const uint8_t en)
	Write APDS9960 Enable register.

FctERR	APDS9960_Write_Cfg1 (APDS9960_t *const pCpnt, const uint8_t cfg1)
	Write APDS9960 Config1.

FctERR	APDS9960_Write_Cfg2 (APDS9960_t *const pCpnt, const uint8_t cfg2)
	Write APDS9960 Config2.

FctERR	APDS9960_Write_Ctrl (APDS9960_t *const pCpnt, const uint8_t ctrl)
	Write APDS9960 Control.

FctERR	APDS9960_Set_PON (APDS9960_t *const pCpnt, const bool en)
	Oscillator Enable / Disable.

FctERR	APDS9960_Set_AEN (APDS9960_t *const pCpnt, const bool en)
	ALS module Enable / Disable.

FctERR	APDS9960_Set_PEN (APDS9960_t *const pCpnt, const bool en)
	Proximity module Enable / Disable.

FctERR	APDS9960_Set_AIEN (APDS9960_t *const pCpnt, const bool en)
	ALS interrupt module Enable / Disable.

FctERR	APDS9960_Set_PIEN (APDS9960_t *const pCpnt, const bool en)
	Proximity interrupt module Enable / Disable.

FctERR	APDS9960_Set_WEN (APDS9960_t *const pCpnt, const bool en)
	WAIT module Enable / Disable.

FctERR	APDS9960_Set_GEN (APDS9960_t *const pCpnt, const bool en)
	Gesture module Enable / Disable.

FctERR	APDS9960_Set_AILT (APDS9960_t *const pCpnt, const uint16_t thr)
	ALS interrupt low threshold configuration.

FctERR	APDS9960_Set_AIHT (APDS9960_t *const pCpnt, const uint16_t thr)
	ALS interrupt high threshold configuration.

FctERR	APDS9960_Set_AIT (APDS9960_t *const pCpnt, const uint16_t lthr, const uint16_t hthr)
	ALS interrupt thresholds configuration.

FctERR	APDS9960_Set_PILT (APDS9960_t *const pCpnt, const uint8_t thr)
	Proximity interrupt low threshold configuration.

FctERR	APDS9960_Set_PIHT (APDS9960_t *const pCpnt, const uint8_t thr)
	Proximity interrupt high threshold configuration.

FctERR	APDS9960_Set_PIT (APDS9960_t *const pCpnt, const uint8_t lthr, const uint8_t hthr)
	Proximity interrupt thresholds configuration.

FctERR	APDS9960_Set_ALS_Pesistence (APDS9960_t *const pCpnt, const APDS9960_als_it_persist persist)
	ALS Persistence configuration.

FctERR	APDS9960_Set_Prox_Pesistence (APDS9960_t *const pCpnt, const APDS9960_prox_it_persist persist)
	Proximity Persistence configuration.

FctERR	APDS9960_Set_Prox_Pulse_Length (APDS9960_t *const pCpnt, const APDS9960_pulse_length length)
	Proximity Pulse Length configuration.

FctERR	APDS9960_Set_Prox_Pulse_Count (APDS9960_t *const pCpnt, const uint8_t cnt)
	Proximity Pulse Count configuration.

FctERR	APDS9960_Set_ALS_Gain (APDS9960_t *const pCpnt, const APDS9960_als_gain gain)
	ALS Gain configuration.

FctERR	APDS9960_Set_Prox_Gain (APDS9960_t *const pCpnt, const APDS9960_prox_gain gain)
	Proximity Gain configuration.

FctERR	APDS9960_Set_Prox_Drive_Strength (APDS9960_t *const pCpnt, const APDS9960_drive_strength ldrive)
	Proximity Drive configuration.

FctERR	APDS9960_Set_ADC_Integration_Time (APDS9960_t *const pCpnt, const uint16_t integ)
	ADC Integration time configuration.

FctERR	APDS9960_Set_Wait_Time (APDS9960_t *const pCpnt, const uint16_t wait)
	Wait time configuration.

FctERR	APDS9960_SF_Force_IT (APDS9960_t *const pCpnt)
	Force interruption.

FctERR	APDS9960_SF_Clear_PROX_IT (APDS9960_t *const pCpnt)
	Clear pending Proximity interruption.

FctERR	APDS9960_SF_Clear_ALS_IT (APDS9960_t *const pCpnt)
	Clear pending ALS interruption.

FctERR	APDS9960_SF_Clear_ALS_PROX_IT (APDS9960_t *const pCpnt)
	Clear pending ALS & Proximity interruptions.

FctERR	APDS9960_Get_ChipID (APDS9960_t const pCpnt, uint8_t const id)
	Get APDS9960 chip ID.

FctERR	APDS9960_Get_Clear (APDS9960_t const pCpnt, uint16_t const clear)
	Get Clear conversion.

FctERR	APDS9960_Get_Red (APDS9960_t const pCpnt, uint16_t const red)
	Get Red conversion.

FctERR	APDS9960_Get_Green (APDS9960_t const pCpnt, uint16_t const green)
	Get Green conversion.

FctERR	APDS9960_Get_Blue (APDS9960_t const pCpnt, uint16_t const blue)
	Get Blue conversion.

FctERR	APDS9960_Get_Prox (APDS9960_t const pCpnt, uint8_t const prox)
	Get Proximity conversion.

void	APDS9960_INT_GPIO_Init (APDS9960_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for APDS9960.

bool	APDS9960_INT_GPIO_Get (const APDS9960_t *const pCpnt)
	Interrupt GPIO pin getter for APDS9960.

Detailed Description

APDS9960 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

APDS9960: Digital Proximity, Ambient Light, RGB and Gesture Sensor

Enumeration Type Documentation

◆ APDS9960_chan

enum APDS9960_chan

Type channels of APDS9960.

Enumerator
APDS9960__CHAN_CLEAR	Clear light channel.
APDS9960__CHAN_RED	Red light channel.
APDS9960__CHAN_GREEN	Green light channel.
APDS9960__CHAN_BLUE	Blue light channel.
APDS9960__CHAN_PROXIMITY	Proximity channel.

Function Documentation

◆ APDS9960_Get_Blue()

FctERR APDS9960_Get_Blue	(	APDS9960_t *const	pCpnt,
		uint16_t *const	blue )

inline

Get Blue conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	blue	- pointer to blue conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Get_ChipID()

FctERR APDS9960_Get_ChipID	(	APDS9960_t *const	pCpnt,
		uint8_t *const	id )

inline

Get APDS9960 chip ID.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	id	- pointer to chip ID result

Returns: FctERR - error code

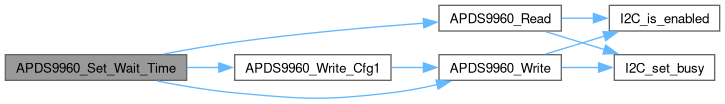

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Get_Clear()

FctERR APDS9960_Get_Clear	(	APDS9960_t *const	pCpnt,
		uint16_t *const	clear )

inline

Get Clear conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	clear	- pointer to Clear conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Get_Green()

FctERR APDS9960_Get_Green	(	APDS9960_t *const	pCpnt,
		uint16_t *const	green )

inline

Get Green conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	green	- pointer to Green conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Get_Prox()

FctERR APDS9960_Get_Prox	(	APDS9960_t *const	pCpnt,
		uint8_t *const	prox )

inline

Get Proximity conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	prox	- pointer to Prox conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Get_Red()

FctERR APDS9960_Get_Red	(	APDS9960_t *const	pCpnt,
		uint16_t *const	red )

inline

Get Red conversion.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in,out]	red	- pointer to Red conversion result

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_INT_GPIO_Get()

bool APDS9960_INT_GPIO_Get ( const APDS9960_t *const pCpnt )

Interrupt GPIO pin getter for APDS9960.

Weak Functions: APDS9960 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to APDS9960 component

Returns: INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_INT_GPIO_Init()

void APDS9960_INT_GPIO_Init	(	APDS9960_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for APDS9960.

Weak Functions: APDS9960 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

◆ APDS9960_Set_ADC_Integration_Time()

FctERR APDS9960_Set_ADC_Integration_Time	(	APDS9960_t *const	pCpnt,
		const uint16_t	integ )

ADC Integration time configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	integ	- Integration time value (from 3ms to 712ms)

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_AEN()

FctERR APDS9960_Set_AEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

ALS module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_AIEN()

FctERR APDS9960_Set_AIEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

ALS interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_AIHT()

FctERR APDS9960_Set_AIHT	(	APDS9960_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt high threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	thr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_AILT()

FctERR APDS9960_Set_AILT	(	APDS9960_t *const	pCpnt,
		const uint16_t	thr )

inline

ALS interrupt low threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	thr	- Low threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_AIT()

FctERR APDS9960_Set_AIT	(	APDS9960_t *const	pCpnt,
		const uint16_t	lthr,
		const uint16_t	hthr )

inline

ALS interrupt thresholds configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	lthr	- Low threshold value
[in]	hthr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_ALS_Gain()

FctERR APDS9960_Set_ALS_Gain	(	APDS9960_t *const	pCpnt,
		const APDS9960_als_gain	gain )

ALS Gain configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	gain	- Gain value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_ALS_Pesistence()

FctERR APDS9960_Set_ALS_Pesistence	(	APDS9960_t *const	pCpnt,
		const APDS9960_als_it_persist	persist )

ALS Persistence configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	persist	- Persistence value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_GEN()

FctERR APDS9960_Set_GEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

Gesture module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_PEN()

FctERR APDS9960_Set_PEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

Proximity module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_PIEN()

FctERR APDS9960_Set_PIEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

Proximity interrupt module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_PIHT()

FctERR APDS9960_Set_PIHT	(	APDS9960_t *const	pCpnt,
		const uint8_t	thr )

inline

Proximity interrupt high threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	thr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_PILT()

FctERR APDS9960_Set_PILT	(	APDS9960_t *const	pCpnt,
		const uint8_t	thr )

inline

Proximity interrupt low threshold configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	thr	- Low threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_PIT()

FctERR APDS9960_Set_PIT	(	APDS9960_t *const	pCpnt,
		const uint8_t	lthr,
		const uint8_t	hthr )

inline

Proximity interrupt thresholds configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	lthr	- Low threshold value
[in]	hthr	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_PON()

FctERR APDS9960_Set_PON	(	APDS9960_t *const	pCpnt,
		const bool	en )

Oscillator Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_Prox_Drive_Strength()

FctERR APDS9960_Set_Prox_Drive_Strength	(	APDS9960_t *const	pCpnt,
		const APDS9960_drive_strength	ldrive )

Proximity Drive configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	ldrive	- Proximity LED Drive Strength value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_Prox_Gain()

FctERR APDS9960_Set_Prox_Gain	(	APDS9960_t *const	pCpnt,
		const APDS9960_prox_gain	gain )

Proximity Gain configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	gain	- Gain value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_Prox_Pesistence()

FctERR APDS9960_Set_Prox_Pesistence	(	APDS9960_t *const	pCpnt,
		const APDS9960_prox_it_persist	persist )

Proximity Persistence configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	persist	- Persistence value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_Prox_Pulse_Count()

FctERR APDS9960_Set_Prox_Pulse_Count	(	APDS9960_t *const	pCpnt,
		const uint8_t	cnt )

Proximity Pulse Count configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	cnt	- Proximity pulse count

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_Prox_Pulse_Length()

FctERR APDS9960_Set_Prox_Pulse_Length	(	APDS9960_t *const	pCpnt,
		const APDS9960_pulse_length	length )

Proximity Pulse Length configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	length	- Proximity pulse length

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Set_Wait_Time()

FctERR APDS9960_Set_Wait_Time	(	APDS9960_t *const	pCpnt,
		const uint16_t	wait )

Wait time configuration.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	wait	- Wait time value (from 3ms to 8540ms)

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Set_WEN()

FctERR APDS9960_Set_WEN	(	APDS9960_t *const	pCpnt,
		const bool	en )

WAIT module Enable / Disable.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- 0 Disable, 1 Enable

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_SF_Clear_ALS_IT()

FctERR APDS9960_SF_Clear_ALS_IT ( APDS9960_t *const pCpnt )

inline

Clear pending ALS interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9960 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_SF_Clear_ALS_PROX_IT()

FctERR APDS9960_SF_Clear_ALS_PROX_IT ( APDS9960_t *const pCpnt )

inline

Clear pending ALS & Proximity interruptions.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9960 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_SF_Clear_PROX_IT()

FctERR APDS9960_SF_Clear_PROX_IT ( APDS9960_t *const pCpnt )

inline

Clear pending Proximity interruption.

Warning: if event pin enabled, shall be called after read to reset pin

Parameters

[in] pCpnt - Pointer to APDS9960 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_SF_Force_IT()

FctERR APDS9960_SF_Force_IT ( APDS9960_t *const pCpnt )

inline

Force interruption.

Parameters

[in] pCpnt - Pointer to APDS9960 component

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Write_Cfg1()

FctERR APDS9960_Write_Cfg1	(	APDS9960_t *const	pCpnt,
		const uint8_t	cfg1 )

inline

Write APDS9960 Config1.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	cfg1	- Configuration1 register value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ APDS9960_Write_Cfg2()

FctERR APDS9960_Write_Cfg2	(	APDS9960_t *const	pCpnt,
		const uint8_t	cfg2 )

inline

Write APDS9960 Config2.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	cfg2	- Configuration2 register value

Returns: FctERR - error code

Here is the call graph for this function:

◆ APDS9960_Write_Ctrl()

FctERR APDS9960_Write_Ctrl	(	APDS9960_t *const	pCpnt,
		const uint8_t	ctrl )

inline

Write APDS9960 Control.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	ctrl	- Control register value

Returns: FctERR - error code

Here is the call graph for this function:

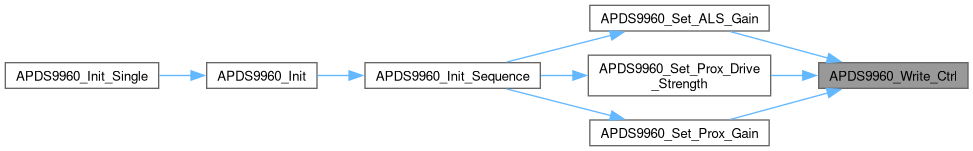

Here is the caller graph for this function:

◆ APDS9960_Write_En()

FctERR APDS9960_Write_En	(	APDS9960_t *const	pCpnt,
		const uint8_t	en )

inline

Write APDS9960 Enable register.

Parameters

[in]	pCpnt	- Pointer to APDS9960 component
[in]	en	- Enable register value

Returns: FctERR - error code

Here is the call graph for this function:

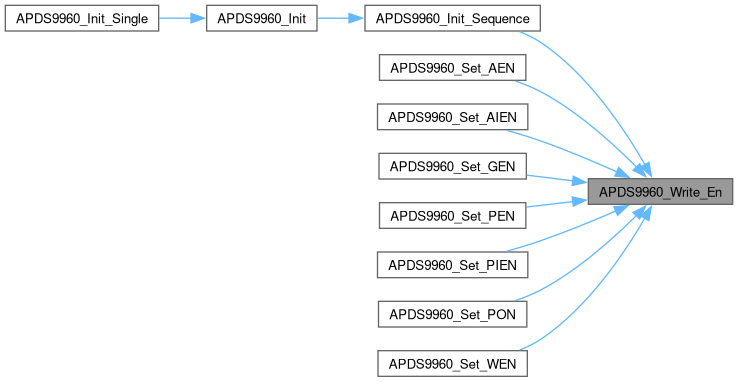

Here is the caller graph for this function:

Data Structures

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ APDS9960_chan

Function Documentation

◆ APDS9960_Get_Blue()

◆ APDS9960_Get_ChipID()

◆ APDS9960_Get_Clear()

◆ APDS9960_Get_Green()

◆ APDS9960_Get_Prox()

◆ APDS9960_Get_Red()

◆ APDS9960_INT_GPIO_Get()

◆ APDS9960_INT_GPIO_Init()

◆ APDS9960_Set_ADC_Integration_Time()

◆ APDS9960_Set_AEN()

◆ APDS9960_Set_AIEN()

◆ APDS9960_Set_AIHT()

◆ APDS9960_Set_AILT()

◆ APDS9960_Set_AIT()

◆ APDS9960_Set_ALS_Gain()

◆ APDS9960_Set_ALS_Pesistence()

◆ APDS9960_Set_GEN()

◆ APDS9960_Set_PEN()

◆ APDS9960_Set_PIEN()

◆ APDS9960_Set_PIHT()

◆ APDS9960_Set_PILT()

◆ APDS9960_Set_PIT()

◆ APDS9960_Set_PON()

◆ APDS9960_Set_Prox_Drive_Strength()

◆ APDS9960_Set_Prox_Gain()

◆ APDS9960_Set_Prox_Pesistence()

◆ APDS9960_Set_Prox_Pulse_Count()

◆ APDS9960_Set_Prox_Pulse_Length()

◆ APDS9960_Set_Wait_Time()

◆ APDS9960_Set_WEN()

◆ APDS9960_SF_Clear_ALS_IT()

◆ APDS9960_SF_Clear_ALS_PROX_IT()

◆ APDS9960_SF_Clear_PROX_IT()

◆ APDS9960_SF_Force_IT()

◆ APDS9960_Write_Cfg1()

◆ APDS9960_Write_Cfg2()

◆ APDS9960_Write_Ctrl()

◆ APDS9960_Write_En()
