APDS9960_proc.h File Reference

APDS9960 Driver procedures. More...

#include "sarmfsw.h"
#include "APDS9960.h"
#include "shared_ALS.h"
#include "shared_CLS.h"

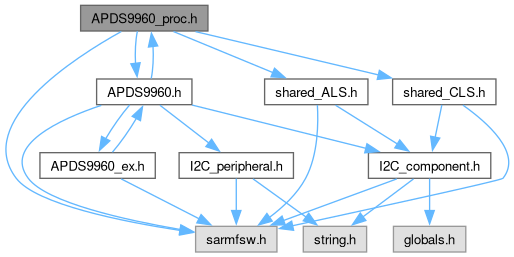

Include dependency graph for APDS9960_proc.h:

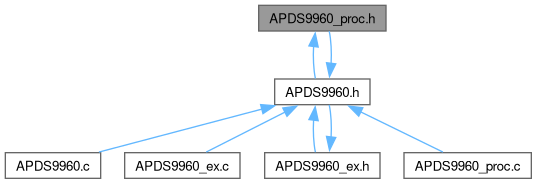

This graph shows which files directly or indirectly include this file:

Data Structures
struct	APDS9960_t
	APDS9960 user interface struct. More...

Macros
#define	APDS9960_CHIP_ID   0xABU
	APDS9960 Chip ID to check against.

Functions
FctERR	APDS9960_Init_Sequence (APDS9960_t *const pCpnt)
	Initialization Sequence for APDS9960 peripheral.
FctERR	APDS9960_handler (APDS9960_t *const pCpnt)
	Handler for APDS9960 peripheral.
FctERR	APDS9960_handler_it (APDS9960_t *const pCpnt)
	Handler for APDS9960 peripheral GPIO interrupt.
FctERR	APDS9960_handler_all (void)
	Handler for all APDS9960 peripherals.
FctERR	APDS9960_handler_it_all (void)
	Handler for all APDS9960 peripherals GPIO interrupt.

Variables
APDS9960_t	APDS9960 [I2C_APDS9960_NB]
	APDS9960 User structure.

Detailed Description

APDS9960 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

APDS9960: Digital Proximity, Ambient Light, RGB and Gesture Sensor

Macro Definition Documentation

APDS9960_CHIP_ID

#define APDS9960_CHIP_ID   0xABU

APDS9960 Chip ID to check against.

Function Documentation

APDS9960_handler()

FctERR APDS9960_handler

(

APDS9960_t *const

pCpnt

)

Handler for APDS9960 peripheral.

Weak Functions

APDS9960 handler may be user implemented to suit custom needs

Note

May be called periodically to handle APDS9960 tasks

Alternately may be called when event occurs on APDS9960 pin (or by calling APDS9960_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to APDS9960 component

Returns

FctERR - error code

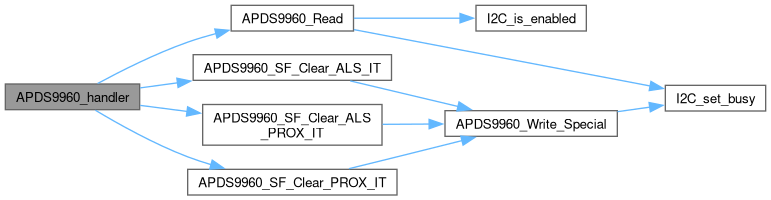

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_handler_all()

FctERR APDS9960_handler_all

(

void

)

Handler for all APDS9960 peripherals.

Note

May be called periodically to handle all APDS9960 tasks

Returns

FctERR - error code

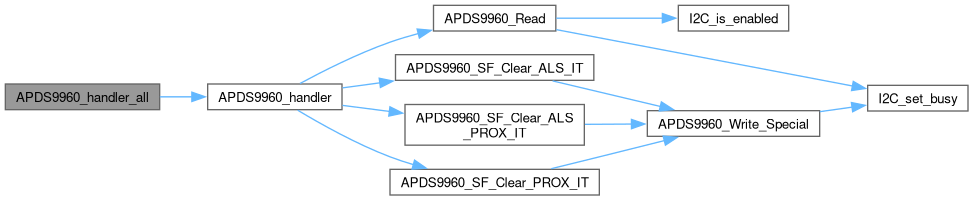

Here is the call graph for this function:

APDS9960_handler_it()

FctERR APDS9960_handler_it

(

APDS9960_t *const

pCpnt

)

Handler for APDS9960 peripheral GPIO interrupt.

Weak Functions

APDS9960 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle APDS9960 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to APDS9960 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

APDS9960_handler_it_all()

FctERR APDS9960_handler_it_all

(

void

)

Handler for all APDS9960 peripherals GPIO interrupt.

Note

APDS9960_INT_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all APDS9960 tasks

Returns

FctERR - error code

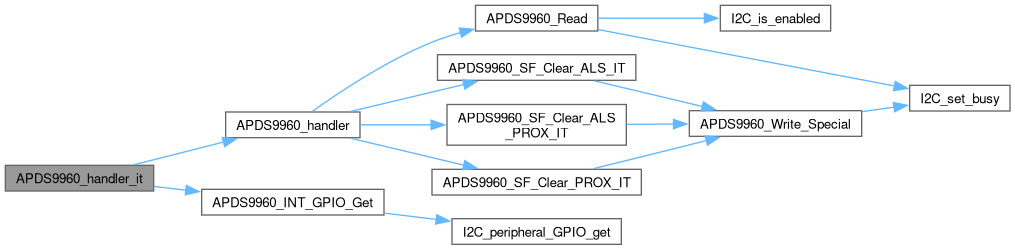

Here is the call graph for this function:

APDS9960_Init_Sequence()

FctERR APDS9960_Init_Sequence

(

APDS9960_t *const

pCpnt

)

Initialization Sequence for APDS9960 peripheral.

Weak Functions

APDS9960 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to APDS9960 component

Returns

FctERR - error code

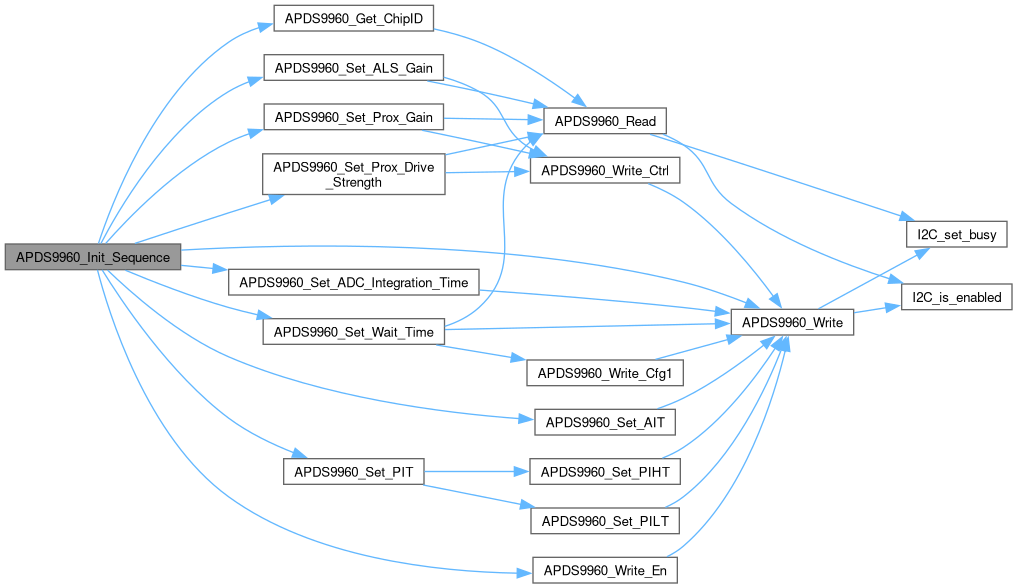

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

APDS9960

APDS9960_t APDS9960[I2C_APDS9960_NB]

extern

APDS9960 User structure.
