ADS1115.h File Reference

ADS1115 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "ADS1115_proc.h"
#include "ADS1115_ex.h"

Include dependency graph for ADS1115.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uADS1115_REG__CFG
	Union for Config register of ADS1115. More...

Macros
#define	I2C_ADS1115_NB   1U
	Number of ADS1115 peripherals.
#define	ADS1115_ADDR_GND   0x48U
	ADS1115 address (ADR tied to GND)
#define	ADS1115_ADDR_VDD   0x49U
	ADS1115 address (ADR tied to VDD)
#define	ADS1115_ADDR_SDA   0x4AU
	ADS1115 address (ADR tied to SDA)
#define	ADS1115_ADDR_SCL   0x4BU
	ADS1115 address (ADR tied to SCL)
#define	ADS1115_BASE_ADDR   ADS1115_ADDR_GND
	ADS1115 Base address.

Enumerations
enum	ADS1115_reg { ADS1115__CONVERSION = 0U , ADS1115__CONFIG , ADS1115__LOW_THRESH , ADS1115__HI_THRESH }
	Register map enum of ADS1115. More...
enum	ADS1115_mux {   ADS1115__MUX_pAIN0_nAIN1 = 0U , ADS1115__MUX_pAIN0_nAIN3 , ADS1115__MUX_pAIN1_nAIN3 , ADS1115__MUX_pAIN2_nAIN3 ,   ADS1115__MUX_pAIN0_nGND , ADS1115__MUX_pAIN1_nGND , ADS1115__MUX_pAIN2_nGND , ADS1115__MUX_pAIN3_nGND }
	MUX enum for ADS1115. More...
enum	ADS1115_gain {   ADS1115__FS_6144mV = 0U , ADS1115__FS_4096mV , ADS1115__FS_2048mV , ADS1115__FS_1024mV ,   ADS1115__FS_512mV , ADS1115__FS_256mV , ADS1115__FS_256mV_2 , ADS1115__FS_256mV_3 }
	GAIN enum for ADS1115. More...
enum	ADS1115_mode { ADS1115__MODE_CONTINUOUS = 0U , ADS1115__MODE_SINGLE_SHOT }
	MODE enum for ADS1115. More...
enum	ADS1115_rate {   ADS1115__SPS_8 = 0U , ADS1115__SPS_16 , ADS1115__SPS_32 , ADS1115__SPS_64 ,   ADS1115__SPS_128 , ADS1115__SPS_250 , ADS1115__SPS_475 , ADS1115__SPS_860 }
	Data rate enum for ADS1115. More...
enum	ADS1115_comp { ADS1115__COMP_HYST = 0U , ADS1115__COMP_WINDOW }
	Comparator Mode enum for ADS1115. More...
enum	ADS1115_polarity { ADS1115__POL_LOW = 0U , ADS1115__POL_HIGH }
	Comparator Polarity enum for ADS1115. More...
enum	ADS1115_latch { ADS1115__LATCH_DISABLE = 0U , ADS1115__LATCH_ENABLE }
	Comparator Latching enum for ADS1115. More...
enum	ADS1115_queue { ADS1115__QUEUE_1CONV = 0U , ADS1115__QUEUE_2CONV , ADS1115__QUEUE_4CONV , ADS1115__QUEUE_DISABLE }
	Comparator Queue and Disable enum for ADS1115. More...

Functions
FctERR	ADS1115_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for ADS1115 peripheral.
FctERR	ADS1115_Init_Single (void)
	Initialization for ADS1115 peripheral.
FctERR	ADS1115_Write (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Write function for ADS1115.
FctERR	ADS1115_Read (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Read function for ADS1115.

Detailed Description

ADS1115 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

ADS1115: Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal Reference

Note

Compatibility with:

• ADS1113 (restrictions given in datasheet)
• ADS1114 (restrictions given in datasheet)
• ADS1115

Compatibility should be assured with:

• ADS1x1x (check datasheets for compatibility informations)

Macro Definition Documentation

ADS1115_ADDR_GND

#define ADS1115_ADDR_GND   0x48U

ADS1115 address (ADR tied to GND)

ADS1115_ADDR_SCL

#define ADS1115_ADDR_SCL   0x4BU

ADS1115 address (ADR tied to SCL)

ADS1115_ADDR_SDA

#define ADS1115_ADDR_SDA   0x4AU

ADS1115 address (ADR tied to SDA)

ADS1115_ADDR_VDD

#define ADS1115_ADDR_VDD   0x49U

ADS1115 address (ADR tied to VDD)

ADS1115_BASE_ADDR

#define ADS1115_BASE_ADDR   ADS1115_ADDR_GND

ADS1115 Base address.

Note

Define ADS1115_BASE_ADDR to change default device base address

I2C_ADS1115_NB

#define I2C_ADS1115_NB   1U

Number of ADS1115 peripherals.

Note

Define I2C_ADS1115_NB to enable multiple peripherals of this type

Enumeration Type Documentation

ADS1115_comp

enum ADS1115_comp

Comparator Mode enum for ADS1115.

Enumerator
ADS1115__COMP_HYST	Traditional comparator with hysteresis.
ADS1115__COMP_WINDOW	Window comparator.

ADS1115_gain

enum ADS1115_gain

GAIN enum for ADS1115.

Enumerator
ADS1115__FS_6144mV	FS = ±6.144V (step = 187.5µV)
ADS1115__FS_4096mV	FS = ±4.096V (step = 125µV)
ADS1115__FS_2048mV	FS = ±2.048V (step = 62.5µV)
ADS1115__FS_1024mV	FS = ±1.024V (step = 31.25µV)
ADS1115__FS_512mV	FS = ±0.512V (step = 15.625µV)
ADS1115__FS_256mV	FS = ±0.256V (step = 7.8125µV)
ADS1115__FS_256mV_2	FS = ±0.256V (step = 7.8125µV)
ADS1115__FS_256mV_3	FS = ±0.256V (step = 7.8125µV)

ADS1115_latch

enum ADS1115_latch

Comparator Latching enum for ADS1115.

Enumerator
ADS1115__LATCH_DISABLE	Non-latching comparator.
ADS1115__LATCH_ENABLE	Latching comparator.

ADS1115_mode

enum ADS1115_mode

MODE enum for ADS1115.

Enumerator
ADS1115__MODE_CONTINUOUS	Continuous conversion mode.
ADS1115__MODE_SINGLE_SHOT	Power-down single-shot mode.

ADS1115_mux

enum ADS1115_mux

MUX enum for ADS1115.

Enumerator
ADS1115__MUX_pAIN0_nAIN1	AINP = AIN0 and AINN = AIN1.
ADS1115__MUX_pAIN0_nAIN3	AINP = AIN0 and AINN = AIN3.
ADS1115__MUX_pAIN1_nAIN3	AINP = AIN1 and AINN = AIN3.
ADS1115__MUX_pAIN2_nAIN3	AINP = AIN2 and AINN = AIN3.
ADS1115__MUX_pAIN0_nGND	AINP = AIN0 and AINN = GND.
ADS1115__MUX_pAIN1_nGND	AINP = AIN1 and AINN = GND.
ADS1115__MUX_pAIN2_nGND	AINP = AIN2 and AINN = GND.
ADS1115__MUX_pAIN3_nGND	AINP = AIN3 and AINN = GND.

ADS1115_polarity

enum ADS1115_polarity

Comparator Polarity enum for ADS1115.

Enumerator
ADS1115__POL_LOW	Active Low.
ADS1115__POL_HIGH	Active High.

ADS1115_queue

enum ADS1115_queue

Comparator Queue and Disable enum for ADS1115.

Enumerator
ADS1115__QUEUE_1CONV	Assert after one conversion.
ADS1115__QUEUE_2CONV	Assert after two conversions.
ADS1115__QUEUE_4CONV	Assert after four conversions.
ADS1115__QUEUE_DISABLE	Disable comparator.

ADS1115_rate

enum ADS1115_rate

Data rate enum for ADS1115.

Enumerator
ADS1115__SPS_8	8 SPS (Samples Per Second)
ADS1115__SPS_16	16 SPS
ADS1115__SPS_32	32 SPS
ADS1115__SPS_64	64 SPS
ADS1115__SPS_128	128 SPS
ADS1115__SPS_250	250 SPS
ADS1115__SPS_475	475 SPS
ADS1115__SPS_860	860 SPS

ADS1115_reg

enum ADS1115_reg

Register map enum of ADS1115.

Enumerator
ADS1115__CONVERSION	Conversion register.
ADS1115__CONFIG	Config register.
ADS1115__LOW_THRESH	Lo_thresh register.
ADS1115__HI_THRESH	Hi_thresh register.

Function Documentation

ADS1115_Init()

FctERR ADS1115_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for ADS1115 peripheral.

Parameters

[in]	idx	- ADS1115 index
[in]	hi2c	- pointer to ADS1115 I2C instance
[in]	devAddress	- ADS1115 device address

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

ADS1115_Init_Single()

FctERR ADS1115_Init_Single

(

void

)

Initialization for ADS1115 peripheral.

Warning

In case multiple devices (defined by I2C_ADS1115_NB > 1), you shall use ADS1115_Init instead

Returns

FctERR - error code

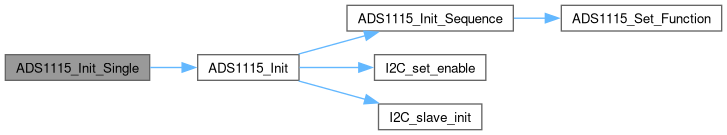

Here is the call graph for this function:

ADS1115_Read()

FctERR ADS1115_Read	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Read function for ADS1115.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

ADS1115_Write()

FctERR ADS1115_Write	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Write function for ADS1115.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
