ADS1115 Driver extensions. More...

#include "sarmfsw.h"
#include "ADS1115.h"

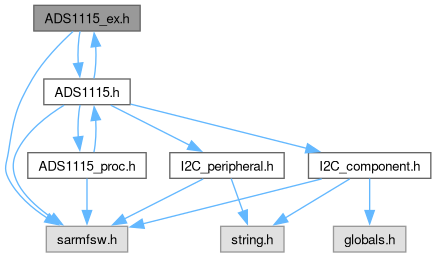

Include dependency graph for ADS1115_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uADS1115_REG_MAP
	Union of ADS1115 registry map. More...

Functions
uint32_t	ADS1115_Get_conv_us (ADS1115_t *const pCpnt)
	Get conversion time for ADS1115 component (µs)

uint32_t	ADS1115_Get_conv_ms (ADS1115_t *const pCpnt)
	Get conversion time for ADS1115 component (ms)

FctERR	ADS1115_Get_Conversion (ADS1115_t *const pCpnt)
	Get ADS1115 conversion.

FctERR	ADS1115_Set_Function (ADS1115_t *const pCpnt, const ADS1115_func func, const ADS1115_mode mode, const uint8_t nb)
	Set ADS1115 functional mode.

FctERR	ADS1115_Set_Mode (ADS1115_t *const pCpnt, const ADS1115_mode mode)
	Set ADS1115 mode.

FctERR	ADS1115_Set_Gain (ADS1115_t *const pCpnt, const ADS1115_gain gain)
	Set ADS1115 gain.

FctERR	ADS1115_Set_Rate (ADS1115_t *const pCpnt, const ADS1115_rate rate)
	Set ADS1115 rate.

FctERR	ADS1115_Set_CompMode (ADS1115_t *const pCpnt, const ADS1115_comp comp)
	Set ADS1115 Comparator mode.

FctERR	ADS1115_Set_CompPolarity (ADS1115_t *const pCpnt, const ADS1115_polarity pol)
	Set ADS1115 Comparator polarity.

FctERR	ADS1115_Set_CompLatch (ADS1115_t *const pCpnt, const ADS1115_latch latch)
	Set ADS1115 Comparator latch.

FctERR	ADS1115_Set_CompQueue (ADS1115_t *const pCpnt, const ADS1115_queue queue)
	Set ADS1115 Comparator queue.

FctERR	ADS1115_Set_LowThreshold (ADS1115_t *const pCpnt, const int16_t thrh)
	Set ADS1115 low threshold.

FctERR	ADS1115_Set_HighThreshold (ADS1115_t *const pCpnt, const int16_t thrh)
	Set ADS1115 high threshold.

int16_t	ADS1115_Get_LowThreshold (const ADS1115_t *const pCpnt)
	Get ADS1115 low threshold.

int16_t	ADS1115_Get_HighThreshold (const ADS1115_t *const pCpnt)
	Get ADS1115 high threshold.

FctERR	ADS1115_Start_Conversion (ADS1115_t *const pCpnt, const ADS1115_mux chan)
	Start ADS1115 conversion.

FctERR	ADS1115_Start_NextConversion (ADS1115_t *const pCpnt)
	Start ADS1115 Next conversion.

int16_t	ADS1115_Get_raw_value (const ADS1115_t *const pCpnt, const uint8_t chan)
	Get ADS1115 raw channel value.

float	ADS1115_Get_converted_value_uV (const ADS1115_t *const pCpnt, const uint8_t chan)
	Get ADS1115 raw channel value in µV.

float	ADS1115_Get_converted_value_mV (const ADS1115_t *const pCpnt, const uint8_t chan)
	Get ADS1115 raw channel value in mV.

float	ADS1115_Get_converted_value_V (const ADS1115_t *const pCpnt, const uint8_t chan)
	Get ADS1115 raw channel value in V.

void	ADS1115_RDY_GPIO_Init (ADS1115_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Ready GPIO pin init for ADS1115.

bool	ADS1115_RDY_GPIO_Get (const ADS1115_t *const pCpnt)
	Ready GPIO pin getter for ADS1115.

Detailed Description

ADS1115 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

ADS1115: Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal Reference

Note

Compatibility with:

ADS1113 (restrictions given in datasheet)
ADS1114 (restrictions given in datasheet)
ADS1115

Compatibility should be assured with:

ADS1x1x (check datasheets for compatibility informations)

Function Documentation

◆ ADS1115_Get_conv_ms()

uint32_t ADS1115_Get_conv_ms ( ADS1115_t *const pCpnt )

Get conversion time for ADS1115 component (ms)

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: Conversion time in ms

◆ ADS1115_Get_conv_us()

uint32_t ADS1115_Get_conv_us ( ADS1115_t *const pCpnt )

Get conversion time for ADS1115 component (µs)

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: Conversion time in µs

Here is the caller graph for this function:

◆ ADS1115_Get_Conversion()

FctERR ADS1115_Get_Conversion ( ADS1115_t *const pCpnt )

Get ADS1115 conversion.

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADS1115_Get_converted_value_mV()

float ADS1115_Get_converted_value_mV	(	const ADS1115_t *const	pCpnt,
		const uint8_t	chan )

Get ADS1115 raw channel value in mV.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	chan	- ADS1115 channel

Returns: Converted channel value (mV)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADS1115_Get_converted_value_uV()

float ADS1115_Get_converted_value_uV	(	const ADS1115_t *const	pCpnt,
		const uint8_t	chan )

Get ADS1115 raw channel value in µV.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	chan	- ADS1115 channel

Returns: Converted channel value (µV)

Here is the call graph for this function:

◆ ADS1115_Get_converted_value_V()

float ADS1115_Get_converted_value_V	(	const ADS1115_t *const	pCpnt,
		const uint8_t	chan )

Get ADS1115 raw channel value in V.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	chan	- ADS1115 channel

Returns: Converted channel value (V)

Here is the call graph for this function:

◆ ADS1115_Get_HighThreshold()

int16_t ADS1115_Get_HighThreshold ( const ADS1115_t *const pCpnt )

inline

Get ADS1115 high threshold.

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: High threshold value

◆ ADS1115_Get_LowThreshold()

int16_t ADS1115_Get_LowThreshold ( const ADS1115_t *const pCpnt )

inline

Get ADS1115 low threshold.

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: Low threshold value

◆ ADS1115_Get_raw_value()

int16_t ADS1115_Get_raw_value	(	const ADS1115_t *const	pCpnt,
		const uint8_t	chan )

inline

Get ADS1115 raw channel value.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	chan	- ADS1115 channel

Returns: Raw channel value

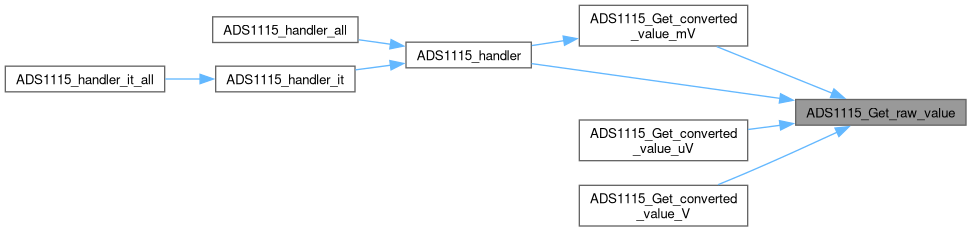

Here is the caller graph for this function:

◆ ADS1115_RDY_GPIO_Get()

bool ADS1115_RDY_GPIO_Get ( const ADS1115_t *const pCpnt )

Ready GPIO pin getter for ADS1115.

Weak Functions: ADS1115 Ready GPIO pin getter may be user implemented if needed

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: RDY pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADS1115_RDY_GPIO_Init()

void ADS1115_RDY_GPIO_Init	(	ADS1115_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Ready GPIO pin init for ADS1115.

Weak Functions: ADS1115 Ready GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	GPIOx	- RDY port
[in]	GPIO_Pin	- RDY pin
[in]	GPIO_Active	RDY pin active state

Here is the call graph for this function:

◆ ADS1115_Set_CompLatch()

FctERR ADS1115_Set_CompLatch	(	ADS1115_t *const	pCpnt,
		const ADS1115_latch	latch )

Set ADS1115 Comparator latch.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	latch	- Comparator latch

Returns: FctERR - error code

◆ ADS1115_Set_CompMode()

FctERR ADS1115_Set_CompMode	(	ADS1115_t *const	pCpnt,
		const ADS1115_comp	comp )

Set ADS1115 Comparator mode.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	comp	- Comparator Mode

Returns: FctERR - error code

◆ ADS1115_Set_CompPolarity()

FctERR ADS1115_Set_CompPolarity	(	ADS1115_t *const	pCpnt,
		const ADS1115_polarity	pol )

Set ADS1115 Comparator polarity.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	pol	- Comparator Polarity

Returns: FctERR - error code

◆ ADS1115_Set_CompQueue()

FctERR ADS1115_Set_CompQueue	(	ADS1115_t *const	pCpnt,
		const ADS1115_queue	queue )

Set ADS1115 Comparator queue.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	queue	- Comparator queue

Returns: FctERR - error code

◆ ADS1115_Set_Function()

FctERR ADS1115_Set_Function	(	ADS1115_t *const	pCpnt,
		const ADS1115_func	func,
		const ADS1115_mode	mode,
		const uint8_t	nb )

Set ADS1115 functional mode.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	func	- ADS1115 function
[in]	mode	- ADS1115 mode
[in]	nb	- Number of channels used

Returns: FctERR - error code

Here is the caller graph for this function:

◆ ADS1115_Set_Gain()

FctERR ADS1115_Set_Gain	(	ADS1115_t *const	pCpnt,
		const ADS1115_gain	gain )

Set ADS1115 gain.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	gain	- Gain

Returns: FctERR - error code

◆ ADS1115_Set_HighThreshold()

FctERR ADS1115_Set_HighThreshold	(	ADS1115_t *const	pCpnt,
		const int16_t	thrh )

inline

Set ADS1115 high threshold.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	thrh	- High threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ ADS1115_Set_LowThreshold()

FctERR ADS1115_Set_LowThreshold	(	ADS1115_t *const	pCpnt,
		const int16_t	thrh )

inline

Set ADS1115 low threshold.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	thrh	- Low threshold value

Returns: FctERR - error code

Here is the call graph for this function:

◆ ADS1115_Set_Mode()

FctERR ADS1115_Set_Mode	(	ADS1115_t *const	pCpnt,
		const ADS1115_mode	mode )

Set ADS1115 mode.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	mode	- Mode

Returns: FctERR - error code

◆ ADS1115_Set_Rate()

FctERR ADS1115_Set_Rate	(	ADS1115_t *const	pCpnt,
		const ADS1115_rate	rate )

Set ADS1115 rate.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	rate	- Data rate

Returns: FctERR - error code

◆ ADS1115_Start_Conversion()

FctERR ADS1115_Start_Conversion	(	ADS1115_t *const	pCpnt,
		const ADS1115_mux	chan )

Start ADS1115 conversion.

Parameters

[in]	pCpnt	- Pointer to ADS1115 component
[in]	chan	- Channel

Returns: FctERR - error code

Here is the caller graph for this function:

◆ ADS1115_Start_NextConversion()

FctERR ADS1115_Start_NextConversion ( ADS1115_t *const pCpnt )

Start ADS1115 Next conversion.

Note: Using ADS1115__MODE_CONTINUOUS with ADS1115__FUNC_SINGLE_DIFF or single channel used, function ADS1115_Get_Conversion may be used instead

Parameters

[in] pCpnt - Pointer to ADS1115 component

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
