MCP9808_ex.h File Reference

MCP9808 Driver extensions. More...

#include "sarmfsw.h"
#include "MCP9808.h"

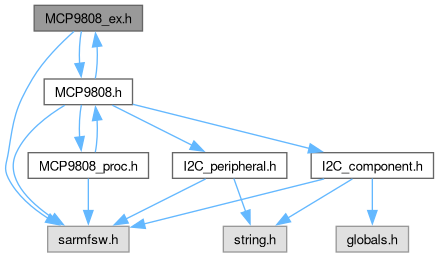

Include dependency graph for MCP9808_ex.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uMCP9808_REG_MAP
	Union of MCP9808 registry map. More...

Functions
FctERR	MCP9808_Write_Config (MCP9808_t *const pCpnt, const uint16_t cfg)
	Write MCP9808 configuration.
FctERR	MCP9808_Shutdown (MCP9808_t *const pCpnt, const bool shutdown)
	Write MCP9808 configuration.
FctERR	MCP9808_Set_AlertHysteresis (MCP9808_t *const pCpnt, const MCP9808_hyst hys)
	Set MCP9808 alert hysteresis.
FctERR	MCP9808_Set_AlertType (MCP9808_t *const pCpnt, const bool comparator)
	Set MCP9808 alert type.
FctERR	MCP9808_Set_AlertOutput (MCP9808_t *const pCpnt, const bool en, const bool alt)
	Set MCP9808 alert enable.
FctERR	MCP9808_Set_AlertLock (MCP9808_t *const pCpnt, const MCP9808_alert alt, const bool lock)
	Set MCP9808 alert lock.
FctERR	MCP9808_Set_Resolution (MCP9808_t *const pCpnt, const MCP9808_res res)
	Set MCP9808 Resolution.
FctERR	MCP9808_Read_Config (MCP9808_t *const pCpnt, uint16_t *const cfg)
	Get MCP9808 Configuration.
FctERR	MCP9808_Get_Temperature_Raw (MCP9808_t *const pCpnt, uint16_t *const temp)
	Get MCP9808 Configuration.
FctERR	MCP9808_Get_Resolution (MCP9808_t *const pCpnt, MCP9808_res *const res)
	Get MCP9808 Resolution.
FctERR	MCP9808_Get_ManufacturerID (MCP9808_t *const pCpnt, uint16_t *const id)
	Get MCP9808 Manufacturer ID.
FctERR	MCP9808_Get_ChipID (MCP9808_t *const pCpnt, uint16_t *const id)
	Get MCP9808 chip ID.
void	MCP9808_Alert_GPIO_Init (MCP9808_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Alert GPIO pin init for MCP9808.
bool	MCP9808_Alert_GPIO_Get (const MCP9808_t *const pCpnt)
	Change GPIO pin getter for MCP9808.

Detailed Description

MCP9808 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

MCP9808: +/-0.5C Maximum Accuracy Digital Temperature Sensor

Function Documentation

MCP9808_Alert_GPIO_Get()

bool MCP9808_Alert_GPIO_Get

(

const MCP9808_t *const

pCpnt

)

Change GPIO pin getter for MCP9808.

Weak Functions

MCP9808 Change GPIO pin getter may be user implemented if needed

Parameters

[in]

pCpnt

- Pointer to MCP9808 component

Returns

Alert pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Alert_GPIO_Init()

void MCP9808_Alert_GPIO_Init	(	MCP9808_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Alert GPIO pin init for MCP9808.

Weak Functions

MCP9808 Alert GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	GPIOx	- Alert port
[in]	GPIO_Pin	- Alert pin
[in]	GPIO_Active	Alert pin active state

Here is the call graph for this function:

MCP9808_Get_ChipID()

FctERR MCP9808_Get_ChipID ( MCP9808_t *const pCpnt, uint16_t *const id )

inline

Get MCP9808 chip ID.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	id	- pointer to chip ID result

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Get_ManufacturerID()

FctERR MCP9808_Get_ManufacturerID ( MCP9808_t *const pCpnt, uint16_t *const id )

inline

Get MCP9808 Manufacturer ID.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	id	- pointer to Manufacturer ID result

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Get_Resolution()

FctERR MCP9808_Get_Resolution	(	MCP9808_t *const	pCpnt,
		MCP9808_res *const	res )

Get MCP9808 Resolution.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	res	- pointer to Resolution to read to

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_Get_Temperature_Raw()

FctERR MCP9808_Get_Temperature_Raw ( MCP9808_t *const pCpnt, uint16_t *const temp )

inline

Get MCP9808 Configuration.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	temp	- pointer to Temperature value to read to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Read_Config()

FctERR MCP9808_Read_Config ( MCP9808_t *const pCpnt, uint16_t *const cfg )

inline

Get MCP9808 Configuration.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	cfg	- pointer to Configuration value to read to

Returns

FctERR - error code

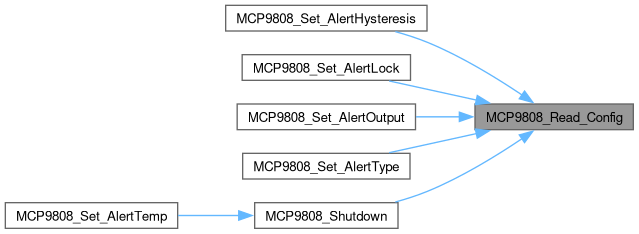

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Set_AlertHysteresis()

FctERR MCP9808_Set_AlertHysteresis	(	MCP9808_t *const	pCpnt,
		const MCP9808_hyst	hys )

Set MCP9808 alert hysteresis.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	hys	- Alert hysteresis

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_Set_AlertLock()

FctERR MCP9808_Set_AlertLock	(	MCP9808_t *const	pCpnt,
		const MCP9808_alert	alt,
		const bool	lock )

Set MCP9808 alert lock.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	alt	- Alert type
[in]	lock	- 0 Unlocked, 1 Locked

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_Set_AlertOutput()

FctERR MCP9808_Set_AlertOutput	(	MCP9808_t *const	pCpnt,
		const bool	en,
		const bool	alt )

Set MCP9808 alert enable.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	en	- 0 Disabled, 1 Enabled
[in]	alt	- 0 Low, 1 High

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_Set_AlertType()

FctERR MCP9808_Set_AlertType	(	MCP9808_t *const	pCpnt,
		const bool	comparator )

Set MCP9808 alert type.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	comparator	- 0 ???, 1 Comparator

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_Set_Resolution()

FctERR MCP9808_Set_Resolution	(	MCP9808_t *const	pCpnt,
		const MCP9808_res	res )

Set MCP9808 Resolution.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	res	- Resolution for MCP9808

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Shutdown()

FctERR MCP9808_Shutdown	(	MCP9808_t *const	pCpnt,
		const bool	shutdown )

Write MCP9808 configuration.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	shutdown	- 0 Normal operation, 1 Shutdown

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Write_Config()

FctERR MCP9808_Write_Config	(	MCP9808_t *const	pCpnt,
		const uint16_t	cfg )

Write MCP9808 configuration.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in]	cfg	- Configuration value

Returns

FctERR - error code

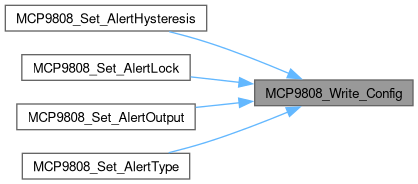

Here is the call graph for this function:
