MCP9808_proc.h File Reference

MCP9808 Driver procedures. More...

#include "sarmfsw.h"
#include "MCP9808.h"

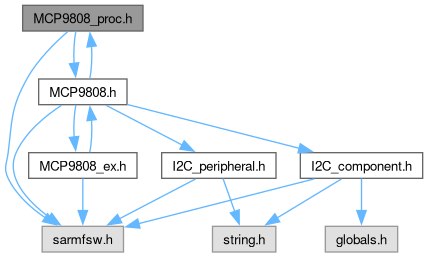

Include dependency graph for MCP9808_proc.h:

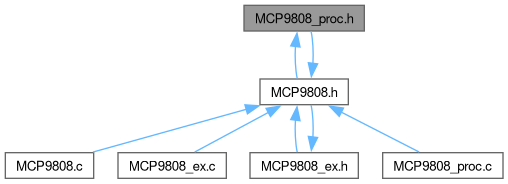

This graph shows which files directly or indirectly include this file:

Data Structures
struct	MCP9808_t
	MCP9808 user interface struct. More...

Macros
#define	MCP9808_MANUFACTURER_ID   0x0054U
	MCP9808 Manufacturer ID to check against.
#define	MCP9808_CHIP_ID   0x0400U
	MCP9808 Chip ID to check against.

Enumerations
enum	MCP9808_alert { MCP9808__ALERT_HIGH = 0U , MCP9808__ALERT_LOW , MCP9808__ALERT_CRIT }
	Alerts enum of MCP9808. More...

Functions
FctERR	MCP9808_Init_Sequence (MCP9808_t *const pCpnt)
	Initialization Sequence of the MCP9808 peripheral.
FctERR	MCP9808_Set_AlertTemp (MCP9808_t *const pCpnt, const float temp, const MCP9808_alert alt)
	Set the high/low/crit Alert temperature.
FctERR	MCP9808_Get_AlertTemp (MCP9808_t *const pCpnt, float *temp, MCP9808_alert alt)
	Get the high/low/crit Alert temperature.
FctERR	MCP9808_Get_Temperature (MCP9808_t *const pCpnt, float *temp)
	Get the temperature.
FctERR	MCP9808_handler (MCP9808_t *const pCpnt)
	Handler for MCP9808 peripheral.
FctERR	MCP9808_handler_it (MCP9808_t *const pCpnt)
	Handler for MCP9808 peripheral GPIO interrupt.
FctERR	MCP9808_handler_all (void)
	Handler for all MCP9808 peripherals.
FctERR	MCP9808_handler_it_all (void)
	Handler for all MCP9808 peripherals GPIO interrupt.

Variables
MCP9808_t	MCP9808 [I2C_MCP9808_NB]
	MCP9808 User structure.

Detailed Description

MCP9808 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

MCP9808: +/-0.5C Maximum Accuracy Digital Temperature Sensor

Macro Definition Documentation

MCP9808_CHIP_ID

#define MCP9808_CHIP_ID   0x0400U

MCP9808 Chip ID to check against.

MCP9808_MANUFACTURER_ID

#define MCP9808_MANUFACTURER_ID   0x0054U

MCP9808 Manufacturer ID to check against.

Enumeration Type Documentation

MCP9808_alert

enum MCP9808_alert

Alerts enum of MCP9808.

Enumerator
MCP9808__ALERT_HIGH	High temperature alert.
MCP9808__ALERT_LOW	Low temperature alert.
MCP9808__ALERT_CRIT	Critical temperature alert.

Function Documentation

MCP9808_Get_AlertTemp()

FctERR MCP9808_Get_AlertTemp	(	MCP9808_t *const	pCpnt,
		float *	temp,
		MCP9808_alert	alt )

Get the high/low/crit Alert temperature.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	temp	- pointer to temperature to read to (in Celsius degrees)
[in]	alt	- Alert type

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Get_Temperature()

FctERR MCP9808_Get_Temperature	(	MCP9808_t *const	pCpnt,
		float *	temp )

Get the temperature.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	temp	- pointer to temperature to read to (in Celsius degrees)

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_handler()

FctERR MCP9808_handler

(

MCP9808_t *const

pCpnt

)

Handler for MCP9808 peripheral.

Weak Functions

MCP9808 handler may be user implemented to suit custom needs

Note

Should be called periodically to handle MCP9808 tasks (or by calling MCP9808_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to MCP9808 component

Returns

FctERR - error code

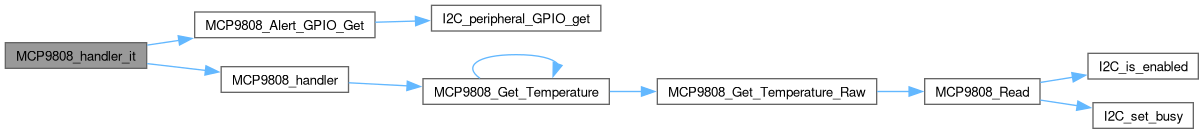

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_handler_all()

FctERR MCP9808_handler_all

(

void

)

Handler for all MCP9808 peripherals.

Note

May be called periodically to handle all MCP9808 tasks

Returns

FctERR - error code

Here is the call graph for this function:

MCP9808_handler_it()

FctERR MCP9808_handler_it

(

MCP9808_t *const

pCpnt

)

Handler for MCP9808 peripheral GPIO interrupt.

Note

MCP9808_Alert_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

MCP9808 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle MCP9808 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to MCP9808 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_handler_it_all()

FctERR MCP9808_handler_it_all

(

void

)

Handler for all MCP9808 peripherals GPIO interrupt.

Note

MCP9808_Alert_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all MCP9808 tasks

Returns

FctERR - error code

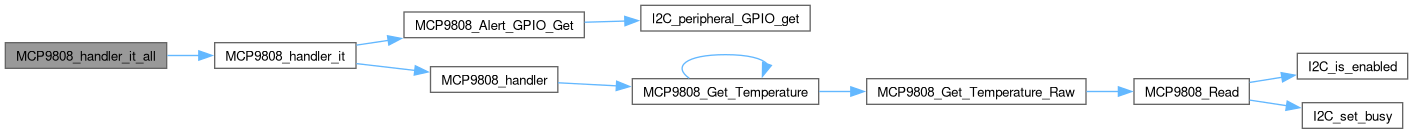

Here is the call graph for this function:

MCP9808_Init_Sequence()

FctERR MCP9808_Init_Sequence

(

MCP9808_t *const

pCpnt

)

Initialization Sequence of the MCP9808 peripheral.

Weak Functions

MCP9808 handler may be user implemented to suit custom needs

Parameters

[in]

pCpnt

- Pointer to MCP9808 component

Returns

FctERR - error code

err = MCP9808_Set_AlertTemp(pCpnt, 30.0f, MCP9808__ALERT_HIGH);
if (err != ERROR_OK)    { goto ret; }
err = MCP9808_Set_AlertTemp(pCpnt, 32.0f, MCP9808__ALERT_LOW);
if (err != ERROR_OK)    { goto ret; }
err = MCP9808_Set_AlertTemp(pCpnt, 32.5f, MCP9808__ALERT_CRIT);
if (err != ERROR_OK)    { goto ret; }

// Checking if Set Alert works properly
err = MCP9808_Get_AlertTemp(pCpnt, 0, MCP9808__ALERT_HIGH);
if (err != ERROR_OK)    { goto ret; }
err = MCP9808_Get_AlertTemp(pCpnt, 0, MCP9808__ALERT_LOW);
if (err != ERROR_OK)    { goto ret; }
err = MCP9808_Get_AlertTemp(pCpnt, 0, MCP9808__ALERT_CRIT);
if (err != ERROR_OK)    { goto ret; }

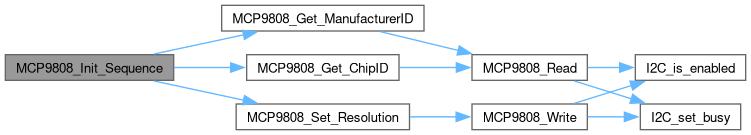

Here is the call graph for this function:

Here is the caller graph for this function:

MCP9808_Set_AlertTemp()

FctERR MCP9808_Set_AlertTemp	(	MCP9808_t *const	pCpnt,
		const float	temp,
		const MCP9808_alert	alt )

Set the high/low/crit Alert temperature.

Parameters

[in]	pCpnt	- Pointer to MCP9808 component
[in,out]	temp	- temperature (in Celsius degrees)
[in]	alt	- Alert type

Returns

FctERR - error code

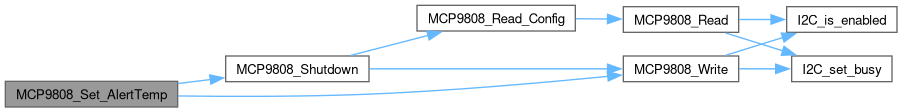

Here is the call graph for this function:

Variable Documentation

MCP9808

MCP9808_t MCP9808[I2C_MCP9808_NB]

extern

MCP9808 User structure.
