PCA9685 Driver extensions. More...

#include "PCA9685.h"
#include <stdlib.h>
#include <math.h>

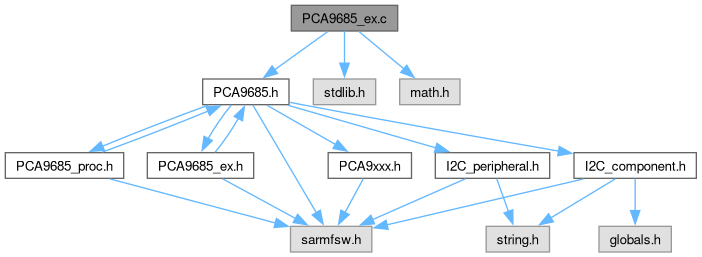

Include dependency graph for PCA9685_ex.c:

Functions
FctERR	PCA9685_CalcVal (uint8_t val[4], const uint16_t duty, const uint16_t delay)
	Computes values for PCA9685 registers (4bytes) following duty and delay.

FctERR	PCA9685_CalcVal_NoDelay (uint8_t val[4], const uint16_t duty)
	Computes values for PCA9685 registers (4bytes) following duty (without delay)

FctERR	PCA9685_Freq_To_Byte (const PCA9685_t const pCpnt, uint8_t const byte, const uint16_t freq)
	Convert Frequency to Prescaler byte register.

FctERR	PCA9685_Set_Latch (PCA9685_t *const pCpnt, const PCA96xx_latch latch)
	Set latch type for PCA9685 peripheral.

FctERR	PCA9685_Set_Frequency (PCA9685_t *const pCpnt, const uint16_t freq)
	Set frequency for PCA9685 peripheral.

FctERR	PCA9685_ReadVal (PCA9685_t const pCpnt, const PCA9xxx_chan chan, uint16_t duty)
	Read I2C lighting values from a LED and Computes the corresponding duty cycle value (12b)

FctERR	PCA9685_ReadValByte (PCA9685_t const pCpnt, const PCA9xxx_chan chan, uint8_t duty)
	Read I2C lighting values from a LED and Computes the corresponding duty cycle value (Byte)

FctERR	PCA9685_PutVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan, const uint16_t duty, const uint16_t delay)
	Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (12b)

FctERR	PCA9685_PutValPerc (PCA9685_t *const pCpnt, const PCA9xxx_chan chan, const float duty, const float delay)
	Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Percent)

FctERR	PCA9685_SetVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan)
	Compute and send PWM Full ON value to apply on a PCA9685 channel or all channels (no delay)

FctERR	PCA9685_ClrVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan)
	Compute and send PWM Full OFF value to apply on a PCA9685 channel or all channels (no delay)

FctERR	PCA9685_Reset (PCA9685_t *const pCpnt)
	Reset for PCA9685 peripheral.

FctERR	PCA9685_Reset_All (I2C_HandleTypeDef *const hi2c)
	General call reset function for PCA9685.

FctERR	PCA9685_ReadRegister (PCA9685_t const pCpnt, const PCA9685_reg reg, uint8_t const val)
	Reads register from PCA9685.

void	PCA9685_OE_GPIO_Init (PCA9685_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Output Enable GPIO pin init for PCA9685.

void	PCA9685_OE_GPIO_Set (PCA9685_t *const pCpnt, const bool state)
	Output Enable GPIO pin setter for PCA9685.

Detailed Description

PCA9685 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

PCA9685: 16-channel, 12-bit PWM Fm+ I2C-bus LED controller

Function Documentation

◆ PCA9685_CalcVal()

FctERR PCA9685_CalcVal	(	uint8_t	val[4],
		const uint16_t	duty,
		const uint16_t	delay )

Computes values for PCA9685 registers (4bytes) following duty and delay.

Note: Useful to manually fill an array with registers values to send multiple channels at once in one I2C transaction; If no delay is required, PCA9685_CalcVal_NoDelay may be used instead

Parameters

[in,out]	val	- Pointer to 4 bytes array output
[in]	duty	- Duty cycle coded on 12b (0-4095)
[in]	delay	- Delay coded on 12b (0-<4095)

Returns: FctERR - error code

Here is the caller graph for this function:

◆ PCA9685_CalcVal_NoDelay()

FctERR PCA9685_CalcVal_NoDelay	(	uint8_t	val[4],
		const uint16_t	duty )

Computes values for PCA9685 registers (4bytes) following duty (without delay)

Note: Useful to manually fill an array with registers values to send multiple channels at once in one I2C transaction

Parameters

[in,out]	val	- Pointer to 4 bytes array output
[in]	duty	- Duty cycle coded on 12b (0-4095)

Returns: FctERR - error code

◆ PCA9685_ClrVal()

FctERR PCA9685_ClrVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Compute and send PWM Full OFF value to apply on a PCA9685 channel or all channels (no delay)

Note: No configured delay

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_Freq_To_Byte()

FctERR PCA9685_Freq_To_Byte	(	const PCA9685_t *const	pCpnt,
		uint8_t *const	byte,
		const uint16_t	freq )

Convert Frequency to Prescaler byte register.

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in,out]	byte	- Pointer to output value
[in]	freq	- Outputs frequency in Hz

Returns: FctERR - error code

Here is the caller graph for this function:

◆ PCA9685_OE_GPIO_Init()

void PCA9685_OE_GPIO_Init	(	PCA9685_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Output Enable GPIO pin init for PCA9685.

Weak Functions: PCA9685 Output Enable GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	GPIOx	- OE port
[in]	GPIO_Pin	- OE pin
[in]	GPIO_Active	OE pin active state

Here is the call graph for this function:

◆ PCA9685_OE_GPIO_Set()

void PCA9685_OE_GPIO_Set	(	PCA9685_t *const	pCpnt,
		const bool	state )

Output Enable GPIO pin setter for PCA9685.

Weak Functions: PCA9685 Output Enable GPIO pin setter may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	state	- state to write on OE pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ PCA9685_PutVal()

FctERR PCA9685_PutVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const uint16_t	duty,
		const uint16_t	delay )

Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (12b)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)
[in]	duty	- Duty cycle coded on 12b (0-4095)
[in]	delay	- Delay coded on 12b (0-<4095)

Returns: FctERR - ErrorCode

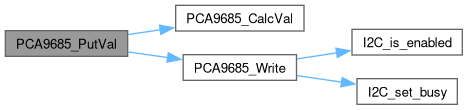

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9685_PutValPerc()

FctERR PCA9685_PutValPerc	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const float	duty,
		const float	delay )

Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Percent)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)
[in]	duty	- Duty cycle coded on float (0.0-100.0%)
[in]	delay	- Delay coded on float (0.0-<100.0%)

Returns: FctERR - ErrorCode

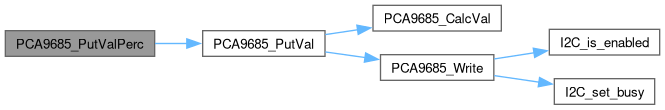

Here is the call graph for this function:

◆ PCA9685_ReadRegister()

FctERR PCA9685_ReadRegister	(	PCA9685_t *const	pCpnt,
		const PCA9685_reg	reg,
		uint8_t *const	val )

Reads register from PCA9685.

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	reg	- Register address to read from
[in,out]	val	- Pointer to the data for receive

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_ReadVal()

FctERR PCA9685_ReadVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		uint16_t *	duty )

Read I2C lighting values from a LED and Computes the corresponding duty cycle value (12b)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16)
[in,out]	duty	- Pointer to the DutyCycle data for receive coded on 12b

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_ReadValByte()

FctERR PCA9685_ReadValByte	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		uint8_t *	duty )

Read I2C lighting values from a LED and Computes the corresponding duty cycle value (Byte)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- chan number (1 to 16)
[in,out]	duty	- Pointer to the DutyCycle data for receive coded on a Byte

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_Reset()

FctERR PCA9685_Reset ( PCA9685_t *const pCpnt )

Reset for PCA9685 peripheral.

Parameters

[in] pCpnt - Pointer to PCA9685 component

Returns: FctERR - error code

◆ PCA9685_Reset_All()

FctERR PCA9685_Reset_All ( I2C_HandleTypeDef *const hi2c )

General call reset function for PCA9685.

Parameters

[in] hi2c - pointer to general call I2C instance

Returns: FctERR - error code

◆ PCA9685_Set_Frequency()

FctERR PCA9685_Set_Frequency	(	PCA9685_t *const	pCpnt,
		const uint16_t	freq )

Set frequency for PCA9685 peripheral.

Note: Prescaler is calculated according to the use of PCA9685 internal oscillator; Freq(Hz) = Clock / ((PSCx(8b) + 1) * 4096) -> Internal clock is 25000000

Warning: beware for higher frequencies, using internal clock: 1526Hz max (3 in reg) drops to 1220Hz (4 in reg), 1017Hz (5 in reg)....

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	freq	- Frequency to apply (in Hz)

Returns: FctERR - error code

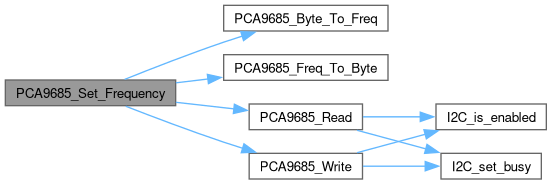

Here is the call graph for this function:

◆ PCA9685_Set_Latch()

FctERR PCA9685_Set_Latch	(	PCA9685_t *const	pCpnt,
		const PCA96xx_latch	latch )

Set latch type for PCA9685 peripheral.

Parameters

[in,out]	pCpnt	- Pointer to PCA9685 component
[in]	latch	- Latch type

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9685_SetVal()

FctERR PCA9685_SetVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Compute and send PWM Full ON value to apply on a PCA9685 channel or all channels (no delay)

Note: No configured delay

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)

Returns: FctERR - ErrorCode

Here is the call graph for this function:
