PCA9685.h File Reference

PCA9685 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "PCA9xxx.h"
#include "PCA9685_proc.h"
#include "PCA9685_ex.h"

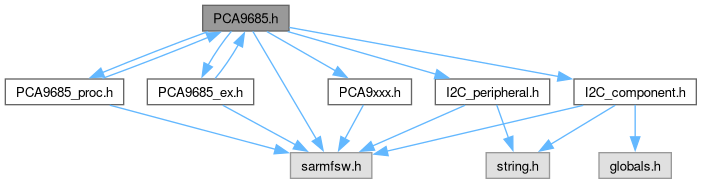

Include dependency graph for PCA9685.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uPCA9685_REG__MODE1
	Union for MODE1 register of PCA9685. More...
union	uPCA9685_REG__MODE2
	Union for MODE2 register of PCA9685. More...
union	uPCA9685_REG__DUTY
	Union for Duty Cycle registers of PCA9624. More...

Macros
#define	I2C_PCA9685_NB   1U
	Number of PCA9685 peripherals.
#define	PCA9685_BASE_ADDR   0x40U
	PCA9685 Base Address.

Enumerations
enum	PCA9685_reg {   PCA9685__MODE1 = 0U , PCA9685__MODE2 , PCA9685__SUBADR1 , PCA9685__SUBADR2 ,   PCA9685__SUBADR3 , PCA9685__ALLCALLADR , PCA9685__LED0_ON_L , PCA9685__LED0_ON_H ,   PCA9685__LED0_OFF_L , PCA9685__LED0_OFF_H , PCA9685__LED1_ON_L , PCA9685__LED1_ON_H ,   PCA9685__LED1_OFF_L , PCA9685__LED1_OFF_H , PCA9685__LED2_ON_L , PCA9685__LED2_ON_H ,   PCA9685__LED2_OFF_L , PCA9685__LED2_OFF_H , PCA9685__LED3_ON_L , PCA9685__LED3_ON_H ,   PCA9685__LED3_OFF_L , PCA9685__LED3_OFF_H , PCA9685__LED4_ON_L , PCA9685__LED4_ON_H ,   PCA9685__LED4_OFF_L , PCA9685__LED4_OFF_H , PCA9685__LED5_ON_L , PCA9685__LED5_ON_H ,   PCA9685__LED5_OFF_L , PCA9685__LED5_OFF_H , PCA9685__LED6_ON_L , PCA9685__LED6_ON_H ,   PCA9685__LED6_OFF_L , PCA9685__LED6_OFF_H , PCA9685__LED7_ON_L , PCA9685__LED7_ON_H ,   PCA9685__LED7_OFF_L , PCA9685__LED7_OFF_H , PCA9685__LED8_ON_L , PCA9685__LED8_ON_H ,   PCA9685__LED8_OFF_L , PCA9685__LED8_OFF_H , PCA9685__LED9_ON_L , PCA9685__LED9_ON_H ,   PCA9685__LED9_OFF_L , PCA9685__LED9_OFF_H , PCA9685__LED10_ON_L , PCA9685__LED10_ON_H ,   PCA9685__LED10_OFF_L , PCA9685__LED10_OFF_H , PCA9685__LED11_ON_L , PCA9685__LED11_ON_H ,   PCA9685__LED11_OFF_L , PCA9685__LED11_OFF_H , PCA9685__LED12_ON_L , PCA9685__LED12_ON_H ,   PCA9685__LED12_OFF_L , PCA9685__LED12_OFF_H , PCA9685__LED13_ON_L , PCA9685__LED13_ON_H ,   PCA9685__LED13_OFF_L , PCA9685__LED13_OFF_H , PCA9685__LED14_ON_L , PCA9685__LED14_ON_H ,   PCA9685__LED14_OFF_L , PCA9685__LED14_OFF_H , PCA9685__LED15_ON_L , PCA9685__LED15_ON_H ,   PCA9685__LED15_OFF_L , PCA9685__LED15_OFF_H , PCA9685__ALL_LED_ON_L = 0xFAU , PCA9685__ALL_LED_ON_H ,   PCA9685__ALL_LED_OFF_L , PCA9685__ALL_LED_OFF_H , PCA9685__PRE_SCALE , PCA9685__TestMode }
	Register map enum of PCA9685. More...

Functions
FctERR	PCA9685_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for PCA9685 peripheral.
FctERR	PCA9685_Init_Single (void)
	Initialization for PCA9685 peripheral.
FctERR	PCA9685_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for PCA9685.
FctERR	PCA9685_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for PCA9685.

Detailed Description

PCA9685 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCA9685: 16-channel, 12-bit PWM Fm+ I2C-bus LED controller

Macro Definition Documentation

I2C_PCA9685_NB

#define I2C_PCA9685_NB   1U

Number of PCA9685 peripherals.

Note

Define I2C_PCA9685_NB to enable multiple peripherals of this type

PCA9685_BASE_ADDR

#define PCA9685_BASE_ADDR   0x40U

PCA9685 Base Address.

Note

Define PCA9685_BASE_ADDR to change default device base address

Enumeration Type Documentation

PCA9685_reg

enum PCA9685_reg

Register map enum of PCA9685.

Enumerator
PCA9685__MODE1	register MODE1
PCA9685__MODE2	register MODE2
PCA9685__SUBADR1	register SUBADR1
PCA9685__SUBADR2	register SUBADR2
PCA9685__SUBADR3	register SUBADR3
PCA9685__ALLCALLADR	register ALLCALLADR
PCA9685__LED0_ON_L	register LED 0 ON Low
PCA9685__LED0_ON_H	register LED 0 ON High
PCA9685__LED0_OFF_L	register LED 0 OFF Low
PCA9685__LED0_OFF_H	register LED 0 OFF High
PCA9685__LED1_ON_L	register LED 1 ON Low
PCA9685__LED1_ON_H	register LED 1 ON High
PCA9685__LED1_OFF_L	register LED 1 OFF Low
PCA9685__LED1_OFF_H	register LED 1 OFF High
PCA9685__LED2_ON_L	register LED 2 ON Low
PCA9685__LED2_ON_H	register LED 2 ON High
PCA9685__LED2_OFF_L	register LED 2 OFF Low
PCA9685__LED2_OFF_H	register LED 2 OFF High
PCA9685__LED3_ON_L	register LED 3 ON Low
PCA9685__LED3_ON_H	register LED 3 ON High
PCA9685__LED3_OFF_L	register LED 3 OFF Low
PCA9685__LED3_OFF_H	register LED 3 OFF High
PCA9685__LED4_ON_L	register LED 4 ON Low
PCA9685__LED4_ON_H	register LED 4 ON High
PCA9685__LED4_OFF_L	register LED 4 OFF Low
PCA9685__LED4_OFF_H	register LED 4 OFF High
PCA9685__LED5_ON_L	register LED 5 ON Low
PCA9685__LED5_ON_H	register LED 5 ON High
PCA9685__LED5_OFF_L	register LED 5 OFF Low
PCA9685__LED5_OFF_H	register LED 5 OFF High
PCA9685__LED6_ON_L	register LED 6 ON Low
PCA9685__LED6_ON_H	register LED 6 ON High
PCA9685__LED6_OFF_L	register LED 6 OFF Low
PCA9685__LED6_OFF_H	register LED 6 OFF High
PCA9685__LED7_ON_L	register LED 7 ON Low
PCA9685__LED7_ON_H	register LED 7 ON High
PCA9685__LED7_OFF_L	register LED 7 OFF Low
PCA9685__LED7_OFF_H	register LED 7 OFF High
PCA9685__LED8_ON_L	register LED 8 ON Low
PCA9685__LED8_ON_H	register LED 8 ON High
PCA9685__LED8_OFF_L	register LED 8 OFF Low
PCA9685__LED8_OFF_H	register LED 8 OFF High
PCA9685__LED9_ON_L	register LED 9 ON Low
PCA9685__LED9_ON_H	register LED 9 ON High
PCA9685__LED9_OFF_L	register LED 9 OFF Low
PCA9685__LED9_OFF_H	register LED 9 OFF High
PCA9685__LED10_ON_L	register LED 10 ON Low
PCA9685__LED10_ON_H	register LED 10 ON High
PCA9685__LED10_OFF_L	register LED 10 OFF Low
PCA9685__LED10_OFF_H	register LED 10 OFF High
PCA9685__LED11_ON_L	register LED 11 ON Low
PCA9685__LED11_ON_H	register LED 11 ON High
PCA9685__LED11_OFF_L	register LED 11 OFF Low
PCA9685__LED11_OFF_H	register LED 11 OFF High
PCA9685__LED12_ON_L	register LED 12 ON Low
PCA9685__LED12_ON_H	register LED 12 ON High
PCA9685__LED12_OFF_L	register LED 12 OFF Low
PCA9685__LED12_OFF_H	register LED 12 OFF High
PCA9685__LED13_ON_L	register LED 13 ON Low
PCA9685__LED13_ON_H	register LED 13 ON High
PCA9685__LED13_OFF_L	register LED 13 OFF Low
PCA9685__LED13_OFF_H	register LED 13 OFF High
PCA9685__LED14_ON_L	register LED 14 ON Low
PCA9685__LED14_ON_H	register LED 14 ON High
PCA9685__LED14_OFF_L	register LED 14 OFF Low
PCA9685__LED14_OFF_H	register LED 14 OFF High
PCA9685__LED15_ON_L	register LED 15 ON Low
PCA9685__LED15_ON_H	register LED 15 ON High
PCA9685__LED15_OFF_L	register LED 15 OFF Low
PCA9685__LED15_OFF_H	register LED 15 OFF High
PCA9685__ALL_LED_ON_L	register ALL LED ON Low
PCA9685__ALL_LED_ON_H	register ALL LED ON High
PCA9685__ALL_LED_OFF_L	register ALL LED OFF Low
PCA9685__ALL_LED_OFF_H	register ALL LED OFF High
PCA9685__PRE_SCALE	register PRE_SCALE
PCA9685__TestMode	register TestMode

Function Documentation

PCA9685_Init()

FctERR PCA9685_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for PCA9685 peripheral.

Parameters

[in]	idx	- PCA9685 index
[in]	hi2c	- pointer to PCA9685 I2C instance
[in]	devAddress	- PCA9685 device address

Returns

FctERR - error code

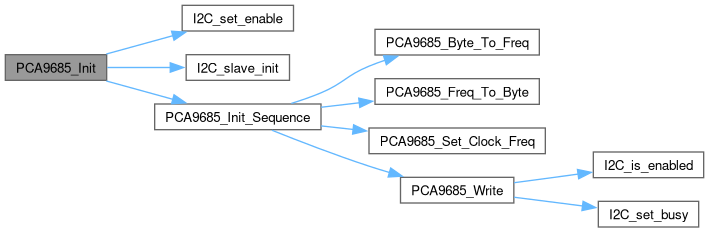

Here is the call graph for this function:

Here is the caller graph for this function:

PCA9685_Init_Single()

FctERR PCA9685_Init_Single

(

void

)

Initialization for PCA9685 peripheral.

Warning

In case multiple devices (defined by I2C_PCA9685_NB > 1), you shall use PCA9685_Init instead

Returns

FctERR - error code

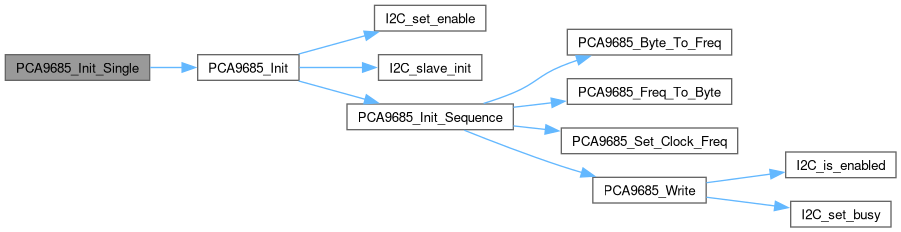

Here is the call graph for this function:

PCA9685_Read()

FctERR PCA9685_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for PCA9685.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

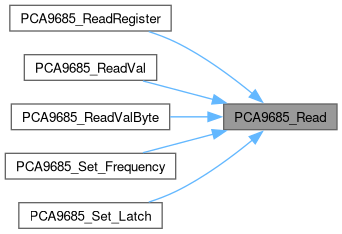

Here is the caller graph for this function:

PCA9685_Write()

FctERR PCA9685_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for PCA9685.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

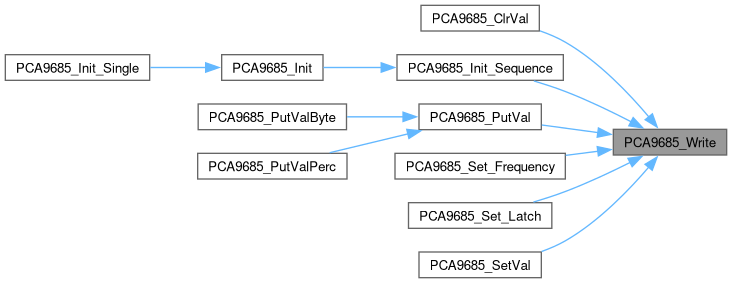

Here is the caller graph for this function:
