DS_GPMS.h File Reference

DS-GPM.S Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "DS_GPMS_ex.h"
#include "DS_GPMS_proc.h"

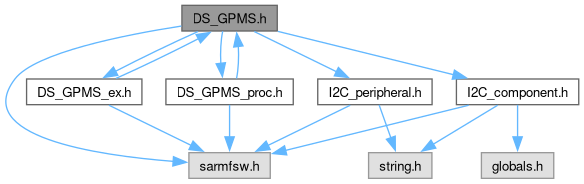

Include dependency graph for DS_GPMS.h:

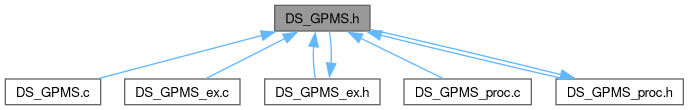

This graph shows which files directly or indirectly include this file:

Data Structures
union	uGPMS_REG__STATUS
	Union for STATUS register of DS-GPM.S. More...

Macros
#define	GPMS_ADDR   0x68U
	DS-GPM.S address.
#define	GPMS_JUMPER_A0_A1   0U
	DS-GPM.S index with jumper A0 & A1.
#define	GPMS_JUMPER_A1   1U
	DS-GPM.S index with jumper A1.
#define	GPMS_JUMPER_A0   2U
	DS-GPM.S index with jumper A0.
#define	GPMS_JUMPER_NONE   3U
	DS-GPM.S index with no jumper.
#define	GPMS_BASE_ADDR   (GPMS_ADDR + GPMS_JUMPER_A0_A1)
	DS-GPM.S Base address.

Enumerations
enum	GPMS_wr_reg { GPMS__IO_DIRECTION = 0U , GPMS__IO_INPUT_TYPE , GPMS__IO_PORT_OUTPUT }
	Write register map enum of DS-GPM.S. More...
enum	GPMS_rd_reg {   GPMS__HOURS_TENS = 0U , GPMS__HOURS_UNITS , GPMS__MINUTES_TENS , GPMS__MINUTES_UNITS ,   GPMS__SECONDS_TENS , GPMS__SECONDS_UNITS , GPMS__DAY_OF_MONTH_TENS , GPMS__DAY_OF_MONTH_UNITS ,   GPMS__MONTH_TENS , GPMS__MONTH_UNITS , GPMS__YEARS_THOUSANDS , GPMS__YEARS_HUNDREDS ,   GPMS__YEARS_TENS , GPMS__YEARS_UNITS , GPMS__LATITUDE_DEGREES_TENS , GPMS__LATITUDE_DEGREES_UNITS ,   GPMS__LATITUDE_MINUTES_TENS , GPMS__LATITUDE_MINUTES_UNITS , GPMS__LATITUDE_MINUTES_TENTHS , GPMS__LATITUDE_MINUTES_HUNDREDTHS ,   GPMS__LATITUDE_MINUTES_THOUSANDS , GPMS__LATITUDE_MINUTES_TEN_THOUSANDS , GPMS__LATITUDE_DIRECTION_CHARACTER , GPMS__LONGITUDE_DEGREES_HUNDREDTHS ,   GPMS__LONGITUDE_DEGREES_TENS , GPMS__LONGITUDE_DEGREES_UNITS , GPMS__LONGITUDE_MINUTES_TENS , GPMS__LONGITUDE_MINUTES_UNITS ,   GPMS__LONGITUDE_MINUTES_TENTHS , GPMS__LONGITUDE_MINUTES_HUNDREDTHS , GPMS__LONGITUDE_MINUTES_THOUSANDS , GPMS__LONGITUDE_MINUTES_TEN_THOUSANDS ,   GPMS__LONGITUDE_DIRECTION_CHARACTER , GPMS__GPS_QUALITY_INDICATOR , GPMS__SATELLITES_IN_USE_TENS , GPMS__SATELLITES_IN_USE_UNITS ,   GPMS__HDOP_TENS , GPMS__HDOP_UNITS , GPMS__HDOP_TENTHS , GPMS__ALTITUDE_TENS_OF_THOUSANDS ,   GPMS__ALTITUDE_THOUSANDS , GPMS__ALTITUDE_HUNDREDS , GPMS__ALTITUDE_TENS , GPMS__ALTITUDE_UNITS ,   GPMS__HEADING_DEGREES_TRUE_HUNDREDS , GPMS__HEADING_DEGREES_TRUE_TENS , GPMS__HEADING_DEGREES_TRUE_UNITS , GPMS__HEADING_DEGREES_TRUE_TENTHS ,   GPMS__HEADING_DEGREES_MAGNETIC_HUNDREDS , GPMS__HEADING_DEGREES_MAGNETIC_TENS , GPMS__HEADING_DEGREES_MAGNETIC_UNITS , GPMS__HEADING_DEGREES_MAGNETIC_TENTHS ,   GPMS__SPEED_HUNDREDS , GPMS__SPEED_TENS , GPMS__SPEED_UNITS , GPMS__SPEED_TENTHS ,   GPMS__GPS_MODE , GPMS__AN0_VALUE , GPMS__AN1_VALUE , GPMS__AN2_VALUE ,   GPMS__AN3_VALUE , GPMS__IOS_VALUE , GPMS__STATUS }
	Read register map enum of DS-GPM.S. More...
enum	GPMS_direction { GPMS__DIR_EAST = 'E' , GPMS__DIR_NORTH = 'N' , GPMS__DIR_SOUTH = 'S' , GPMS__DIR_WEST = 'W' }
	DS-GPM.S direction enum. More...
enum	GPMS_quality { GPMS__NO_GPS = 0U , GPMS__GPS , GPMS__DGPS }
	DS-GPM.S signal quality. More...
enum	GPMS_mode {   GPMS__MODE_AUTONOMOUS = 'A' , GPMS__MODE_DIFFERENTIAL = 'D' , GPMS__MODE_ESTIMATED = 'E' , GPMS__MODE_MANUAL = 'M' ,   GPMS__MODE_SIMULATED = 'S' , GPMS__MODE_DATA_NOT_VALID = 'N' }
	DS-GPM.S modes enum. More...
enum	GPMS_north { GPMS__TRUE_NORTH = 0U , GPMS__MAGNETIC_NORTH }
	DS-GPM.S north type. More...

Functions
FctERR	GPMS_Init (void)
	Initialization for GPMS peripheral.
FctERR	GPMS_Write (const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for GPMS.
FctERR	GPMS_Read (uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for GPMS.

Detailed Description

DS-GPM.S Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

DS-GPM.S: 99 Channel Positioning System (GPS + GLONASS) Shield

Macro Definition Documentation

GPMS_ADDR

#define GPMS_ADDR   0x68U

DS-GPM.S address.

GPMS_BASE_ADDR

#define GPMS_BASE_ADDR   (GPMS_ADDR + GPMS_JUMPER_A0_A1)

DS-GPM.S Base address.

Note

Define GPMS_BASE_ADDR to change default device base address

GPMS_JUMPER_A0

#define GPMS_JUMPER_A0   2U

DS-GPM.S index with jumper A0.

GPMS_JUMPER_A0_A1

#define GPMS_JUMPER_A0_A1   0U

DS-GPM.S index with jumper A0 & A1.

GPMS_JUMPER_A1

#define GPMS_JUMPER_A1   1U

DS-GPM.S index with jumper A1.

GPMS_JUMPER_NONE

#define GPMS_JUMPER_NONE   3U

DS-GPM.S index with no jumper.

Enumeration Type Documentation

GPMS_direction

enum GPMS_direction

DS-GPM.S direction enum.

Enumerator
GPMS__DIR_EAST	Direction East.
GPMS__DIR_NORTH	Direction North.
GPMS__DIR_SOUTH	Direction South.
GPMS__DIR_WEST	Direction West.

GPMS_mode

enum GPMS_mode

DS-GPM.S modes enum.

Enumerator
GPMS__MODE_AUTONOMOUS	Autonomous mode.
GPMS__MODE_DIFFERENTIAL	Differential mode.
GPMS__MODE_ESTIMATED	Estimated mode.
GPMS__MODE_MANUAL	Manual input mode.
GPMS__MODE_SIMULATED	Simulated mode.
GPMS__MODE_DATA_NOT_VALID	Data not valid.

GPMS_north

enum GPMS_north

DS-GPM.S north type.

Enumerator
GPMS__TRUE_NORTH	True north.
GPMS__MAGNETIC_NORTH	Magnetic north.

GPMS_quality

enum GPMS_quality

DS-GPM.S signal quality.

Enumerator
GPMS__NO_GPS	No GPS.
GPMS__GPS	GPS.
GPMS__DGPS	DGPS.

GPMS_rd_reg

enum GPMS_rd_reg

Read register map enum of DS-GPM.S.

Enumerator
GPMS__HOURS_TENS	Hours tens register.
GPMS__HOURS_UNITS	Hours units register.
GPMS__MINUTES_TENS	Minutes tens register.
GPMS__MINUTES_UNITS	Minutes units register.
GPMS__SECONDS_TENS	Seconds tens register.
GPMS__SECONDS_UNITS	Seconds units register.
GPMS__DAY_OF_MONTH_TENS	Day of month tens register.
GPMS__DAY_OF_MONTH_UNITS	Day of month units register.
GPMS__MONTH_TENS	Month tens register.
GPMS__MONTH_UNITS	Month units register.
GPMS__YEARS_THOUSANDS	Years thousands register.
GPMS__YEARS_HUNDREDS	Years hundreds register.
GPMS__YEARS_TENS	Years tens register.
GPMS__YEARS_UNITS	Years units register.
GPMS__LATITUDE_DEGREES_TENS	Latitude degree tens register.
GPMS__LATITUDE_DEGREES_UNITS	Latitude degree units register.
GPMS__LATITUDE_MINUTES_TENS	Latitude minutes tens register.
GPMS__LATITUDE_MINUTES_UNITS	Latitude minutes units register.
GPMS__LATITUDE_MINUTES_TENTHS	Latitude minutes tenths register.
GPMS__LATITUDE_MINUTES_HUNDREDTHS	Latitude minutes hundredths register.
GPMS__LATITUDE_MINUTES_THOUSANDS	Latitude minutes thousands register.
GPMS__LATITUDE_MINUTES_TEN_THOUSANDS	Latitude minutes ten thousands register.
GPMS__LATITUDE_DIRECTION_CHARACTER	Latitude direction character register.
GPMS__LONGITUDE_DEGREES_HUNDREDTHS	Longitude degrees hundredths register.
GPMS__LONGITUDE_DEGREES_TENS	Longitude degrees tens register.
GPMS__LONGITUDE_DEGREES_UNITS	Longitude degrees units register.
GPMS__LONGITUDE_MINUTES_TENS	Longitude minutes tens register.
GPMS__LONGITUDE_MINUTES_UNITS	Longitude minutes units register.
GPMS__LONGITUDE_MINUTES_TENTHS	Longitude minutes tenths register.
GPMS__LONGITUDE_MINUTES_HUNDREDTHS	Longitude minutes hundredths register.
GPMS__LONGITUDE_MINUTES_THOUSANDS	Longitude minutes thousands register.
GPMS__LONGITUDE_MINUTES_TEN_THOUSANDS	Longitude minutes ten thousands register.
GPMS__LONGITUDE_DIRECTION_CHARACTER	Longitude direction character register.
GPMS__GPS_QUALITY_INDICATOR	GPS quality indicator.
GPMS__SATELLITES_IN_USE_TENS	Satellites in use tens register.
GPMS__SATELLITES_IN_USE_UNITS	Satellites in use units register.
GPMS__HDOP_TENS	HDOP tens register.
GPMS__HDOP_UNITS	HDOP units register.
GPMS__HDOP_TENTHS	HDOP tenths register.
GPMS__ALTITUDE_TENS_OF_THOUSANDS	Altitude (m) tens of thousands register.
GPMS__ALTITUDE_THOUSANDS	Altitude (m) thousands register.
GPMS__ALTITUDE_HUNDREDS	Altitude (m) hundreds register.
GPMS__ALTITUDE_TENS	Altitude (m) tens register.
GPMS__ALTITUDE_UNITS	Altitude (m) units register.
GPMS__HEADING_DEGREES_TRUE_HUNDREDS	Heading degrees (true North) hundreds register.
GPMS__HEADING_DEGREES_TRUE_TENS	Heading degrees (true North) tens register.
GPMS__HEADING_DEGREES_TRUE_UNITS	Heading degrees (true North) units register.
GPMS__HEADING_DEGREES_TRUE_TENTHS	Heading degrees (true North) tenths register.
GPMS__HEADING_DEGREES_MAGNETIC_HUNDREDS	Heading degrees (magnetic North) hundreds register.
GPMS__HEADING_DEGREES_MAGNETIC_TENS	Heading degrees (magnetic North) tens register.
GPMS__HEADING_DEGREES_MAGNETIC_UNITS	Heading degrees (magnetic North) units register.
GPMS__HEADING_DEGREES_MAGNETIC_TENTHS	Heading degrees (magnetic North) tenths register.
GPMS__SPEED_HUNDREDS	Speed hundreds register.
GPMS__SPEED_TENS	Speed tens register.
GPMS__SPEED_UNITS	Speed units register.
GPMS__SPEED_TENTHS	Speed tenths register.
GPMS__GPS_MODE	GPS mode character register.
GPMS__AN0_VALUE	Local analogic input AN0 value register.
GPMS__AN1_VALUE	Local analogic input AN1 value register.
GPMS__AN2_VALUE	Local analogic input AN2 value register.
GPMS__AN3_VALUE	Local analogic input AN3 value register.
GPMS__IOS_VALUE	Local I/O port input value.
GPMS__STATUS	DS-GPM.S Status register.

GPMS_wr_reg

enum GPMS_wr_reg

Write register map enum of DS-GPM.S.

Enumerator
GPMS__IO_DIRECTION	Local IO port direction register.
GPMS__IO_INPUT_TYPE	Local IO port input type register.
GPMS__IO_PORT_OUTPUT	Local IO port output data register.

Function Documentation

GPMS_Init()

FctERR GPMS_Init

(

void

)

Initialization for GPMS peripheral.

Weak Functions

GPMS Base address may be changed if user implemented

Returns

FctERR - error code

Here is the call graph for this function:

GPMS_Read()

FctERR GPMS_Read	(	uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for GPMS.

Parameters

[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

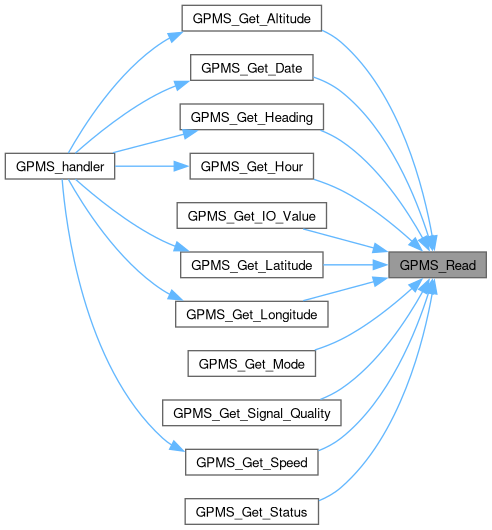

Here is the caller graph for this function:

GPMS_Write()

FctERR GPMS_Write	(	const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for GPMS.

Parameters

[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
