DRV2605L.c File Reference

DRV2605L Driver. More...

#include "DRV2605L.h"

Include dependency graph for DRV2605L.c:

Functions
FctERR	DRV2605L_Init (void)
	Initialization for DRV2605L peripheral.
FctERR	DRV2605L_Write (const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for DRV2605L.
FctERR	DRV2605L_Read (uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for DRV2605L.

Detailed Description

DRV2605L Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

DRV2605L: 2 to 5.2V Haptic Driver for LRA and ERM With Effect Library and Smart-Loop Architecture

Function Documentation

DRV2605L_Init()

FctERR DRV2605L_Init

(

void

)

Initialization for DRV2605L peripheral.

Weak Functions

DRV2605L Base address may be changed if user implemented

Returns

FctERR - error code

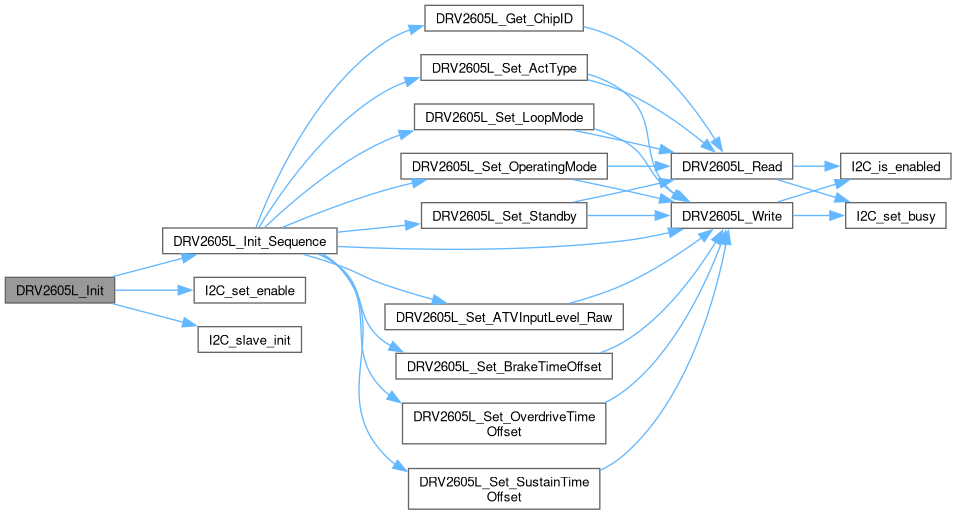

Here is the call graph for this function:

DRV2605L_Read()

FctERR DRV2605L_Read	(	uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for DRV2605L.

Parameters

[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

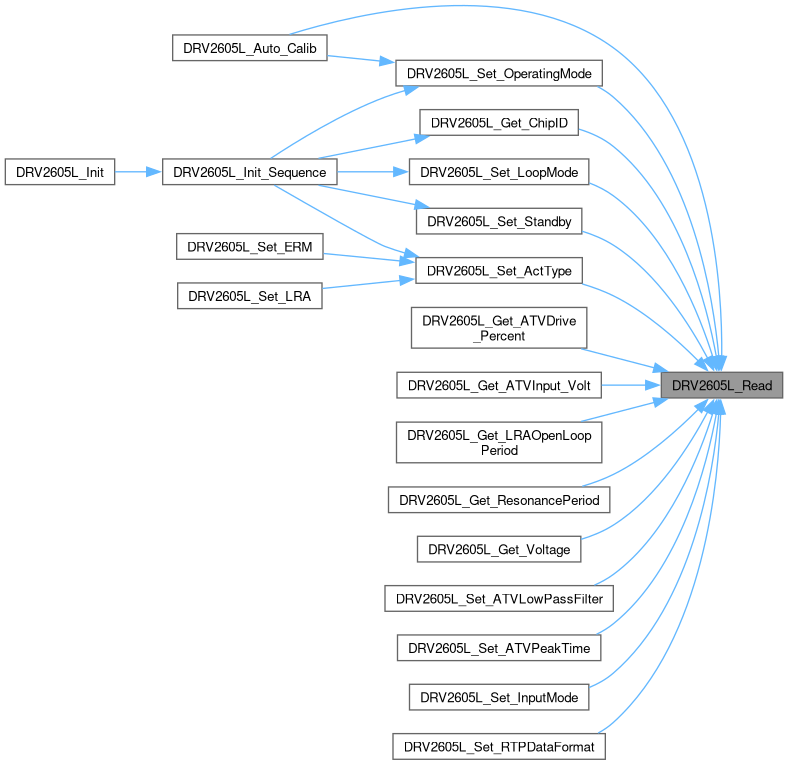

Here is the caller graph for this function:

DRV2605L_Write()

FctERR DRV2605L_Write	(	const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for DRV2605L.

Parameters

[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

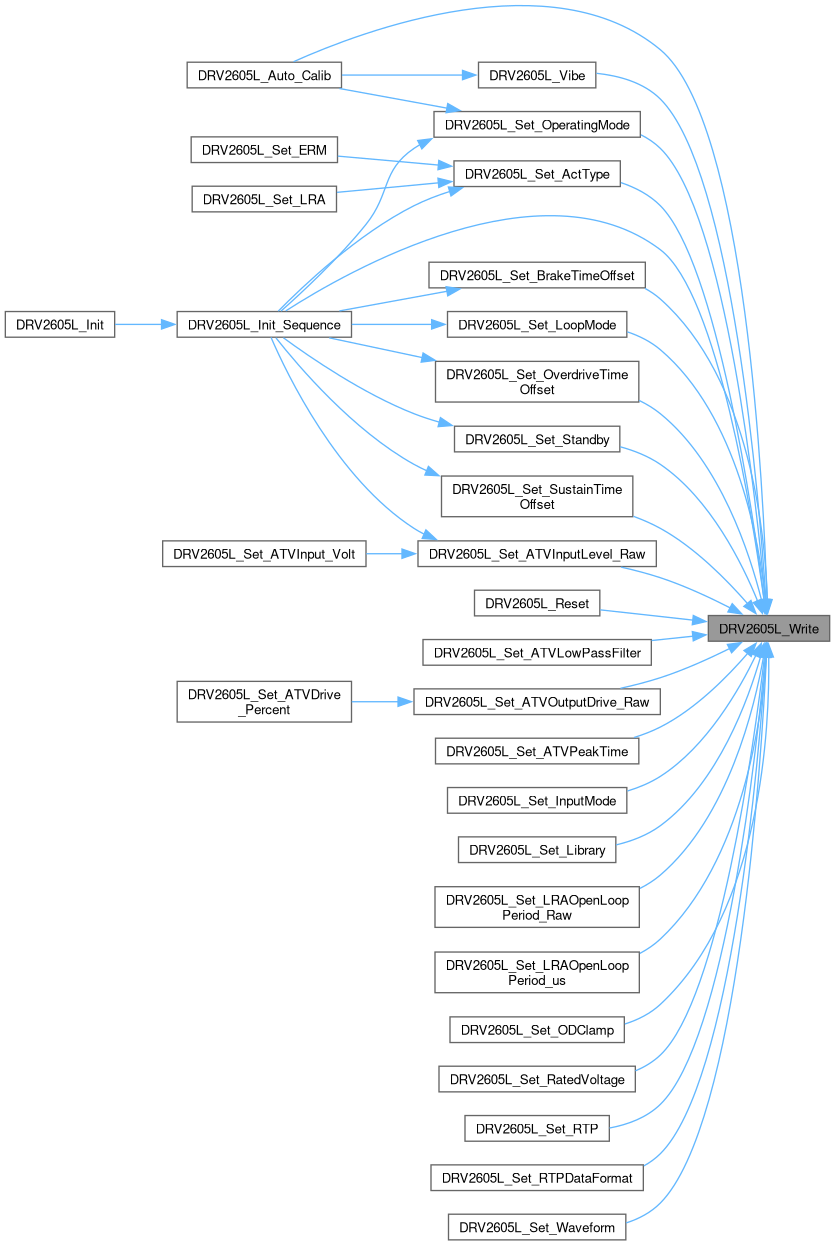

Here is the caller graph for this function:
