S11059_proc.h File Reference

S11059 Driver procedures. More...

#include "sarmfsw.h"
#include "S11059.h"

Include dependency graph for S11059_proc.h:

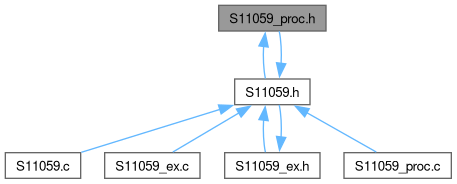

This graph shows which files directly or indirectly include this file:

Data Structures
struct	S11059_t
	S11059 user interface struct. More...

Functions
FctERR	S11059_Init_Sequence (S11059_t *const pCpnt)
	Initialization Sequence for S11059 peripheral.
uint32_t	S11059_Get_Full_Integration_Time (const S11059_integ mode, const S11059_prescaler prescaler, const uint16_t mult)
	Get S11059 integration time for all channels.
FctERR	S11059_handler (S11059_t *const pCpnt)
	Handler for S11059 peripheral.
FctERR	S11059_handler_all (void)
	Handler for all S11059 peripherals.

Variables
S11059_t	S11059 [I2C_S11059_NB]
	S11059 User structure.

Detailed Description

S11059 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

S11059: I2C interface-compatible color sensor

Function Documentation

S11059_Get_Full_Integration_Time()

uint32_t S11059_Get_Full_Integration_Time	(	const S11059_integ	mode,
		const S11059_prescaler	prescaler,
		const uint16_t	mult )

Get S11059 integration time for all channels.

Parameters

[in]	mode	- Fixed period / Manual integration
[in]	prescaler	- Integration time base (prescaler)
[in]	mult	- Integration time multiplier value

Returns

Full integration time in us

Here is the caller graph for this function:

S11059_handler()

FctERR S11059_handler

(

S11059_t *const

pCpnt

)

Handler for S11059 peripheral.

Weak Functions

S11059 handler may be user implemented to suit custom needs

Note

May be called periodically to handle S11059 tasks

Parameters

[in]

pCpnt

- Pointer to S11059 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

S11059_handler_all()

FctERR S11059_handler_all

(

void

)

Handler for all S11059 peripherals.

Note

May be called periodically to handle all S11059 tasks

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Init_Sequence()

FctERR S11059_Init_Sequence

(

S11059_t *const

pCpnt

)

Initialization Sequence for S11059 peripheral.

Weak Functions

S11059 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to S11059 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

S11059

S11059_t S11059[I2C_S11059_NB]

extern

S11059 User structure.
