S11059.h File Reference

S11059 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "S11059_proc.h"
#include "S11059_ex.h"

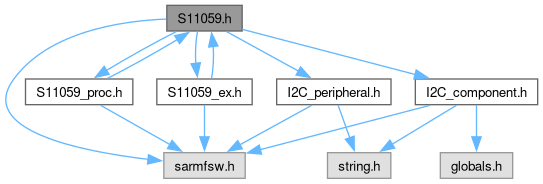

Include dependency graph for S11059.h:

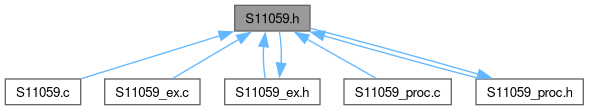

This graph shows which files directly or indirectly include this file:

Data Structures
union	uS11059_REG__CONTROL
	Union for CONTROL register of S11059. More...

Macros
#define	I2C_S11059_NB   1U
	Number of S11059 peripherals.
#define	S11059_ADDR   0x2AU
	S11059 address.
#define	S11059_BASE_ADDR   S11059_ADDR
	S11059 Base address.

Enumerations
enum	S11059_reg {   S11059__CONTROL = 0U , S11059__MANUAL_TIMING_MSB , S11059__MANUAL_TIMING_LSB , S11059__RED_DATA_MSB ,   S11059__RED_DATA_LSB , S11059__GREEN_DATA_MSB , S11059__GREEN_DATA_LSB , S11059__BLUE_DATA_MSB ,   S11059__BLUE_DATA_LSB , S11059__IR_DATA_MSB , S11059__IR_DATA_LSB }
	Register map enum of S11059. More...
enum	S11059_prescaler { S11059__INTEG_87_5US = 0U , S11059__INTEG_1_4MS , S11059__INTEG_22_4MS , S11059__INTEG_179_2MS }
	Integration times of S11059. More...
enum	S11059_integ { S11059__FIXED_PERIOD_INTEGRATION = 0U , S11059__MANUAL_INTEGRATION }
	Integration modes of S11059. More...
enum	S11059_gain { S11059__LOW_GAIN = 0U , S11059__HIGH_GAIN }
	Gain values of S11059. More...
enum	S11059_standby_fct { S11059__OPERATING_MODE = 0U , S11059__STANDBY_MODE }
	Standby function of S11059. More...
enum	S11059_adc_reset { S11059__ADC_OPERATION = 0U , S11059__ADC_RESET }
	ADC operation mode of S11059. More...

Functions
FctERR	S11059_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for S11059 peripheral.
FctERR	S11059_Init_Single (void)
	Initialization for S11059 peripheral.
FctERR	S11059_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for S11059.
FctERR	S11059_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for S11059.
FctERR	S11059_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (big endian) function for S11059.
FctERR	S11059_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (big endian) function for S11059.

Detailed Description

S11059 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

S11059: I2C interface-compatible color sensor

Macro Definition Documentation

I2C_S11059_NB

#define I2C_S11059_NB   1U

Number of S11059 peripherals.

Note

Define I2C_S11059_NB to enable multiple peripherals of this type

S11059_ADDR

#define S11059_ADDR   0x2AU

S11059 address.

S11059_BASE_ADDR

#define S11059_BASE_ADDR   S11059_ADDR

S11059 Base address.

Note

Define S11059_BASE_ADDR to change default device base address

Enumeration Type Documentation

S11059_adc_reset

enum S11059_adc_reset

ADC operation mode of S11059.

Enumerator
S11059__ADC_OPERATION	Operation.
S11059__ADC_RESET	Reset.

S11059_gain

enum S11059_gain

Gain values of S11059.

Enumerator
S11059__LOW_GAIN	Low gain mode (x1)
S11059__HIGH_GAIN	High gain mode (x10)

S11059_integ

enum S11059_integ

Integration modes of S11059.

Enumerator
S11059__FIXED_PERIOD_INTEGRATION	Fixed period mode.
S11059__MANUAL_INTEGRATION	Manual setting mode.

S11059_prescaler

enum S11059_prescaler

Integration times of S11059.

Enumerator
S11059__INTEG_87_5US	87.5us integration time
S11059__INTEG_1_4MS	1.4ms integration time
S11059__INTEG_22_4MS	22.4ms integration time
S11059__INTEG_179_2MS	179.2ms integration time

S11059_reg

enum S11059_reg

Register map enum of S11059.

Enumerator
S11059__CONTROL	Control register.
S11059__MANUAL_TIMING_MSB	Manual timing register MSB.
S11059__MANUAL_TIMING_LSB	Manual timing register LSB.
S11059__RED_DATA_MSB	Sensor data register Red MSB.
S11059__RED_DATA_LSB	Sensor data register Red LSB.
S11059__GREEN_DATA_MSB	Sensor data register Green MSB.
S11059__GREEN_DATA_LSB	Sensor data register Green LSB.
S11059__BLUE_DATA_MSB	Sensor data register Blue MSB.
S11059__BLUE_DATA_LSB	Sensor data register Blue LSB.
S11059__IR_DATA_MSB	Sensor data register Infra-red MSB.
S11059__IR_DATA_LSB	Sensor data register Infra-red LSB.

S11059_standby_fct

enum S11059_standby_fct

Standby function of S11059.

Enumerator
S11059__OPERATING_MODE	Operating mode.
S11059__STANDBY_MODE	Standby mode.

Function Documentation

S11059_Init()

FctERR S11059_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for S11059 peripheral.

Parameters

[in]	idx	- S11059 index
[in]	hi2c	- pointer to S11059 I2C instance
[in]	devAddress	- S11059 device address

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

S11059_Init_Single()

FctERR S11059_Init_Single

(

void

)

Initialization for S11059 peripheral.

Warning

In case multiple devices (defined by I2C_S11059_NB > 1), you shall use S11059_Init instead

Returns

FctERR - error code

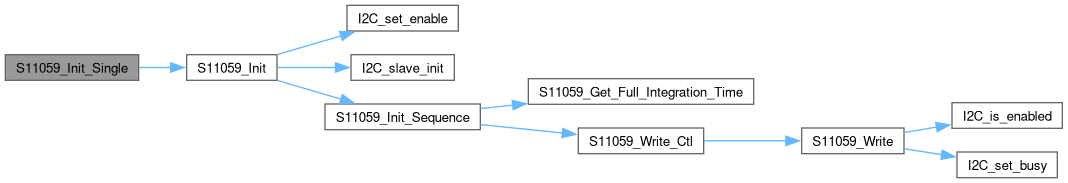

Here is the call graph for this function:

S11059_Read()

FctERR S11059_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for S11059.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

S11059_Read_Word()

FctERR S11059_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (big endian) function for S11059.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

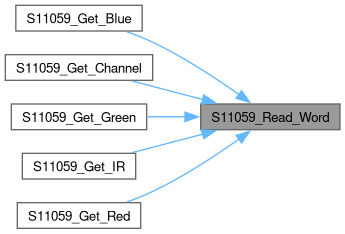

Here is the caller graph for this function:

S11059_Write()

FctERR S11059_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for S11059.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

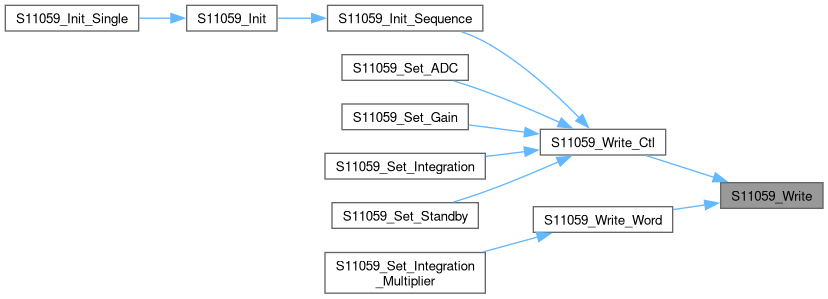

Here is the caller graph for this function:

S11059_Write_Word()

FctERR S11059_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (big endian) function for S11059.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
