TCS3400.h File Reference

TCS3400 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "TCS3400_proc.h"
#include "TCS3400_ex.h"

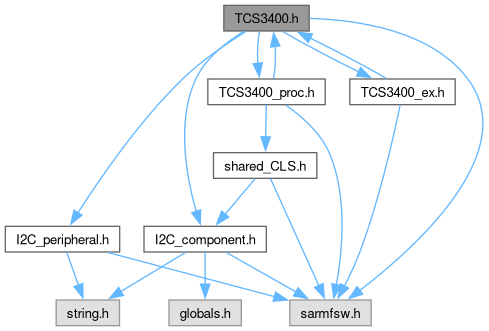

Include dependency graph for TCS3400.h:

This graph shows which files directly or indirectly include this file:

Data Structures
union	uTCS3400_REG__ENABLE
	Union for ENABLE register of TCS3400. More...
union	uTCS3400_REG__PERSIST
	Union for PERSIST register of TCS3400. More...
union	uTCS3400_REG__CONFIG
	Union for CONFIG register of TCS3400. More...
union	uTCS3400_REG__CONTROL
	Union for CONTROL register of TCS3400. More...
union	uTCS3400_REG__AUX
	Union for AUX register of TCS3400. More...
union	uTCS3400_REG__STATUS
	Union for STATUS register of TCS3400. More...
union	uTCS3400_REG__IR
	Union for IR sensor access register of TCS3400. More...

Macros
#define	I2C_TCS3400_NB   1U
	Number of TCS3400 peripherals.
#define	TCS34001_ADDR   0x39U
	TCS34001 Base address.
#define	TCS34003_ADDR   0x39U
	TCS34003 Base address.
#define	TCS34005_ADDR   0x29U
	TCS34005 Base address.
#define	TCS34007_ADDR   0x29U
	TCS34007 Base address.
#define	TCS3400_BASE_ADDR   TCS34005_ADDR
	TCS3400 Base address.

Enumerations
enum	TCS3400_reg {   TCS3400__ENABLE = 0x80U , TCS3400__ATIME , TCS3400__WTIME = 0x83U , TCS3400__AILTL ,   TCS3400__AILTH , TCS3400__AIHTL , TCS3400__AIHTH , TCS3400__PERSIST = 0x8CU ,   TCS3400__CONFIG , TCS3400__CONTROL = 0x8FU , TCS3400__AUX , TCS3400__REVID ,   TCS3400__ID , TCS3400__STATUS , TCS3400__CDATAL , TCS3400__CDATAH ,   TCS3400__RDATAL , TCS3400__RDATAH , TCS3400__GDATAL , TCS3400__GDATAH ,   TCS3400__BDATAL , TCS3400__BDATAH , TCS3400__IR = 0xC0U , TCS3400__IFORCE = 0xE4U ,   TCS3400__CICLEAR = 0xE6U , TCS3400__AICLEAR = 0xE7U }
	Register map enum of TCS3400. More...
enum	TCS3400_gain { TCS3400__LOW_GAIN = 0U , TCS3400__MEDIUM_GAIN , TCS3400__HIGH_GAIN , TCS3400__MAXIMUM_GAIN }
	Gain values of TCS3400. More...
enum	TCS3400_it_persist {   TCS3400__PERSIST_EVERY_RGBC_CYCLE = 0U , TCS3400__PERSIST_ANY_OUTSIDE_THRESHOLD , TCS3400__PERSIST_2_IT_PERIODS , TCS3400__PERSIST_3_IT_PERIODS ,   TCS3400__PERSIST_5_IT_PERIODS , TCS3400__PERSIST_10_IT_PERIODS , TCS3400__PERSIST_15_IT_PERIODS , TCS3400__PERSIST_20_IT_PERIODS ,   TCS3400__PERSIST_25_IT_PERIODS , TCS3400__PERSIST_30_IT_PERIODS , TCS3400__PERSIST_35_IT_PERIODS , TCS3400__PERSIST_40_IT_PERIODS ,   TCS3400__PERSIST_45_IT_PERIODS , TCS3400__PERSIST_50_IT_PERIODS , TCS3400__PERSIST_55_IT_PERIODS , TCS3400__PERSIST_60_IT_PERIODS }
	Persistence control of TCS3400. More...

Functions
FctERR	TCS3400_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for TCS3400 peripheral.
FctERR	TCS3400_Init_Single (void)
	Initialization for TCS3400 peripheral.
FctERR	TCS3400_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for TCS3400.
FctERR	TCS3400_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for TCS3400.
FctERR	TCS3400_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for TCS3400.
FctERR	TCS3400_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for TCS3400.

Detailed Description

TCS3400 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TCS3400: Color Light-to-Digital Converter

Macro Definition Documentation

I2C_TCS3400_NB

#define I2C_TCS3400_NB   1U

Number of TCS3400 peripherals.

Note

Define I2C_TCS3400_NB to enable multiple peripherals of this type

TCS34001_ADDR

#define TCS34001_ADDR   0x39U

TCS34001 Base address.

TCS34003_ADDR

#define TCS34003_ADDR   0x39U

TCS34003 Base address.

TCS34005_ADDR

#define TCS34005_ADDR   0x29U

TCS34005 Base address.

TCS34007_ADDR

#define TCS34007_ADDR   0x29U

TCS34007 Base address.

TCS3400_BASE_ADDR

#define TCS3400_BASE_ADDR   TCS34005_ADDR

TCS3400 Base address.

Note

Define TCS3400_BASE_ADDR to change default device base address

Enumeration Type Documentation

TCS3400_gain

enum TCS3400_gain

Gain values of TCS3400.

Enumerator
TCS3400__LOW_GAIN	Low gain mode (x1)
TCS3400__MEDIUM_GAIN	Medium gain mode (x4)
TCS3400__HIGH_GAIN	High gain mode (x16)
TCS3400__MAXIMUM_GAIN	Maximum gain mode (x64)

TCS3400_it_persist

enum TCS3400_it_persist

Persistence control of TCS3400.

Enumerator
TCS3400__PERSIST_EVERY_RGBC_CYCLE	Every RGBC cycle generates interrupt.
TCS3400__PERSIST_ANY_OUTSIDE_THRESHOLD	Any value outside of threshold range.
TCS3400__PERSIST_2_IT_PERIODS	2 consecutive values out of range
TCS3400__PERSIST_3_IT_PERIODS	3 consecutive values out of range
TCS3400__PERSIST_5_IT_PERIODS	5 consecutive values out of range
TCS3400__PERSIST_10_IT_PERIODS	10 consecutive values out of range
TCS3400__PERSIST_15_IT_PERIODS	15 consecutive values out of range
TCS3400__PERSIST_20_IT_PERIODS	20 consecutive values out of range
TCS3400__PERSIST_25_IT_PERIODS	25 consecutive values out of range
TCS3400__PERSIST_30_IT_PERIODS	30 consecutive values out of range
TCS3400__PERSIST_35_IT_PERIODS	35 consecutive values out of range
TCS3400__PERSIST_40_IT_PERIODS	40 consecutive values out of range
TCS3400__PERSIST_45_IT_PERIODS	45 consecutive values out of range
TCS3400__PERSIST_50_IT_PERIODS	50 consecutive values out of range
TCS3400__PERSIST_55_IT_PERIODS	55 consecutive values out of range
TCS3400__PERSIST_60_IT_PERIODS	60 consecutive values out of range

TCS3400_reg

enum TCS3400_reg

Register map enum of TCS3400.

Enumerator
TCS3400__ENABLE	Enables states and interrupts.
TCS3400__ATIME	RGBC time.
TCS3400__WTIME	Wait time.
TCS3400__AILTL	Clear interrupt low threshold low byte.
TCS3400__AILTH	Clear interrupt low threshold high byte.
TCS3400__AIHTL	Clear interrupt high threshold low byte.
TCS3400__AIHTH	Clear interrupt high threshold high byte.
TCS3400__PERSIST	Interrupt persistence filter.
TCS3400__CONFIG	Configuration.
TCS3400__CONTROL	Control.
TCS3400__AUX	Auxiliary control.
TCS3400__REVID	Revision ID.
TCS3400__ID	Device ID.
TCS3400__STATUS	Device status.
TCS3400__CDATAL	Clear / IR channel low data byte.
TCS3400__CDATAH	Clear / IR channel high data byte.
TCS3400__RDATAL	Red low data byte.
TCS3400__RDATAH	Red high data byte.
TCS3400__GDATAL	Green low data byte.
TCS3400__GDATAH	Green high data byte.
TCS3400__BDATAL	Blue low data byte.
TCS3400__BDATAH	Blue high data byte.
TCS3400__IR	Access IR channel.
TCS3400__IFORCE	Force interrupt.
TCS3400__CICLEAR	Clear channel interrupt clear.
TCS3400__AICLEAR	Clear all interrupts.

Function Documentation

TCS3400_Init()

FctERR TCS3400_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for TCS3400 peripheral.

Parameters

[in]	idx	- TCS3400 index
[in]	hi2c	- pointer to TCS3400 I2C instance
[in]	devAddress	- TCS3400 device address

Returns

FctERR - error code

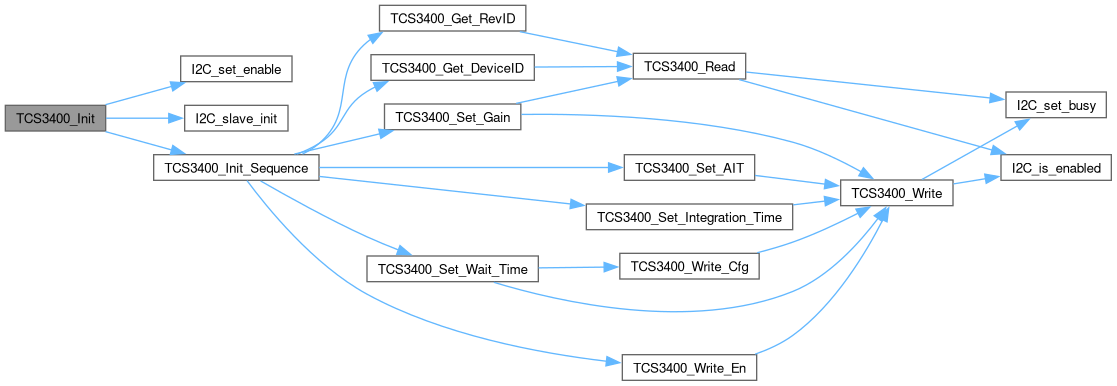

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3400_Init_Single()

FctERR TCS3400_Init_Single

(

void

)

Initialization for TCS3400 peripheral.

Warning

In case multiple devices (defined by I2C_TCS3400_NB > 1), you shall use TCS3400_Init instead

Returns

FctERR - error code

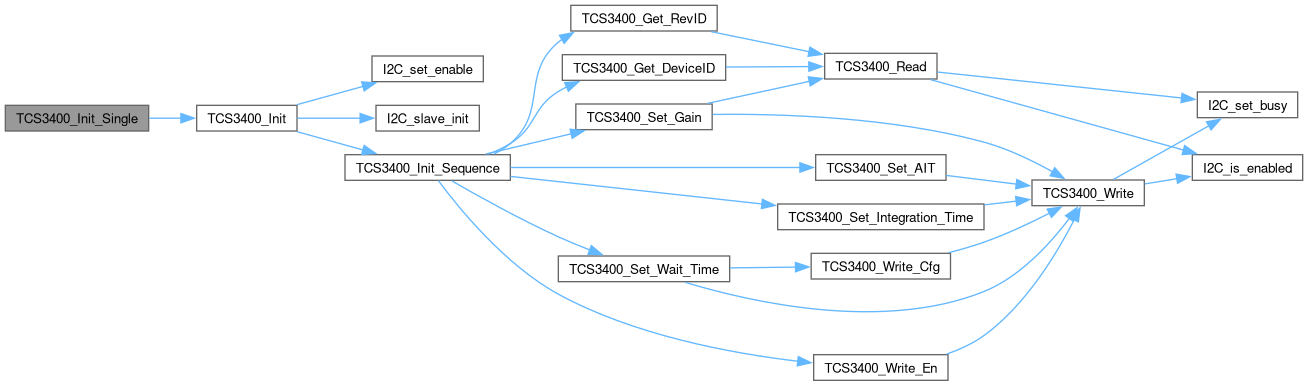

Here is the call graph for this function:

TCS3400_Read()

FctERR TCS3400_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for TCS3400.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

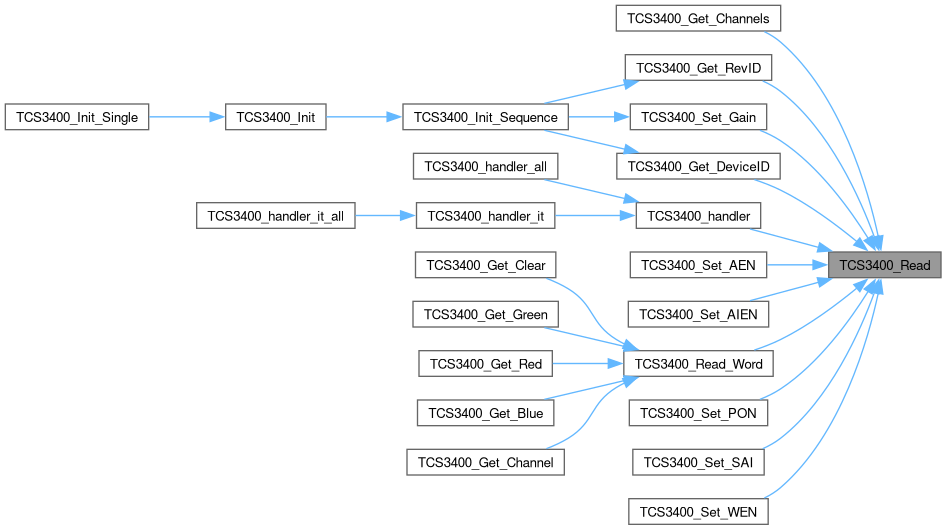

Here is the caller graph for this function:

TCS3400_Read_Word()

FctERR TCS3400_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for TCS3400.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3400_Write()

FctERR TCS3400_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for TCS3400.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

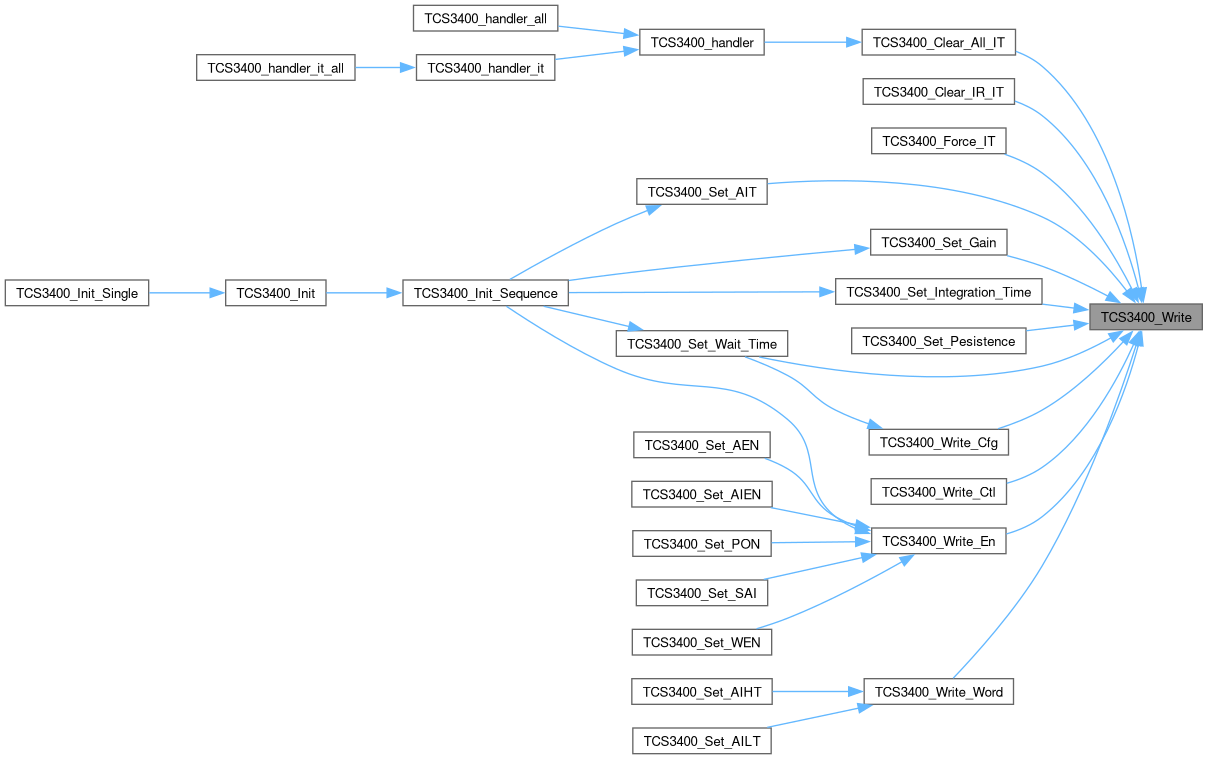

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3400_Write_Word()

FctERR TCS3400_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for TCS3400.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
