TCS3400_proc.h File Reference

TCS3400 Driver procedures. More...

#include "sarmfsw.h"
#include "TCS3400.h"
#include "shared_CLS.h"

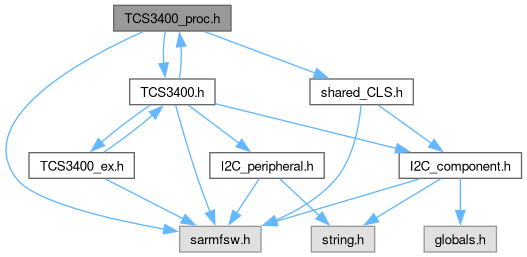

Include dependency graph for TCS3400_proc.h:

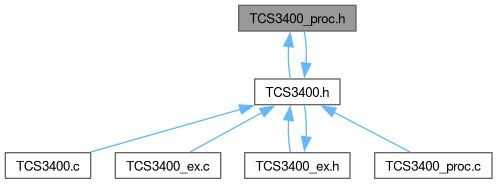

This graph shows which files directly or indirectly include this file:

Data Structures
struct	TCS3400_t
	TCS3400 user interface struct. More...

Macros
#define	TCS34005_CHIP_ID   0x90U
	TCS34001/TCS34005 Chip ID to check against.
#define	TCS34007_CHIP_ID   0x93U
	TCS34003/TCS34007 Chip ID to check against.
#define	TCS3400_IR_COUNT   13.3f
	Counts per uW/cm2 for IR channel.
#define	TCS3400_CLEAR_COUNT   14.0f
	Counts per uW/cm2 for Clear channel.
#define	TCS3400_RED_COUNT   17.0f
	Counts per uW/cm2 for Red channel.
#define	TCS3400_GREEN_COUNT   14.5f
	Counts per uW/cm2 for Green channel.
#define	TCS3400_BLUE_COUNT   11.8f
	Counts per uW/cm2 for Blue channel.

Functions
FctERR	TCS3400_Init_Sequence (TCS3400_t *const pCpnt)
	Initialization Sequence for TCS3400 peripheral.
uint32_t	TCS3400_Get_Temp (const TCS3400_t *const pCpnt)
	Get current Color temperature (in Kelvin)
uint32_t	TCS3400_Get_Lux (const TCS3400_t *const pCpnt)
	Get current Illuminance (in lux)
FctERR	TCS3400_handler (TCS3400_t *const pCpnt)
	Handler for TCS3400 peripheral.
FctERR	TCS3400_handler_it (TCS3400_t *const pCpnt)
	Handler for TCS3400 peripheral GPIO interrupt.
FctERR	TCS3400_handler_all (void)
	Handler for all TCS3400 peripherals.
FctERR	TCS3400_handler_it_all (void)
	Handler for all TCS3400 peripherals GPIO interrupt.

Variables
TCS3400_t	TCS3400 [I2C_TCS3400_NB]
	TCS34000 User structure.

Detailed Description

TCS3400 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TCS3400: Color Light-to-Digital Converter

Macro Definition Documentation

TCS34005_CHIP_ID

#define TCS34005_CHIP_ID   0x90U

TCS34001/TCS34005 Chip ID to check against.

TCS34007_CHIP_ID

#define TCS34007_CHIP_ID   0x93U

TCS34003/TCS34007 Chip ID to check against.

TCS3400_BLUE_COUNT

#define TCS3400_BLUE_COUNT   11.8f

Counts per uW/cm2 for Blue channel.

TCS3400_CLEAR_COUNT

#define TCS3400_CLEAR_COUNT   14.0f

Counts per uW/cm2 for Clear channel.

TCS3400_GREEN_COUNT

#define TCS3400_GREEN_COUNT   14.5f

Counts per uW/cm2 for Green channel.

TCS3400_IR_COUNT

#define TCS3400_IR_COUNT   13.3f

Counts per uW/cm2 for IR channel.

TCS3400_RED_COUNT

#define TCS3400_RED_COUNT   17.0f

Counts per uW/cm2 for Red channel.

Function Documentation

TCS3400_Get_Lux()

uint32_t TCS3400_Get_Lux ( const TCS3400_t *const pCpnt )

inline

Get current Illuminance (in lux)

Parameters

[in]

pCpnt

- Pointer to TCS3400 component

Returns

FctERR - error code

TCS3400_Get_Temp()

uint32_t TCS3400_Get_Temp ( const TCS3400_t *const pCpnt )

inline

Get current Color temperature (in Kelvin)

Parameters

[in]

pCpnt

- Pointer to TCS3400 component

Returns

FctERR - error code

TCS3400_handler()

FctERR TCS3400_handler

(

TCS3400_t *const

pCpnt

)

Handler for TCS3400 peripheral.

Weak Functions

TCS3400 handler may be user implemented to suit custom needs

Note

May be called periodically to handle TCS3400 tasks

Alternately may be called when event occurs on TCS3400 pin (or by calling TCS3400_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to TCS3400 component

Returns

FctERR - error code

Here is the call graph for this function:

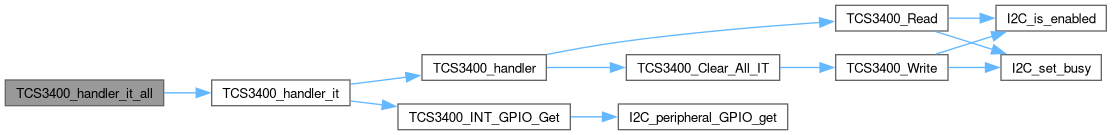

Here is the caller graph for this function:

TCS3400_handler_all()

FctERR TCS3400_handler_all

(

void

)

Handler for all TCS3400 peripherals.

Note

May be called periodically to handle all TCS3400 tasks

Returns

FctERR - error code

Here is the call graph for this function:

TCS3400_handler_it()

FctERR TCS3400_handler_it

(

TCS3400_t *const

pCpnt

)

Handler for TCS3400 peripheral GPIO interrupt.

Note

TCS3400_INT_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

TCS3400 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle TCS3400 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to TCS3400 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3400_handler_it_all()

FctERR TCS3400_handler_it_all

(

void

)

Handler for all TCS3400 peripherals GPIO interrupt.

Note

TCS3400_INT_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all TCS3400 tasks

Returns

FctERR - error code

Here is the call graph for this function:

TCS3400_Init_Sequence()

FctERR TCS3400_Init_Sequence

(

TCS3400_t *const

pCpnt

)

Initialization Sequence for TCS3400 peripheral.

Weak Functions

TCS3400 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to TCS3400 component

Returns

FctERR - error code

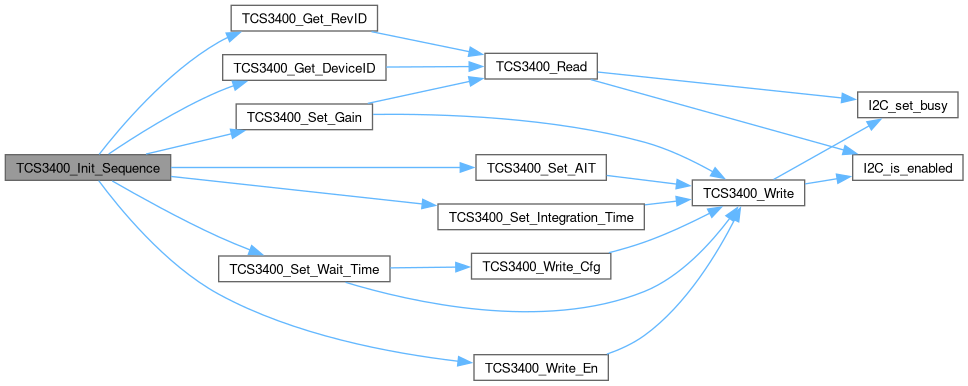

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

TCS3400

TCS3400_t TCS3400[I2C_TCS3400_NB]

extern

TCS34000 User structure.
