PCA9685 Driver extensions. More...

#include "sarmfsw.h"
#include "PCA9685.h"

Include dependency graph for PCA9685_ex.h:

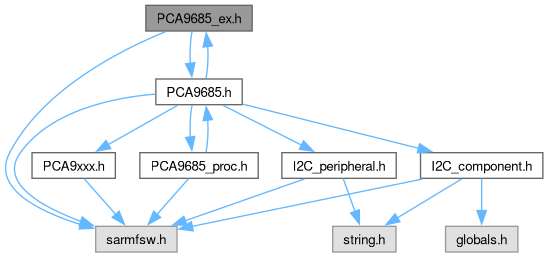

This graph shows which files directly or indirectly include this file:

Macros
#define	PCA9685_FREQ_HZ_MIN 24U
	Lower admissible frequency (when internal clock used)

#define	PCA9685_FREQ_HZ_MAX 1526U
	Upper admissible frequency (when internal clock used)

#define	PCA9685_CLOCK_FREQ 25000000UL
	PCA9685 Internal clock frequency.

#define	DefBitFullOnOff 0x10U
	Full ON / OFF bit on LEDxx_xxx_H.

#define	LED_OFFSET_H(chan)
	Macro for address offset computation ON_H for PWM channels.

#define	LED_OFFSET_L(chan)
	Macro for address offset computation ON_L for PWM channels.

Functions
FctERR	PCA9685_CalcVal (uint8_t val[4], const uint16_t duty, const uint16_t delay)
	Computes values for PCA9685 registers (4bytes) following duty and delay.

FctERR	PCA9685_CalcVal_NoDelay (uint8_t val[4], const uint16_t duty)
	Computes values for PCA9685 registers (4bytes) following duty (without delay)

FctERR	PCA9685_Freq_To_Byte (const PCA9685_t const pCpnt, uint8_t const byte, const uint16_t freq)
	Convert Frequency to Prescaler byte register.

float	PCA9685_Byte_To_Freq (PCA9685_t *const pCpnt, const uint8_t reg)
	Convert Prescaler byte register to Frequency (in Hz)

FctERR	PCA9685_Set_Latch (PCA9685_t *const pCpnt, const PCA96xx_latch latch)
	Set latch type for PCA9685 peripheral.

FctERR	PCA9685_Set_Frequency (PCA9685_t *const pCpnt, const uint16_t freq)
	Set frequency for PCA9685 peripheral.

FctERR	PCA9685_ReadVal (PCA9685_t const pCpnt, const PCA9xxx_chan chan, uint16_t duty)
	Read I2C lighting values from a LED and Computes the corresponding duty cycle value (12b)

FctERR	PCA9685_ReadValByte (PCA9685_t const pCpnt, const PCA9xxx_chan chan, uint8_t duty)
	Read I2C lighting values from a LED and Computes the corresponding duty cycle value (Byte)

FctERR	PCA9685_PutVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan, const uint16_t duty, const uint16_t delay)
	Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (12b)

FctERR	PCA9685_PutValByte (PCA9685_t *const pCpnt, const PCA9xxx_chan chan, const uint8_t duty, const uint8_t delay)
	Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Byte)

FctERR	PCA9685_PutValPerc (PCA9685_t *const pCpnt, const PCA9xxx_chan chan, const float duty, const float delay)
	Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Percent)

FctERR	PCA9685_SetVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan)
	Compute and send PWM Full ON value to apply on a PCA9685 channel or all channels (no delay)

FctERR	PCA9685_ClrVal (PCA9685_t *const pCpnt, const PCA9xxx_chan chan)
	Compute and send PWM Full OFF value to apply on a PCA9685 channel or all channels (no delay)

FctERR	PCA9685_Reset (PCA9685_t *const pCpnt)
	Reset for PCA9685 peripheral.

FctERR	PCA9685_Reset_All (I2C_HandleTypeDef *const hi2c)
	General call reset function for PCA9685.

FctERR	PCA9685_ReadRegister (PCA9685_t const pCpnt, const PCA9685_reg reg, uint8_t const val)
	Reads register from PCA9685.

void	PCA9685_OE_GPIO_Init (PCA9685_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Output Enable GPIO pin init for PCA9685.

void	PCA9685_OE_GPIO_Set (PCA9685_t *const pCpnt, const bool state)
	Output Enable GPIO pin setter for PCA9685.

Detailed Description

PCA9685 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

PCA9685: 16-channel, 12-bit PWM Fm+ I2C-bus LED controller

Macro Definition Documentation

◆ DefBitFullOnOff

#define DefBitFullOnOff 0x10U

Full ON / OFF bit on LEDxx_xxx_H.

◆ LED_OFFSET_H

#define LED_OFFSET_H ( chan )

Value:

((uint8_t) (PCA9685__LED0_ON_H + LSHIFT(chan, 2U)))

PCA9685__LED0_ON_H

@ PCA9685__LED0_ON_H

register LED 0 ON High

Definition PCA9685.h:53

Macro for address offset computation ON_H for PWM channels.

4 registers per channel -> 2 shifts left for next address

◆ LED_OFFSET_L

#define LED_OFFSET_L ( chan )

Value:

((uint8_t) (PCA9685__LED0_ON_L + LSHIFT(chan, 2U)))

PCA9685__LED0_ON_L

@ PCA9685__LED0_ON_L

register LED 0 ON Low

Definition PCA9685.h:52

Macro for address offset computation ON_L for PWM channels.

◆ PCA9685_CLOCK_FREQ

#define PCA9685_CLOCK_FREQ 25000000UL

PCA9685 Internal clock frequency.

◆ PCA9685_FREQ_HZ_MAX

#define PCA9685_FREQ_HZ_MAX 1526U

Upper admissible frequency (when internal clock used)

◆ PCA9685_FREQ_HZ_MIN

#define PCA9685_FREQ_HZ_MIN 24U

Lower admissible frequency (when internal clock used)

Function Documentation

◆ PCA9685_Byte_To_Freq()

float PCA9685_Byte_To_Freq	(	PCA9685_t *const	pCpnt,
		const uint8_t	reg )

inline

Convert Prescaler byte register to Frequency (in Hz)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	reg	- Prescaler register value

Returns: Frequency of PCA9685 outputs

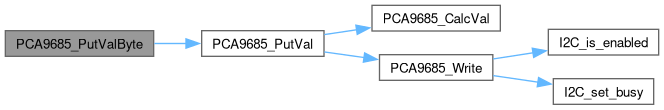

Here is the caller graph for this function:

◆ PCA9685_CalcVal()

FctERR PCA9685_CalcVal	(	uint8_t	val[4],
		const uint16_t	duty,
		const uint16_t	delay )

Computes values for PCA9685 registers (4bytes) following duty and delay.

Note: Useful to manually fill an array with registers values to send multiple channels at once in one I2C transaction; If no delay is required, PCA9685_CalcVal_NoDelay may be used instead

Parameters

[in,out]	val	- Pointer to 4 bytes array output
[in]	duty	- Duty cycle coded on 12b (0-4095)
[in]	delay	- Delay coded on 12b (0-<4095)

Returns: FctERR - error code

Here is the caller graph for this function:

◆ PCA9685_CalcVal_NoDelay()

FctERR PCA9685_CalcVal_NoDelay	(	uint8_t	val[4],
		const uint16_t	duty )

Computes values for PCA9685 registers (4bytes) following duty (without delay)

Note: Useful to manually fill an array with registers values to send multiple channels at once in one I2C transaction

Parameters

[in,out]	val	- Pointer to 4 bytes array output
[in]	duty	- Duty cycle coded on 12b (0-4095)

Returns: FctERR - error code

◆ PCA9685_ClrVal()

FctERR PCA9685_ClrVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Compute and send PWM Full OFF value to apply on a PCA9685 channel or all channels (no delay)

Note: No configured delay

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_Freq_To_Byte()

FctERR PCA9685_Freq_To_Byte	(	const PCA9685_t *const	pCpnt,
		uint8_t *const	byte,
		const uint16_t	freq )

Convert Frequency to Prescaler byte register.

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in,out]	byte	- Pointer to output value
[in]	freq	- Outputs frequency in Hz

Returns: FctERR - error code

Here is the caller graph for this function:

◆ PCA9685_OE_GPIO_Init()

void PCA9685_OE_GPIO_Init	(	PCA9685_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Output Enable GPIO pin init for PCA9685.

Weak Functions: PCA9685 Output Enable GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	GPIOx	- OE port
[in]	GPIO_Pin	- OE pin
[in]	GPIO_Active	OE pin active state

Here is the call graph for this function:

◆ PCA9685_OE_GPIO_Set()

void PCA9685_OE_GPIO_Set	(	PCA9685_t *const	pCpnt,
		const bool	state )

Output Enable GPIO pin setter for PCA9685.

Weak Functions: PCA9685 Output Enable GPIO pin setter may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	state	- state to write on OE pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ PCA9685_PutVal()

FctERR PCA9685_PutVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const uint16_t	duty,
		const uint16_t	delay )

Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (12b)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)
[in]	duty	- Duty cycle coded on 12b (0-4095)
[in]	delay	- Delay coded on 12b (0-<4095)

Returns: FctERR - ErrorCode

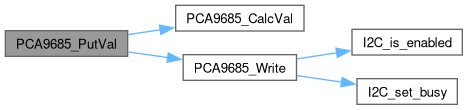

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9685_PutValByte()

FctERR PCA9685_PutValByte	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const uint8_t	duty,
		const uint8_t	delay )

inline

Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Byte)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)
[in]	duty	- Duty cycle coded on uint8_t (0-255)
[in]	delay	- Delay coded on uint8_t (0-<255)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_PutValPerc()

FctERR PCA9685_PutValPerc	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const float	duty,
		const float	delay )

Compute and send PWM lighting values to apply on a PCA9685 channel or all channels (Percent)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)
[in]	duty	- Duty cycle coded on float (0.0-100.0%)
[in]	delay	- Delay coded on float (0.0-<100.0%)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_ReadRegister()

FctERR PCA9685_ReadRegister	(	PCA9685_t *const	pCpnt,
		const PCA9685_reg	reg,
		uint8_t *const	val )

Reads register from PCA9685.

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	reg	- Register address to read from
[in,out]	val	- Pointer to the data for receive

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_ReadVal()

FctERR PCA9685_ReadVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		uint16_t *	duty )

Read I2C lighting values from a LED and Computes the corresponding duty cycle value (12b)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16)
[in,out]	duty	- Pointer to the DutyCycle data for receive coded on 12b

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_ReadValByte()

FctERR PCA9685_ReadValByte	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		uint8_t *	duty )

Read I2C lighting values from a LED and Computes the corresponding duty cycle value (Byte)

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- chan number (1 to 16)
[in,out]	duty	- Pointer to the DutyCycle data for receive coded on a Byte

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9685_Reset()

FctERR PCA9685_Reset ( PCA9685_t *const pCpnt )

Reset for PCA9685 peripheral.

Parameters

[in] pCpnt - Pointer to PCA9685 component

Returns: FctERR - error code

◆ PCA9685_Reset_All()

FctERR PCA9685_Reset_All ( I2C_HandleTypeDef *const hi2c )

General call reset function for PCA9685.

Parameters

[in] hi2c - pointer to general call I2C instance

Returns: FctERR - error code

◆ PCA9685_Set_Frequency()

FctERR PCA9685_Set_Frequency	(	PCA9685_t *const	pCpnt,
		const uint16_t	freq )

Set frequency for PCA9685 peripheral.

Note: Prescaler is calculated according to the use of PCA9685 internal oscillator; Freq(Hz) = Clock / ((PSCx(8b) + 1) * 4096) -> Internal clock is 25000000

Warning: beware for higher frequencies, using internal clock: 1526Hz max (3 in reg) drops to 1220Hz (4 in reg), 1017Hz (5 in reg)....

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	freq	- Frequency to apply (in Hz)

Returns: FctERR - error code

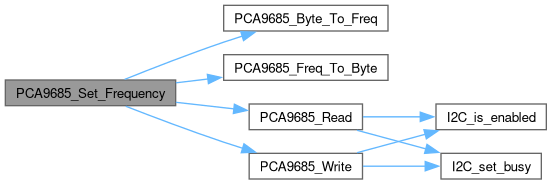

Here is the call graph for this function:

◆ PCA9685_Set_Latch()

FctERR PCA9685_Set_Latch	(	PCA9685_t *const	pCpnt,
		const PCA96xx_latch	latch )

Set latch type for PCA9685 peripheral.

Parameters

[in,out]	pCpnt	- Pointer to PCA9685 component
[in]	latch	- Latch type

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9685_SetVal()

FctERR PCA9685_SetVal	(	PCA9685_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Compute and send PWM Full ON value to apply on a PCA9685 channel or all channels (no delay)

Note: No configured delay

Parameters

[in]	pCpnt	- Pointer to PCA9685 component
[in]	chan	- Channel number (1 to 16 / PCA9685_ALLCALL can be used to address all channels at the same time)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ DefBitFullOnOff

◆ LED_OFFSET_H

◆ LED_OFFSET_L

◆ PCA9685_CLOCK_FREQ

◆ PCA9685_FREQ_HZ_MAX

◆ PCA9685_FREQ_HZ_MIN

Function Documentation

◆ PCA9685_Byte_To_Freq()

◆ PCA9685_CalcVal()

◆ PCA9685_CalcVal_NoDelay()

◆ PCA9685_ClrVal()

◆ PCA9685_Freq_To_Byte()

◆ PCA9685_OE_GPIO_Init()

◆ PCA9685_OE_GPIO_Set()

◆ PCA9685_PutVal()

◆ PCA9685_PutValByte()

◆ PCA9685_PutValPerc()

◆ PCA9685_ReadRegister()

◆ PCA9685_ReadVal()

◆ PCA9685_ReadValByte()

◆ PCA9685_Reset()

◆ PCA9685_Reset_All()

◆ PCA9685_Set_Frequency()

◆ PCA9685_Set_Latch()

◆ PCA9685_SetVal()
