AMG88_proc.c File Reference

AMG88 Driver procedures. More...

#include "AMG88.h"

Include dependency graph for AMG88_proc.c:

Functions
FctERR	AMG88_Init_Sequence (AMG88_t *const pCpnt)
	Initialization Sequence for AMG88 peripheral.
FctERR	AMG88_handler (AMG88_t *const pCpnt)
	Handler for AMG88 peripheral.
FctERR	AMG88_handler_it (AMG88_t *const pCpnt)
	Handler for AMG88 peripheral GPIO interrupt.
FctERR	AMG88_handler_all (void)
	Handler for all AMG88 peripherals.
FctERR	AMG88_handler_it_all (void)
	Handler for all AMG88 peripherals GPIO interrupt.

Variables
AMG88_t	AMG88 [I2C_AMG88_NB] = { 0 }
	AMG88 User structure.

Detailed Description

AMG88 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

AMG88: Infrared Array Sensor (Grid-EYE)

Function Documentation

AMG88_handler()

FctERR AMG88_handler

(

AMG88_t *const

pCpnt

)

Handler for AMG88 peripheral.

Weak Functions

AMG88 handler may be user implemented to suit custom needs

Note

May be called periodically to handle AMG88 tasks

Alternately may be called when event occurs on AMG88 pin (or by calling AMG88_handler_it instead)

Parameters

[in]

pCpnt

- Pointer to AMG88 component

Returns

FctERR - error code

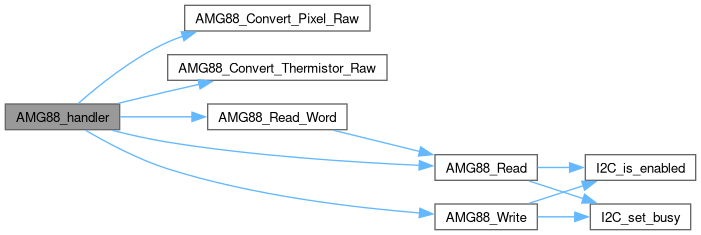

Here is the call graph for this function:

Here is the caller graph for this function:

AMG88_handler_all()

FctERR AMG88_handler_all

(

void

)

Handler for all AMG88 peripherals.

Note

May be called periodically to handle all AMG88 tasks

Returns

FctERR - error code

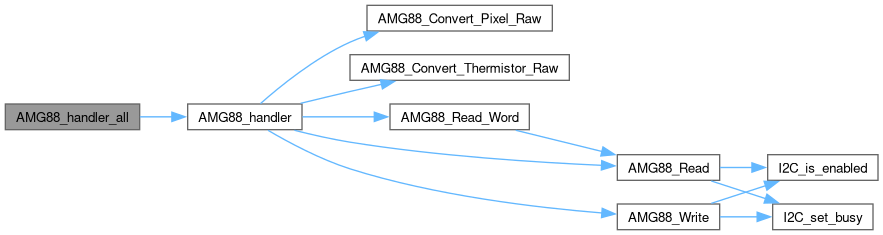

Here is the call graph for this function:

AMG88_handler_it()

FctERR AMG88_handler_it

(

AMG88_t *const

pCpnt

)

Handler for AMG88 peripheral GPIO interrupt.

Note

AMG88_INT_GPIO_Init has to be called at init before using interrupt handler function

Weak Functions

AMG88 GPIO interrupt handler may be user implemented to suit custom needs

Note

May be called periodically to handle AMG88 tasks through interrupts

Parameters

[in]

pCpnt

- Pointer to AMG88 component

Returns

FctERR - error code

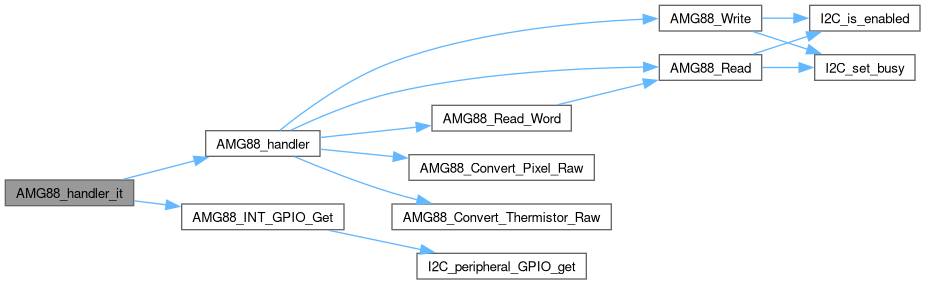

Here is the call graph for this function:

Here is the caller graph for this function:

AMG88_handler_it_all()

FctERR AMG88_handler_it_all

(

void

)

Handler for all AMG88 peripherals GPIO interrupt.

Note

AMG88_INT_GPIO_Init has to be called at init before using interrupt handler function

May be called periodically to handle all AMG88 tasks

Returns

FctERR - error code

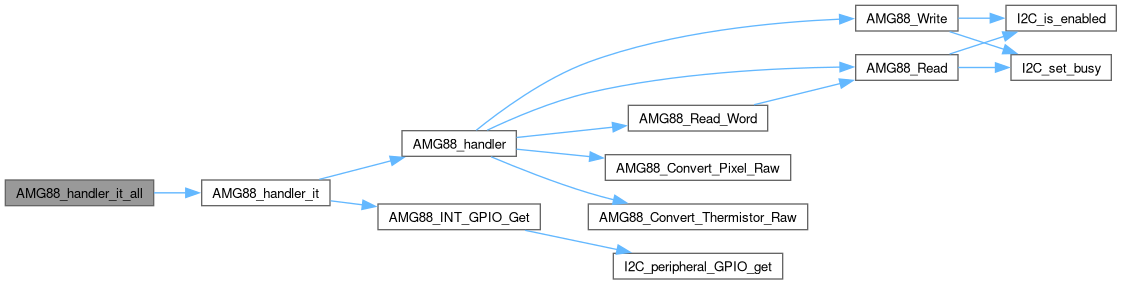

Here is the call graph for this function:

AMG88_Init_Sequence()

FctERR AMG88_Init_Sequence

(

AMG88_t *const

pCpnt

)

Initialization Sequence for AMG88 peripheral.

Weak Functions

AMG88 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to AMG88 component

Returns

FctERR - error code

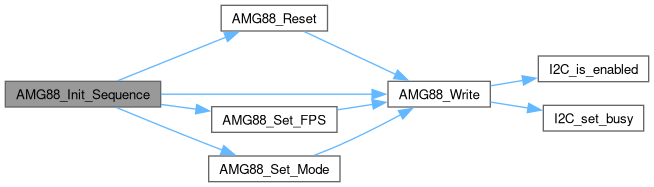

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

AMG88

AMG88_t AMG88[I2C_AMG88_NB] = { 0 }

AMG88 User structure.
