AMG88.h File Reference

AMG88 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "AMG88_proc.h"
#include "AMG88_ex.h"

Include dependency graph for AMG88.h:

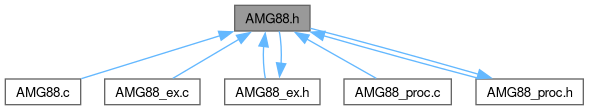

This graph shows which files directly or indirectly include this file:

Data Structures
union	uAMG88_REG__FRAME_RATE
	Union for frame rate register of AMG88. More...
union	uAMG88_REG__INT_CONTROL
	Union for interrupt control register of AMG88. More...
union	uAMG88_REG__STATUS
	Union for status register of AMG88. More...
union	uAMG88_REG__STATUS_CLEAR
	Union for status clear register of AMG88. More...
union	uAMG88_REG__AVERAGE
	Union for average register of AMG88. More...
union	uAMG88_REG__TEMP
	Union for any temperature register of AMG88. More...
union	uAMG88_REG__INT

Macros
#define	I2C_AMG88_NB   1U
	Number of AMG88 peripherals.
#define	AMG88_ADDR   0x68U
	AMG88 address.
#define	AMG88_BASE_ADDR   AMG88_ADDR
	AMG88 Base address.

Enumerations
enum	AMG88_reg {   AMG88__PCTL = 0U , AMG88__RST , AMG88__FPSC , AMG88__INTC ,   AMG88__STAT , AMG88__SCLR , AMG88__AVE = 0x07U , AMG88__INTHL ,   AMG88__INTHH , AMG88__INTLL , AMG88__INTLH , AMG88__IHYSL ,   AMG88__IHYSH , AMG88__TTHL , AMG88__TTHH , AMG88__INT0 ,   AMG88__INT1 , AMG88__INT2 , AMG88__INT3 , AMG88__INT4 ,   AMG88__INT5 , AMG88__INT6 , AMG88__INT7 , AMG88__T01L = 0x80U ,   AMG88__T01H , AMG88__T02L , AMG88__T02H , AMG88__T03L ,   AMG88__T03H , AMG88__T04L , AMG88__T04H , AMG88__T05L ,   AMG88__T05H , AMG88__T06L , AMG88__T06H , AMG88__T07L ,   AMG88__T07H , AMG88__T08L , AMG88__T08H , AMG88__T09L ,   AMG88__T09H , AMG88__T10L , AMG88__T10H , AMG88__T11L ,   AMG88__T11H , AMG88__T12L , AMG88__T12H , AMG88__T13L ,   AMG88__T13H , AMG88__T14L , AMG88__T14H , AMG88__T15L ,   AMG88__T15H , AMG88__T16L , AMG88__T16H , AMG88__T17L ,   AMG88__T17H , AMG88__T18L , AMG88__T18H , AMG88__T19L ,   AMG88__T19H , AMG88__T20L , AMG88__T20H , AMG88__T21L ,   AMG88__T21H , AMG88__T22L , AMG88__T22H , AMG88__T23L ,   AMG88__T23H , AMG88__T24L , AMG88__T24H , AMG88__T25L ,   AMG88__T25H , AMG88__T26L , AMG88__T26H , AMG88__T27L ,   AMG88__T27H , AMG88__T28L , AMG88__T28H , AMG88__T29L ,   AMG88__T29H , AMG88__T30L , AMG88__T30H , AMG88__T31L ,   AMG88__T31H , AMG88__T32L , AMG88__T32H , AMG88__T33L ,   AMG88__T33H , AMG88__T34L , AMG88__T34H , AMG88__T35L ,   AMG88__T35H , AMG88__T36L , AMG88__T36H , AMG88__T37L ,   AMG88__T37H , AMG88__T38L , AMG88__T38H , AMG88__T39L ,   AMG88__T39H , AMG88__T40L , AMG88__T40H , AMG88__T41L ,   AMG88__T41H , AMG88__T42L , AMG88__T42H , AMG88__T43L ,   AMG88__T43H , AMG88__T44L , AMG88__T44H , AMG88__T45L ,   AMG88__T45H , AMG88__T46L , AMG88__T46H , AMG88__T47L ,   AMG88__T47H , AMG88__T48L , AMG88__T48H , AMG88__T49L ,   AMG88__T49H , AMG88__T50L , AMG88__T50H , AMG88__T51L ,   AMG88__T51H , AMG88__T52L , AMG88__T52H , AMG88__T53L ,   AMG88__T53H , AMG88__T54L , AMG88__T54H , AMG88__T55L ,   AMG88__T55H , AMG88__T56L , AMG88__T56H , AMG88__T57L ,   AMG88__T57H , AMG88__T58L , AMG88__T58H , AMG88__T59L ,   AMG88__T59H , AMG88__T60L , AMG88__T60H , AMG88__T61L ,   AMG88__T61H , AMG88__T62L , AMG88__T62H , AMG88__T63L ,   AMG88__T63H , AMG88__T64L , AMG88__T64H }
	Register map enum of AMG88. More...
enum	AMG88_reset { AMG88__FLAG_RESET = 0x30U , AMG88__INITIAL_RESET = 0x3FU }
	Reset types for AMG88. More...
enum	AMG88_mode { AMG88__NORMAL = 0U , AMG88__SLEEP = 0x10U , AMG88__STANBY_60 = 0x20U , AMG88__STANBY_10 = 0x21U }
	Operating modes for AMG88. More...

Functions
FctERR	AMG88_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for AMG88 peripheral.
FctERR	AMG88_Init_Single (void)
	Initialization for AMG88 peripheral.
FctERR	AMG88_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for AMG88.
FctERR	AMG88_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for AMG88.
FctERR	AMG88_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for AMG88.
FctERR	AMG88_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for AMG88.

Detailed Description

AMG88 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

AMG88: Infrared Array Sensor (Grid-EYE)

Macro Definition Documentation

AMG88_ADDR

#define AMG88_ADDR   0x68U

AMG88 address.

AMG88_BASE_ADDR

#define AMG88_BASE_ADDR   AMG88_ADDR

AMG88 Base address.

Note

Define AMG88_BASE_ADDR to change default device base address

I2C_AMG88_NB

#define I2C_AMG88_NB   1U

Number of AMG88 peripherals.

Note

Define I2C_AMG88_NB to enable multiple peripherals of this type

Enumeration Type Documentation

AMG88_mode

enum AMG88_mode

Operating modes for AMG88.

Enumerator
AMG88__NORMAL	Normal mode.
AMG88__SLEEP	Sleep mode.
AMG88__STANBY_60	Stand-by mode (60s intermittence)
AMG88__STANBY_10	Stand-by mode (10s intermittence)

AMG88_reg

enum AMG88_reg

Register map enum of AMG88.

Enumerator
AMG88__PCTL	Set operating mode(Normal, Sleep etc.)
AMG88__RST	Software Reset.
AMG88__FPSC	Frame rate.
AMG88__INTC	Interrupt Function.
AMG88__STAT	Interrupt Flag, low voltage Flag.
AMG88__SCLR	Interrupt Flag Clear.
AMG88__AVE	Moving Average Output Mode.
AMG88__INTHL	Interrupt upper value(Lower level)
AMG88__INTHH	Interrupt upper value(Upper level)
AMG88__INTLL	Interrupt lower value(Lower level)
AMG88__INTLH	Interrupt lower value(Upper level)
AMG88__IHYSL	Interrupt hysteresis value(Lower level)
AMG88__IHYSH	Interrupt hysteresis value(Upper level)
AMG88__TTHL	Thermistor Output Value(Lower level)
AMG88__TTHH	Thermistor Output Value(Upper level)
AMG88__INT0	Pixel 1~8 Interrupt Result.
AMG88__INT1	Pixel 9~16 Interrupt Result.
AMG88__INT2	Pixel 17~24 Interrupt Result.
AMG88__INT3	Pixel 25~32 Interrupt Result.
AMG88__INT4	Pixel 33~40 Interrupt Result.
AMG88__INT5	Pixel 41~48 Interrupt Result.
AMG88__INT6	Pixel 49~56 Interrupt Result.
AMG88__INT7	Pixel 57~64 Interrupt Result.
AMG88__T01L	Pixel 01 Output Value (Lower Level)
AMG88__T01H	Pixel 01 Output Value (Upper Level)
AMG88__T02L	Pixel 02 Output Value (Lower Level)
AMG88__T02H	Pixel 02 Output Value (Upper Level)
AMG88__T03L	Pixel 03 Output Value (Lower Level)
AMG88__T03H	Pixel 03 Output Value (Upper Level)
AMG88__T04L	Pixel 04 Output Value (Lower Level)
AMG88__T04H	Pixel 04 Output Value (Upper Level)
AMG88__T05L	Pixel 05 Output Value (Lower Level)
AMG88__T05H	Pixel 05 Output Value (Upper Level)
AMG88__T06L	Pixel 06 Output Value (Lower Level)
AMG88__T06H	Pixel 06 Output Value (Upper Level)
AMG88__T07L	Pixel 07 Output Value (Lower Level)
AMG88__T07H	Pixel 07 Output Value (Upper Level)
AMG88__T08L	Pixel 08 Output Value (Lower Level)
AMG88__T08H	Pixel 08 Output Value (Upper Level)
AMG88__T09L	Pixel 09 Output Value (Lower Level)
AMG88__T09H	Pixel 09 Output Value (Upper Level)
AMG88__T10L	Pixel 10 Output Value (Lower Level)
AMG88__T10H	Pixel 10 Output Value (Upper Level)
AMG88__T11L	Pixel 11 Output Value (Lower Level)
AMG88__T11H	Pixel 11 Output Value (Upper Level)
AMG88__T12L	Pixel 12 Output Value (Lower Level)
AMG88__T12H	Pixel 12 Output Value (Upper Level)
AMG88__T13L	Pixel 13 Output Value (Lower Level)
AMG88__T13H	Pixel 13 Output Value (Upper Level)
AMG88__T14L	Pixel 14 Output Value (Lower Level)
AMG88__T14H	Pixel 14 Output Value (Upper Level)
AMG88__T15L	Pixel 15 Output Value (Lower Level)
AMG88__T15H	Pixel 15 Output Value (Upper Level)
AMG88__T16L	Pixel 16 Output Value (Lower Level)
AMG88__T16H	Pixel 16 Output Value (Upper Level)
AMG88__T17L	Pixel 17 Output Value (Lower Level)
AMG88__T17H	Pixel 17 Output Value (Upper Level)
AMG88__T18L	Pixel 18 Output Value (Lower Level)
AMG88__T18H	Pixel 18 Output Value (Upper Level)
AMG88__T19L	Pixel 19 Output Value (Lower Level)
AMG88__T19H	Pixel 19 Output Value (Upper Level)
AMG88__T20L	Pixel 20 Output Value (Lower Level)
AMG88__T20H	Pixel 20 Output Value (Upper Level)
AMG88__T21L	Pixel 21 Output Value (Lower Level)
AMG88__T21H	Pixel 21 Output Value (Upper Level)
AMG88__T22L	Pixel 22 Output Value (Lower Level)
AMG88__T22H	Pixel 22 Output Value (Upper Level)
AMG88__T23L	Pixel 23 Output Value (Lower Level)
AMG88__T23H	Pixel 23 Output Value (Upper Level)
AMG88__T24L	Pixel 24 Output Value (Lower Level)
AMG88__T24H	Pixel 24 Output Value (Upper Level)
AMG88__T25L	Pixel 25 Output Value (Lower Level)
AMG88__T25H	Pixel 25 Output Value (Upper Level)
AMG88__T26L	Pixel 26 Output Value (Lower Level)
AMG88__T26H	Pixel 26 Output Value (Upper Level)
AMG88__T27L	Pixel 27 Output Value (Lower Level)
AMG88__T27H	Pixel 27 Output Value (Upper Level)
AMG88__T28L	Pixel 28 Output Value (Lower Level)
AMG88__T28H	Pixel 28 Output Value (Upper Level)
AMG88__T29L	Pixel 29 Output Value (Lower Level)
AMG88__T29H	Pixel 29 Output Value (Upper Level)
AMG88__T30L	Pixel 30 Output Value (Lower Level)
AMG88__T30H	Pixel 30 Output Value (Upper Level)
AMG88__T31L	Pixel 31 Output Value (Lower Level)
AMG88__T31H	Pixel 31 Output Value (Upper Level)
AMG88__T32L	Pixel 32 Output Value (Lower Level)
AMG88__T32H	Pixel 32 Output Value (Upper Level)
AMG88__T33L	Pixel 33 Output Value (Lower Level)
AMG88__T33H	Pixel 33 Output Value (Upper Level)
AMG88__T34L	Pixel 34 Output Value (Lower Level)
AMG88__T34H	Pixel 34 Output Value (Upper Level)
AMG88__T35L	Pixel 35 Output Value (Lower Level)
AMG88__T35H	Pixel 35 Output Value (Upper Level)
AMG88__T36L	Pixel 36 Output Value (Lower Level)
AMG88__T36H	Pixel 36 Output Value (Upper Level)
AMG88__T37L	Pixel 37 Output Value (Lower Level)
AMG88__T37H	Pixel 37 Output Value (Upper Level)
AMG88__T38L	Pixel 38 Output Value (Lower Level)
AMG88__T38H	Pixel 38 Output Value (Upper Level)
AMG88__T39L	Pixel 39 Output Value (Lower Level)
AMG88__T39H	Pixel 39 Output Value (Upper Level)
AMG88__T40L	Pixel 40 Output Value (Lower Level)
AMG88__T40H	Pixel 40 Output Value (Upper Level)
AMG88__T41L	Pixel 41 Output Value (Lower Level)
AMG88__T41H	Pixel 41 Output Value (Upper Level)
AMG88__T42L	Pixel 42 Output Value (Lower Level)
AMG88__T42H	Pixel 42 Output Value (Upper Level)
AMG88__T43L	Pixel 43 Output Value (Lower Level)
AMG88__T43H	Pixel 43 Output Value (Upper Level)
AMG88__T44L	Pixel 44 Output Value (Lower Level)
AMG88__T44H	Pixel 44 Output Value (Upper Level)
AMG88__T45L	Pixel 45 Output Value (Lower Level)
AMG88__T45H	Pixel 45 Output Value (Upper Level)
AMG88__T46L	Pixel 46 Output Value (Lower Level)
AMG88__T46H	Pixel 46 Output Value (Upper Level)
AMG88__T47L	Pixel 47 Output Value (Lower Level)
AMG88__T47H	Pixel 47 Output Value (Upper Level)
AMG88__T48L	Pixel 48 Output Value (Lower Level)
AMG88__T48H	Pixel 48 Output Value (Upper Level)
AMG88__T49L	Pixel 49 Output Value (Lower Level)
AMG88__T49H	Pixel 49 Output Value (Upper Level)
AMG88__T50L	Pixel 50 Output Value (Lower Level)
AMG88__T50H	Pixel 50 Output Value (Upper Level)
AMG88__T51L	Pixel 51 Output Value (Lower Level)
AMG88__T51H	Pixel 51 Output Value (Upper Level)
AMG88__T52L	Pixel 52 Output Value (Lower Level)
AMG88__T52H	Pixel 52 Output Value (Upper Level)
AMG88__T53L	Pixel 53 Output Value (Lower Level)
AMG88__T53H	Pixel 53 Output Value (Upper Level)
AMG88__T54L	Pixel 54 Output Value (Lower Level)
AMG88__T54H	Pixel 54 Output Value (Upper Level)
AMG88__T55L	Pixel 55 Output Value (Lower Level)
AMG88__T55H	Pixel 55 Output Value (Upper Level)
AMG88__T56L	Pixel 56 Output Value (Lower Level)
AMG88__T56H	Pixel 56 Output Value (Upper Level)
AMG88__T57L	Pixel 57 Output Value (Lower Level)
AMG88__T57H	Pixel 57 Output Value (Upper Level)
AMG88__T58L	Pixel 58 Output Value (Lower Level)
AMG88__T58H	Pixel 58 Output Value (Upper Level)
AMG88__T59L	Pixel 59 Output Value (Lower Level)
AMG88__T59H	Pixel 59 Output Value (Upper Level)
AMG88__T60L	Pixel 60 Output Value (Lower Level)
AMG88__T60H	Pixel 60 Output Value (Upper Level)
AMG88__T61L	Pixel 61 Output Value (Lower Level)
AMG88__T61H	Pixel 61 Output Value (Upper Level)
AMG88__T62L	Pixel 62 Output Value (Lower Level)
AMG88__T62H	Pixel 62 Output Value (Upper Level)
AMG88__T63L	Pixel 63 Output Value (Lower Level)
AMG88__T63H	Pixel 63 Output Value (Upper Level)
AMG88__T64L	Pixel 64 Output Value (Lower Level)
AMG88__T64H	Pixel 64 Output Value (Upper Level)

AMG88_reset

enum AMG88_reset

Reset types for AMG88.

Enumerator
AMG88__FLAG_RESET	Flag Reset can all clear the Status Register(0x04),Interrupt Flag, and Interrupt Table(0x10~0x17).
AMG88__INITIAL_RESET	Initial Reset brings Flag reset and returns to initial setting.

Function Documentation

AMG88_Init()

FctERR AMG88_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for AMG88 peripheral.

Parameters

[in]	idx	- AMG88 index
[in]	hi2c	- pointer to AMG88 I2C instance
[in]	devAddress	- AMG88 device address

Returns

FctERR - error code

Here is the call graph for this function:

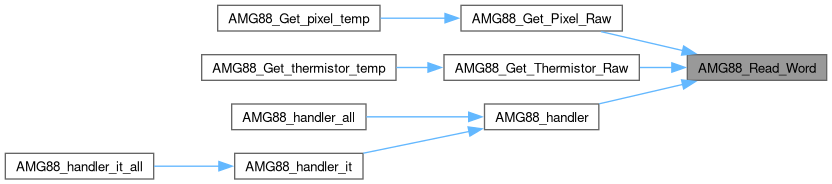

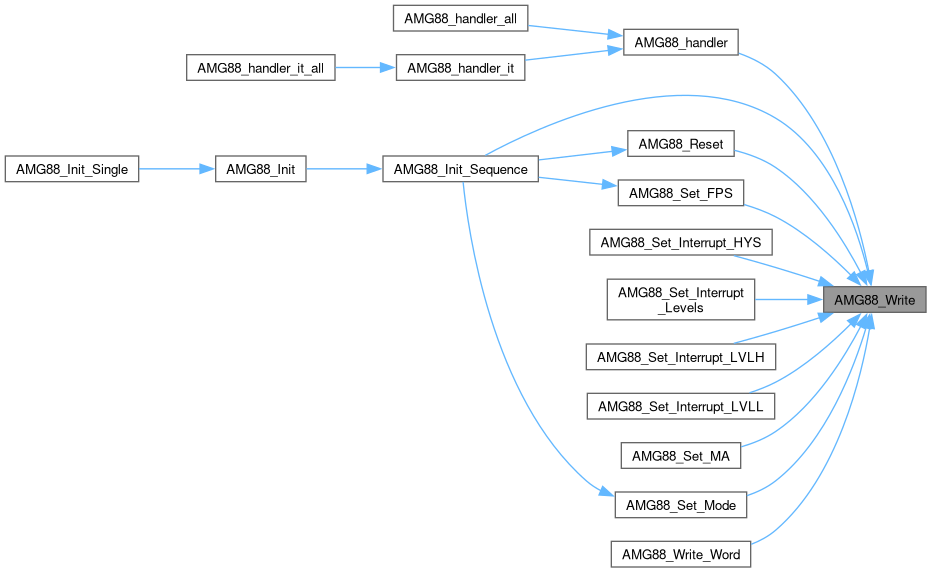

Here is the caller graph for this function:

AMG88_Init_Single()

FctERR AMG88_Init_Single

(

void

)

Initialization for AMG88 peripheral.

Warning

In case multiple devices (defined by I2C_AMG88_NB > 1), you shall use AMG88_Init instead

Returns

FctERR - error code

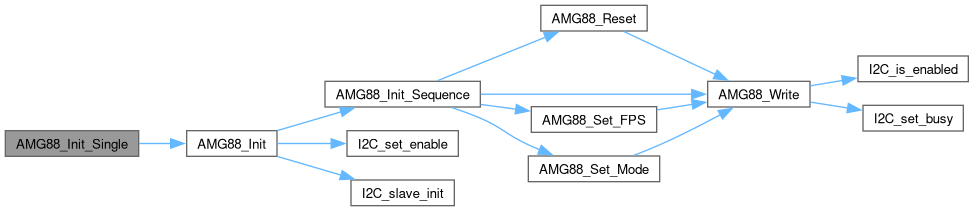

Here is the call graph for this function:

AMG88_Read()

FctERR AMG88_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for AMG88.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

AMG88_Read_Word()

FctERR AMG88_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for AMG88.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

AMG88_Write()

FctERR AMG88_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for AMG88.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

AMG88_Write_Word()

FctERR AMG88_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for AMG88.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:
