S11059_ex.c File Reference

S11059 Driver extensions. More...

#include "S11059.h"

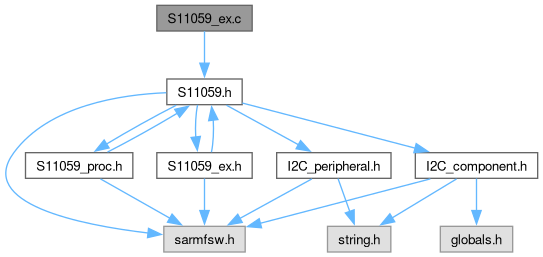

Include dependency graph for S11059_ex.c:

Functions
FctERR	S11059_Set_ADC (S11059_t *const pCpnt, const S11059_adc_reset adc)
	ADC Operation / Reset.
FctERR	S11059_Set_Standby (S11059_t *const pCpnt, const S11059_standby_fct standby)
	Set Standby / Operating mode.
FctERR	S11059_Set_Gain (S11059_t *const pCpnt, const S11059_gain gain)
	Set ADC gain.
FctERR	S11059_Set_Integration (S11059_t *const pCpnt, const S11059_integ mode, const S11059_prescaler prescaler)
	Set integration mode & prescaler.
FctERR	S11059_Set_Integration_Multiplier (S11059_t *const pCpnt, const uint16_t mult)
	Set S11059 integration multiplier (used when integration mode set to Manual)
FctERR	S11059_Get_Standby (S11059_t *const pCpnt, S11059_standby_fct *const standby)
	Get Standby function monitor.
FctERR	S11059_Get_Channel (S11059_t *const pCpnt, uint16_t *const val, const S11059_chan chan)
	Get Specific channel conversion.

Detailed Description

S11059 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

S11059: I2C interface-compatible color sensor

Function Documentation

S11059_Get_Channel()

FctERR S11059_Get_Channel	(	S11059_t *const	pCpnt,
		uint16_t *const	val,
		const S11059_chan	chan )

Get Specific channel conversion.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in,out]	val	- pointer to conversions result
[in]	chan	- Channel to get

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Get_Standby()

FctERR S11059_Get_Standby	(	S11059_t *const	pCpnt,
		S11059_standby_fct *const	standby )

Get Standby function monitor.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in,out]	standby	- pointer to standby function result

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Set_ADC()

FctERR S11059_Set_ADC	(	S11059_t *const	pCpnt,
		const S11059_adc_reset	adc )

ADC Operation / Reset.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in]	adc	- ADC mode

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Set_Gain()

FctERR S11059_Set_Gain	(	S11059_t *const	pCpnt,
		const S11059_gain	gain )

Set ADC gain.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in]	gain	- Gain selection

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Set_Integration()

FctERR S11059_Set_Integration	(	S11059_t *const	pCpnt,
		const S11059_integ	mode,
		const S11059_prescaler	prescaler )

Set integration mode & prescaler.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in]	mode	- Fixed period / Manual integration
[in]	prescaler	- Integration time base (prescaler)

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Set_Integration_Multiplier()

FctERR S11059_Set_Integration_Multiplier	(	S11059_t *const	pCpnt,
		const uint16_t	mult )

Set S11059 integration multiplier (used when integration mode set to Manual)

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in]	mult	- Integration time multiplier value

Returns

FctERR - error code

Here is the call graph for this function:

S11059_Set_Standby()

FctERR S11059_Set_Standby	(	S11059_t *const	pCpnt,
		const S11059_standby_fct	standby )

Set Standby / Operating mode.

Parameters

[in]	pCpnt	- Pointer to S11059 component
[in]	standby	- standby mode

Returns

FctERR - error code

Here is the call graph for this function:
