arm_inlines_stdclib.h File Reference

ARM common standard c library inlines and wrapper macros. More...

#include <stdlib.h>
#include <stdio.h>
#include <stdarg.h>
#include <string.h>

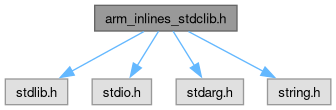

Include dependency graph for arm_inlines_stdclib.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	malloc_assert(x)
	malloc x object and assert it
#define	strclr_full(s)
	Clear string s (full content)
#define	printExpr(e)
	Print expression e and it's result e using printf.
#define	sprintExpr(s, e)
	Print expression e and it's result e to s string.
#define	snprintExpr(s, n, e)
	Print expression e and it's result e with max n characters to s string.
#define	verbInstr(i)
	Print instruction i using printf and execute it.
#define	sverbInstr(s, i)
	Print instruction i to s string and execute it.
#define	snverbInstr(s, n, i)
	Print instruction i to s string with max n characters and execute it.
#define	verbInc(x)
	Increment example on x using puts.
#define	verbDec(x)
	Decrement example on x using puts.

Functions
uintPTR_t	get_current_heap_address_int (void)
	Get current heap address.
const void *	get_current_heap_address (void)
	Get current heap address pointer.
CHAR *	strncat_sz (CHAR *const __RESTRICT s, const CHAR *const __RESTRICT s2, const size_t size)
	Append string at the end of sized string (char array)
void	strclr (CHAR *const s)
	Fast clear string (char array)
CHAR *	str_add_tab (CHAR *const __RESTRICT s)
	Append tab char at the end of string (char array)
CHAR *	str_add_cr (CHAR *const __RESTRICT s)
	Append carriage return char at the end of string (char array)
CHAR *	str_add_lf (CHAR *const __RESTRICT s)
	Append line feed char at the end of string (char array)
CHAR *	str_add_crlf (CHAR *const __RESTRICT s)
	Append carriage return and line feed chars at the end of string (char array)
CHAR *	strn_add_tab (CHAR *const __RESTRICT s, const size_t len)
	Append tab char at the end of sized string (char array)
CHAR *	strn_add_cr (CHAR *const __RESTRICT s, const size_t len)
	Append carriage return char at the end of sized string (char array)
CHAR *	strn_add_lf (CHAR *const __RESTRICT s, const size_t len)
	Append line feed char at the end of sized string (char array)
CHAR *	strn_add_crlf (CHAR *const __RESTRICT s, const size_t len)
	Append carriage return and line feed chars at the end of sized string (char array)

Detailed Description

ARM common standard c library inlines and wrapper macros.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

MISRA C:2012 Deviations

Header scope deviation has been granted for following rules:
Rule-18.4 - Advisory: +/- operators on pointer type (misra-c2012-18.4)

Header scope legitimate use derogation authorized for:
Rule-21.6 - Required: Use of <stdio.h> (misra-c2012-21.6)
Justification: Some of the following functions are sprintf like oriented extensions to standard library.
Rule-17.1 - Required: Use of <starg.h> (misra-c2012-17.1)
Justification: Legitimate use of variadic parameters received, passed to printf like function call.
Rule-20.7 - Required: Enclosed macro parameters expansion (misra-c2012-20.7)
Justification: Use of STR catenate macro in macros expansion.

Macro Definition Documentation

malloc_assert

#define malloc_assert

(

x

)

Value:

((x) = malloc(sizeof(*(x))), assert((x)))

malloc x object and assert it

printExpr

#define printExpr

(

e

)

Value:

(printf("%s = %d\r\n", STR(e), (e)))

Print expression e and it's result e using printf.

snprintExpr

#define snprintExpr	(		s,
			n,
			e )

Value:

(snprintf((s), (n), "%s = %d\r\n", STR(e), (e)))

Print expression e and it's result e with max n characters to s string.

snverbInstr

#define snverbInstr	(		s,
			n,
			i )

Value:

(snprintf((s), (n), STR(i)), (i))

Print instruction i to s string with max n characters and execute it.

sprintExpr

#define sprintExpr	(		s,
			e )

Value:

(sprintf((s), "%s = %d\r\n", STR(e), (e)))

Print expression e and it's result e to s string.

strclr_full

#define strclr_full

(

s

)

Value:

(memset(s, charNull, sizeof(s)))

Clear string s (full content)

Warning

Only works with char arrays, do not use on pointer to char array

sverbInstr

#define sverbInstr	(		s,
			i )

Value:

(sprintf((s), STR(i)), (i))

Print instruction i to s string and execute it.

verbDec

#define verbDec

(

x

)

Value:

(puts("Decrementing " STR(x)), (x)--)

Decrement example on x using puts.

verbInc

#define verbInc

(

x

)

Value:

(puts("Incrementing " STR(x)), (x)++)

Increment example on x using puts.

verbInstr

#define verbInstr

(

i

)

Value:

(printf(STR(i)), (i))

Print instruction i using printf and execute it.

Function Documentation

get_current_heap_address()

const void * get_current_heap_address ( void )

inline

Get current heap address pointer.

Note

Can be useful to get heap value when testing for potential memory leaks

MISRA C:2012 Deviations

Local legitimate use derogation authorized for:
Rule-11.6 - Required: pointer to void cast to arithmetic (misra-c2012-11.6)
Justification: Intended to identify potential memory leaks in case of dynamic allocation use.

Warning

Shall not cast returned value to void* (allowing to write anything to the pointed content)

Returns

Pointer to current heap address

Here is the call graph for this function:

get_current_heap_address_int()

uintPTR_t get_current_heap_address_int ( void )

inline

Get current heap address.

Note

Address is returned as integer (returning released pointer value would cause a warning from compiler) Use get_current_heap_address to get current heap address under the form of void* pointer

MISRA C:2012 Deviations

Local legitimate use derogation authorized for:
Rule-11.6 - Required: pointer to void cast to arithmetic (misra-c2012-11.6)
Rule-21.3 - Required: dynamic allocation (misra-c2012-21.3)
Justification: Intended to identify potential memory leaks in case of dynamic allocation use.

Returns

Integer value of current heap address

Here is the caller graph for this function:

str_add_cr()

CHAR * str_add_cr ( CHAR *const __RESTRICT s )

inline

Append carriage return char at the end of string (char array)

Note

As of C library, use strn_add_cr to ensure resulting s string won't exceed given length

Parameters

[in,out]

s

- Pointer to char array

Returns

Pointer to resulting string (char array)

str_add_crlf()

CHAR * str_add_crlf ( CHAR *const __RESTRICT s )

inline

Append carriage return and line feed chars at the end of string (char array)

Note

As of C library, use strn_add_crlf to ensure resulting s string won't exceed given length

Parameters

[in,out]

s

- Pointer to char array

Returns

Pointer to resulting string (char array)

str_add_lf()

CHAR * str_add_lf ( CHAR *const __RESTRICT s )

inline

Append line feed char at the end of string (char array)

Note

As of C library, use strn_add_lf to ensure resulting s string won't exceed given length

Parameters

[in,out]

s

- Pointer to char array

Returns

Pointer to resulting string (char array)

str_add_tab()

CHAR * str_add_tab ( CHAR *const __RESTRICT s )

inline

Append tab char at the end of string (char array)

Note

As of C library, use strn_add_tab to ensure resulting s string won't exceed given length

Parameters

[in,out]

s

- Pointer to char array

Returns

Pointer to resulting string (char array)

strclr()

void strclr ( CHAR *const s )

inline

Fast clear string (char array)

Parameters

[in,out]

s

- pointer to char array

strn_add_cr()

CHAR * strn_add_cr ( CHAR *const __RESTRICT s, const size_t len )

inline

Append carriage return char at the end of sized string (char array)

Parameters

[in,out]	s	- Pointer to char array
[in]	len	- Length of char array s

Returns

Pointer to resulting string (char array)

Here is the call graph for this function:

strn_add_crlf()

CHAR * strn_add_crlf ( CHAR *const __RESTRICT s, const size_t len )

inline

Append carriage return and line feed chars at the end of sized string (char array)

Parameters

[in,out]	s	- Pointer to char array
[in]	len	- Length of char array s

Returns

Pointer to resulting string (char array)

Here is the call graph for this function:

strn_add_lf()

CHAR * strn_add_lf ( CHAR *const __RESTRICT s, const size_t len )

inline

Append line feed char at the end of sized string (char array)

Parameters

[in,out]	s	- Pointer to char array
[in]	len	- Length of char array s

Returns

Pointer to resulting string (char array)

Here is the call graph for this function:

strn_add_tab()

CHAR * strn_add_tab ( CHAR *const __RESTRICT s, const size_t len )

inline

Append tab char at the end of sized string (char array)

Parameters

[in,out]	s	- Pointer to char array
[in]	len	- Length of char array s

Returns

Pointer to resulting string (char array)

Here is the call graph for this function:

strncat_sz()

CHAR * strncat_sz ( CHAR *const __RESTRICT s, const CHAR *const __RESTRICT s2, const size_t size )

inline

Append string at the end of sized string (char array)

Note

A little safer to use than strncat to keep s un-corrupted

Parameters

[in,out]	s	- Pointer to char array
[in]	s2	- Pointer to char array to catenate at the end of s
[in]	size	- Length of char array s

Returns

Pointer to resulting string (char array)

Here is the caller graph for this function:
