arm_chip_sam.h File Reference

ARM common macros for Atmel SAM families. More...

#include "atmel_start_pins.h"
#include "err_codes.h"
#include "hpl_reset.h"
#include <ARM_CMSIS_INC>

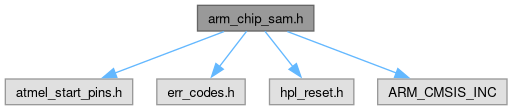

Include dependency graph for arm_chip_sam.h:

Macros
#define	SAM_HEADER(f)
	concatenate <hri_(f).h> name following sam family f
#define	SAM_CONF_HEADER(f)
	<sam.h> name following sam family f
#define	ARM_CMSIS_INC   SAM_HEADER(SAM_FAMILY)
	Alias for SAM CMSIS include.
#define	ARM_HAL_CFG   SAM_CONF_HEADER(SAM_FAMILY)
	Alias for SAM HAL config include.
#define	HAL_MAX_TICKS   ((uint32_t) -1)
	HAL max Ticks value.
#define	HAL_MS_TICKS_FACTOR   1U
	HAL milliseconds multiplier (depending tick counter frequency)

Enumerations
enum	eResetSource {   RST_POR = RESET_REASON_POR , RST_BODCORE = RESET_REASON_BODCORE , RST_BODVDD = RESET_REASON_BODVDD , RST_EXT = RESET_REASON_EXT ,   RST_WDT = RESET_REASON_WDT , RST_SYST = RESET_REASON_SYST , RST_UNKNOWN = 0xFFU }
	Source of last reset. More...

Detailed Description

ARM common macros for Atmel SAM families.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

MISRA C:2012 Deviations

Header scope legitimate use derogation authorized for:
Rule-5.6 - Required: unique typedef name (misra-c2012-5.6)
Rule-5.9 - Advisory: internal linkage unique function name (misra-c2012-5.9)
Justification: typedefs name are only defined once (other arm_chip_xxx files are not included at the same time).

Attention

On SAM families you should configure a timer to count for ms. A TIM peripheral shall be configured in ATMEL START (with a period of 1ms). Using driver examples from ATMEL START generated code, you can add this code to your projects.

static struct timer_task TIMER_0_task1;
static volatile uint32_t uwTick = 0;


uint32_t HAL_GetTick(void) {        // Declare HALTicks() at project level if you're using a different getter function name
    return uwTick; }

static void TIMER_0_task1_cb(const struct timer_task *const timer_task) {
    uwTick++; }

void TIMER_0_start(void)            // Adapt function if TIM configured is not TIMER_0
{
    TIMER_0_task1.interval = 1;     // Adjust interval if TIM period is faster than 1ms (or define appropriate HAL_MS_TICKS_FACTOR)
    TIMER_0_task1.cb = TIMER_0_task1_cb;
    TIMER_0_task1.mode = TIMER_TASK_REPEAT;

    timer_add_task(&TIMER_0, &TIMER_0_task1);
    timer_start(&TIMER_0);
}

Please note TIMER_0_start() shall be called at init.

Macro Definition Documentation

ARM_CMSIS_INC

#define ARM_CMSIS_INC   SAM_HEADER(SAM_FAMILY)

Alias for SAM CMSIS include.

ARM_HAL_CFG

#define ARM_HAL_CFG   SAM_CONF_HEADER(SAM_FAMILY)

Alias for SAM HAL config include.

HAL_MAX_TICKS

#define HAL_MAX_TICKS   ((uint32_t) -1)

HAL max Ticks value.

Note

Define HAL_MAX_TICKS with custom max value in project if tick max value is not using 32b variable full scale

HAL_MS_TICKS_FACTOR

#define HAL_MS_TICKS_FACTOR   1U

HAL milliseconds multiplier (depending tick counter frequency)

Note

Define HAL_MS_TICKS_FACTOR with custom multiplier in project if tick period is not 1ms

SAM_CONF_HEADER

#define SAM_CONF_HEADER

(

f

)

Value:

<sam.h>

<sam.h> name following sam family f

SAM_HEADER

#define SAM_HEADER

(

f

)

Value:

XCAT(<hri_, f).h>

concatenate <hri_(f).h> name following sam family f

Enumeration Type Documentation

eResetSource

enum eResetSource

Source of last reset.

Enumerator
RST_POR	Power On Reset.
RST_BODCORE	Brown Out Reset.
RST_BODVDD
RST_EXT	Pin Reset (External Reset)
RST_WDT	Watchdog Reset.
RST_SYST	Software Reset.
RST_UNKNOWN	Unknown Reset Source.
