PCA9956_t Struct Reference

PCA9956 user interface struct. More...

#include <PCA9956_proc.h>

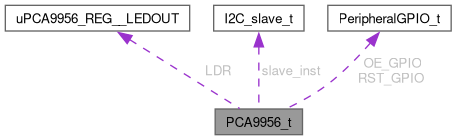

Collaboration diagram for PCA9956_t:

Data Fields
uPCA9956_REG__LEDOUT	LDR
	LED output drive registers.
struct {
I2C_slave_t *   slave_inst
	Slave structure. More...
PeripheralGPIO_t   RST_GPIO
	Reset GPIO struct. More...
PeripheralGPIO_t   OE_GPIO
	Output Enable GPIO struct. More...
PCA995x_reg_inc   auto_inc
	Auto increment configuration. More...
}	cfg

Detailed Description

PCA9956 user interface struct.

Field Documentation

auto_inc

PCA995x_reg_inc PCA9956_t::auto_inc

Auto increment configuration.

[struct]

struct { ... } PCA9956_t::cfg

LDR

uPCA9956_REG__LEDOUT PCA9956_t::LDR

LED output drive registers.

OE_GPIO

PeripheralGPIO_t PCA9956_t::OE_GPIO

Output Enable GPIO struct.

RST_GPIO

PeripheralGPIO_t PCA9956_t::RST_GPIO

Reset GPIO struct.

slave_inst

I2C_slave_t* PCA9956_t::slave_inst

Slave structure.

---

The documentation for this struct was generated from the following file:

• PCA9956_proc.h
