TMP1075_ex.h File Reference

TMP1075 Driver extensions. More...

#include "sarmfsw.h"
#include "TMP1075.h"

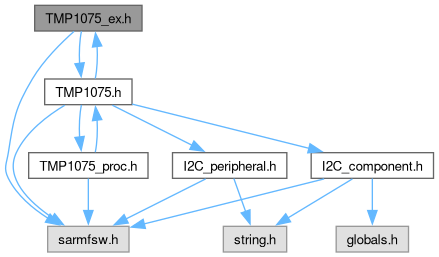

Include dependency graph for TMP1075_ex.h:

This graph shows which files directly or indirectly include this file:

Functions
FctERR	TMP1075_Write_Config (TMP1075_t *const pCpnt, const uint8_t *cfg)
	Set TMP1075 Configuration.
FctERR	TMP1075_Read_Config (TMP1075_t *const pCpnt, uint8_t *cfg)
	Get TMP1075 Configuration.
FctERR	TMP1075_Get_Temperature_Raw (TMP1075_t *const pCpnt, int16_t *const temp)
	Get TMP1075 Raw temperature.
FctERR	TMP1075_Start_SingleConversion (TMP1075_t *const pCpnt)
	Start TMP1075 single conversion.
FctERR	TMP1075_Set_ConversionRate (TMP1075_t *const pCpnt, const TMP1075_conv_rate rate)
	Set TMP1075 automatic conversion rate.
FctERR	TMP1075_Set_ConversionMode (TMP1075_t *const pCpnt, const TMP1075_shutdown_mode mode)
	Set TMP1075 conversion mode (manual/auto)
FctERR	TMP1075_Set_AlertMode (TMP1075_t *const pCpnt, const TMP1075_alert_mode mode)
	Set TMP1075 alert mode (comparator/interrupt)
FctERR	TMP1075_Set_AlertPolarity (TMP1075_t *const pCpnt, const TMP1075_alert_pol pol)
	Set TMP1075 alert polarity.
FctERR	TMP1075_Set_AlertNbFaults (TMP1075_t *const pCpnt, const TMP1075_nb_faults faults)
	Set TMP1075 alert number of faults trigger.
FctERR	TMP1075N_Get_ChipID (TMP1075_t *const pCpnt, uint16_t *const id)
	Get TMP1075N chip ID.
void	TMP1075_INT_GPIO_Init (TMP1075_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Interrupt GPIO pin init for TMP1075.
bool	TMP1075_INT_GPIO_Get (const TMP1075_t *const pCpnt)
	Interrupt GPIO pin getter for ADS1115.

Detailed Description

TMP1075 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TMP1075: Temperature Sensor With I2C and SMBus Interface in Industry Standard LM75 Form Factor and Pinout

Function Documentation

TMP1075_Get_Temperature_Raw()

FctERR TMP1075_Get_Temperature_Raw	(	TMP1075_t *const	pCpnt,
		int16_t *const	temp )

Get TMP1075 Raw temperature.

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in,out]	temp	- pointer to Temperature value to read to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_INT_GPIO_Get()

bool TMP1075_INT_GPIO_Get

(

const TMP1075_t *const

pCpnt

)

Interrupt GPIO pin getter for ADS1115.

Weak Functions

TMP1075 Interrupt GPIO pin getter may be user implemented if needed

Parameters

[in]

pCpnt

- Pointer to TMP1075 component

Returns

INT pin state value (0: inactive, 1: active)

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_INT_GPIO_Init()

void TMP1075_INT_GPIO_Init	(	TMP1075_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Interrupt GPIO pin init for TMP1075.

Weak Functions

TMP1075 Interrupt GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	GPIOx	- INT port
[in]	GPIO_Pin	- INT pin
[in]	GPIO_Active	INT pin active state

Here is the call graph for this function:

TMP1075_Read_Config()

FctERR TMP1075_Read_Config ( TMP1075_t *const pCpnt, uint8_t * cfg )

inline

Get TMP1075 Configuration.

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in,out]	cfg	- pointer to Configuration value to read to

Returns

FctERR - error code

Here is the call graph for this function:

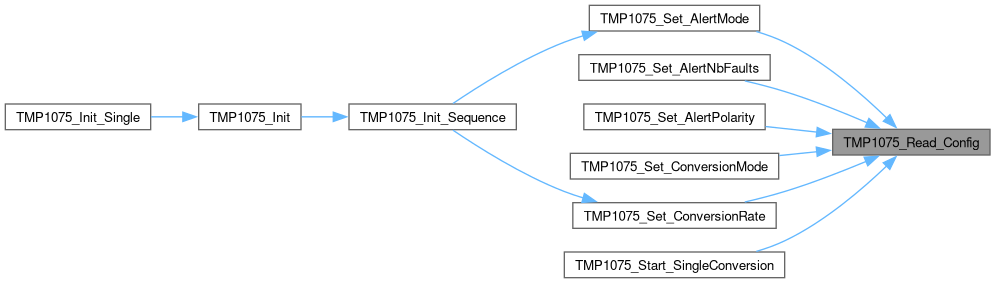

Here is the caller graph for this function:

TMP1075_Set_AlertMode()

FctERR TMP1075_Set_AlertMode	(	TMP1075_t *const	pCpnt,
		const TMP1075_alert_mode	mode )

Set TMP1075 alert mode (comparator/interrupt)

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	mode	- Alert mode (comparator/interrupt)

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_Set_AlertNbFaults()

FctERR TMP1075_Set_AlertNbFaults	(	TMP1075_t *const	pCpnt,
		const TMP1075_nb_faults	faults )

Set TMP1075 alert number of faults trigger.

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	faults	- Number of faults to trigger alert

Returns

FctERR - error code

Here is the call graph for this function:

TMP1075_Set_AlertPolarity()

FctERR TMP1075_Set_AlertPolarity	(	TMP1075_t *const	pCpnt,
		const TMP1075_alert_pol	pol )

Set TMP1075 alert polarity.

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	pol	- Alert pin polarity

Returns

FctERR - error code

Here is the call graph for this function:

TMP1075_Set_ConversionMode()

FctERR TMP1075_Set_ConversionMode	(	TMP1075_t *const	pCpnt,
		const TMP1075_shutdown_mode	mode )

Set TMP1075 conversion mode (manual/auto)

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	mode	- Conversion mode (manual/auto)

Returns

FctERR - error code

Here is the call graph for this function:

TMP1075_Set_ConversionRate()

FctERR TMP1075_Set_ConversionRate	(	TMP1075_t *const	pCpnt,
		const TMP1075_conv_rate	rate )

Set TMP1075 automatic conversion rate.

Note

Starts continuous conversions automatically

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	rate	- Conversion rate

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_Start_SingleConversion()

FctERR TMP1075_Start_SingleConversion

(

TMP1075_t *const

pCpnt

)

Start TMP1075 single conversion.

Note

Stops continuous conversions automatically

Parameters

[in]

pCpnt

- Pointer to TMP1075 component

Returns

FctERR - error code

Here is the call graph for this function:

TMP1075_Write_Config()

FctERR TMP1075_Write_Config ( TMP1075_t *const pCpnt, const uint8_t * cfg )

inline

Set TMP1075 Configuration.

Parameters

[in]	pCpnt	- Pointer to TMP1075 component
[in]	cfg	- pointer to Configuration value to write from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075N_Get_ChipID()

FctERR TMP1075N_Get_ChipID ( TMP1075_t *const pCpnt, uint16_t *const id )

inline

Get TMP1075N chip ID.

Parameters

[in]	pCpnt	- Pointer to TMP1075N component
[in,out]	id	- pointer to chip ID result

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
