PCF8523.h File Reference

PCF8523 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "PCF8523_ex.h"
#include "PCF8523_proc.h"

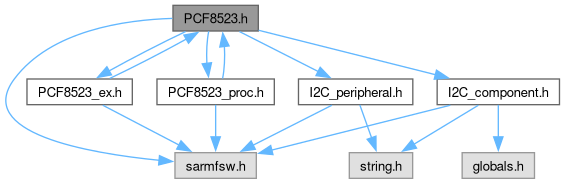

Include dependency graph for PCF8523.h:

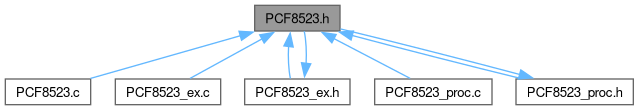

This graph shows which files directly or indirectly include this file:

Data Structures
union	uPCF8523_REG__CTRL1
	Union for Control_1 register for PCF8523 peripheral. More...
union	uPCF8523_REG__CTRL2
	Union for Control_2 register for PCF8523 peripheral. More...
union	uPCF8523_REG__CTRL3
	Union for Control_3 register for PCF8523 peripheral. More...
union	uPCF8523_REG__SECONDS
	Union for Seconds register for PCF8523 peripheral. More...
union	uPCF8523_REG__MINUTES
	Union for Minutes and Minute Alarm when in AM/PM mode register for PCF8523 peripheral. More...
union	uPCF8523_REG__HOURS
	Union for Hours and Hour Alarm when in AM/PM mode register for PCF8523 peripheral peripheral. More...
union	uPCF8523_REG__DAYS
	Union for Days and Day Alarm register for PCF8523 peripheral peripheral. More...
union	uPCF8523_REG__WEEKDAYS
	Union for Weekdays and Weekday Alarm register for PCF8523 peripheral peripheral. More...
union	uPCF8523_REG__OFFSET
	Union for Offset for PCF8523 peripheral peripheral. More...
union	uPCF8523_REG__CLKOUT_CTRL
	Union for Tmr_CLKOUT_ctrl for PCF8523 peripheral peripheral. More...
union	uPCF8523_REG__B_FREQ_CTRL
	Union for Tmr_B_freq_ctrl for PCF8523 peripheral peripheral. More...

Macros
#define	PCF8523_BASE_ADDR   0x68U
	PCF8523 Base address.

Enumerations
enum	PCF8523_reg {   PCF8523__CONTROL_1 = 0U , PCF8523__CONTROL_2 , PCF8523__CONTROL_3 , PCF8523__SECONDS ,   PCF8523__MINUTES , PCF8523__HOURS , PCF8523__DAYS , PCF8523__WEEKDAYS ,   PCF8523__MONTHS , PCF8523__YEARS , PCF8523__MINUTE_ALARM , PCF8523__HOUR_ALARM ,   PCF8523__DAY_ALARM , PCF8523__WEEKDAY_ALARM , PCF8523__OFFSET , PCF8523__TMR_CLKOUT_CTRL ,   PCF8523__TMR_A_FREQ_CTRL , PCF8523__TMR_A_REG , PCF8523__TMR_B_FREQ_CTRL , PCF8523__TMR_B_REG }
	Register map enum for PCF8523 peripheral peripheral. More...
enum	PCF8523_weekdays {   PCF8523__SUNDAY = 0U , PCF8523__MONDAY , PCF8523__TUESDAY , PCF8523__WEDNESDAY ,   PCF8523__THURSDAY , PCF8523__FRIDAY , PCF8523__SATURDAY }
	Weekdays enum for PCF8523 peripheral. More...
enum	PCF8523_months {   PCF8523__JANUARY = 0x01U , PCF8523__FEBRUARY , PCF8523__MARCH , PCF8523__APRIL ,   PCF8523__MAY , PCF8523__JUNE , PCF8523__JULY , PCF8523__AUGUST ,   PCF8523__SEPTEMBER , PCF8523__OCTOBER = 0x10U , PCF8523__NOVEMBER , PCF8523__DECEMBER }
	Weekdays enum for PCF8523 peripheral. More...
enum	PCF8523_power {   PCF8523__SO_EN_STANDARD = 0U , PCF8523__SO_EN_DIRECT_SWITCHING , PCF8523__SO_DI_POWER_VDD , PCF8523__SO_EN_STANDARD_NO_BL = 4U ,   PCF8523__SO_EN_DIRECT_SWITCHING_NO_BL , PCF8523__SO_DI_POWER_VDD_NO_BL = 7U }
	Power Management enum for PCF8523 peripheral. More...

Functions
FctERR	PCF8523_Init (void)
	Initialization for PCF8523 peripheral peripheral.
FctERR	PCF8523_Write (const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for PCF8523 peripheral.
FctERR	PCF8523_Read (uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for PCF8523 peripheral.

Detailed Description

PCF8523 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCF8523: Real-Time Clock (RTC) and calendar

Macro Definition Documentation

PCF8523_BASE_ADDR

#define PCF8523_BASE_ADDR   0x68U

PCF8523 Base address.

Note

Define PCF8523_BASE_ADDR to change default device base address

Enumeration Type Documentation

PCF8523_months

enum PCF8523_months

Weekdays enum for PCF8523 peripheral.

Note

BCD coded values

Enumerator
PCF8523__JANUARY	January.
PCF8523__FEBRUARY	February.
PCF8523__MARCH	March.
PCF8523__APRIL	April.
PCF8523__MAY	May.
PCF8523__JUNE	June.
PCF8523__JULY	July.
PCF8523__AUGUST	August.
PCF8523__SEPTEMBER	September.
PCF8523__OCTOBER	October.
PCF8523__NOVEMBER	November.
PCF8523__DECEMBER	December.

PCF8523_power

enum PCF8523_power

Power Management enum for PCF8523 peripheral.

Enumerator
PCF8523__SO_EN_STANDARD	battery switch-over function is enabled in standard mode; battery low detection function is enabled
PCF8523__SO_EN_DIRECT_SWITCHING	battery switch-over function is enabled in direct switching mode; battery low detection function is enabled
PCF8523__SO_DI_POWER_VDD	battery switch-over function is disabled - only one power supply (VDD); battery low detection function is enabled
PCF8523__SO_EN_STANDARD_NO_BL	battery switch-over function is enabled in standard mode; battery low detection function is disabled
PCF8523__SO_EN_DIRECT_SWITCHING_NO_BL	battery switch-over function is enabled in direct switching mode; battery low detection function is disabled
PCF8523__SO_DI_POWER_VDD_NO_BL	battery switch-over function is disabled - only one power supply (VDD); battery low detection function is disabled

PCF8523_reg

enum PCF8523_reg

Register map enum for PCF8523 peripheral peripheral.

Enumerator
PCF8523__CONTROL_1	Control and status register 1.
PCF8523__CONTROL_2	Control and status register 2.
PCF8523__CONTROL_3	Control and status register 3.
PCF8523__SECONDS	Seconds and clock integrity status register.
PCF8523__MINUTES	Minutes register.
PCF8523__HOURS	Hours register.
PCF8523__DAYS	Days register.
PCF8523__WEEKDAYS	Weekdays register.
PCF8523__MONTHS	Months register.
PCF8523__YEARS	Years register.
PCF8523__MINUTE_ALARM	Minute alarm register.
PCF8523__HOUR_ALARM	Hour alarm register.
PCF8523__DAY_ALARM	Day alarm register.
PCF8523__WEEKDAY_ALARM	Weekday alarm register.
PCF8523__OFFSET	Offset register.
PCF8523__TMR_CLKOUT_CTRL	Timer and CLKOUT control register.
PCF8523__TMR_A_FREQ_CTRL	Timer A frequency control register.
PCF8523__TMR_A_REG	Timer A value register.
PCF8523__TMR_B_FREQ_CTRL	Timer B frequency control register.
PCF8523__TMR_B_REG	Timer B value register.

PCF8523_weekdays

enum PCF8523_weekdays

Weekdays enum for PCF8523 peripheral.

Note

For reference only, Weekdays can start from any day for week

Enumerator
PCF8523__SUNDAY	Sunday.
PCF8523__MONDAY	Monday.
PCF8523__TUESDAY	Tuesday.
PCF8523__WEDNESDAY	Wednesday.
PCF8523__THURSDAY	Thursday.
PCF8523__FRIDAY	Friday.
PCF8523__SATURDAY	Saturday.

Function Documentation

PCF8523_Init()

FctERR PCF8523_Init

(

void

)

Initialization for PCF8523 peripheral peripheral.

Weak Functions

PCF8523 Base address may be changed if user implemented

Returns

FctERR - error code

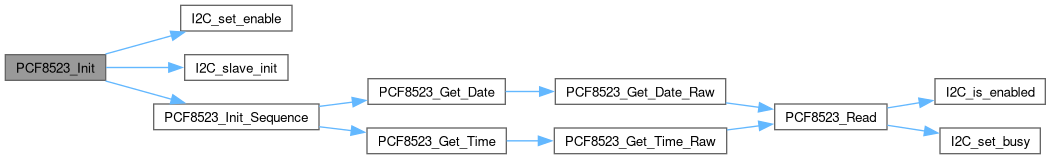

Here is the call graph for this function:

PCF8523_Read()

FctERR PCF8523_Read	(	uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for PCF8523 peripheral.

Parameters

[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

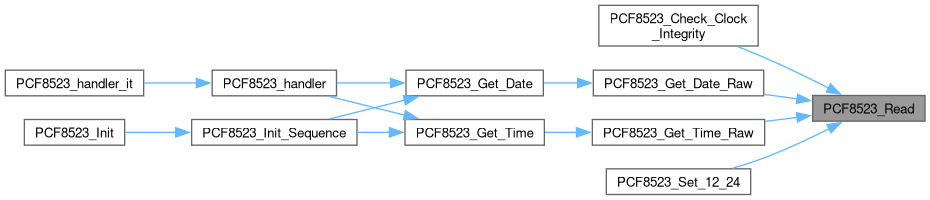

Here is the caller graph for this function:

PCF8523_Write()

FctERR PCF8523_Write	(	const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for PCF8523 peripheral.

Parameters

[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

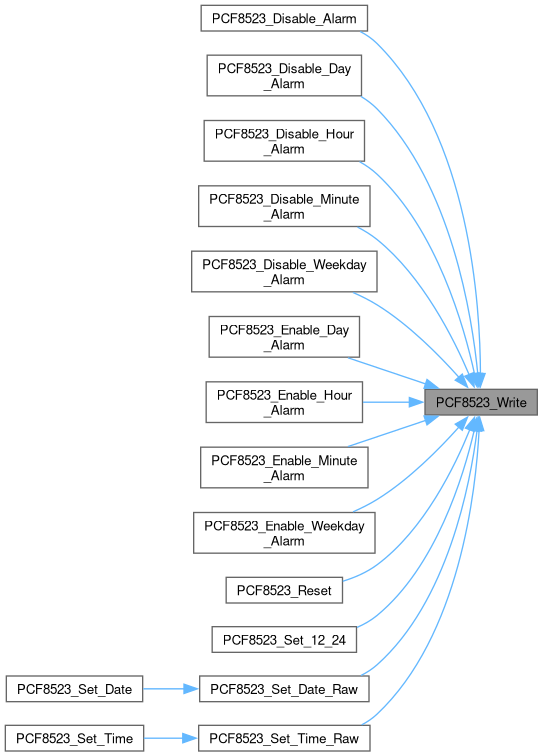

Here is the caller graph for this function:
