TMP1075.c File Reference

TMP1075 Driver. More...

#include "TMP1075.h"

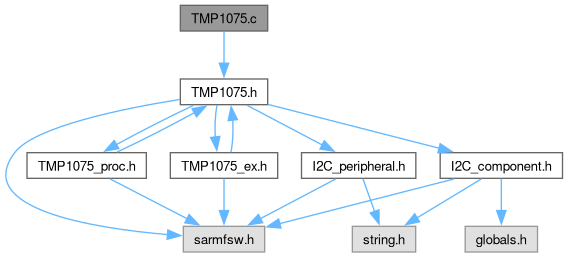

Include dependency graph for TMP1075.c:

Functions
FctERR	TMP1075_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for TMP1075 peripheral.
FctERR	TMP1075_Init_Single (void)
	Initialization for TMP1075 peripheral.
FctERR	TMP1075_Write_Byte (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr)
	I2C Write function for TMP1075.
FctERR	TMP1075_Read_Byte (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr)
	I2C Read function for TMP1075.
FctERR	TMP1075_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for TMP1075.
FctERR	TMP1075_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for TMP1075.

Detailed Description

TMP1075 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TMP1075: Temperature Sensor With I2C and SMBus Interface in Industry Standard LM75 Form Factor and Pinout

Function Documentation

TMP1075_Init()

FctERR TMP1075_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for TMP1075 peripheral.

Parameters

[in]	idx	- TMP1075 index
[in]	hi2c	- pointer to TMP1075 I2C instance
[in]	devAddress	- TMP1075 device address

Returns

FctERR - error code

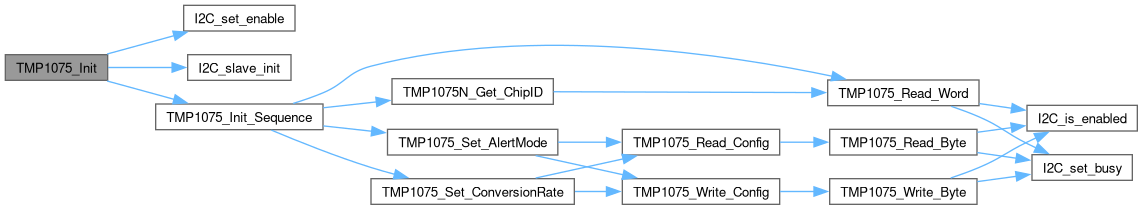

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_Init_Single()

FctERR TMP1075_Init_Single

(

void

)

Initialization for TMP1075 peripheral.

Warning

In case multiple devices (defined by I2C_TMP1075_NB > 1), you shall use TMP1075_Init instead

Returns

FctERR - error code

Here is the call graph for this function:

TMP1075_Read_Byte()

FctERR TMP1075_Read_Byte	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr )

I2C Read function for TMP1075.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TMP1075_Read_Word()

FctERR TMP1075_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for TMP1075.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

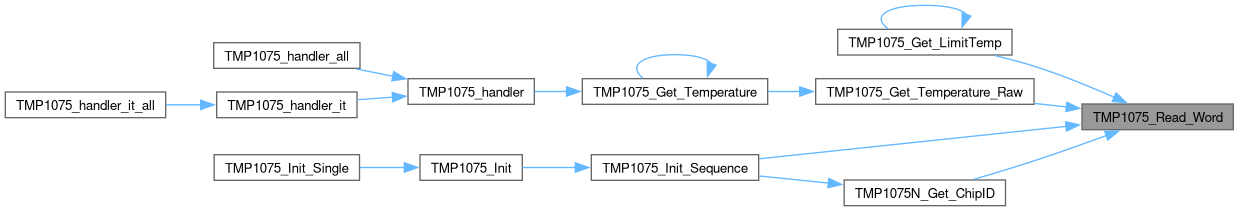

Here is the caller graph for this function:

TMP1075_Write_Byte()

FctERR TMP1075_Write_Byte	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr )

I2C Write function for TMP1075.

Parameters

[in]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

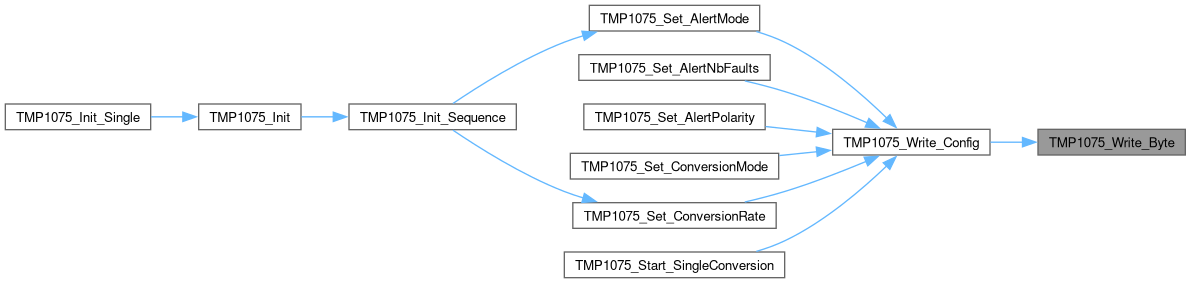

Here is the caller graph for this function:

TMP1075_Write_Word()

FctERR TMP1075_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for TMP1075.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
