BMP180_ex.c File Reference

BMP180 Driver extensions. More...

#include "BMP180.h"

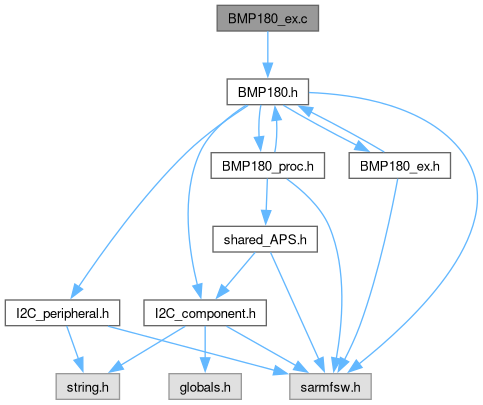

Include dependency graph for BMP180_ex.c:

Functions
FctERR	BMP180_Start_Conversion (BMP180_t *const pCpnt, const BMP180_meas meas)
	Start BMP180 Temperature/Pressure conversion.
FctERR	BMP180_Get_Temperature_Raw (BMP180_t *const pCpnt, int32_t *tp)
	Get Raw Temperature.
FctERR	BMP180_Get_Pressure_Raw (BMP180_t *const pCpnt, int32_t *pr)
	Get Raw Pressure.

Detailed Description

BMP180 Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

BMP180: Digital pressure sensor

Function Documentation

BMP180_Get_Pressure_Raw()

FctERR BMP180_Get_Pressure_Raw	(	BMP180_t *const	pCpnt,
		int32_t *	pr )

Get Raw Pressure.

Parameters

[in]	pCpnt	- Pointer to BMP180 component
[in,out]	pr	- pointer to raw pressure result

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

BMP180_Get_Temperature_Raw()

FctERR BMP180_Get_Temperature_Raw	(	BMP180_t *const	pCpnt,
		int32_t *	tp )

Get Raw Temperature.

Parameters

[in]	pCpnt	- Pointer to BMP180 component
[in,out]	tp	- pointer to raw temperature result

Returns

FctERR - error code

Here is the call graph for this function:

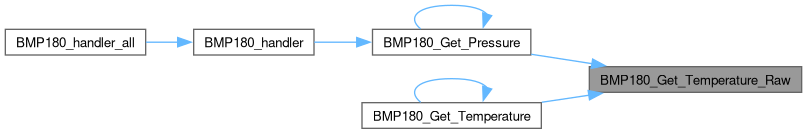

Here is the caller graph for this function:

BMP180_Start_Conversion()

FctERR BMP180_Start_Conversion	(	BMP180_t *const	pCpnt,
		const BMP180_meas	meas )

Start BMP180 Temperature/Pressure conversion.

Parameters

[in]	pCpnt	- Pointer to BMP180 component
[in]	meas	- Temperature / Pressure

Returns

FctERR - error code

Here is the call graph for this function:

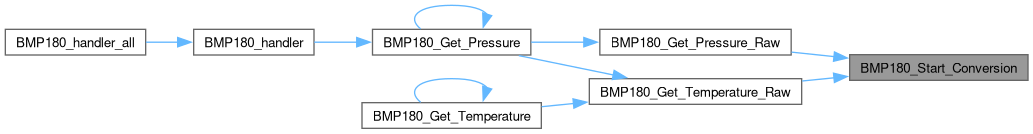

Here is the caller graph for this function:
