PCF8523_t Struct Reference

PCF8523 user interface struct. More...

#include <PCF8523_proc.h>

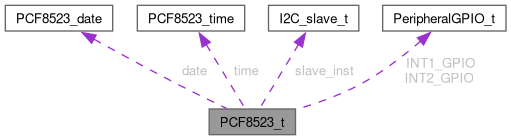

Collaboration diagram for PCF8523_t:

Data Fields
PCF8523_date	date
PCF8523_time	time
struct {
I2C_slave_t *   slave_inst
	Slave structure. More...
PeripheralGPIO_t   INT1_GPIO
	Interrupt 1 GPIO struct. More...
PeripheralGPIO_t   INT2_GPIO
	Interrupt 2 GPIO struct. More...
uint8_t   Src_Clock_A
uint8_t   Src_Clock_B
bool   Hour_Format
	0: 24h; 1: 12h More...
}	cfg

Detailed Description

PCF8523 user interface struct.

Field Documentation

[struct]

struct { ... } PCF8523_t::cfg

date

PCF8523_date PCF8523_t::date

Hour_Format

bool PCF8523_t::Hour_Format

0: 24h; 1: 12h

INT1_GPIO

PeripheralGPIO_t PCF8523_t::INT1_GPIO

Interrupt 1 GPIO struct.

INT2_GPIO

PeripheralGPIO_t PCF8523_t::INT2_GPIO

Interrupt 2 GPIO struct.

slave_inst

I2C_slave_t* PCF8523_t::slave_inst

Slave structure.

Src_Clock_A

uint8_t PCF8523_t::Src_Clock_A

Src_Clock_B

uint8_t PCF8523_t::Src_Clock_B

time

PCF8523_time PCF8523_t::time

---

The documentation for this struct was generated from the following file:

• PCF8523_proc.h
