TCS3472.h File Reference

TCS3472 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "TCS3472_proc.h"
#include "TCS3472_ex.h"

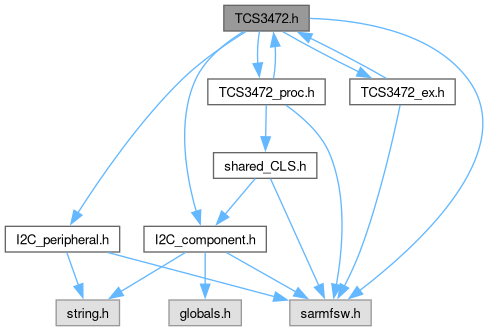

Include dependency graph for TCS3472.h:

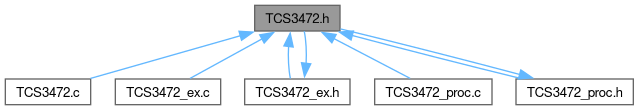

This graph shows which files directly or indirectly include this file:

Data Structures
union	uTCS3472_CMD
	Union for COMMAND register of TCS3472. More...
union	uTCS3472_REG__ENABLE
	Union for ENABLE register of TCS3472. More...
union	uTCS3472_REG__PERSIST
	Union for PERSIST register of TCS3472. More...
union	uTCS3472_REG__CONFIG
	Union for CONFIG register of TCS3472. More...
union	uTCS3472_REG__CONTROL
	Union for CONTROL register of TCS3472. More...
union	uTCS3472_REG__STATUS
	Union for STATUS register of TCS3472. More...

Macros
#define	I2C_TCS3472_NB   1U
	Number of TCS3472 peripherals.
#define	TCS34721_ADDR   0x39U
	TCS34721 Base address.
#define	TCS34723_ADDR   0x39U
	TCS34723 Base address.
#define	TCS34725_ADDR   0x29U
	TCS34725 Base address.
#define	TCS34727_ADDR   0x29U
	TCS34727 Base address.
#define	TCS3472_BASE_ADDR   TCS34725_ADDR
	TCS3472 Base address.

Enumerations
enum	TCS3472_reg {   TCS3472__ENABLE = 0U , TCS3472__ATIME , TCS3472__WTIME = 0x03U , TCS3472__AILTL ,   TCS3472__AILTH , TCS3472__AIHTL , TCS3472__AIHTH , TCS3472__PERSIST = 0x0CU ,   TCS3472__CONFIG , TCS3472__CONTROL = 0x0FU , TCS3472__ID = 0x12U , TCS3472__STATUS ,   TCS3472__CDATAL , TCS3472__CDATAH , TCS3472__RDATAL , TCS3472__RDATAH ,   TCS3472__GDATAL , TCS3472__GDATAH , TCS3472__BDATAL , TCS3472__BDATAH }
	Register map enum of TCS3472. More...
enum	TCS3472_transaction { TCS3472__TRANS_NORMAL_OP = 1U , TCS3472__TRANS_SPECIAL_FUNC = 3U }
	Transaction types of TCS3472. More...
enum	TCS3472_spec_func { TCS3472__SF_CLR_IT = 6U }
	Special functions of TCS3472. More...
enum	TCS3472_gain { TCS3472__LOW_GAIN = 0U , TCS3472__MEDIUM_GAIN , TCS3472__HIGH_GAIN , TCS3472__MAXIMUM_GAIN }
	Gain values of TCS3472. More...
enum	TCS3472_it_persist {   TCS3472__PERSIST_EVERY_RGBC_CYCLE = 0U , TCS3472__PERSIST_1_IT_PERIODS , TCS3472__PERSIST_2_IT_PERIODS , TCS3472__PERSIST_3_IT_PERIODS ,   TCS3472__PERSIST_5_IT_PERIODS , TCS3472__PERSIST_10_IT_PERIODS , TCS3472__PERSIST_15_IT_PERIODS , TCS3472__PERSIST_20_IT_PERIODS ,   TCS3472__PERSIST_25_IT_PERIODS , TCS3472__PERSIST_30_IT_PERIODS , TCS3472__PERSIST_35_IT_PERIODS , TCS3472__PERSIST_40_IT_PERIODS ,   TCS3472__PERSIST_45_IT_PERIODS , TCS3472__PERSIST_50_IT_PERIODS , TCS3472__PERSIST_55_IT_PERIODS , TCS3472__PERSIST_60_IT_PERIODS }
	Persistence control of TCS3472. More...

Functions
FctERR	TCS3472_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for TCS3472 peripheral.
FctERR	TCS3472_Init_Single (void)
	Initialization for TCS3472 peripheral.
FctERR	TCS3472_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for TCS3472.
FctERR	TCS3472_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for TCS3472.
FctERR	TCS3472_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Word Write (little endian) function for TCS3472.
FctERR	TCS3472_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Word Read (little endian) function for TCS3472.
FctERR	TCS3472_Write_Special (I2C_slave_t *const pSlave, const TCS3472_spec_func func)
	I2C Special function Write function for TCS3472.

Detailed Description

TCS3472 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

TCS3472: Color light-to-digital converter with IR filter

Macro Definition Documentation

I2C_TCS3472_NB

#define I2C_TCS3472_NB   1U

Number of TCS3472 peripherals.

Note

Define I2C_TCS3472_NB to enable multiple peripherals of this type

TCS34721_ADDR

#define TCS34721_ADDR   0x39U

TCS34721 Base address.

TCS34723_ADDR

#define TCS34723_ADDR   0x39U

TCS34723 Base address.

TCS34725_ADDR

#define TCS34725_ADDR   0x29U

TCS34725 Base address.

TCS34727_ADDR

#define TCS34727_ADDR   0x29U

TCS34727 Base address.

TCS3472_BASE_ADDR

#define TCS3472_BASE_ADDR   TCS34725_ADDR

TCS3472 Base address.

Note

Define TCS3472_BASE_ADDR to change default device base address

Enumeration Type Documentation

TCS3472_gain

enum TCS3472_gain

Gain values of TCS3472.

Enumerator
TCS3472__LOW_GAIN	Low gain mode (x1)
TCS3472__MEDIUM_GAIN	Medium gain mode (x4)
TCS3472__HIGH_GAIN	High gain mode (x16)
TCS3472__MAXIMUM_GAIN	Maximum gain mode (x60)

TCS3472_it_persist

enum TCS3472_it_persist

Persistence control of TCS3472.

Enumerator
TCS3472__PERSIST_EVERY_RGBC_CYCLE	Every RGBC cycle generates interrupt.
TCS3472__PERSIST_1_IT_PERIODS	1 integration time periods out of range
TCS3472__PERSIST_2_IT_PERIODS	2 integration time periods out of range
TCS3472__PERSIST_3_IT_PERIODS	3 integration time periods out of range
TCS3472__PERSIST_5_IT_PERIODS	5 integration time periods out of range
TCS3472__PERSIST_10_IT_PERIODS	10 integration time periods out of range
TCS3472__PERSIST_15_IT_PERIODS	15 integration time periods out of range
TCS3472__PERSIST_20_IT_PERIODS	20 integration time periods out of range
TCS3472__PERSIST_25_IT_PERIODS	25 integration time periods out of range
TCS3472__PERSIST_30_IT_PERIODS	30 integration time periods out of range
TCS3472__PERSIST_35_IT_PERIODS	35 integration time periods out of range
TCS3472__PERSIST_40_IT_PERIODS	40 integration time periods out of range
TCS3472__PERSIST_45_IT_PERIODS	45 integration time periods out of range
TCS3472__PERSIST_50_IT_PERIODS	50 integration time periods out of range
TCS3472__PERSIST_55_IT_PERIODS	55 integration time periods out of range
TCS3472__PERSIST_60_IT_PERIODS	60 integration time periods out of range

TCS3472_reg

enum TCS3472_reg

Register map enum of TCS3472.

Enumerator
TCS3472__ENABLE	Enables states and interrupts.
TCS3472__ATIME	RGBC time.
TCS3472__WTIME	Wait time.
TCS3472__AILTL	Interrupt low threshold low byte.
TCS3472__AILTH	Interrupt low threshold high byte.
TCS3472__AIHTL	Interrupt high threshold low byte.
TCS3472__AIHTH	Interrupt high threshold high byte.
TCS3472__PERSIST	Interrupt persistence filter.
TCS3472__CONFIG	Configuration.
TCS3472__CONTROL	Control.
TCS3472__ID	Device ID.
TCS3472__STATUS	Device status.
TCS3472__CDATAL	Clear low data byte.
TCS3472__CDATAH	Clear high data byte.
TCS3472__RDATAL	Red low data byte.
TCS3472__RDATAH	Red high data byte.
TCS3472__GDATAL	Green low data byte.
TCS3472__GDATAH	Green high data byte.
TCS3472__BDATAL	Blue low data byte.
TCS3472__BDATAH	Blue high data byte.

TCS3472_spec_func

enum TCS3472_spec_func

Special functions of TCS3472.

Enumerator
TCS3472__SF_CLR_IT	Clear channel interrupt clear.

TCS3472_transaction

enum TCS3472_transaction

Transaction types of TCS3472.

Enumerator
TCS3472__TRANS_NORMAL_OP	Normal operation.
TCS3472__TRANS_SPECIAL_FUNC	Special Function.

Function Documentation

TCS3472_Init()

FctERR TCS3472_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for TCS3472 peripheral.

Parameters

[in]	idx	- TCS3472 index
[in]	hi2c	- pointer to TCS3472 I2C instance
[in]	devAddress	- TCS3472 device address

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3472_Init_Single()

FctERR TCS3472_Init_Single

(

void

)

Initialization for TCS3472 peripheral.

Warning

In case multiple devices (defined by I2C_TCS3472_NB > 1), you shall use TCS3472_Init instead

Returns

FctERR - error code

Here is the call graph for this function:

TCS3472_Read()

FctERR TCS3472_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for TCS3472.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3472_Read_Word()

FctERR TCS3472_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Word Read (little endian) function for TCS3472.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

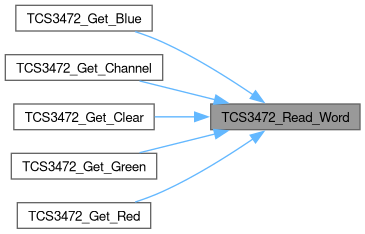

Here is the caller graph for this function:

TCS3472_Write()

FctERR TCS3472_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for TCS3472.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3472_Write_Special()

FctERR TCS3472_Write_Special	(	I2C_slave_t *const	pSlave,
		const TCS3472_spec_func	func )

I2C Special function Write function for TCS3472.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	func	- special function to execute

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

TCS3472_Write_Word()

FctERR TCS3472_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Word Write (little endian) function for TCS3472.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:
